Steel fibers are short, discrete lengths of steel mixed into concrete, mortar, or grout to provide three-dimensional, isotropic crack control and post-crack ductility. Unlike a single placed reinforcing bar, thousands of fibers per kilogram distribute throughout the matrix and bridge cracks wherever they form, turning brittle concrete into a material that carries load after it cracks.
In design terms, the value of a steel fiber is not its raw tensile strength but the residual flexural strength it gives the hardened concrete, measured at a defined crack width. That single shift, from rating the wire to rating the cracked composite, governs how the two controlling standards, ASTM A820 and EN 14889-1, are written and how engineers specify dosage.

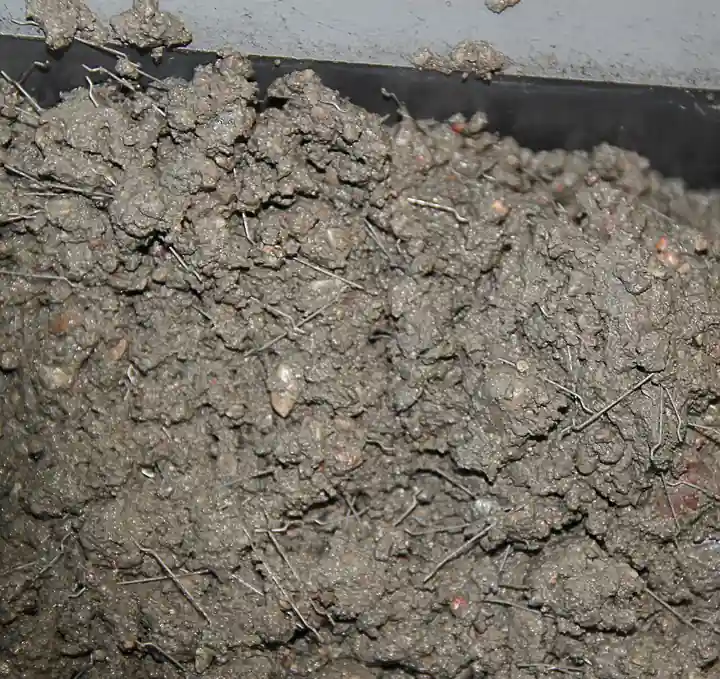

Photo: Radosław Bieniek, CC BY-SA 4.0, via Wikimedia Commons
This guide is aimed at industrial purchasing engineers and design engineers. It covers 6 chapters from what a steel fiber is, through type and anchorage classification, ASTM A820 and EN 14889-1 grades, dosage and mix design, spec-sheet decoding, to selection decisions, with 7 selection FAQs and manufacturer comparisons. All parameters reference ASTM A820/A820M, EN 14889-1, EN 14651, ACI 544, and fib Model Code 2010 public standards.
Chapter 1 / 06
What is a Steel Fiber
A steel fiber is a short discrete length of steel, typically 6 to 60 mm long and 0.15 to 1.2 mm in diameter, designed to be mixed uniformly into fresh concrete, mortar, or grout so that the hardened material carries tensile load across cracks. Plain concrete is strong in compression but brittle in tension: once a crack opens, an unreinforced section loses load capacity almost immediately. Adding fibers does not make concrete crack-proof, but it changes the post-crack behavior from sudden failure to a controlled, ductile response in which fibers bridging the crack continue to transfer stress. This residual, or post-crack, load capacity is the entire engineering purpose of the fiber.
The defining feature that separates fibers from conventional reinforcement is distribution. A welded mesh or a placed bar reinforces only the plane it sits in, and only if the crack happens to cross it at the right depth. Fibers, by contrast, are present in every direction at every point: a single kilogram of 35 mm hooked-end fiber contains on the order of several thousand individual pieces, so cracks are intercepted wherever and however they form. This isotropic crack control is why fibers excel in elements where crack location cannot be predicted, such as slabs on ground, sprayed tunnel linings, and precast panels.
The industrial history of steel fiber concrete is relatively recent. The concept of fiber-reinforced cementitious material was patented in the early twentieth century, but the modern hooked-end fiber that defines the market today was commercialized by N.V. Bekaert in Belgium in the 1970s under the Dramix name, using cold-drawn wire with mechanical end anchors. The American Concrete Institute formed Committee 544 on fiber-reinforced concrete in the same decade, and ASTM A820 followed as the first dedicated material specification. Europe standardized later with EN 14889-1 in 2006, which for the first time tied fiber conformity to in-concrete residual flexural strength rather than to fiber geometry alone.
Steel fibers compete with, and increasingly replace, two traditional products: welded wire mesh and light bar reinforcement. The economic case rests on labor. Placing and tying mesh is slow, requires correct cover and chairing, and adds a trade to the critical path of a pour. Fibers are batched at the plant or added at the truck and require no placement labor on site, which is decisive for large industrial floors and continuous tunnel operations. The trade-off is that fibers cannot position a precise tension force at a precise depth, so they suit distributed-load elements far better than concentrated-load structural members.
Four engineering metrics determine steel fiber quality in a given mix: tensile strength of the wire, aspect ratio (length over diameter), anchorage geometry, and the resulting residual flexural strength of the composite. The first three are properties of the fiber that you can read from a datasheet; the fourth is a property of the fiber-and-concrete system that must be measured by beam test on the actual mix. Treating the headline tensile number as the selection driver is the most common beginner error, because a high-strength wire with weak anchorage can deliver less residual strength than a modest wire that is well anchored.
Chapter 2 / 06
Fiber Types and Anchorage Geometry
Steel fibers are classified two independent ways: by manufacturing route, which determines cross-section and surface, and by anchorage geometry, which determines how the fiber grips the matrix and resists pullout. Anchorage matters because a smooth straight fiber simply slides out of the concrete at a low load; the shaped end or deformed body is what converts the wire's tensile strength into useful crack-bridging force. The table below compares the main anchorage families.
Anchorage type
Typical cross-section
Pullout mechanism
Typical use
Hooked end
Round, cold-drawn wire
End hook deforms and grips
Floors, tunnels, precast
Crimped (wave)
Round or flat
Full-length mechanical interlock
General slabs, shotcrete
Flat / shear-cut
Rectangular sheet strip
Surface friction, low anchorage
Low-cost, non-structural
Twisted / deformed
Triangular or polygonal
Untwisting plus friction
High-performance UHPC
Melt-extracted
Irregular crescent
Rough surface friction
Refractory, heat-resistant
Hooked-end fibers are the dominant structural product. A cold-drawn round wire is bent into hooks at both ends; under load the hook progressively deforms and straightens, dissipating energy and resisting pullout while the straight shank stays elastic. This controlled deformation is what gives hooked fibers their high post-crack toughness. The Bekaert Dramix family illustrates the progression: 3D uses a conventional hook for general flooring, 4D applies an improved hook to a higher-strength wire, and 5D is shaped so the anchor is strong enough that the pullout mechanism is replaced by elongation of the wire itself, delivering the highest ductility class.
Crimped fibers carry a continuous wave along the whole length, so anchorage comes from mechanical interlock distributed over the fiber rather than concentrated at the ends. Euclid Chemical PSI is a representative crimped product that complies with ASTM A820 Type V. Crimped fibers mix readily and resist pullout well, but they generally need slightly higher dosage than hooked-end fibers to reach the same residual strength because the per-fiber anchor force is lower.
Flat or shear-cut sheet fibers are stamped from steel strip and have a rectangular cross-section. They are the cheapest fibers and rely mainly on surface friction, so anchorage is weak and they are used for crack control in non-structural or lightly loaded concrete. Melt-extracted fibers are formed by drawing a rotating wheel across molten steel, producing an irregular crescent section with a rough surface; their main market is refractory and high-temperature concrete, where stainless or heat-resistant alloys are needed. Twisted and deformed high-performance fibers, often brass-coated and very fine, are used in ultra-high-performance concrete where extreme bond and very high fiber counts are required.
Aspect ratio, length divided by diameter, ties geometry to performance. Most macro structural fibers fall between aspect ratio 40 and 80. Within a fiber family, raising the aspect ratio increases the bond area and the number of fibers crossing each crack, so residual strength rises at a fixed dosage; the limit is workability, because long thin fibers tangle and ball during mixing. Manufacturers counter balling by gluing fibers into combs or bundles with a water-soluble adhesive that disperses during mixing, which lets high-aspect-ratio fibers be batched without clumping.
Chapter 3 / 06
ASTM A820 and EN 14889-1 Grades
Two standards govern steel fibers worldwide. ASTM A820/A820M is the North American material specification, and EN 14889-1 is the European specification used across most of Asia, the Middle East, and the Commonwealth. They share a five-way manufacturing classification but differ fundamentally in philosophy: ASTM A820 qualifies the fiber as a product, while EN 14889-1 also qualifies its performance inside concrete. Understanding both is essential because most global projects cite one or the other in the specification.
Class
ASTM A820 type
EN 14889-1 group
Manufacturing route
1
Type I
Group I
Cold-drawn wire
2
Type II
Group II
Cut sheet
3
Type III
Group III
Melt-extracted
4
Type IV
Group IV
Mill cut / shaved cold-drawn wire
5
Type V
Group V
Modified cold-drawn wire / milled from blocks
ASTM A820 sets pass-fail requirements on the fiber itself. The average tensile strength of the finished fiber must be at least 345 MPa (50,000 psi), measured by tensile test on randomly selected fibers. A bend test requires fibers bent around a 3.2 mm pin to an angle of 90 degrees, with no more than 10 percent of the sample breaking, which screens out brittle wire. The standard also fixes tolerances on length, diameter or equivalent diameter, and the nominal aspect ratio, where the equivalent diameter is the diameter of a circle with the same cross-sectional area for non-round fibers. ASTM A820 does not, however, say anything about how the fiber performs in concrete; that is left to the project specification.
EN 14889-1 adds the in-concrete dimension. It carries the same five production groups but requires the supplier to declare, on the CE certificate, the dosage in kilograms per cubic meter at which the fiber achieves a residual flexural strength of 1.5 MPa at a crack mouth opening displacement (CMOD) of 0.5 mm and 1.0 MPa at CMOD of 3.5 mm, when tested in a reference concrete to EN 14651. Tensile strength is determined to EN 10002-1 (now EN ISO 6892-1) with declared tolerance bands. The practical consequence is that an EN 14889-1 datasheet tells you not just how strong the wire is, but how much of it you need to reach a defined structural performance, which is exactly the number a designer wants.
The two standards also differ on the headline strength number. Commercial cold-drawn structural fibers far exceed the ASTM minimum: a typical hooked-end fiber such as Dramix 3D 65/35BG has a wire tensile strength around 1,345 N/mm-squared, a 35 mm length, a 0.55 mm diameter, and an aspect ratio near 64. Higher classes push the wire strength further, with 4D and 5D fibers using stronger wire so the same residual strength is reached at lower dosage. The ASTM 345 MPa floor is a safety screen, not a representative value.
Performance classification sits on top of both material standards. The fib Model Code 2010, the dominant international design framework for fiber-reinforced concrete, classifies the hardened material not by the fiber but by the beam-test residual strengths fR1 (at CMOD 0.5 mm) and fR3 (at CMOD 2.5 mm). It assigns a strength number from a series such as 1.0, 1.5, 2.0, 2.5 MPa and rising for fR1, plus a letter a through e describing the fR3 to fR1 ratio, which captures whether the cracked concrete softens or hardens. A specification such as "4c" therefore communicates both the serviceability crack-control level and the ultimate ductility in two characters, and it is the cleanest way to write a fiber-concrete performance requirement.
Chapter 4 / 06
Dosage and Mix Design
Dosage is the central design decision, and it is set by the required residual strength, never picked from a generic table. ACI guidance places typical structural dosages between 12 and 42 kg per cubic meter, with ACI 360R recommending that ground-supported slab dosage never fall below 20 kg per cubic meter. Strain-hardening behavior, where the cracked section can carry more than the cracking load, generally begins above roughly 36 kg per cubic meter for deformed steel fibers. Elevated structural slabs, addressed by ACI 544.6R, may require 50 to 100 kg per cubic meter. The correct workflow is to fix the design fR1 and fR3 from the load case, then obtain from the supplier the dosage that reaches them on your concrete class by EN 14651 beam test.
The table below maps common applications to typical dosage bands and the controlling design concern. These are starting points for an RFQ, not final design values; the residual-strength target must always be confirmed by test on the project mix.
Application
Typical dosage (kg/m³)
Controlling concern
Slab on ground, light industrial floor
20 to 35
Shrinkage and joint crack control
Heavy-duty / jointless floor
30 to 45
Residual flexural strength fR3
Sprayed concrete (shotcrete) tunnel lining
25 to 45
Energy absorption, EN 14488
Precast segments and pipes
30 to 60
Handling and demolding loads
Elevated structural slab
50 to 100
Punching shear, ACI 544.6R
Ultra-high-performance concrete (UHPC)
120 to 240
Strain-hardening, fiber volume
Workability falls as fiber dosage and aspect ratio rise, because fibers increase the surface area that the paste must coat and they interlock during flow. A mix that is fluid at zero fibers can become stiff and prone to fiber balling at high dosage. The standard countermeasures are higher paste content, a smaller maximum aggregate size (typically not exceeding two-thirds of the fiber length), a superplasticizer, and glued fiber bundles that disperse only after the clumps break in the mixer. Slump measured by cone underestimates fiber-concrete workability, so the inverted-slump-cone or VeBe test gives a truer picture.
Mixing sequence matters. Fibers are normally added last, to wet concrete, either at the batch plant conveyor or into the truck, then mixed at high speed for a defined number of revolutions to ensure uniform dispersion before discharge. Adding fibers to dry aggregate or all at once promotes balling. Dispersion should be verified by washout sampling: a fixed volume of fresh concrete is washed over a sieve and the recovered fiber mass is weighed and compared to the target dosage, which is the field check that the specified mass actually entered the mix.
Macro and micro blends address different crack stages. Micro fibers below 0.3 mm diameter and 6 to 13 mm long control plastic-shrinkage and early-age microcracking in the first day after placement but add little structural capacity. Macro fibers at or above 0.3 mm diameter and 30 to 60 mm long govern the long-term residual flexural strength used in design. High-performance mixes often dose both so the micro fibers arrest fine cracks while the macro fibers carry the post-crack structural load, but each must be specified by the crack stage it controls.
Chapter 5 / 06
Key Specification Parameters
A steel fiber datasheet typically lists eight to twelve parameters, but only seven truly drive selection: length, diameter and aspect ratio, wire tensile strength, anchorage and modulus, residual flexural strength of the composite, dosage, and material grade or coating. Each is explained below, with the distinction between fiber properties and composite properties kept explicit, because confusing the two is the source of most specification errors.
Length, diameter, and aspect ratio are the geometric core. Macro structural fibers are commonly 30 to 60 mm long with equivalent diameters of 0.5 to 1.1 mm, giving aspect ratios of 40 to 80. Length should be at least three times the maximum aggregate size so fibers can bridge cracks between coarse particles. The product code usually encodes both: in Dramix 3D 65/35, the 65 is the aspect ratio and the 35 is the length in millimeters. Equivalent diameter, the diameter of a circle of equal cross-sectional area, is used for non-round fibers so aspect ratio stays comparable across fiber families.
Wire tensile strength is the bare-fiber strength, measured to ASTM A820 or EN 10002-1, and reported in MPa or N/mm-squared. ASTM A820 sets a 345 MPa minimum, but commercial cold-drawn structural fibers run far higher, commonly 1,000 to 2,300 MPa, with high-end classes such as Dramix 4D and 5D at the top. A high wire strength only pays off if the anchorage can develop it: if the fiber pulls out before the wire yields, the extra strength is wasted, which is why anchorage and tensile strength must be read together.
Residual flexural strength is the property that actually appears in structural calculations, and it belongs to the cracked composite, not the fiber. It is measured in the EN 14651 three-point notched-beam test, which loads a 150 by 150 by 550 mm beam and records the load at four crack-mouth openings. The key outputs are fR1 at CMOD 0.5 mm, which governs serviceability crack control, and fR3 at CMOD 2.5 mm, which governs ultimate ductility. ASTM C1609 is the comparable North American flexural-toughness test using a third-point loaded beam. Because these values depend on concrete strength, aggregate, and dosage, they must be measured on the project mix and cannot be transferred between mixes.
Material grade and coating set durability and special-environment performance. The five mainstream options are listed below.
Low-carbon cold-drawn wire: the default for structural fibers, carbon at or below about 0.15 percent, high ductility, lowest cost.
High-carbon wire: carbon above 0.40 percent, drawn to very high tensile strength for the 4D and 5D performance classes.
Galvanized (zinc-coated): improved surface-rust resistance for architectural floors where staining is a concern.
Stainless steel (AISI 304 / 316): for refractory, marine, and chloride-rich service where embedded corrosion must be excluded.
Brass-coated micro fibers: very fine high-strength fibers for UHPC, where bond and high fiber count dominate.
Dosage and fiber count close the loop between datasheet and mix. The same residual strength can come from a low dose of a strong, well-anchored fiber or a higher dose of a weaker one, so dosage is meaningful only paired with the residual-strength target. Fiber count per kilogram, which falls as diameter rises, governs distribution: more fibers per kilogram means more crack intercepts and smoother performance at low dosage, which is why fine high-aspect-ratio fibers are favored where uniform fine-crack control matters.
Chapter 6 / 06
Selection Decision Factors
To turn the preceding five chapters into a specific product, follow the decision sequence below. Most selection mistakes come not from one wrong number but from deciding the fiber before deciding the structural performance it must deliver. These eight steps can serve as a fixed RFQ template.
Define the structural role first: decide whether fibers replace mesh entirely (distributed-load slabs, shotcrete, precast) or supplement primary rebar (suspended structural members). This decision, set by the structural model, precedes every fiber property.
Set the residual strength target: derive the required fR1 (serviceability crack control) and fR3 (ultimate ductility) from the load case, then express the requirement as a fib Model Code 2010 class such as "2.5c." This is the number the supplier sizes dosage against.
Choose anchorage and aspect ratio: hooked-end for the highest structural toughness, crimped for easy mixing, flat shear-cut only for non-structural crack control. Keep aspect ratio in the 40 to 80 band and length at least three times the maximum aggregate size.
Select wire strength and material grade: standard cold-drawn wire for general use, high-carbon 4D or 5D classes where low dosage is needed, stainless or galvanized for corrosion or architectural exposure.
Confirm standard conformity: require ASTM A820/A820M type and CE EN 14889-1 group declarations, and obtain the EN 14651 or ASTM C1609 beam-test data on a concrete class close to the project mix.
Size dosage with the supplier: ask for the kg per cubic meter that achieves the target residual strength on your mix, not a catalog default. Cross-check against the application band: 20 to 45 for floors, 50 to 100 for elevated slabs.
Verify workability and mixing plan: agree the fiber form (loose or glued bundles), maximum aggregate size, admixture, addition point, and mixing revolutions, and require a washout dispersion check on the first loads.
Total cost of ownership (TCO): compare fiber-plus-batching cost against mesh material, placement labor, and schedule. Fibers often cost more per cubic meter of material but remove a placement trade from the critical path, which usually decides large industrial floors.
One last commonly overlooked dimension is supplier serviceability and documentation: a current CE Declaration of Performance, project-specific EN 14651 test reports, local technical support for mix trials, and reliable bagged-fiber logistics to site. These seem secondary at tender but determine whether the specified residual-strength class is actually achieved in the pour. Established suppliers such as Bekaert (Dramix), Sika, Maccaferri, Euclid Chemical, and ArcelorMittal maintain test laboratories and field-engineering support, which de-risks large fiber-concrete projects compared with buying on the headline tensile number alone.
FAQ
What is the difference between ASTM A820 and EN 14889-1 steel fiber classification?
ASTM A820 classifies steel fibers by manufacturing route into five types: Type I cold-drawn wire, Type II cut sheet, Type III melt-extracted, Type IV mill cut, and Type V modified cold-drawn wire. It sets a minimum average tensile strength of 345 MPa (50,000 psi) and a bend test around a 3.2 mm pin to 90 degrees with no more than 10 percent breakage. EN 14889-1 uses five comparable production groups (I cold-drawn wire, II cut sheet, III melt-extracted, IV shaved cold-drawn wire, V milled from steel blocks), but its conformity is performance based: the supplier must declare the dosage in kg per cubic meter needed to reach 1.5 MPa residual flexural strength at CMOD 0.5 mm and 1.0 MPa at CMOD 3.5 mm, tested per EN 14651. ASTM gates the fiber, EN 14889-1 gates the fiber plus its in-concrete performance.
What is the difference between macro and micro steel fibers?
The dividing line is diameter 0.3 mm. Macro fibers have an equivalent diameter at or above 0.3 mm, typically 0.5 to 1.1 mm with lengths of 30 to 60 mm, and they carry structural post-crack load: they bridge wide cracks and provide the residual flexural strength used in slab and tunnel design. Micro fibers are below 0.3 mm diameter, usually 6 to 13 mm long, and they control early-age and plastic-shrinkage microcracking in the first 24 hours but contribute little to structural capacity. Many high-performance mixes blend the two so micro fibers arrest fine cracks and macro fibers govern the post-crack residual strength. Specify by which crack stage you need to control.
How do I determine the steel fiber dosage for a slab on ground?
Dosage is governed by the required residual flexural strength, not picked from a table. ACI guidance places typical dosages between 12 and 42 kg per cubic meter, and ACI 360 recommends never less than 20 kg per cubic meter for ground-supported slabs. Strain-hardening behavior generally begins above roughly 36 kg per cubic meter, and elevated structural slabs may need 50 to 100 kg per cubic meter. The correct procedure is to set the design residual strengths fR1 and fR3 from the load case, then ask the fiber supplier for the dosage that achieves them with EN 14651 beam tests on your concrete class. Higher tensile-strength fibers, such as Dramix 4D and 5D, reach the same residual strength at lower mass.
Will steel fibers corrode and stain the concrete surface?
Fibers fully embedded in sound, uncracked concrete are protected by the alkaline pore environment and do not corrode, even in chloride exposure, because there is no continuous corrosion path. Surface fibers can rust and leave brown spots, which is cosmetic, not structural. Where cracks stay below about 0.2 to 0.3 mm, research and field practice show corrosion is self-limiting and does not propagate along the fiber. For aggressive or architectural exposure, options are stainless steel fibers (AISI 304 or 316), galvanized fibers, or a switch to non-corrosive macro-synthetic fibers. For exposed decorative floors, low surface fiber count and good finishing matter more than the steel grade.
Can steel fibers fully replace conventional rebar and welded mesh?
For statically determinate, distributed-load elements such as slabs on ground, industrial floors, and sprayed tunnel linings, steel fibers routinely replace welded mesh and light rebar entirely, and design codes including fib Model Code 2010 and ACI 544.4R support this. For elements with concentrated loads, bending moments requiring a defined tension chord, or strict crack-width limits, such as suspended structural slabs, beams, and columns, fibers usually supplement rather than replace primary rebar. Fibers provide three-dimensional, isotropic crack control and post-crack ductility, but they cannot position a precise tension force at a precise depth the way placed bars can. The decision follows the structural model, not a blanket rule.
What does the residual flexural strength fR1 and fR3 mean on a spec sheet?
fR1 and fR3 are the residual flexural tensile strengths of the fiber-reinforced concrete measured in the EN 14651 three-point notched-beam test, not properties of the bare fiber. fR1 is read at crack mouth opening displacement CMOD 0.5 mm and represents serviceability-limit crack control, while fR3 is read at CMOD 2.5 mm and represents ultimate-limit ductility. fib Model Code 2010 classifies the concrete by the fR1 value (a strength class such as 1.0, 1.5, 2.0 MPa and rising) plus a letter a to e for the fR3 to fR1 ratio, which describes softening or hardening behavior. Always confirm these values were measured on your concrete class and dosage, because they are not transferable between mix designs.
Which manufacturers and series should I consider for structural fiber-reinforced concrete?
For structural macro fibers with full ASTM A820 and EN 14889-1 declarations, Bekaert Dramix is the reference series: 3D for general flooring, 4D for higher steel strength, and 5D for full-anchorage elongation behavior, all available as glued bundles to prevent balling. Sika offers SikaFiber and Maccaferri offers the Wirand steel fiber series for tunneling and precast. Euclid Chemical PSI is a crimped fiber compliant with ASTM A820 Type V, and ArcelorMittal HE+ supplies cold-drawn fibers. Chinese suppliers including Ganzhou Daye and various Hengshui producers supply hooked-end and shear-cut fibers at lower cost for non-critical floors. Match the series to the required residual strength class and the EN 14889-1 conformity certificate, not to the headline tensile number alone.
