A2 mineral-core ACM panels hold more than 90% non-combustible mineral filler and reach EN 13501-1 class A2-s1,d0, the highest reaction-to-fire rating a composite panel achieves in practice [S1][S5].
FR-core panels mix roughly 30% polymer with about 70% mineral filler, landing in the B-s1,d0 range for many product lines, a meaningful step up from PE cores but still combustible in the strict sense [S1][S5][S6]. The decision between them is driven by building height, occupancy, and the code regime governing the project, not by panel appearance.
Core Chemistry and Mineral Filler Content
Both FR and A2 cores use aluminum hydroxide (also called aluminum trihydrate, ATH) as the active fire-fighting ingredient; the mineral breaks down endothermically near 180 degrees Celsius, releasing water vapor that cools the panel surface and dilutes flammable gases [S1]. The mineral-to-polymer ratio is what separates the two grades, and that ratio shows up directly in fire-test behavior.
FR cores contain approximately 70% non-combustible mineral filler, with the remaining 30% still being a polymer binder that will burn under sufficient heat [S5][S6]. A2 cores push mineral content above 90%, leaving a small polymer binder that is insufficient to sustain combustion under the single-burning-item (SBI) test in EN 13501-1 [S1][S5]. A specifier who cannot confirm the filler percentage in writing is buying on trust, not data.
EN 13501-1 Reaction-to-Fire Classification
EN 13501-1 sorts construction products into Euroclasses A1, A2, B, C, D, E, and F, with sub-classes for smoke (s1 lowest to s3 highest) and flaming droplets (d0 none, d2 worst) [S2]. A2-s1,d0 is the class that codes targeting non-combustible or limited-combustibility cladding demand, while B-s1,d0 is the class most FR-core panels hit when tested as standalone products [S5].
The smoke and droplet sub-classes are not cosmetic: s1 means limited smoke production, and d0 means no burning droplets fall within the test window, both of which directly affect occupant tenability and secondary ignition risk on lower floors [S2][S5]. A panel that reads "A2" without the full "-s1,d0" suffix on its datasheet is incomplete documentation; request the full classification string and the test report number before procurement sign-off.

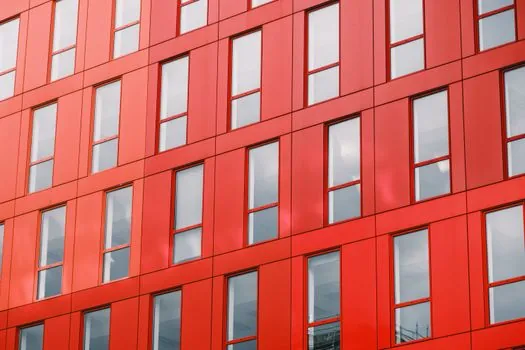

US Code Equivalence: NFPA 285 and Assembly Testing
On US projects, the Euroclass letter on a panel datasheet does not substitute for an NFPA 285 assembly test report, which evaluates the full wall build-up, including cavity, insulation, and fixings, rather than the panel in isolation [S3]. A PE-core panel fails NFPA 285 in typical exterior wall configurations above 40 ft, FR cores can pass in tested assemblies, and A2 cores pass with the widest range of compatible wall build-ups [S3][S4].
NFPA 285 results are configuration-specific: the report names the exact insulation type, cavity depth, stud framing, and panel-rail system that was tested, and any deviation on the project site can void that compliance [S3]. The correct procurement ask is four items: the test report number, the accredited laboratory, the test standard, and the assembly drawing showing what was actually fired, not a generic "fire-rated" letter [S3].
Mechanical Build-Up: Skins, Thickness, and Sandwich Structure
An aluminum composite panel is a three-layer sandwich: two thin coil-coated aluminum skins bonded to a central core, supplied in 3 mm, 4 mm, or 6 mm total thickness, with the core typically running 3.0–3.4 mm in a 4 mm panel [S4]. Skin alloys are commonly AA1xxx or AA3xxx series, with per-side thickness options of 0.21 mm, 0.30 mm, 0.40 mm, or 0.50 mm [S4].
Skin and core thicknesses are independent variables; a 4 mm panel with 0.50 mm skins and a 3.0 mm core is stiffer, heavier, and more expensive than a 4 mm panel with 0.30 mm skins and a 3.4 mm core, even though both are labeled "4 mm" on a quotation [S4]. Specifying both numbers in the purchase order is the only way to prevent the thinner-skin substitution that looks identical on delivery but behaves differently on the facade. The aluminum skins themselves do not burn in a typical building fire, but they soften near 660 degrees Celsius, the aluminum melting point, which is why the core chemistry is the deciding factor once the skin deforms [S1].

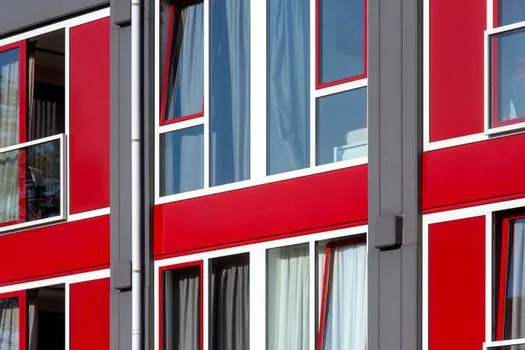

Decision Matrix: A2 vs FR by Building Type
For high-rise residential, hospitals, and institutional buildings, A2-s1,d0 is the only defensible specification because the code regime targets limited combustibility at the cladding plane, and only an A2 core delivers that margin [S5][S7]. For mid-rise commercial buildings where the local code accepts a B-class reaction-to-fire, FR-core panels provide improved fire performance at lower material cost, with a typical Euroclass B-s1,d0 rating on standalone panel tests [S2][S5].
For interior signage, shopfronts, displays, and non-regulated temporary uses, PE-core panels remain acceptable on cost grounds but should be excluded from any exterior wall assembly above 40 ft in US code or above the local height threshold in European code [S2][S3]. A2 is over-spec for a single-story retail fit-out and wastes budget; PE is under-spec for a hospital tower and creates liability; the crossover point sits in the FR range for most mid-rise projects where the code does not mandate non-combustibility [S3][S5].
Limitations and Failure Modes to Watch
Mineral cores trade away some of the workability and impact resistance of pure polyethylene: bending radius, fastener-pull strength, and cold-fold behavior are all reduced as filler content rises, and fabricators accustomed to PE-core handling need to adjust brake pressures and roller settings accordingly. A2 cores also weigh more per square meter than FR or PE cores of the same total thickness because the mineral filler is denser than polyethylene, which increases dead load on the sub-framing and may require re-checking rail spans. [S5]
Coating does not mitigate core behavior. Two 4 mm panels with identical PVDF coatings can sit on the same delivery, one with a PE core and one with an A2 core, and the paint will not change the fire-test outcome [S4]. Field substitution between grades is the most common cause of failed inspections on completed facades; the cure is a batch test report that names the core chemistry in writing, not a visual inspection of the panel face. For exterior wall assemblies, a passing panel-alone test is also not enough: the system must be tested as built, per BS 8414 / BR 135 in the UK or NFPA 285 in the US, with the specific insulation, cavity, and rail configuration named in the report [S3][S5].
Sourcing Checklist Before Procurement Sign-Off
Request five documents from any supplier offering fire-rated ACM for a regulated project: the EN 13501-1 classification report (full string, for example A2-s1,d0) or the NFPA 285 assembly test report (with report number, lab, and assembly drawing), the technical data sheet naming skin alloy and per-side skin thickness, the core composition in writing with mineral filler percentage, the intended-application guidance, and a batch test report tying the delivered lot to the certified formulation [S2][S3][S4].
For US projects, also verify that the NFPA 285 assembly configuration matches the actual wall build-up, including insulation type, cavity depth, and rail system, because configuration drift is the fastest path to failed inspection [S3]. For European projects, the Euroclass string on the datasheet and a Declaration of Performance (DoP) referencing the AVCP system under CPR 305/2011 are the minimum paperwork; a CE mark without an EN 13501-1 rating is incomplete. Aluminum composite panel selection in fire-rated applications is driven by what is in the core, what was tested, and what was specified, and the price gap between A2 and FR is a fair exchange for the step from B-class to A2-s1,d0 on the Euroclass scale [S1][S5].

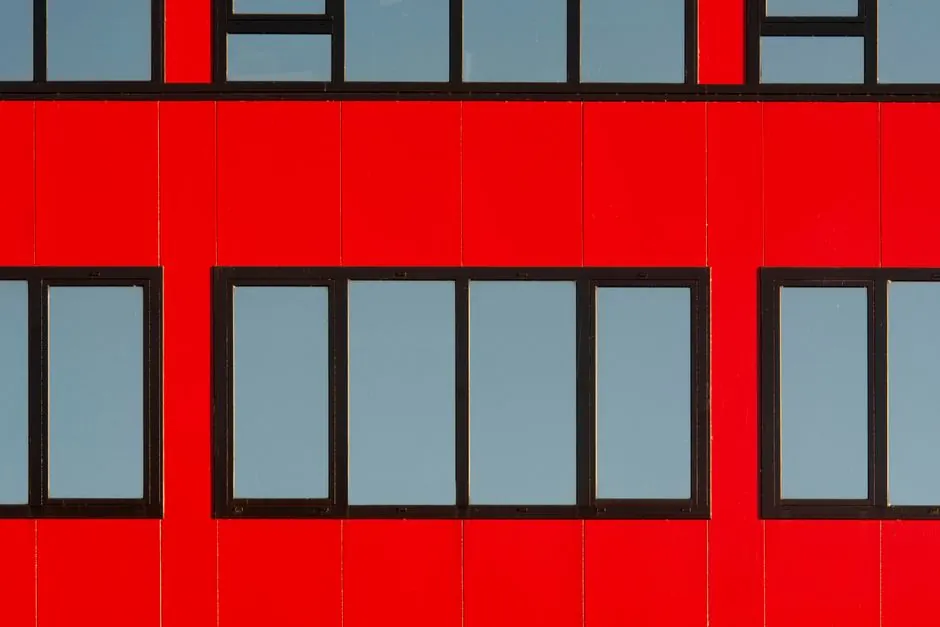

For projects where the wall thickness and skin gauges need to be reconciled with the chosen fire grade, see 3mm vs 4mm vs 6mm ACM panel spec selection.
