Lightweight partition panels in industrial plants are non-load-bearing, factory-made assemblies that typically weigh 45–95 kg/m², roughly one-third to one-fifth of a 240 mm brick wall, and are selected on five concurrent criteria: fire rating, acoustic attenuation, surface weight, moisture behaviour, and installation speed [S1][S4].
The dominant industrial options are calcium-silicate/PS composite panels (Class A non-combustible, 75–100 mm), PUF and PIR sandwich panels for temperature-controlled rooms, metal-stud-and-gypsum assemblies for general offices, and aluminum-framed glass or solid partitions for modular layouts [S1][S2][S3][S4].
Solid Composite Panels: Fire and Acoustic Numbers for Plant Interiors
Calcium-silicate-faced composite panels with a cement + EPS or ceramsite core meet the Class A non-combustible standard, the highest rating available for interior partitions, and do not melt or release toxic smoke under heat exposure, a key advantage over timber or foam-only assemblies in factories and warehouses [S4]. Fire-resistance duration scales with thickness: 75 mm panels resist fire for up to 145 minutes, 90 mm panels exceed 3 hours, and 100 mm panels reach nearly 4 hours under test conditions [S4]. Acoustic performance on the same product line steps from 32 dB at 40 mm to 42 dB at 75 mm, 45 dB at 90 mm, and 48 dB at 100 mm, while a conventional 240 mm brick wall typically delivers only 20–25 dB, so 75–100 mm composite panels out-perform masonry roughly two-to-one on airborne noise at one-third to one-fifth the weight [S4]. A single-point hanging load above 50 kg (and over 100 kg on high-strength variants) is achievable, sufficient to support air-conditioning indoor units, cabinets, and small water heaters on the partition face [S4]. For an analogous walkthrough of partition selection in office and retail interiors, see Lightweight Partition Panel Selection for Commercial Buildings.
PUF and PIR Sandwich Panels for Cold Rooms and Pharma Plants
Insulated sandwich panels used for chiller rooms, freezer rooms, dairy storage, pharma cold rooms, clean rooms, and cold-chain warehouses are a three-layer assembly of two metal sheets around a foam core, selected to maintain a fixed temperature 24/7 in a continuous operating environment [S3]. PUF (polyurethane) panels are the default for most cold rooms because they combine a low-density core (40±2 kg/m³, CFC/HCFC/HFC-free) with fast installation and competitive cost, while PIR (polyisocyanurate) panels are preferred where fire performance is the limiting factor, such as pharma suites and high-compliance sites [S3]. Typical cold-room panel widths are 1000 mm, 1150 mm, and 1160 mm, with thickness stepped to match the design U-value; a wrong choice produces heat gain, longer compressor run-time, condensation at joints, and reduced product shelf life, so panel thickness, core material, and joint sealing must be specified together, not in isolation [S3].

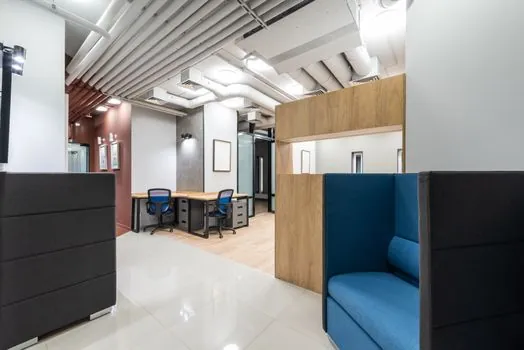

Gypsum, Metal-Stud, and Aluminum-Framed Options for General Industrial Interiors
Gypsum board (drywall) remains the most widely used partition skin in industrial facilities because it is lightweight, low-cost, paintable, and available in moisture-resistant variants for plant wash-down areas, with a gypsum core wrapped in paper layers that contribute inherent fire resistance [S1]. Metal-stud-and-gypsum systems pair a light-gauge galvanized steel frame with gypsum boards to add structural stability and routing channels for electrical and data cabling, a common configuration in control rooms and administrative islands inside manufacturing halls [S1]. For modular and frequently reconfigured layouts, aluminum-framed partitions deliver an industrial feel with lightweight strength, and the frame can carry either glass leaves for daylighting or solid panels for higher acoustic demand [S2]. Movable and folding partitions built on the same aluminum chassis allow conference rooms, training cells, and audit rooms to be re-zoned without tools, which is why they appear in plant offices and engineering trailers where team size changes month to month [S2].
Selection Criteria Mapped to the Four Main Panel Types
A side-by-side comparison helps convert the spec sheet into a buy decision. The four industrial-grade families line up against four decision criteria as follows: solid calcium-silicate composite panels lead on fire (Class A, up to ~4 hours at 100 mm) and acoustic (32–48 dB across 40–100 mm), but are the heaviest of the dry systems at 45–95 kg/m²; PUF/PIR sandwich panels lead on thermal resistance and hygiene for cold rooms, with a 40±2 kg/m³ core wrapped in metal sheet; gypsum-on-metal-stud is the lowest-cost and fastest-to-install option for general offices but offers the lowest fire and acoustic performance per millimetre; aluminum-framed partitions lead on reconfigurability and daylighting but require the most hardware per square metre [S1][S2][S3][S4]. The practical decision rule in an industrial facility: pick solid composite for plant-side firewalls and equipment rooms, pick PUF/PIR for any room held below ambient temperature, pick gypsum-on-metal-stud for general admin and control rooms, and pick aluminum-framed for training cells and modular sub-divisions. For context on a related prefabricated panel family used in industrial buildings, see ALC Panel Selection for Prefabricated Construction: Spec Map 2026.
Where Each Panel Type Fits, and Where It Does Not
Calcium-silicate composite panels suit high-rise cores, schools, hospitals, and any industrial zone demanding Class A non-combustible walls with verified fire resistance from 145 minutes to nearly 4 hours, but they are overkill for a clean, dry admin corridor where 12–15 mm gypsum is sufficient [S4]. PUF/PIR sandwich panels fit chiller and freezer rooms, food processing, dairy, seafood, meat, fruit and vegetable, pharmaceutical, and cold-chain logistics spaces, and are a poor choice outside temperature-controlled envelopes because the metal skins and rigid foam are more expensive than gypsum for the same fire/acoustic rating [S3]. Gypsum-on-metal-stud fits corporate offices, training rooms, and light-industrial back-of-house, but is not appropriate for unheated warehouses or wet process areas unless the board is specified as moisture-resistant [S1]. Aluminum-framed glass and solid partitions fit conference centers, executive cabins inside plants, and retail-adjacent spaces where reconfigurability and daylight matter, but cannot be specified as firewalls on their own without an underlying gypsum or composite layer [S2].
Installation, Moisture, and Maintenance Constraints
All four families install faster than conventional masonry because they are factory-made, dimensionally stable, and rely on mechanical fixing rather than wet trades, which is the single biggest reason industrial project schedules specify them over brick infill [S1]. Solid composite panels are waterproof at the surface and through the core, so they do not leak or deform under long-term water exposure, making them appropriate for wash-down plant areas, basements, and storage rooms where gypsum would fail [S4]. PUF/PIR sandwich panels must be specified with a joint-sealing detail that prevents condensation and ice formation at the panel-to-panel interface, because even a small insulation failure raises compressor duty and electricity consumption over the life of the cold room [S3]. Damaged gypsum or composite sections are replaceable in isolation, without disturbing the full wall run, which lowers lifetime maintenance cost compared with brick partitions where a localised repair leaves a visible patch [S1].
Trackable Signals for Q3–Q4 2026
Two near-term items are worth monitoring: (1) any revision to Chinese or EU Class A non-combustible test methods that would re-tier calcium-silicate composite panels currently rated 75–100 mm, since the 145-minute-to-4-hour fire resistance range is the headline number specifiers will compare against; (2) growing specification of PIR over PUF in pharma and food cold rooms, where fire performance, not first cost, is the deciding factor [S3][S4]. Related reading for interiors work: Laser Level Selection for Interior Finishing: 2026 Spec Map covers the layout tools used to set out these partitions on site.
