Chemical anchors transfer applied load from a steel element into concrete or masonry through adhesive bond along the full bore depth, with no reliance on expansion force or undercutting geometry, which is why they are the default specification for dynamic, cracked, and close-to-edge conditions in heavy industrial work [S2][S3].
The bonded mechanism distinguishes chemical anchors from mechanical expansion anchor systems: resin fills the annular gap, micro-keys into the bore wall, and cures to lock the steel element, so capacity depends on substrate strength, embedment depth, resin chemistry, and hole cleanliness rather than torque-preload [S3].
Resin Chemistry: Epoxy, Vinylester, Polyester, and Hybrid Systems
Four resin families dominate industrial chemical anchor specifications, and the wrong pick causes field failures that no torque check will catch [S1][S7]. Pure epoxy systems offer the highest chemical resistance, highest load capacity, and lowest creep under sustained tension, but cure slowly (24–72 h full strength at 20 °C) and demand tight hole-cleaning discipline; Hilti’s HIT-RE 500 V3 is the benchmark slow-cure epoxy for structural rebar and large-diameter studs [S3].
Vinylester hybrids (often called “epoxy acrylate” or “vinylester ester”) sit in the middle: faster cure (typically 30–90 min to full strength at 20 °C), better chemical resistance than polyester, and European Technical Assessment (ETA) coverage for cracked concrete; this is the workhorse chemistry for most European industrial builds [S1][S5]. Polyester and styrene-free polyester resins cure fast and cost the least, but tolerate lower sustained temperatures and have weaker chemical resistance, so they are rarely used in process-plant foundations [S1].
For most industrial specs, decision logic is simple: specify pure epoxy for chemical-plant, offshore, and large reciprocating equipment foundations; specify vinylester hybrid for general machinery, pipe racks, and structural steel baseplates where cracked-concrete ETA Option 1 is required; avoid polyester where sustained temperatures exceed 50 °C or where the substrate is wet at installation [S1][S3].
When Chemical Anchoring Is the Right Call, and When It Is Not
Chemical anchoring is the correct specification for cracked or compromised concrete, close edge distances (less than 10 anchor diameters from a free edge), small spacing between anchors, high sustained or dynamic loads, and any application where torque loss under vibration would compromise a mechanical anchor [S2][S3].
It is the wrong specification for hollow substrates without screening sleeves, for overhead installations where drip-out of unset resin is a safety hazard, and for very low-load temporary works where the cost of cartridge resin, hole cleaning, and cure time outweighs the structural benefit [S6][S7]. Site supervisors also flag chemical anchors as inappropriate where installation temperatures sit below 5 °C without a winter-grade resin, because cure stalls and full strength is never reached in the design window [S7].
In heavy industrial foundation work, the four applications that justify chemical anchoring almost every time are: reciprocating compressor baseplates (dynamic load), chemical-pump plinths (chemical attack on the resin), bridge-crane rails on existing slabs (cracked substrate), and any retrofit where rebar congestion blocks a clean mechanical anchor expansion zone [S2].
Selection Criteria: Embedment, Hole Prep, Cure, and Approval

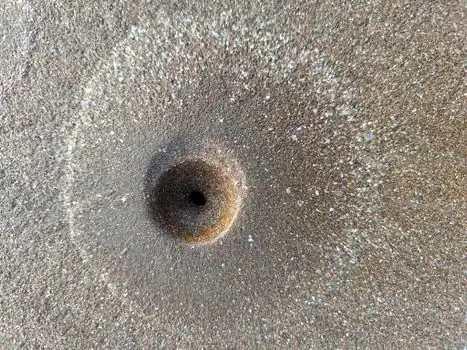

Five criteria govern a defensible chemical-anchor specification: (1) embedment depth (typically 8–15 × bolt diameter for full bond development in C20/25 concrete); (2) hole cleaning method (two-blow-out + two-brush + two-blow-out with compressed air, the sequence mandated by most ETA approvals); (3) cure time at the actual on-site temperature, not the lab value; (4) cracked-concrete approval (ETA Option 1 or EAD 330499); (5) chemical and temperature resistance of the cured resin [S3][S5].
By these criteria, vinylester hybrids with EAD 330499 Option 1 approval cover roughly 80 % of industrial baseplate and rack work; pure epoxy covers the rest where sustained temperature exceeds 72 °C, where the resin is exposed to acids or solvents, or where the design calls for 100-year service life on critical infrastructure [S1][S3][S5].
Substrate and Site Conditions That Override the Datasheet
Three site conditions change the specification regardless of the resin datasheet: wet or flooded holes (must use a resin rated for water-saturated concrete, otherwise bond strength drops 30–50 %), cold installations below 5 °C (requires winter-grade resin or substrate heating, otherwise 24-h cure stretches past a week), and overhead or horizontal-up installations where a thixotropic, non-sag resin is mandatory to prevent drip-out before gel [S3][S7].
Substrate type also matters: chemical anchors develop adequate capacity in concrete, concrete block, brick, and stone, but the bond strength in hollow brick drops sharply unless a plastic or metal screening sleeve is used, and the designer must derate the published concrete value by 40–60 % or test on-site with a pull-out rig [S7]. Limestone and aerated autoclaved concrete (AAC) require dedicated low-strength substrates and are outside the scope of most industrial ETA approvals [S7].
Approval Framework: ETA, EAD 330499, and EN 1992-4
The two approval documents that govern European chemical-anchor specification are EAD 330499 (the European Assessment Document for bonded anchors, replacing ETAG 001 Part 5 in 2018) and EN 1992-4 (Eurocode 2 Part 4, the design standard for post-installed fasteners in concrete) [S5]. Most reputable chemical-anchor systems carry an ETA citing EAD 330499 with options for cracked concrete (Option 1), uncracked concrete (Option 7), seismic (C1 or C2), and fire resistance.
Specifying engineers should reject any submittal that does not cite a current EAD 330499 ETA with the relevant Option for the substrate condition on the project, because the datasheet alone is not a design document and the design assumption (e.g. cracked concrete Option 1 vs uncracked Option 7) changes the allowable tensile load by roughly a factor of two [S3][S5]. For North American projects, the equivalent approval pathway is ICC-ES AC308 or ACI 318 Chapter 17, and the resin must carry a listing under one of those schemes for the design loads to be code-compliant [S1].
Comparison: Resin Type vs Industrial Application
For procurement decisions, the following four-way comparison covers the bulk of industrial-facility work: pure epoxy (highest chemical and temperature resistance, 24–72 h cure, top cost) is the spec for chemical plants, offshore modules, and reciprocating compressor plinths; vinylester hybrid (good all-round, 30–90 min cure at 20 °C, mid cost, EAD 330499 Option 1 typical) is the workhorse for pipe racks, machinery baseplates, and bridge-crane rails on cracked slabs; polyester (fast cure, lowest cost, poor chemical and temperature resistance) is acceptable for temporary fixings and dry indoor service only; hybrid dual-action (mechanical screw plus resin capsule, recent introduction combining undercut keying with adhesive bond) is the emerging choice where installers want the crack-bridging of a screw anchor with the added bond area of a resin, but published design data is still limited [S3].
Field Pitfalls: Cleaning, Mixing Ratio, and Cure Window
The three most common field failures on chemical-anchor installations are, in order: (1) inadequate hole cleaning, which cuts bond capacity by 30–50 % and is the leading cause of pull-out failures; (2) incorrect mixing ratio from cold or expired cartridges, which leaves soft, uncured resin pockets; (3) loading before full cure, typically because the construction schedule overrides the datasheet cure time at the actual on-site temperature [S2][S7].
Mitigation is procedural: require the installer to follow the two-blow-out/two-brush/two-blow-out sequence with oil-free compressed air, discard the first 10–15 cm of resin from a new cartridge (so the mix ratio is correct at the bore mouth), and record substrate temperature at the time of installation to set the cure window; a resin rated for 45-min cure at 20 °C may need 4 h at 10 °C and will never fully cure below 5 °C without a winter-grade formulation [S3][S7].
Specification Checklist for an Industrial Chemical Anchor Submittal
A defensible chemical-anchor submittal carries, at minimum: resin chemistry and trade name, current EAD 330499 ETA with Option 1 or 7 designation and any seismic C1/C2 classification, allowable tensile and shear loads for the actual concrete strength class on the project (typically C20/25 to C50/60), embedment depth and hole diameter, hole-cleaning method, cure time at the minimum expected substrate temperature, chemical-resistance statement, and the dispenser / cartridge system matched to the resin [S3][S5].
Trackable signals into 2027: any shift in the EAD 330499 series toward stricter cracked-concrete fatigue testing (relevant to reciprocating equipment), wider adoption of dual-action screw-plus-resin hybrid systems with published ETA Option 1 data, and stricter VOC content rules on styrene-based polyesters driving the European industrial market further toward vinylester and epoxy systems [S1].
The underlying component specifications are covered under chemical anchor, expansion anchor, and chemical material.
