Corrugated metal panels divide into three functional families — roof/floor structural deck, architectural wall/roof siding, and civil culvert/pipe — each with distinct profile geometries, material grades, and load assumptions that drive specification [S3][S4].
Steel remains the dominant substrate (galvanized, Galvalume, painted, stainless, aluminum), with corrugation pitches of 68 mm × 13 mm and 76 mm × 25 mm defining the bulk of the culvert/structural market, and wider 2.67 in. (≈67.8 mm) and 4.2 in. (≈106.7 mm) profiles owning the architectural siding segment [S3][S4].
Structural Roof and Floor Deck Profiles
Structural metal deck is sold by standardized "Type" designations that map directly to corrugation depth and flute geometry: Type B (1.5 in. deep, wide rib), Type N (3 in. deep, narrow rib), Type F (1.5 in. deep, 3-rib intermediate), Type A (36 in. cover width), and Type S form deck used as stay-in-place formwork for poured slabs [S3]. The same product family extends to composite floor decks at 1-1/2 in., 2 in., and 3 in. depths, where the corrugated profile is designed to mechanically key with a concrete topping slab to create composite action [S3]. Cellul

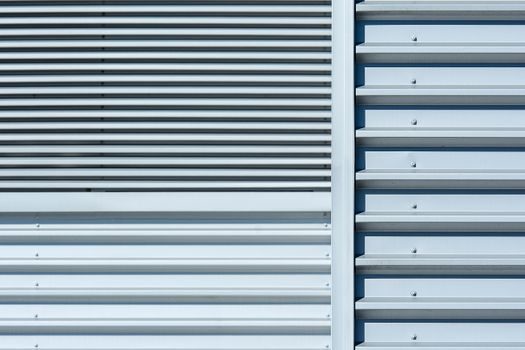

Architectural Siding and Roofing Profiles
Architectural corrugated and ribbed panels are sold by cover width and rib height rather than the older "Type" letter system, and the four most-stocked profiles in 2026 catalogs are 1/2 in. × 2-1/2 in. (labeled "2.67" corrugated), 2.67 in. × 7/8 in. corrugated, 4.2 in. corrugated, and 7.2 in. panel — all measured across the repeat pattern, not the rib itself [S3]. R-panel (12 in. rib spacing), 12 in. concealed-fastener panel, 24 in. liner panel, 4 in. box rib, V-beam, and standing seam round out the architectural catalog for both wall and low-slope roofing use [S3]. The trade direction is toward wider cover (24 in. and above) for fewer seams and faster install, with exposed-fastener R-panel still dominating agricultural and light commercial builds [S3]. For BIM modelers translating these profiles into curtain-wall families, a 150 mm rib pitch is a common Revit curtain-panel pattern reference; the Autodesk community thread at [S2] documents one such 150 mm corrugated curtain-wall panel where the pattern-by-distance workflow throws a property error and requires an explicit repeat parameter rather than distance alone [S2].
Civil Culvert and Drainage Corrugation Pitches
Corrugated metal pipe (CMP) is specified by corrugation pitch × depth, not by panel-style name, and the three pitches that anchor the global supply chain are 68 mm × 13 mm, 76 mm × 25 mm, and 150 mm × 50 mm (with the last used for large-diameter structure-plate and MultiPlate assemblies) [S4]. Stocked diameters for culvert/land-drainage service in the U.S. distributor channel run 8 in. through 32 in. for standard Hel-Cor, Ultra Flo, Smooth Core, and Slotted Drain product, with HDPE double-wall plastic typically stocked in 12 in. to 18 in. as the lighter alternative for the same storm-sewer slot [S1]. Chinese mill offerings add tunnel-liner, nestable, and semi-circular variants on the same 68/76/150 mm pitches, which is the format engineers see on mill-direct quote sheets from corrug
Substrate and Coating Stack
The substrate stack sold under the generic "corrugated metal panel" name covers five distinct material options, each with a different corrosion and cost position: galvanized steel (G-60/G-90 zinc coating), Galvalume (55% Al-Zn), painted steel (typically SMP or PVDF over G-90), stainless steel (commonly 304/316 for food and marine), and aluminum (3105-H14 or equivalent for coastal) [S3]. Galvalume and painted Galvalume dominate the architectural siding catalog because the Al-Zn coating gives roughly 2-4× the cut-edge creep resistance of plain galvanized in atmospheric exposure, which is why nearly every R-panel and 4.2 in. corrugated quote in 2026 carries that substrate [S3]. Stainless corrugated deck is sold for food-processing, pulp-and-paper, and marine/wastewater plants where the G-90 or Galvalume coating life is shorter than the design service life [S3]. For heavier civil and structural applications, aluminum sheet corrugated options exist alongside the steel-dominant catalog, and mill-direct [metal powder](
Sizing, Cost, and MOQ Bands in 2026
Mill-direct corrugated panel pricing in mid-2026 clusters around three MOQ tiers, and the published ranges are tight enough to be useful for budget checks: consumer/spec-grade corrugated fence panels sit at US$16-$45 per set at 10-50 set MOQs from Shandong/Weifang mills [S6], while mill-quantity galvanized roofing coils (18-26 ga) run US$450-$600 per ton at 25-ton MOQ through Tianjin/ArcelorMittal-affiliated trading desks [S7]. Architectural wall panel SKUs (1/2 in. × 2-1/2 in. corrugated, R-panel, 4.2 in. corrugated) are sold by the square or by sheet from regional roll-formers, with cover widths fixed at the profile and lengths cut to order from 3 ft through 40 ft+ coils [S3]. Culvert CMP is sold by the linear foot at the listed 8-32 in. stocked diameters, with the mill minimum typically one standard 20 ft length; MultiPlate structure-plate (150 mm × 50 mm pitch) is sold as bolted plates shipped flat and field-assembled for spans above the standard CMP range [S1][S4].
Application-to-Profile Mapping
Selecting the right corrugated profile is a four-axis decision — load path, span, exposure, and aesthetic — and the shortlist by application is: structural roof deck for commercial/industrial buildings → Type B or Type F at 1.5 in. depth (composite with concrete) or 3 in. Type N for longer spans [S3]; architectural wall cladding on warehouses and ag buildings → 2.67 in. × 7/8 in. corrugated or 4.2 in. corrugated on Galvalume, with 12 in. concealed-fastener for higher-end façades [S3]; storm sewer and driveway culvert (8-32 in. dia) → 68 mm × 13 mm or 76 mm × 25 mm Hel-Cor, Smooth Core for improved hydraulics, or Slotted Drain for surface collection [S1]; large-span highway/rail underpass and tunnel liner → 150 mm × 50 mm MultiPlate or nestable corrugated steel pipe [S4]; and security/perimeter fencing → 2.67 in. corrugated or R-panel in 26-29 ga painted steel, MOQ 10-50 sets per the China mill pricing band [S6]. Architects translating these profiles into a BIM model should reference the panel type as a metal curtain wall panel family with an explicit repeat parameter, since 150 mm is a common corrugated [S2].
Two trackable signals going into the second half of 2026: mill-side MOQ floors for Galvalume coil appear to be drifting from 25 tons down toward 20 tons as Tianjin trading desks compete on the 18-26 ga roofing market [S7], and Autodesk's Revit curtain-wall panel family workflow still requires an explicit repeat-distance parameter rather than a sketch-driven pattern, so any new BIM standard for corrugated metal cladding has to accommodate that constraint [S2]. Watch for 7.2 Panel and 4.2 in. corrugated gaining share over 2.67 in. corrugated on commercial wall cladding in the next two quarters as wider-cover roll-formers come up in capacity [S3].
