Flow rate sets hydraulic actuator speed; pressure only sets force. Doubling pump flow from 5 GPM to 10 GPM roughly halves the time a fixed-volume cylinder takes to stroke, holding every other variable constant [S2]. This is the single most useful rule for sizing valves, motors, and hydraulic cylinders on a flow-limited circuit.
Response time in a real industrial loop covers more than a bare cylinder stroke. It bundles the time for the directional valve to shift, the line to fill, the actuator chamber to pressurise, the piston to travel full stroke, and the spring (or counter-pressure) to reset. For gate and globe valves on process lines the practical closing-time envelope sits in the 5–30 second band, while small rotary hydraulic actuators on instrument-class valves run much faster [S3][S6].
Flow rate versus pressure: what each one actually does
Pressure provides the force to overcome valve breakaway torque, seating load, and process differential; flow provides the volume of fluid per minute that has to be shoved into the actuator chamber to move the piston. A cylinder that needs 5 gallons to fully extend will extend in 30 s on a 10 GPM pump and 60 s on a 5 GPM pump, with identical 2,000 PSI supply [S2].
General hydraulic installation guidance recommends flow velocities around 8–15 ft/s (roughly 2.4–4.6 m/s) in pressure lines to keep turbulence, heat, and pressure drop within reasonable limits, which is why the line size, not the pump, often becomes the bottleneck on a long hydraulic run [S2]. For an ESD or open-loop dump case, the relevant number is not pump rated flow but accumulator deliverable flow at the minimum allowable system pressure.
Quantitative envelope: pneumatic versus hydraulic response
Comparative benchmarking of gate-valve actuators puts pneumatic at roughly 0.2–0.5 s full stroke and hydraulic at 0.5–2 s, with hydraulics favoured for high-torque, high-differential-pressure service where pneumatic cylinders would be physically too large [S4]. The trade is speed for force density: hydraulic loses on raw milliseconds but wins where breakaway torque and seating load dominate.
Simulated work on a reciprocating compressor capacity-adjustment actuator shows a direct-proportion relationship between mass flow rate and power consumption, and confirms that response time grows with cylinder diameter in both opening and closing directions [S1]. For a given pump, doubling piston area also doubles displaced volume per stroke, so stroke time stretches even though the actuator is now stronger.

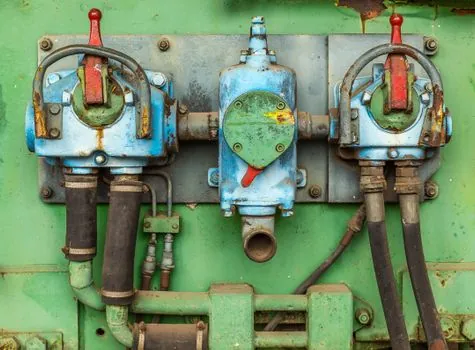

Variables that move the response time number
Five variables dominate. Pump and HPU flow capacity set the upper bound. Valve port size and line diameter set the practical ceiling, since undersized solenoid or directional-control valves throttle the flow that an oversized pump can deliver. Fluid viscosity and cleanliness set the leakage and pressure-drop baseline. Actuator internal volume, the cylinder bore times stroke, sets the fluid demand. Finally, the load profile, including breakaway, dynamic, and seating torque, sets the minimum pressure needed to keep motion from stalling [S2][S3][S5].
Two non-obvious variables also show up. Reset-spring thickness, used on spring-return hydraulic actuators, lets designers bias opening time longer and closing time shorter without changing pump flow [S1]. And accumulator pre-charge and gas volume set the closing-time floor for fail-safe operation: if stored volume cannot deliver the actuator's swept volume above the minimum stroking pressure, the valve will not close on loss of power.
Calculation method and worked example
Actuator flow rate is the chamber volume divided by the target stroke time: Q = V / t, with V in litres and t in seconds giving Q in L/s, which is then converted to L/min for HPU sizing [S3][S6]. For a spring-return quarter-turn hydraulic actuator with 0.8 L chamber volume and a target closing time of 3 s, the required flow is 0.27 L/s or 16 L/min; the HPU must deliver that flow at or above the actuator's minimum stroking pressure, with margin for temperature derating and accumulator standby leakage.
Closing-time design for a process valve typically solves the inverse problem. Given a fixed HPU delivering 30 L/min at 100 bar, a 2.5 L double-acting actuator closes in 2.5 L ÷ 30 L/min × 60 = 5 s under ideal no-leak conditions; field-installed valves usually sit 20–40% slower once line-fill, valve shift, and leakage are included [S6]. Specifying both an opening-time and a closing-time target, then back-calculating the required pump or accumulator flow, is the cleanest way to avoid sluggish ESD performance on a hydraulic pump circuit.

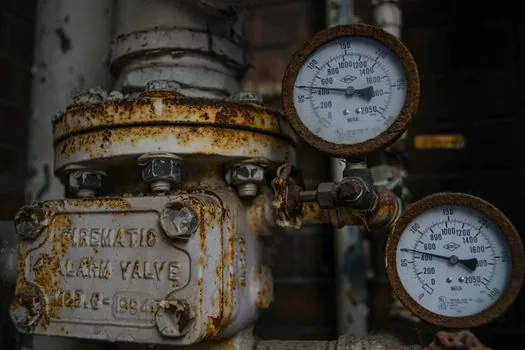

Decision matrix: pneumatic, hydraulic, and electro-hydraulic
Selection on response time alone is misleading; the decision should weight speed, force, fail-safe, and integration cost. Pneumatic scores fastest on raw stroke time, typically 0.2–0.5 s, and lowest installed cost, but stalls on high-torque gates and on applications where the air supply itself is unreliable [S4]. Standard hydraulic scores 0.5–2 s with much higher force density, requires an HPU, and gives a clean fail-safe path through a spring-return or accumulator-backed dump [S5]. Electro-hydraulic adds closed-loop position and speed control, which a fixed-displacement pneumatic or hydraulic system cannot provide without a proportional valve or a servo pump.
For the dominant process use cases: choose pneumatic for small to mid-size valves under 6 inches in clean, dry instrument air; choose hydraulic for high-pressure, high-torque, or subsea service where fail-safe closure under full differential pressure is mandatory; choose electro-hydraulic when throttling accuracy or modulated stroking matters more than raw open/close speed. HPU horsepower on these circuits ranges across a wide envelope, and the HPU horsepower scale from 2 HP to 3000 HP is the first sanity check before committing to a flow target.
Diagnostic workflow for slow actuation in the field
When a hydraulic cylinder or valve visibly slows, the standard triage is: confirm pump output with a flow meter, check filter ΔP, sample fluid for ISO 4406 cleanliness and viscosity index, inspect solenoid and directional-valve spools for varnish, and finally measure internal leakage on the actuator itself [S2]. Skipping straight to a pump replacement is the most expensive error: most slow-actuation tickets in industrial and mobile equipment trace back to contamination, not pump wear.
Two practical numbers anchor the diagnosis. Filter element ΔP above roughly 15–20 psi at cold start, or any rise above 5 psi under steady operation, is a strong signal that contamination is throttling flow to the hydraulic motor or HPU. And a 10°C drop in ambient temperature can push ISO VG 46 oil thick enough to add 30% to actuation time on cold-start, which is why cold-weather hydraulic cabinets use immersion heaters and lower-viscosity summer/winter grade swaps.
Limitations and failure modes
Response-time targets hit a hard floor set by fluid compressibility, line elasticity, and valve dead-band. Below roughly 100 ms full stroke, hydraulic starts to lose to pneumatic even with optimised accumulators, because bulk modulus and line compressibility swallow a meaningful share of the displaced volume. Above 30 s closing time, most process safety analyses treat the valve as slow-acting, which forces a different SIL allocation and may require a separate proof-of-closure switch and partial-stroke testing regime [S8].
Three failure modes dominate field returns. First, accumulator under-sizing, where the stored nitrogen volume cannot deliver a full stroke at minimum pressure, so the valve stalls mid-travel. Second, internal bypass leakage from worn piston seals, which converts flow into heat without producing useful stroke. Third, thermal contraction of the fluid in cold conditions, which drops the effective bulk modulus and slows pressure rise, and is a separate mechanism from viscosity thickening [S5][S2].
What to track over the next design cycle
Two signals are worth monitoring as process plants and skid builders re-spec hydraulic actuation in 2026. The first is the shift toward integrated electro-hydraulic actuator packages with built-on accumulators and electronic position feedback, which collapse response-time variance by removing long hose runs. The second is the move to high-efficiency variable-speed HPU drives, which let the pump idle at near-zero flow and ramp to full flow only on a real stroke command, cutting both energy use and heat-related viscosity drift on standby loops. [S5]
