A pipe clamp is a support and restraint fitting, not a pressure-retaining joint: it carries the pipe's weight, damps vibration, and stops threaded or welded joints from loosening under thermal or mechanical load. A flange is the opposite role — a bolted, gasket-sealed, pressure-containing joint that can be unbolted to clean, inspect or replace a spool, valve or instrument.
The functional split drives the spec split. Clamps are picked by NB/DN size, band width, bolt grade and temperature rating; flanges are picked by pressure class (PN6/10/16/25/40, Class 150/300/600), facing type (RF, FF, RTJ) and material grade. Getting the two confused — using a clamp where a pressure joint is required, or a flange where a simple support is needed — is one of the most common drafting errors on greenfield isometric drawings.
What a Pipe Clamp Actually Does (and Does Not Do)
Fluid Controls Limited states the engineering purpose of pipe clamping plainly: "Clamping of pipes in installations is required for purposes of damping vibrations, providing support to the installation and preventing loosening of joints and welds" [S1]. The same source adds that traditional U-bolts can support a pipe but fail to damp vibration, and the failure gets worse when the U-bolt lands at a vibration node — a known mechanism for joint loosening and downstream leakage [S1].
Working envelopes for industrial clamps run from cryogenic LNG service to roughly 550 °C, with material selection (carbon steel, stainless, elastomer-lined) chosen for the operating band [S1]. On the commodity side, plastic single-pipe clamps such as the Faluplast 50 mm grey unit sold through Onninen target residential drainage and light mechanical support, not pressure containment [S4]. Heavy-duty strut clamps from manufacturers such as TOPFIX cover 40 NB through 315 NB with 20×3 or 25×3/25×5 mm band stock and M6 or M10 bolts — a sizing table you can read directly off the product datasheet [S3].
What a Flange Actually Does (and Does Not Do)
A flange's job is to hold pressure across a joint that someone will eventually break. It does this by compressing a gasket between two machined faces (raised face, flat face, ring-type joint, tongue-and-groove) with a bolt circle of studs or bolts. The pressure class — PN10, PN16, Class 150, Class 300, Class 600 — sets the allowable non-shock pressure at a reference temperature, and the material grade (A105 carbon steel, 316L stainless, A350 LF2 for low-temp) is picked so the assembly stays within code at the design temperature. [S1]
Flanges are not load-bearing supports. A pipe hung off a flange bolt instead of a proper clamp or shoe will warp the flange face, leak the gasket, and fail inspection. In packaged assemblies, however, a flange and its companion clamp often appear inches apart: the flange does the pressure work, the pipe clamp restrains the line against thermal growth and pump-pulse vibration.

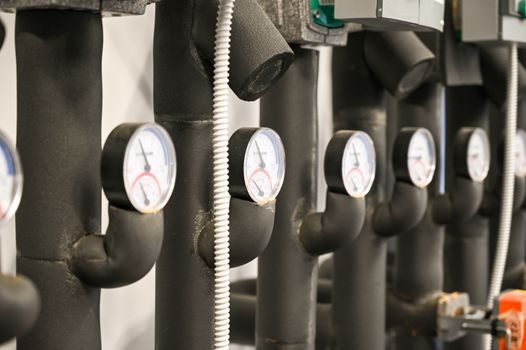

Side-by-Side Decision Matrix
The four decision criteria that matter on a P&ID: (1) is the joint pressure-retaining, (2) does it need to be broken for maintenance, (3) what is the operating temperature, and (4) is vibration isolation a primary requirement. [S2]
Pipe clamp scores yes on (4) and neutral on (3) — Fluid Controls clamps run to 550 °C with the right material [S1] — and no on (1) and (2). Flange scores yes on (1) and (2), neutral on (4) unless paired with a flexible gasket, and is limited on (3) only by the bolt/gasket material combination. A heavy-duty TOPFIX 3081.165 clamp carries 165 NB pipe on a 25×5 mm band with an M10×50 hex bolt [S3]; a comparable 6" 150# weld neck flange is rated for 285 psig at 100 °F in A105 carbon steel per ASME B16.5. The two parts do not compete — they answer different questions on the same drawing.
Where Clamps and Flanges Appear Together
Process piping in oil & gas, chemical and power plants is the clearest case where both fittings live on the same line. The flange provides the pressure seal at vessel nozzles, pump suctions/discharges, and inline instrument connections; the pipe clamp provides shoe, guide and U-bolt replacement at intervals defined by the pipe support sketch. Fluid Controls' 4-rib clamp design is explicitly sold for "rolling mills, gun installations, military equipment, ships" — applications where high-impact forces must be damped, not transmitted [S1].
Outside process plant, the overlap shifts. Automotive and turbocharger fabricators use downpipe flanges with clamp kits to land a V-band or V-clamp on a turbo outlet — the eBay kit for Borg Warner S369/SX-E/S200/S300 turbos lists a 4" downpipe flange and clamp assembly as a single replacement item. Watercooling and PC loop builders treat the pipe clip as a purely mechanical hold-down for OD14 mm aluminium hard tube and matching PVC/silicone soft tube, with no sealing function at all [S2].

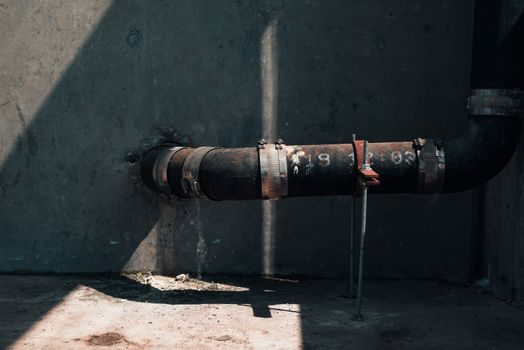

Selection Criteria and Sourcing Channels
For clamps, start with NB/DN, material, band width and bolt grade. TOPFIX's published table — 40 NB / 20×3 / M6×30 coach bolt up through 315 NB / 25×5 / M10×50 hex bolt — is a realistic spec window for structural strut clamps in a chemical or marine plant [S3]. Plastic single-pipe clamps in the 50 mm residential class, such as the Faluplast grey unit at Onninen, are a different procurement line entirely [S4].
For flanges, start with pressure class, facing and material grade, then bolt to ASME B16.5 (for ASME) or EN 1092-1 (for PN). High-pressure clamp assemblies for vacuum, semiconductor and analyser service cluster on Chinese suppliers — Alibaba's "High Pressure Pipe Clamp" supplier page lists vacuum fittings, vacuum flanges, collection chambers and extractors from mainland China factories [S5], and One and Nine (Shanghai) International Trade Co. is a typical export-trading front for that category [S6]. Key Plant's pipe fit-up and alignment clamps, by contrast, are sold to fabrication shops for butt-weld alignment, not in-service support. If your line needs a pressure joint that can be opened, you are sourcing flanges; if it needs restraint against vibration or weight, you are sourcing clamps — and the two SKUs do not cross over. For context on how adjacent support and joint hardware is priced against budget in 2026, see this industrial spring price and cost guide.
Limits, Failure Modes and Common Mistakes
Three failure modes recur across plant walk-downs: U-bolts at a vibration node, which loosen threaded joints within months [S1]; flanges used as pipe supports, which warp the face and blow the gasket; and plastic residential clamps specified on process lines, which have neither the temperature rating nor the load rating for the service. The fix is procedural, not exotic: tag every line with its support type and its joint type as separate attributes on the isometric, and audit the two lists against the line's pressure class and temperature. Where you see a clamp, expect no pressure seal; where you see a flange, expect no axial restraint. Specifying outside those roles costs both leak integrity and structural life.
