Hospital floor plates, long-span radiology slabs, and operating-theatre roofs are routinely post-tensioned with 15.2 mm 7-wire Grade 270 strand to ASTM A416, with minimum guaranteed ultimate tensile strength of 1860 MPa and a 15.24 mm nominal diameter [S3]. The Tianjin Zhenhua catalog lists the same 15.2 mm / 1860 MPa ASTM A416 unbonded PC strand at $535-545 per ton in 25-ton MOQ lots, confirming that this geometry and grade is the commercial default for Chinese and export hospital projects [S3].
Selection for healthcare projects hinges on three decisions: bonded versus unbonded system, coated versus bare strand, and conventional concrete (CC) versus self-consolidating concrete (SCC) for the bond medium. Each of these choices changes the prestressing strand grade callout on the structural drawings and the QA tests the supplier must pass at the precast yard or in-situ [S2][S3].
Coating Choice: Bare ASTM A416 vs Epoxy-Coated ISO 14655
ISO 14655:1999 governs fusion-bonded epoxy-coated seven-wire prestressing strand, defining the prestressing steel substrate, the epoxy powder, the coating thickness range, and the bond-test acceptance criteria that differ from the bare-strand ASTM A1081 / NASP protocol [S1]. For hospital structures, epoxy-coated strand is typically restricted to areas exposed to de-icing salts, humid plant rooms, coastal-influenced sites, or splash zones, because the epoxy layer lowers the mechanical interlock bond with surrounding grout and must be qualified under ISO 14655, not ASTM A1081, on its own pullout limits [S1].
Bare ASTM A416 Grade 270 strand remains the baseline for interior slabs, beams, transfer girders, and pile caps in hospital superstructures, since the bonded multistrand tendons need maximum development length efficiency at the anchorage zone [S3]. The 1524 mm anchor wedge from the same Zhenhua product line, rated for 15.2 / 15.24 / 15.7 mm strand diameters, is matched to this grade and confirms that anchorage geometry is calibrated to the standard 0.5 in. (12.7 mm) and 0.6 in. (15.2 mm) strand sizes used in hospital post-tensioning [S3].
Designers should not assume epoxy and bare strand are drop-in substitutes: ISO 14655 specifies its own coating thickness band, holiday (pinhole) frequency, and chemical resistance tests that are independent of ASTM A416 mechanical-property limits, so a single callout of "ASTM A416 strand" on a hospital drawing does not satisfy the ISO 14655 evidence chain when coating is required [S1].
Bond Test Protocol: ASTM A1081 / NASP vs LBPT
The North American Strand Producers (NASP) pullout test was formally adopted as ASTM A1081, and an inter-laboratory study on 12.5 mm (0.5 in.) Grade 270 strand showed NASP and Large Block Pullout Test (LBPT) results correlated at R-squared 0.93, but the NASP test passed all three mix types while the LBPT only passed one out of three, making ASTM A1081 the more forgiving acceptance test for absolute bond values [S2]. Hospital precast plants using SCC for congested radiology room slabs or operating-theatre roofs should therefore default the QA callout to ASTM A1081, with LBPT reserved for relative-bond comparisons only [S2].
The same study confirmed that SCC produces statistically higher bond strength than CC for the same 12.5 mm Grade 270 strand, so a switch to SCC in hospital pours is generally a bond-positive move rather than a risk, contrary to older industry concerns about SCC bond loss [S2]. Bond values still depend on strand source, since today's induction-heated strand has a different surface condition than older convection-heated material, and that variation is the reason a project-level ASTM A1081 test lot is now standard hospital QA rather than a generic "approved supplier" note [S2].

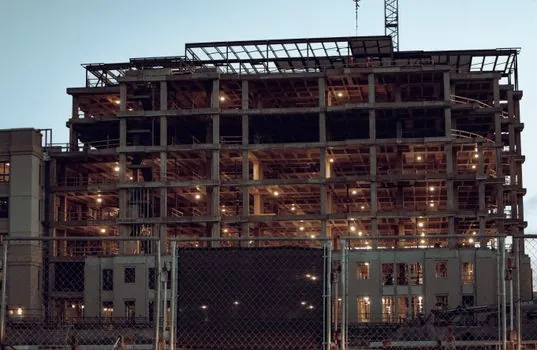

Concrete Mix Decision: SCC vs CC for Hospital Slabs
Self-consolidating concrete eliminates vibration around congested post-tensioning anchorage zones, which is exactly the geometry encountered in hospital transfer slabs where mechanical ducts, medical gas risers, and rebar intersect with anchorages [S2]. The Arezoumandi et al. dataset on 12.5 mm Grade 270 strand showed SCC outperforming CC on bond under both parametric and non-parametric statistical analysis, so the mix decision in hospital pours is usually driven by placement access, not by prestress bond capacity [S2].
Where SCC cannot be used, such as in mass pile caps where heat-of-hydration control matters, conventional concrete with a documented ASTM A1081 bond test for the chosen strand heat is the conservative call, and a separate bond-correlation report should be filed with the structural engineer-of-record [S2]. Hospital QA teams that batch their own SCC should require the strand supplier to provide an NASP / ASTM A1081 certificate per heat, not per project, because bond drift has been observed between strand production sources [S2].
Anchorages, Ducts, and Hardware Matched to Strand Grade
The 1524 mm multi-hole anchorage wedge from the Zhenhua line, listed at $3.35-5.85 per piece, is a typical post-tension anchor calibrated for 12.7 mm, 15.24 mm, and 15.7 mm strand diameters at 1860 MPa [S3]. Galvanized multi-hole anchorages in the same 12.7 / 15.24 / 15.7 mm range, priced at $3-5 per set, are the practical option for hospital plant-room slabs where moisture exposure is intermittent [S3].
For unbonded hospital tendons, the BM13-3 flat-slab anchorage and wedge system (priced $0.36-10 across configurations) is designed for slab-band post-tensioning where individual strand breaks are needed for staged stressing, a common detail in long hospital wings with phased handovers [S3]. These anchorages are paired with corrugated galvanized steel duct, spiral rib reinforcement, and stressing jacks also listed in the same Zhenhua catalog, so a single supplier can deliver the full strand-anchorage-jack chain under one QA package for hospital tenders [S3].
Who Strand Selection Is For, and Where It Is Not
Grade 270 / 1860 MPa, 15.2 mm 7-wire ASTM A416 strand is the right call for: hospital long-span slabs over 8 m clear, transfer girders, pile caps, beam-to-column moment frames in low-rise hospital wings, and unbonded PT slabs in car parks beneath clinical blocks [S3]. It is the wrong call for: lightweight concrete roofs where bond development is marginal, aggressive chemical-exposure zones (chlorides, de-icers, marine splash) where ISO 14655 epoxy-coated strand is required, and any detail where a smaller 12.7 mm (0.5 in.) Grade 270 strand is specified for slab-band layouts [S1][S2][S3].
For those alternative zones, the hospital spec should explicitly call out ISO 14655 epoxy-coated strand with documented coating thickness and holiday-test certificates, and pair it with the larger 15.24 mm anchorage wedge, not assume the same hardware carries over from the bare-strand tendon [S1][S3]. Engineers who treat "ASTM A416" as a one-line solution to all four cases above typically find bond-test or anchorage-fitment problems at the mock-up stage.
Hospital QA Workflow: Test Certificates, Heat Traceability, and Standards
A defensible hospital strand submittal should include: ASTM A416 mill certificate for Grade 270 / 1860 MPa, ISO 14655 certificate for any epoxy-coated lot, ASTM A1081 / NASP pullout results for the strand heat, and an anchorage type-approval record matched to the 12.7 / 15.24 / 15.7 mm wedge geometry [S1][S2][S3]. On a typical Zhenhua-style supply chain, the unbonded PC strand at $535-545 / ton and the bare anchorage wedge at $3.35-5.85 / piece form the bulk of the line items, with BM13-3 flat-slab anchors at $0.36-10 / set used where staged stressing is required [S3].

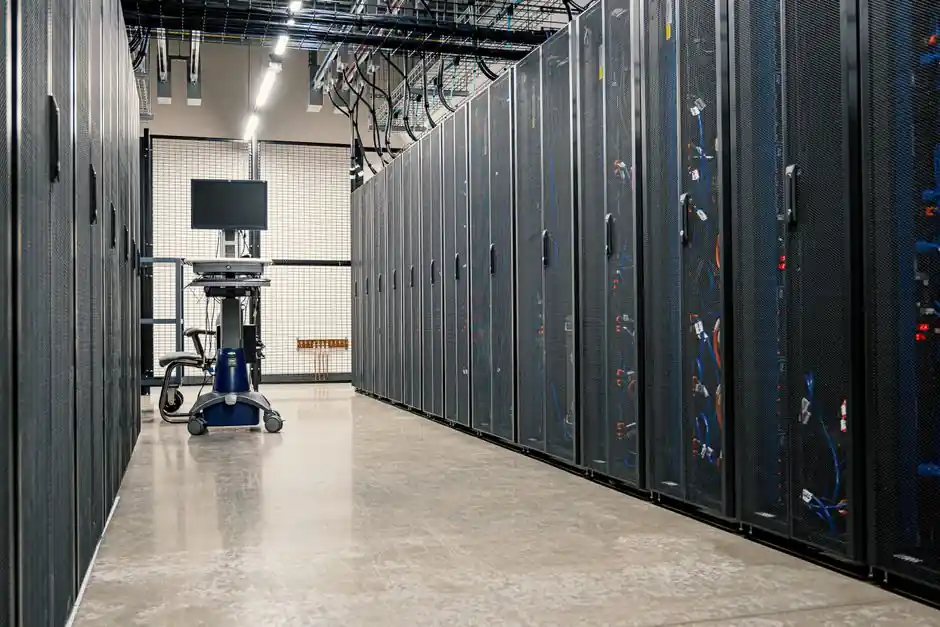

For adjacent spec decisions on a hospital site, designers can compare notes with prestressing strand selection for data center concrete structures, which covers the same ASTM A416 Grade 270 baseline under different vibration and EMI constraints, and with the broader steel strand reference for material-grade cross-checks. The prestressing strand encyclopedia page also documents the seven-wire geometry assumptions that feed into ISO 14655 and ASTM A1081 test fixtures.
