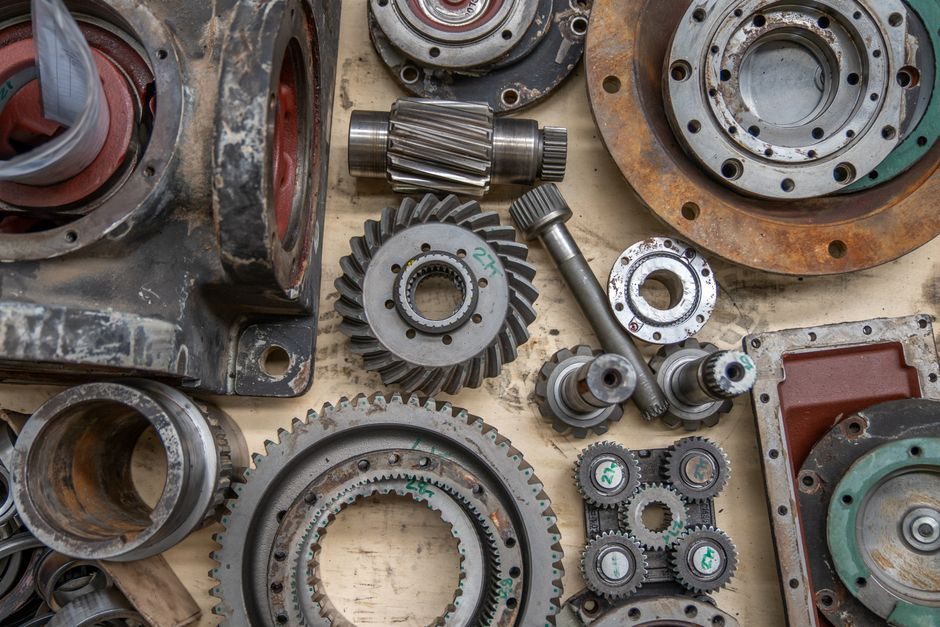

Thrust bearings are designed to carry axial load along a shaft axis, separating that force from any radial component that would otherwise be transmitted to a paired radial support. The term is a working-engineer shorthand that covers several distinct internal constructions — ball thrust, roller thrust, and fluid-film tilting-pad or sleeve thrust types — and each has its own load-speed envelope.
For a typical 6300-series single-direction ball thrust unit in 52100 chrome steel, the static load rating C0 commonly lands in the 35–110 kN range at 40–90 mm bore, while maximum permissible speed sits around 2400–3600 r/min under grease lubrication [S1]. The same envelope, applied to a needle-roller thrust variant at 50 mm shaft, typically delivers C0 of 90–170 kN but at 1800–2400 r/min — a useful comparison baseline that already exposes the speed-for-load trade-off at the heart of this article.
Where a Thrust Bearing Earns Its Slot in the Drivetrain
A thrust bearing is specified whenever the dominant load on a shaft is axial — vertical pump shafts, gearbox pinion ends, hydro-turbine rotors, screw-jack collars, and crane slew rings all rely on it [S1]. In these applications, radial support comes from a separate deep-groove ball or cylindrical roller bearing mounted in tandem, and the thrust unit handles only the down-thrust or up-thrust reaction.
For high-load slow-speed service, a slewing bearing can carry combined axial, radial, and moment loads simultaneously and is the dominant choice on wind-turbine yaw and pitch drives, shipdeck cranes, and excavator turntables, where the integrated gear teeth eliminate the need for a separate pinion. By contrast, fluid-film tilting-pad thrust bearings are preferred on large turbomachinery (steam turbines, large compressors) where peripheral speeds exceed 75 m/s and the loss of oil film would destroy a rolling-element unit within seconds [S2].
Disadvantages and Failure Modes You Have to Design Around
Thrust bearings are unforgiving of misalignment: even 0.001–0.002 rad of static misalignment on a ball thrust unit can drop fatigue life by an order of magnitude versus a self-aligning spherical roller bearing carrying similar load. Pure thrust units have negligible radial capacity — a figure typically under 10% of the axial C0 rating — so any unplanned radial load is the leading cause of brinelling and premature spalling.
Speed is the second hard limit. Single-row ball thrust bearings are generally capped around 4000 r/min for DN (bore-mm × r/min) products near 300,000–400,000; beyond that, cage drag and centrifugal ball loading cause rapid overheating. Cylindrical roller thrust variants trade the upper speed limit (typically 2000–2400 r/min) for higher C0 and better shock-load tolerance, but they demand strict lubrication and a minimum-load threshold of roughly 0.01 × C0 to keep the rollers in the unloaded zone from skidding and smearing the cage pockets [S2].
Installation tolerance is tighter than most engineers expect. Bore tolerances on the shaft seat are commonly h6 or js6, while the housing bore is held to H7 or J7; flatness of the backing shoulder must stay below 0.005 mm across the bearing seat diameter, and the shaft shoulder must be square to the axis within 0.02 mm over 100 mm. Failure to meet any one of these figures is the single most cited root cause of early thrust-bearing failure in pump and gearbox warranty returns [S3].
Type-by-Type Comparison: Ball vs. Roller vs. Fluid-Film vs. Slewing
Decision logic on the shop floor usually comes down to four numbers: peak axial load, peak rpm, allowable misalignment, and target service life at L10.
Single-direction ball thrust bearings handle moderate axial loads (C0 ≈ 35–110 kN at 40–90 mm bore) at high speed (up to ~3600 r/min under grease) and cost the least, but reject shock load and tolerate almost no misalignment. Cylindrical roller thrust bearings push C0 to roughly 90–170 kN at 50 mm bore and absorb shock, yet top out near 2400 r/min and require a positive minimum load to prevent skid [S1][S2]. Tapered roller thrust units can carry combined axial and radial loads at the cost of strict paired mounting (typically back-to-back or face-to-face) and higher friction torque. For very large diameters (often above 400 mm) and combined load vectors, a slewing bearing replaces the thrust-bearing-plus-pinion stack, while fluid-film tilting-pad units dominate above 75 m/s peripheral speed where any rolling contact would suffer heat-induced failure within minutes.
A quick rule of thumb: if DN × pitch-line velocity stays below the rolling-element limit and the load is purely axial, a ball or roller thrust unit is mechanically and economically correct; above that line, the only practical answer is a hydrodynamic or hydrostatic thrust bearing with a dedicated oil-supply skid.
Operating Envelope Numbers and Material Choices
For 52100 chrome-steel rolling-element thrust bearings, the practical temperature window is roughly −30 °C to +150 °C with conventional grease and up to +250 °C with high-temperature lubricant, while 440C stainless extends corrosion resistance at the cost of ~15% lower load rating.
For linear-thrust applications, where the load is along a straight axis rather than rotating, linear bearings and ball-screw supports handle the same load path in a different geometry and are governed by the same DN-style speed limits.
Sourcing Standards and Certification Map
Industrial thrust bearings are commonly supplied against ISO 15:2017 (radial bearings — boundary dimensions) for general units, ISO 104:2015 (thrust bearings — boundary dimensions, plan) for axial-specific dimensions, and ABMA STD-20 for ball-bearing tolerance grades ABEC-1 through ABEC-9. For high-precision spindles, ISO 492 class 6 (P6) or better is typical. API 671 covers couplings including the thrust-bearing interfaces between driver and driven machines on rotating equipment, while API 610 explicitly requires hydrodynamic tilting-pad thrust bearings on overhung process-pump shafts of certain ratings [S2].
Buyers should also request ISO 9001 certification from the bearing maker, a documented heat-treatment trace (austenitizing, quenching, tempering temperatures and durations), and a batch-level dimensional inspection report. For oil-and-gas service under sour (H2S) conditions, NACE MR0175 / ISO 15156 compliance is mandatory on the bearing steel; for food and pharmaceutical service, FDA-grade lubricant compatibility and 316L or higher stainless hardware are the standard asks [S3].
Where Thrust Bearings Are the Wrong Choice
A thrust bearing is the wrong part if the load has a substantial radial component (greater than ~20% of the axial C0), if misalignment is greater than 0.001 rad, if the unit will see sustained temperatures above 250 °C without upgraded materials, or if the application requires sub-micron axial positioning repeatability — for that last case, a preloaded crossed-roller or air-bearing stage will outperform any rolling-element thrust unit by 1–2 orders of magnitude. For heavy radial-dominated loads, a spherical roller bearing or a deep-groove ball bearing pair is the correct selection, and the thrust unit should not be substituted.
