Specifying aluminum veneer for a commercial façade comes down to four engineering knobs: fire rating, panel thickness, flatness over span, and geometry tolerance, and 2026 buyer guides from Chinese and North American suppliers consistently rank these ahead of colour or finish [S1][S4][S5].
Two material families dominate the commercial segment: Aluminum Composite Panels (ACP/ACM), two thin aluminum skins bonded to a fire-retardant mineral core, and solid aluminum veneer in 3000/5000 series alloys [S4][S5]. ACP is the workhorse for flat, high-rise curtain walls, while solid plate is specified where complex curves, double curvature, or A1 non-combustibility are mandatory [S4][S5].
ACP vs Solid Veneer: Decision Criteria and Trade-Offs
ACP sheets typically run with aluminum skins in the 0.2–0.5mm range over a 3–6mm core, giving a panel weight of roughly 2 kg/m² (under 2 lb/ft²) and excellent flatness across large curtain-wall spans [S6]. Solid aluminum veneer, by contrast, is delivered as a single alloy sheet usually 1.5–3.0mm thick for general cladding and 3–4mm for high-traffic urban façades [S4][S5].
Fire behaviour is the most common specifier filter. Standard PE-core ACP fails CAN/ULC-S134 and NFPA 285 because the core melts and drips, while mineral-core ACM variants self-extinguish and pass both tests, and solid aluminum veneer is non-combustible by nature with an A1 rating [S3][S4][S5]. Where occupancy groups include hospitals, schools, or high-rise offices, mineral-core ACM or solid plate replaces standard ACP outright [S3].
Geometry is the second filter. ACP cannot be folded into tight corners or welded into double curves without delamination; solid 3000/5000 series sheet can be folded, welded, and perforated for sculptural facades such as auditoriums and stadiums [S5]. Cost runs the other way: ACP uses less aluminum per square metre than solid plate and is consistently the more budget-friendly option on a per-m² basis [S1][S5].
Thickness, Coating and Weathering Specs That Actually Matter
Panel thickness in commercial aluminum cladding sits in the 1.5–3.0mm band for both ACP face sheets and solid veneer, with 3–4mm solid plate specified where impact resistance dominates [S2][S4]. PVDF (polyvinylidene fluoride) coating is the default for exterior service life, offering resistance to UV, salt spray, and airborne industrial pollutants, and is qualified by GB/T 23443-2009 in the Chinese supply chain [S2].
Recyclability is a concrete specification point, not a slogan: aluminum is recoverable at end of life with over 90% reuse potential, and solid sheet carries a higher residual scrap value than composite sandwich panels because the alloy is homogeneous [S2][S5]. For high-rise assemblies, cladding weight cascades into structural steel tonnage, crane time, and façade-installation labour rates, so designers commonly pair mineral-core ACM with rock-wool back-up insulation to keep the wall assembly non-combustible and Net-Zero-Ready [S3].
Code and Test Pathways: NFPA 285, CAN/ULC-S134, GB/T 23443-2009
Two fire tests govern most North American high-rise specifications: NFPA 285 (USA), which evaluates flame propagation on a multi-storey wall assembly, and CAN/ULC-S134 (Canada), which measures fire spread across the wall surface, and Ontario Building Code Part 3 explicitly calls up ULC-S134 for buildings falling under its scope [S3][S4]. In the Chinese supply base, GB/T 23443-2009 is the cited product standard for aluminum composite panel performance, including coating adhesion, peel strength, and weathering [S2].
Specifiers should not accept a generic fire certificate: third-party test reports must match the exact colour, thickness, and core formulation being supplied, otherwise on-site inspection can fail the assembly even when each component individually passes [S3]. Wind-load, impact, and seismic engineering letters are a parallel requirement for tall buildings, and full-assembly testing is the only path that captures the real fire-stop, subgirt, and fastener interaction [S3][S4].
Sub-Structure: Ventilated Rainscreen, Sub-Girts, and Fire Stops
Most modern commercial walls use a ventilated rainscreen (VRS) principle: a continuous air gap behind the panel equalises pressure, drains moisture, and protects the weather-resistive barrier, a configuration that is now standard for high-rise commercial envelopes in North America [S4]. ACP and ACM systems rely on proprietary clip-and-rail subgirts that allow thermal expansion and contraction without overstressing fasteners, particularly important on long south-facing elevations where diurnal swing can exceed 30°C [S4].
At floor lines, fire stops must break the vertical cavity to suppress the chimney effect that can draw flame upward behind the skin, and intumescent tape is commonly specified at the panel-to-window interface [S3]. Non-combustible shims and stainless subgirts are mandatory where mineral-core ACM replaces PE-core ACP, and detailing decisions at this level are what separate a code-compliant install from a rejected one [S3].

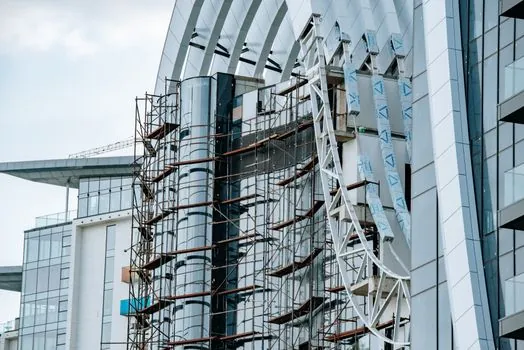

Where Each System Is the Right Answer
ACP/ACM fits corporate office towers, shopping malls, retail storefronts, branded signage walls, and any tall building that needs perfectly flat joinery and minimum structural load [S1][S4][S5]. Solid aluminum veneer fits curved cultural centres, perforated acoustic facades, stadiums, airport interiors, and any public building where the design calls for welded or folded geometry or where an A1 non-combustible rating is mandated by code [S4][S5].
Mineral-core ACM is the compromise specification for high-rise hospitals and schools, where code demands fire performance but the design team still wants a flat, modern aesthetic and a lighter wall than masonry delivers [S3]. For renovation work on existing commercial buildings, the lighter ACP option also reduces the need for structural retrofitting, which keeps façade-replacement projects on shorter construction schedules [S1].
Sourcing and Supply Reality in 2026
Chinese factories still anchor global capacity, with large multi-line plants running in excess of 20,000 m² of floor area and offering OEM/ODM production for regional distributors [S1]. International certifications in the supply base include SGS, CE, and ISO, which are table-stakes rather than differentiators for commercial-grade product [S1].
North American buyers increasingly require local stock and unique batch coding tied to a specific fire test, so a panel can be traced from the wall back to the full-scale test report, and that traceability requirement is now extending into Canadian and US specifications [S3]. For comparison context against other building-envelope decisions, see this building stone selection map for renovation projects and this high-rise building stone spec-first map.
Track these signals over the next quarter: any new GB/T 23443 revision drafts from SAC/TC 255, US code updates to NFPA 285 assembly lists, and Canadian provincial ministries moving on CAN/ULC-S134 thresholds for mid-rise residential-over-commercial podiums. For the broader metal context behind these panels, the aluminum alloy encyclopedia entry and the aluminum veneer panel encyclopedia entry map the alloy and product families used here.
