Underground and surface mines should anchor combustible-gas protection on a MSHA-rated 4-gas monitor measuring CH4 (% volume or %LEL), O2, H2S, and CO simultaneously, because those four hazards drive the majority of fatal atmospheric events in mining [S2]. A worker in an oxygen-deprived atmosphere can lose consciousness in roughly 30 seconds, and CO at 0.1% volume can be lethal within minutes, so response time and sensor redundancy are non-negotiable [S2].
The most cited industrial workhorses in this category include the RKI GX-2009 (MSHA), the RKI GX-3R, the RKI GX-2012 with built-in sample draw, the SENSIT P100 and P400, and the SENSIT HXG-2d for leak pinpointing, all detailed in current vendor and distributor specifications [S2][S3][S5]. For broader context on how a combustible gas detector differs from a general gas detector, the [S2] reference describes the four-gas "EX LEL + O2 + H2S + CO" sensor stack that defines the mining class.
Why mining needs a dedicated detector class
Mining atmospheres stack multiple independent hazards: methane accumulation in dead-air headings, CO from diesel equipment and post-blast fumes, H2S from sulfide-ore work and stagnant water, and oxygen displacement in sealed or poorly ventilated stopes [S2]. Radon progeny is a separate long-term hazard, with one referenced study attributing roughly 40% of lung cancer deaths in underground miners to radon exposure (Tukkaraja, Bhargava et al., 2021, cited in [S2]).
Because of that hazard stack, MSHA intrinsically safe approval and a 4-sensor layout (CH4/LEL + O2 + H2S + CO) is the realistic minimum for production headings, beltways, and confined-space work, rather than a single-gas LEL clip [S2]. A portable gas detector without an EX/LEL channel does not meet the use case; conversely, an EX-only explosimeter misses the O2/CO/H2S risks that cause most non-explosive fatalities [S2].
Sensor technology and reading scale: %LEL vs %volume vs ppm
Catalytic-bead sensors give a fast, linear response proportional to the Lower Explosive Limit and are the workhorse for personal %LEL monitoring, but they are vulnerable to silicone and lead poisoning in diesel-heavy headings [S1][S2]. The RKI GX-3R addresses this with a dual-filament LEL design: if one filament is poisoned by silicones, the second filament takes over, which is a real-world reliability gain for hard-rock and oil sands operations [S2].
Infrared (NDIR) sensors are non-consumptive and immune to poisoning, which suits high-humidity or dusty headings where catalytic beads drift, while metal-oxide semiconductor sensors are reserved for ppm-level leak pinpointing, not personal safety [S1]. A fixed gas detector for ventilation returns usually uses NDIR CH4, while a worker-worn clip uses catalytic bead or NDIR depending on the atmosphere [S1][S2].
Decision criteria for selecting a mining combustible gas detector
Five specifications drive the buy: (1) MSHA or equivalent mining approval versus general intrinsic safety only, (2) sensor count and gas coverage, (3) %LEL range plus resolution and warm-up time, (4) alarm architecture (audible ports, LED count, vibrating), and (5) environmental ratings (IP, drop test, operating temperature). On those criteria, the RKI GX-2009 (MSHA) is the most defensible spec for production crews, the GX-3R is a strong non-MSHA alternative with a 3-year warranty, and the GX-2012 adds a built-in sample draw pump able to draw from over 50 ft away for pre-entry testing [S2].
For leak localization rather than personal safety, the SENSIT HXG-2d with true digital display (part 906-00000-08) and the Inficon GAS-Mate sit in the ppm-sensitive handheld class, while the Bacharach Leakator 10 is widely referenced for utility-grade pinpointing of methane, propane, butane, and hydrogen [S3][S4][S5]. Pricing snapshot from a current distributor: GAS-Mate at $269.99 MSRP $355, Wohler GS300 at $211, Sensit HXG-2d at $599.60, Fieldpiece DRX3 at $727.60 MSRP $856, and the Sensit P100 CO monitor at $281.80 (2-year) or $379.20 (4-year warranty with refurbish program) [S5].
Main options compared against decision criteria
For a single mine site choosing between the four credible classes, the comparison looks like this: (a) RKI GX-2009 MSHA 4-gas: best on regulatory fit and full 4-gas coverage, but heavier and pricier; (b) RKI GX-3R: best on warranty (3 years), size, and dual-filament poison resistance, but not MSHA rated; (c) RKI GX-2012: best on pre-entry remote sampling with 50+ ft draw, but heavier as a pumped instrument; (d) SENSIT HXG-2d or Inficon GAS-Mate: best on ppm-level leak pinpointing, but not intended as primary personal safety monitors [S2][S3][S5].
A multi gas detector with all four sensors remains the right primary device for any worker entering a heading, while a ppm-class leak detector is a secondary tool for surveyors and gas-line purge crews [S1][S5]. The Bacharach Leakator 10 illustrates the surveyor's tool class: it picks out 5 to 10 gas leaks per year for one HVAC contractor and detects acetone, ethanol, industrial solvents, acetylene, ethylene oxide, paint thinners, ammonia, gasoline, propane, benzene, hexane, naphtha, butane, and hydrogen [S4].

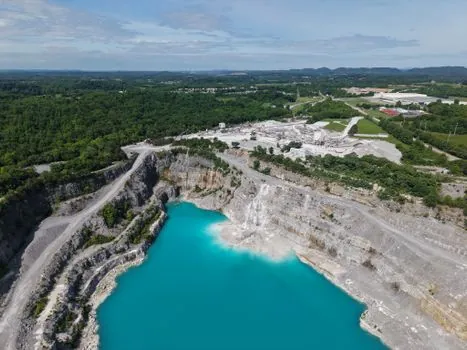

Use cases by mining environment
Underground hard-rock and coal headings: deploy MSHA-rated 4-gas monitors on every worker plus a pumped pre-entry instrument (GX-2012 type) for testing the atmosphere before crews advance [S2]. Surface oil sands and open pits: catalytic-bead or NDIR LEL with poison-resistant dual-filament sensors, paired with H2S and CO channels for diesel exhaust and sour gas [S2].
Gas-line purge and leak survey: use a ppm-sensitive handheld such as the SENSIT HXG-2d or Inficon GAS-Mate rather than a personal safety monitor, because these tools localize leaks at trace levels that a %LEL safety monitor would not register [S3][S5]. A broader selection walkthrough for sensor, mounting, and form-factor tradeoffs is in this combustible gas detector selection guide, and a parallel spec map for picking a multi-gas detector covers the 4-gas decision in more depth.
Limitations, failure modes, and maintenance constraints
Catalytic-bead LEL sensors under-read in low-oxygen atmospheres, which is a real risk in sealed headings after blasting; O2 readings must be cross-checked before trusting the LEL channel [S1][S2]. Silicone, lead, and sulfur compounds poison catalytic filaments over time, so bump testing before every shift and calibration on the manufacturer's interval are mandatory, not optional [S1][S2].
Pumped instruments fail when the sample line is kinked, the hydrophobic filter is wet, or the pump diaphragm is fatigued, so a redundant non-pumped personal monitor on the worker is the standard practice for pumped pre-entry work [S2]. The first %LEL reading is not the only data point: humidity, temperature, and barometric pressure shift readings, so do not trust an instrument that has not had a fresh air zero on the heading [S1].
Standards, sourcing, and who this is for
MSHA approval is the regulatory gate for U.S. underground coal and gassy-metal mines, while general intrinsic-safety ratings (e.g. ATEX/IECEx Zone 1 equivalents) are widely used in non-U.S. hard-rock and oil-and-gas mining, with vendor datasheets stating the exact zone and approval code [S2][S3]. For non-MSHA sites the RKI GX-3R with dual-filament LEL, 3-year warranty, and 4-gas coverage is a common baseline; for the MSHA class the GX-2009 is the cited reference [S2].
This spec profile is for mine safety managers, EHS leads, and equipment buyers writing procurement specs for 4-gas personal monitors and ppm-class leak detectors. It is not for residential homeowners chasing a methane sniffer for a basement boiler, where a simple gooseneck ppm detector (Bacharach Leakator 10, Testo 513 at 3 g/a sensitivity) is the appropriate tool class [S4][S5]. Trackable signals to watch over the next procurement cycle: continued MSHA approvals on next-generation pumped instruments, dual-filament LEL becoming a baseline rather than a premium feature, and the Sensit P100 refurbish-program economics (2-year swap to a second 2-year monitor after the first reaches end of life) [S5].
