Carbon fiber molds are matched to part category, annual volume, tolerance band, and surface class, with material choice spanning machinable wax, cast resin, glass-fiber-reinforced plastic (GFRP) lay-up, machined aluminum, and hardened tool steel [S1][S2].
The market for carbon fiber tooling is built around four production stages: prototype, pre-series, mid-volume, and serial production, and the mold material that wins at one stage routinely loses at the next, so quoting on lowest first-piece cost is the most expensive mistake a sourcing team can make [S4].
How Carbon Fiber Molds Differ From Metal Stamping Dies
A carbon fiber mold cures laminate under heat and pressure rather than plastically deforming sheet metal, so cavity accuracy, thermal cycling, and release behavior dominate the design checklist, while stamping-style spring-back and draw-bead analysis do not [S1]. Standard mold cycles run through prepreg or dry-fabric cutting, lay-up to designed orientation, mold close, heat and pressure ramp, resin cure, controlled cool, demold, and trim/inspect, with each step standardized to keep cycle time stable on automated lines [S1].
For composite parts, the mold base carries the cavity geometry, while the laminate itself is the product, so the mold must hold thermal stability across hundreds of cycles without warping or surface drift, a behavior pattern distinct from any casting mold used for molten metal [S1]. Composite tooling therefore competes on thermal mass, CTE match to the part, and surface release, not on impact resistance.
Mold Material Options Compared on Four Decision Criteria
No single mold material is universally best; the right pick depends on stage, volume, and precision target, so engineers are advised to score candidates against cost, lead time, cycle life, and surface quality before drawing release [S4]. The four workhorse options are machinable wax for prototypes, cast resin for low-volume visual parts, GFRP lay-up tooling for mid-volume runs, and machined aluminum or hardened steel for serial production [S2][S4][S6].
The table below scores the four options on the criteria that drive mold-buy decisions. Values are drawn from the cited sources and stated qualitatively where the research gives a band rather than a fixed number.
Machined aluminum and hardened steel (H13, S136) sit at the top for cycle life and surface repeatability, but lead time and tooling cost are the highest. Cast resin and GFRP lay-up tooling sit in the middle on cost and lead time but yield lower cycle life, typically several hundred to a few thousand parts before re-mastering. Machinable wax sits at the bottom on cost and lead time but is essentially single-use or low-double-digit shots, and is reused by re-melting rather than by re-surfacing [S2][S4].
For short-fiber carbon fiber reinforced thermoplastics that run on injection molding machines, the abrasive wear rules out standard P20 and forces hardened tool steel; H13 and S136 are the two grades called out for this duty, with the higher injection pressure (20-50% above unfilled resin) handled by standard hydraulic or servo presses once the screw and barrel are upgraded [S3].
Selection Criteria: Volume, Tolerance, Surface, Budget
Production volume is the first filter: prototypes and one-offs map to 3D-printed or machinable-wax tools, small-to-medium runs map to fiberglass or carbon-fiber-reinforced molds, and OEM serial production maps to CNC-machined aluminum or steel [S5]. Dimensional tolerance is the second filter: parts requiring tight fitment for vehicle installation or aerospace assembly need the dimensional stability of metal tools, while visual or decorative parts tolerate composite-tool dimensional drift across a run [S4][S5].
Surface class is the third filter: female molds in machinable wax deliver a directly-CNC-machined surface that needs little sanding, with smooth transitions, generous radii, and perimeter flanges specified up front to help carbon fabric conform during lay-up [S2]. For structural Class-A exterior parts, the mold surface drives the cosmetic outcome, and the tool cost premium for machined metal is recovered through lower rework on the laminate side.
Process Map by Part Category
Decorative interior parts operate in stable cabin conditions, so the focus is fitment accuracy, surface finish, weave alignment, and gloss; mold choice can sit at the composite-tool end because thermal and UV loading is mild [S5]. Exterior structural parts face UV, moisture, thermal cycling, vibration, and stone impact, so the laminate, curing strategy, and finishing system all step up, and mold choice typically shifts toward machined metal for cycle-life reasons [S5].
For continuous-fiber carbon parts, the lay-up method (prepreg compression, RTM, vacuum-bag-only) drives mold pressure rating and heating channel layout, with autoclave-rated tools reserved for the highest-performance aerospace laminates [S1][S6]. A typical process flow layers prepreg or dry fabric onto the prepared mold, seals a vacuum bag, ramps temperature and pressure, cures, then trims and inspects; the mold is the variable that determines whether that flow runs at 30 minutes or 8 hours per cycle [S1].
Limits, Failure Modes, and Common Defects

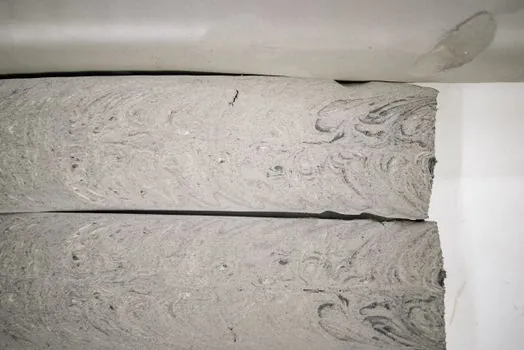

Composite tools fail differently from steel tools: the dominant modes are surface porosity, dimensional drift after a few hundred cycles, edge chipping at trim lines, and localized hot spots from uneven heating channels, rather than the gross cracking seen in hardened-steel tooling [S1][S4]. For short-fiber injection compounds, the main failure mode is abrasive wear at gates, runners, and ejector pins, because carbon fibers shorter than 0.1 mm after compounding still cut steel at every shot [S3].
Gate design is the single highest-leverage defect control: large, rounded gates cut fiber breakage at the gate area and preserve the 2-3x tensile-strength advantage in the flow direction over the transverse direction that defines the part's anisotropic behavior [S3]. Engineers are also advised to keep fiber length through the process, since gate-induced fiber attrition can erase the stiffness and strength gains the material was selected for in the first place [S3].
Standards, Sourcing, and Verification
Supplier selection should be evidenced by sequential 3D-data comparison: incoming data audit, CNC-mold scan against the original 3D data, first-part scan against that data, then a re-scan after 20 production sets to confirm the mold has not drifted [S4]. FEA-backed material substitution is the cited engineering control for weight-critical programs, with one roof front-crossbeam case showing a 53.7% mass reduction versus the steel baseline when validated before tooling was committed [S4].
For sourcing teams that need a wider process context, the related spec map on Carbon Fiber Selection for Automotive Manufacturing covers the material side, while the Gear selection for material handling piece covers the mechanical-drive side of any composite molding cell. Two trackable signals to watch are: (1) whether your shortlisted mold shop runs sequential 3D-data verification rather than a single first-article check, and (2) whether the proposed mold material matches the stated annual volume within the cycle-life bands summarized above.
