Cast iron is specified for molds and dies because its 2.0–4.3% carbon content and 1–3% silicon range give controllable graphite morphology, which directly governs machinability, damping, and thermal fatigue behavior in service [S3].
For mold and die applications, four families matter: gray iron (flake graphite, high damping), ductile/nodular iron (spheroidal graphite, higher toughness), white iron (carbon as iron carbide, very hard, brittle), and malleable iron (tempered white iron, moderate ductility). Each demands a different mold strategy, and the wrong pairing shortens tool life and inflates per-part cost [S1].
Cast Iron Family Comparison for Mold and Die Service
Gray iron is the workhorse for sand-cast and permanent-mold tooling because flake graphite delivers excellent vibration damping, good machinability, and high thermal conductivity, all useful in machine-tool bases, glass molds, and low-to-medium volume dies [S1].
Ductile iron adds a magnesium-induced spheroidal graphite structure that lifts tensile strength and impact resistance, making it the go-to where the mold cavity must survive thermal cycling without cracking, such as automotive and heavy-industrial cores [S1].
White iron is the hardest family because most carbon stays combined as cementite (Fe3C); foundries reserve it for wear liners, crusher parts, and pump bodies, not for the bulk of a mold body [S1]. Malleable iron is produced by heat-treating white iron to break down the carbide, giving a tougher alternative when castability plus shock resistance is required [S1].
A simple side-by-side for selection: gray iron offers the best damping and lowest cost; ductile iron wins on tensile strength and thermal-fatigue resistance; white iron leads on abrasive wear but is too brittle for most mold bodies; malleable iron bridges the cost-ductility gap for thinner, shock-loaded sections [S1].
Sand Molds vs. Permanent Molds: Material Implications
Sand molds (green sand or resin-bonded) are expendable, low-cost, and dominate the iron-casting industry for complex or low-to-medium volume parts, and they accommodate the full range of cast iron grades because the molding medium is sacrificial [S5].
Permanent metal molds (gravity die casting, low-pressure die casting, centrifugal casting) pour repeatedly into a reusable, refractory-coated steel or iron cavity, cutting waste and emissions, but they demand higher-alloy mold materials because every pour stresses the tooling thermally [S2].
Ramaprasad (2012) notes that permanent-mold service life for cast iron is driven by pouring temperature, mold material, thermal cycling, mold coating, and gating design; the technology has been used for nearly a century for ferrous castings but remains far less developed than for non-ferrous alloys, largely because of poor mold life and the need for better mold alloys [S2] (2012-09).
Sand-mold cast iron still dominates by volume because the economics favor disposability at low-to-medium runs; the sustainability argument for permanent molds is real, but the tooling penalty keeps most iron foundries on sand for tonnage parts [S2] (2012-09). A practical bridge is the semi-permanent mold, which uses metal mold bodies with expendable sand cores where internal geometry is complex [S2].
Carbon, Silicon, and the Graphite Morphology Lever
Foundries maintain carbon between 2% and 3.5% and silicon between 1% and 3% to control graphite form and casting soundness, with the exact window chosen by the target grade and section thickness [S3].
Machine Design (2023-05-18) frames the underlying metallurgy cleanly: "the key to cast iron's range of properties is its carbon content... the precipitation of carbon (as graphite) during [solidification] provides" the machinability, damping, and lubricity that machinists and mold designers rely on [S7] (2023-05).
In practice that means the foundry, not the buyer, locks the CE (carbon equivalent) target. The buyer's lever is selecting the graphite morphology that matches the failure mode: flake for damping and thermal diffusivity in a glass mold, spheroidal for fatigue resistance in a die body, no free graphite for wear surfaces [S7] (2023-05). The presence of graphite in a cast iron glass mold is even a functional feature: practitioners report that the graphite acts as a mold release and reduces heat extraction from the glass, which is why ductile cast iron is preferred over bronze for blown-glass bottle molds [S4].
Die (Mold) Body Steel vs. Iron: When to Step Away from Cast Iron
For high-pressure die casting of non-ferrous alloys, mold bodies are almost always medium-carbon quenched-and-tempered structural steel, not cast iron, because the thermal-shock and clamping-stress envelope exceeds what flake or even nodular graphite structures tolerate long term [S3][S6].
Grefee Mold lists the common die-body grades: high-quality medium-carbon quenched-and-tempered steel as the default, and Q235A (A3 steel) as a common low-cost alternative for less demanding dies [S6].
The decision tree reads cleanly: if the cavity surface must survive abrasive wear from iron pour after iron pour, white-iron liners or hardened tool-steel inserts are the answer; if the bulk mass must damp vibration in a machine base, gray iron is the answer; if a permanent mold must survive thousands of pour cycles in cast iron service, the literature still points to alloyed ferrous mold materials and coatings as the open problem, not gray iron alone [S2][S6] (2012-09). Buyers evaluating a permanent-mold line for cast iron production should plan on a controlled-mold-material development program rather than a standard off-the-shelf graphite [S2] (2012-09).

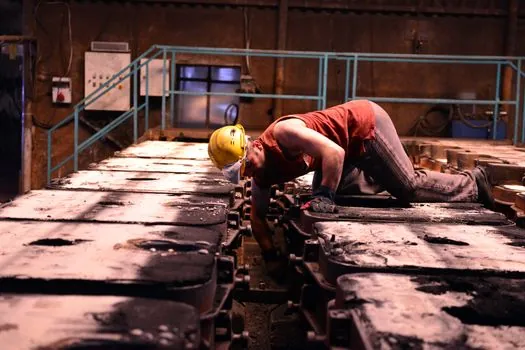

Selection Criteria, Sourcing Signals, and Standards
Five criteria separate the four families for mold-and-die work: tensile strength, damping/machinability, thermal-fatigue resistance, wear resistance, and pattern/mold cost; grade choice should be evidence against the dominant failure mode of the application [S1].
For pattern and mold procurement, buyers should request the actual ASTM A48 (gray) or ASTM A536 (ductile) class, the CE, the graphite morphology call-out, and any heat-treatment record, because generic "gray iron" or "ductile iron" labels in a PO invite the foundry to pick the cheapest chemistry that still ships [S3]. Permanent-mold buyers should additionally require a documented mold preheat, coating schedule, and shot-count tracking, since mold life is the limiting KPI and is not comparable without those three data points [S2] (2012-09).
Two trackable signals are worth watching: the gradual replacement of silica-based foundry sand with resin-bonded or alkaline-phenolic systems (driven by silica-dust regulation and used-sand disposal cost) [S2] (2012-09); and the slow but steady adoption of semi-permanent mold lines for short-run ductile iron components, where the metal body is reused but sand cores handle the internal geometry [S2] (2012-09). On a related materials note, buyers cross-referencing wear liners sometimes compare metal vs. ceramic performance, and the industrial ceramic total-cost-of-ownership math tracks the same trade-off (mold life vs. per-part cost) that governs cast iron die selection. For tool-room supplies that ride alongside mold work, the industrial brush sourcing map covers the deburring and finishing side of the workflow. A foundational reference for the casting-mold terminology used here lives in the casting mold encyclopedia entry, with related process detail under cast iron and sand casting mold.
