The footing-to-wall cold joint is a construction joint, not a working crack: concrete in the footing has already taken its initial set when the wall is poured, so the interface between the two lifts is a planned plane of potential water passage. A 4 in. to 12 in. wide waterstop embedded across that joint is the most widely used first line of defence, with PVC dumbbell extrusions in 50 ft rolls and 3/16 in. to 1/2 in. thicknesses being the longest-established profile family [S2]. A positive-side waterproofing membrane is then lapped continuously from the wall down onto the top of the footing, which gives the joint a second, redundant seal.
For residential and light commercial foundations, the membrane is typically a self-adhered sheet or a fluid-applied elastomer applied to a dry, cured substrate. The application window matters: standard cold-applied sheets have a minimum application temperature of 10 degrees C (50 degrees F), and low-temperature formulations rated to -10 degrees C (14 degrees F) require the roll itself to be conditioned back to at least 10 degrees C before installation [S4]. That temperature discipline is what keeps the lap adhesion above the threshold needed to resist hydrostatic head at the joint.
Why the cold joint is the dominant leak path
A cold joint is by definition an interface where fresh concrete meets hardened concrete, and it is the most likely place a water leak will appear if the membrane is ever breached [S2]. Beyond that interface, neither the waterstop nor the membrane can do much about cracks caused by settlement, load deflection, or shrinkage, which is why the joint itself, not random wall cracks, is the detail that receives the heaviest specification. GreenBuildingAdvisor's reader discussion makes the same point from the field: "waterproofing the cold joint is simply tough. But waterproofing it is definitely a good thing to do while you are down there" [S3].
On dense clay sites, the case is even sharper, because clay holds water against the wall and feeds the joint under sustained hydrostatic pressure. Designers therefore treat the footing-to-wall interface as a guaranteed wet detail and stop relying on a capillary break or dampproofing coat to carry the load on its own. The same logic shows up in the deep-foundation guidance, which notes that as the foundation goes deeper, there is a greater likelihood that it will encounter the groundwater table and hydrostatic conditions [S5].
Waterstop families compared for the joint
Waterstops for a footing-to-wall cold joint are not a single product, and the right choice depends on expected joint movement, hydrostatic head, and chemical exposure. The four families in standard use are: PVC thermoplastic extrusions (4 in. to 12 in. wide, 3/16 in. to 1/2 in. thick, ribbed or dumbbell, with optional tear-web center bulbs for large movement); hydrophilic bentonite and rubber strips, which swell on contact with water to seal small gaps; asphaltic/rubber composites; and injection hose systems that allow post-pour resin injection if a leak later appears [S2]. For the footing-to-wall joint specifically, a ribbed PVC waterstop with a flat web is normally sufficient because little or no movement is expected at that interface, and a center-bulb profile is reserved for joints where shear or transverse movement is anticipated.
The comparison lines up cleanly against four decision criteria. (1) Hydrostatic head: PVC ribbed extrusions carry the highest rated head and are the default for deep foundations; hydrophilic strips are limited to low-head residential basements and cannot be used in standing water during the pour. (2) Movement accommodation: flat-web PVC for non-moving joints, center-bulb or tear-web PVC for moving joints, and hydrophilic strips where only tight sealing against small gaps is needed. (3) Chemical resistance: PVC is acceptable for normal soil chemistries, while saltwater or contaminated sites may call for a specifically formulated membrane [S5]. (4) Redundancy: an injection hose system adds a second line of defence by letting the contractor pump resin into the joint after the pour if the primary seal is ever compromised. Picking among these is, in practice, a joint-movement and head-height decision, not a brand decision.
Membrane detailing across the joint

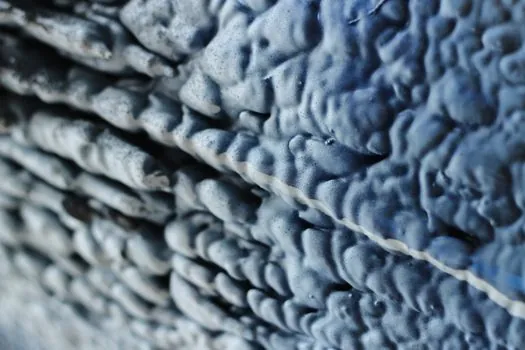

The positive-side membrane is the second leg of the detail, and it has to be continuous across the footing-to-wall transition rather than stopping at the wall. Self-adhered modified-bitumen sheets are commonly used here because they conform to the 90-degree transition and self-seal around the waterstop's protruding ribs; for sprayed-on fluid-applied membranes, the applicator must build up film thickness at the inside corner to the manufacturer's wet-film spec [S4]. Either way, laps and terminations are made on the vertical wall face, not on the horizontal footing, so that any water tracking down the wall is intercepted before it can reach the joint.
Field execution rules that are repeatedly emphasized in manufacturer guidance: substrate must be smooth, dry, and free of ice or curing compounds; joints and cracks less than 6 mm (1/4 in) are sealed with elastomeric sealant, larger cracks are repaired with a suitable concrete repair product; curing period must be long enough before the membrane is laid, with an adhesion test recommended on concrete [S4]. Membrane pieces must completely cover the joints of the reinforcement, with a minimum 100 mm (about 4 in.) overlap between sheets where they meet on the wall [S4]. On a 1/2 in. rebar mat, that overlap is what keeps the sheet from bridging open at the lap.
French drain placement and how it interacts with the joint
Drainage and waterproofing are coupled at the footing: a properly detailed membrane will fail faster if water is allowed to sit on top of the footing, which is why drain placement is part of the joint detail, not a separate trade. The traditional detail puts the perforated pipe outside the footing at the level of its bottom, but a newer practice is to set the drain on top of the footing, with gravel above and around it, so any water that lands on the footing is removed before it can find the cold joint [S3]. Both layouts are considered acceptable provided the joint itself is fully waterproofed; the joint, not the drain, is what keeps the basement dry if the drain ever clogs.
Reinforcement continuity also matters at the same detail. Membrane pieces must completely cover the rebar joints, and the minimum 100 mm overlap between membrane sheets on the wall is the lap that survives backfill placement and the small lateral squeeze of the granular drainage layer [S4]. On a clay site, where the soil swells against the membrane during wet seasons, that overlap is the difference between a lap that holds and a lap that opens up directly above the cold joint.
Standards, sourcing, and when each detail applies
The deep-foundation guidance frames the decision as a four-factor problem: type of foundation system, site conditions (including groundwater table elevation versus the lowest foundation element), product performance properties, and construction sequencing [S5]. The geotechnical report is the controlling document for hydrostatic assumption, because a single boring captures the water table at one moment in time, and the design should use the historic high or recommended design elevation rather than the reading on the day of the test [S5]. For the membrane itself, a positive-side, fully adhered system installed on a properly cured, dry substrate at or above 10 degrees C (50 degrees F) is the conservative default; on a site with saltwater or contaminated soils, a membrane variant rated for that exposure is specified, and the same logic carries over to the lap at the footing-to-wall joint [S5].
For more on how lap geometry and gasket detailing show up elsewhere in below-grade and process piping, see this RTJ vs spiral wound gasket comparison, and for a quick reference on the broader topic of below-grade waterproofing systems the encyclopedia entry is a useful companion. The cold joint itself is a special case of an expansion joint in that the joint geometry is fixed at pour time, which is why waterstop selection keys off the expected movement band rather than the joint width on the day of installation.
Two signals to watch on the next project: whether the spec actually calls out the waterstop profile by name (ribbed PVC with flat web for non-moving joints, center-bulb for moving ones) rather than just "waterstop," and whether the membrane termination is drawn on the vertical wall, lapped a minimum of 100 mm, with the cold joint itself treated as a primary waterproofing line, not a secondary one. If both are present on the drawing, the detail has a real chance of staying dry.
