Cast iron components are traceable through two parallel identifiers: a cast batch (or pour) code physically marked on the rough or finished piece, and a heat number on the Mill Test Certificate that ties that pour back to chemistry, tensile data, and the applicable ASTM/EN grade.
The three physical marking routes used in iron foundries today are cast-in raised numerals (mould-baked or sand-blasted into the parting line), low-stress dot-punch stamps, and increasingly fiber-laser etched Data Matrix codes carrying up to 3,116 numeric characters per code, with paint stencil and stainless tag still common for large castings and skids.
Cast-in, Stamped, Stencil, or Laser: The Four Real Methods
Foundries do not pick marking technology first, they pick it from the casting size, the grade, and the customer's documentation demand [S2]. The four methods in production today each have a defined role:

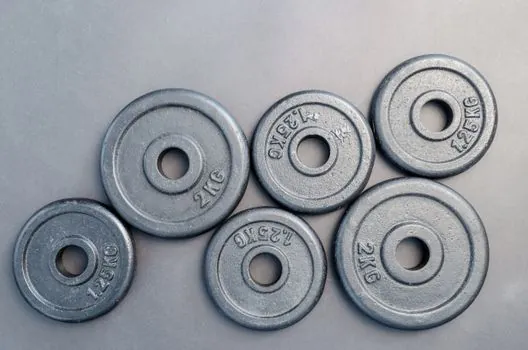

1. Cast-in raised numerals. Cores or mould inserts carry the inverse digits; after shake-out the numbers sit raised on the as-cast surface. No cold work, no risk of crack initiation in a brittle pearlitic or white iron. Standard for cast iron valve bodies, pipe fittings, and hydrant parts per ASME B16.42 / EN 1561 / EN 1563 [S4][S5].
2. Low-stress dot-punch stamps. A hand or pneumatic punch with a rounded nose applies a series of dots rather than continuous characters. This is the spec for pressure-retaining castings where stamping is allowed by the purchaser, and the only method that meets NACE MR0175 / ISO 15156 cold-work restrictions on sour-service parts [S4].
3. Paint stencil. Yellow or white alkyd paint stencilled over the casting, often on a ground area. Cheapest, fastest, but the least durable: it survives indoor storage, fails on outdoor yards, and is the method that gets peeled off first by an inattentive handler [S4][S5].
4. Fiber-laser etching. A pulsed infrared fiber laser ablates a thin oxide layer without removing base metal, producing a permanent mark readable by both the eye and a 2D-code scanner. Laserax reports minimum character sizes in the sub-millimetre range on die castings, with the technique now used in iron foundries to apply Data Matrix codes for direct MTC linking [S9].
What Exactly Gets Marked: Batch Code, Heat Code, and Grade
A cast iron part carries a pour/batch number unique to one furnace tap, and a heat number is sometimes used synonymously, but they are not always identical in iron production the way they are in steel mills [S2][S3].
Practical convention in ductile and gray iron shops: each furnace melt (typically 1-12 t for a medium cupola or induction furnace) is logged as a heat, the tap date and shift become part of the code, and a sub-code is added per ladle pour or batch of moulds poured from that ladle. So a single ASTM A536 65-45-12 ductile iron casting may carry a 6-10 character code such as "26K04-137" (year 2026, November 4 shift, pour 137) which maps 1:1 to a certificate line [S2][S5].
The grade symbol itself (e.g. "A536 65-45-12", "A48 Class 30", "EN-GJL-250", "EN-GJS-400-18") is normally painted or stencilled adjacent to the heat code, not stamped into the casting, because the grade can change between pours even when the part number is identical. The casting part number is a third, separate mark, and the foundry's pattern number is yet a fourth, usually mould-engraved and visible as raised text on the inside of the casting.
Heat Number, Lot, and Piece-Mark: The Three Traceability Levels
The NTIA practical guide splits material traceability into three levels, and the same split applies one-to-one to cast iron [S2]:
Level 1, Heat or lot traceability. "All flanges on this skid are from heat H-713845." Acceptable for non-critical structural and drainage cast iron, common for EN-GJL-250 piping accessories where the spec only requires chemistry compliance [S2].
Level 2, Piece-mark traceability. Each fabrication isometric carries a piece mark (e.g. "B12-01"), and the traceability register maps that piece mark to the specific heat and certificate line. This is the standard for ASME B16.42 / AWWA C110 / C153 ductile iron fittings in petrochem and water projects [S2][S3].
Level 3, Full piece-level traceability. Every individual casting has its own serial number stamped or laser-etched, and the MTC carries one row per piece. Required for nuclear, MIL-spec, and certain aerospace defense castings under AS9100 / ITAR / DLAD, and for any casting with third-party witness inspection [S3].
Most industrial cast iron sits at Level 1 or Level 2. The mark you actually see on the part tells you which level you are at: a single shared number on a bundle tag is Level 1, a part-specific number painted on each flange is Level 2, a laser-etched Data Matrix that decodes to a unique URL on the MTC PDF is Level 3 [S2][S9].
Cast Iron vs Steel: What Changes in the Marking Method
Cast iron and steel share the traceability logic, but the physical marking method diverges because of metallurgy: [S5]
Brittleness. Gray iron flakes and white iron's massive carbides both crack under sharp V-stamp indents. Continuous-character stamps are disallowed on as-cast iron surfaces for pressure service; only the rounded-nose dot-punch variant is permitted by most end users [S4].
Surface roughness. As-cast iron is too rough for fine etched text; paint stencils read better than laser etching on raw as-cast surfaces, so foundries either grind a witness pad before laser marking, or restrict laser marking to machined faces only [S9].
Graphite flotation in ductile iron. Heavy-section ductile iron castings (over about 50 mm wall) can show graphite degradation toward the top of the pour. The heat number lets the foundry tie mechanical-test results from separately cast keel or Y-block coupons to each individual casting, which is the basis of the 60-40-18 / 65-45-12 / 80-55-06 ASTM A536 grade assignment [S3][S5].
How the Mark Survives Casting, Machining, and Shipping
The real failure mode of cast iron traceability is not the marking method itself, it is mark survival through the process chain. The NTIA and pipe-fabrication references all converge on the same list of survival rules [S2][S4][S6]:
Mark before stress relief, not after. Cast iron is stress-relieved or normalized between rough and finish machining, and any paint or laser mark made after stress relief can degrade or shift. The conventional sequence is: rough machine, mark, stress relieve, finish machine, repaint mark if needed [S4].
Keep heat numbers visible. Steel O'Brien's documentation guide for high-purity systems states the rule flatly: heat numbers and identification marks should remain visible whenever possible, and where they are removed by machining, a stainless tag wired to the part is the accepted workaround [S6].
Cross-check the mark against the MTC at goods-in. The Fry Steel traceability piece spells out the receiving-inspection sequence: heat numbers, yield strengths, and material types are verified for each piece, and mill tags are cross-referenced with mill stencils and MTRs to confirm the certificate matches the physical part [S3][S8].
Use low-impact identification on finished machined faces. Where the only legal place to put the mark is a finished face, paint stencil or fiber-laser oxide marking is preferred over stamping, because dot-punch stamps on a machined sealing face can leak and laser marking is essentially stress-free [S4][S9].
Digital Marks and Data Matrix Codes: The 2025-2026 Direction
The clearest shift in 2025-2026 cast iron traceability is the move from human-readable paint stencils to machine-readable 2D codes, driven by EN 10204 type 3.2 inspection demands and by end users who want to scan a part with a phone and pull the MTC PDF directly [S2][S7][S9].
Cajo Technologies reports that a single traceability code in steel manufacturing can carry up to 3,116 numeric characters, enough to embed the heat number, the grade, the piece-mark, the MTC PDF hash, and a URL to the supplier's certificate database [S7]. The same technology is migrating into iron foundries because the laser that writes the code does not need a smooth surface; it only needs an oxide layer, which all cast iron has as-cast.
The pipe-fabrication sector is the early adopter on the iron side: heat numbers are physically marked on components such as pipes, fittings, and flanges using stamping, etching, or printing, and large ductile-iron pipe producers (US and EU) have moved to per-piece Data Matrix since 2024, with each code resolving to a mill certificate in the producer's traceability portal [S2][S4].
Where the Standardisation Still Has Gaps
Three concrete gaps show up in practice and are worth flagging for any QA team writing a cast-iron procurement spec:
No universal heat-number format. The Gosmarter reference states it directly: heat numbers are typically 4-8 characters, letters, numbers, or a combination, the format varies by mill and country, and there is no universal standard for how they look, only a universal requirement for what they do [S5]. Specs that demand a specific heat-number length or prefix will fail at the second foundry.
Cast iron sub-codes are not in EN 10204. EN 10204 type 3.1 / 3.2 covers the MTC content but does not dictate the on-part marking, so the foundry's internal scheme wins unless the purchaser's PO explicitly overrules it [S2][S6].
Piece-mark vs part-number confusion. In some shops the part number on the drawing is the piece mark; in others the piece mark is a fabricator's site-specific code (e.g. "B12-01") mapped back to the part number. The traceability register must record both, or the link from the MTC to the installed component breaks at handover [S2].
What the Mark Tells the Receiver in Practice
When a ductile iron flange arrives on the loading dock with a paint-stencilled code "A536 65-45-12 / 26K04-137 / PO-4471-X", the receiver can read three things in one glance: the ASTM grade, the foundry's pour code (year, date, pour number) which maps to one row on the MTC, and the customer PO line. If any of the three is missing, the part is non-conforming per most EN 10204 type 3.1 purchasing specs, and the standard move is to quarantine until the foundry re-issues the certificate, not to guess and ship [S2][S3][S6].
That same code, when read by a 2D scanner in a 2026-vintage digital system, resolves to a URL that opens the MTC PDF, the heat chemistry, the mechanical-test results, and the foundry inspection record, all without the receiver typing anything. The underlying physical mark is identical; the difference is the data density behind it.
Trackable signals for the next quarter: EN-GJS-500-7 and higher strength pearlitic ductile iron adoption in chassis and wind-hub castings, where piece-level Data Matrix marking is being written into OEM purchase specs, and the slow retirement of paint stencils on machined faces in favour of laser etching in European iron foundries. The physical mark on the part will keep looking like four digits and a letter, but the data behind those four digits is moving from a paper file to a 2D code.
