A bellows-sealed valve on a corrosive service line is a stem-seal arrangement in which a welded metallic or PTFE bellows forms a hermetic barrier between the process fluid and the atmosphere, eliminating the fugitive-emission path that a packed gland would otherwise provide [S1]. For an RFQ on a chemical, chlor-alkali, or acid-feed line, the buyer is really buying a sealed stem assembly plus a body rated for the fluid — and the failure mode if either is mis-specified is process leak, toxic exposure, or premature bellows fatigue cycling.
Across the 2026 DirectIndustry index, 36 manufacturers list 75 active bellows-seal valve models, and the spec envelope for corrosive service clusters around DN15–DN250, PN16 to PN100, and -60°C to +200°C for lined globe bodies [S3]. For mechanical-seal pumps handling the same fluid class, Flowserve BX-series metal bellows seals carry an API 682 Type B envelope to 28 bar (406 psi) and -40°C to +204°C [S2]. Those numbers are the practical working window a buyer's RFQ should sit inside before invoking any exotic upgrade.
RFQ line items: the seven parameters that must appear
A buy-side spec sheet that omits any of the following fields will trigger a clarification cycle or, worse, a default-quote at the lowest-cost configuration. The seven items are: (1) DN / NPS, (2) body rating (PN bar or ASME Class), (3) design temperature min/max, (4) process fluid name and concentration, (5) body and lining material, (6) bellows alloy, (7) leakage class and certification pack [S1][S4].
Specifying only "bellows seal valve DN50 PN16" leaves lining, alloy, leakage class, and certification undefined — the vendor will then default to a carbon-steel gland-style body at 15-30% below the true corrosive-service price, which is the single most common cause of requote loops. Richter's RSS series is a worked example: the data sheet carries DN15–DN150, 16 bar, -60°C to +200°C, PFA lining, EN-JS 1049 housing, EU PED 2014/68/EU, German TA-Luft, and SIL in a single configuration block [S1]. The buyer who copies that block line-for-line into the RFQ eliminates 80% of clarification traffic.
Body and lining selection against the fluid matrix
Body material and lining are coupled, not independent. For HCl, HF, and strong oxidizers, PFA-lined ductile iron (EN-JS 1049) is the standard pattern at PN16 because the lining carries the chemical resistance and the iron body carries the pressure [S1]. For hot oil, steam, and air up to +200°C, a stainless or carbon-steel body with graphite packing augmented by a bellows is common — Mival's 347 series carries DN15–DN250, PN27.4 minimum, stainless/carbon/graphite, with bellows seal on the stem [S4].
For sulfuric and nitric acid duties, the alloy moves up: Hastelloy, Alloy 20, or PTFE/PFA lining on a ductile-iron shell. PTFE bellows are the default for temperatures up to +200°C in lined bodies; stainless or AM-350 metallic bellows take over from +200°C upward. A buyer writing "bellows material: PTFE" on an RFQ for a 250°C hydrocarbon line is asking for failure; the spec must carry the temperature number, and the vendor must select the alloy. The Mival 347 envelope, with the 27.4 bar minimum pressure rating and the stainless/carbon/graphite trim, is the practical floor for hot-oil bellows-sealed globe service [S4].
Bellows type: welded metal versus PTFE, and when each applies
Welded metal bellows (typically AM-350, Inconel 718, or Hastelloy) deliver cycle life beyond 100,000 strokes and survive +200°C to +600°C hydrocarbon and steam service, but they will corrode in wet HCl or chlor-alkali without an upstream fluid barrier [S2]. PTFE bellows are chemically inert across the full acid/alkali matrix and dominate lined globe valves to +200°C, but they have a lower cycle rating and a definite permeation rate through the PTFE wall — Richter's "thick-walled PFA lining" is their published answer to the permeation problem at 16 bar [S1].
For pump-side mechanical seals handling the same fluid class, the Flowserve BX series uses 0.20 mm (0.008 in) welded metal bellows and a self-cleaning rotating geometry that eliminates springs and dynamic elastomers, making it the benchmark for crystallizing and coking fluids on the API 682 Type B envelope [S2]. When a process line carries both a pump and a throttling valve on the same corrosive stream, the RFQ should reference the same bellows alloy for both — mismatched alloy selection is the silent killer of maintenance budgets because every spare bellows then becomes a custom part.
Comparison: lined globe vs. metal-bellows mechanical seal at the same fluid
For HCl service at 16 bar, 150°C, a PFA-lined globe with PTFE bellows (Richter RSS envelope) costs less per unit, gives bubble-tight shutoff to ANSI Class VI, and handles full vacuum, but is limited to DN150 and +200°C [S1]. For the pump on the same line, a metal-bellows seal (Flowserve BX) costs more, runs to 28 bar and +204°C, and survives crystalline/coking fluids that would coke a PTFE bellows, but it does not provide line shutoff — it only seals the shaft [S2].
Decision rule: the valve carries the line's isolation function and is sized by DN and leakage class; the pump seal carries the shaft sealing function and is sized by pressure, temperature, and fluid crystallization tendency. Specifying them as a single "bellows package" on the RFQ — same alloy, same cycle-life target, same test medium — gives the spares-list a fighting chance of standardisation.

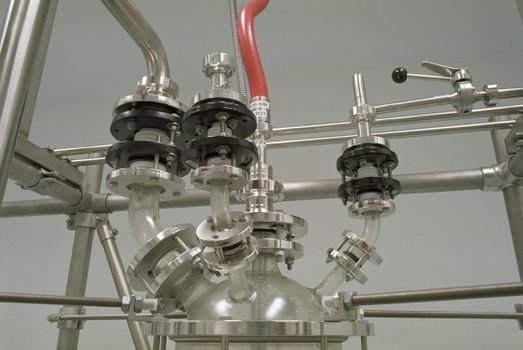

Leakage class, certification, and the EU Pressure Equipment Directive
Leakage class on a bellows-sealed globe is typically ANSI/FCI 70-2 Class IV as the default, Class V for tighter service, and Class VI for chlor-alkali and pharmaceutical shutoff where bubble-tight is contractual [S9]. A buyer writing "leakage class IV" without naming the standard still triggers a clarification because the same Roman numeral exists in both ANSI/FCI 70-2 and EN 12266-1 — the standard number, not the class, is the contract line.
Certification pack matters because the EU Pressure Equipment Directive 2014/68/EU is mandatory for CE-marked valve bodies in Europe, German TA-Luft is required for fugitive-emission compliance on chemical plants, and SIL is a separate functional-safety rating for the stem assembly. The Richter RSS datasheet carries all three: PED 2014/68/EU, TA-Luft, and SIL in a single block [S1]. A buy-side RFQ that omits the certification line in 2026 will receive a quote built to the lowest-cost jurisdiction by default, which is rarely the jurisdiction the plant actually sits in.
Limits, failure modes, and what the RFQ must explicitly exclude
Three failure modes dominate the field: (a) bellows fatigue cycling from a throttling valve with insufficient rangeability, (b) chemical attack of a metal bellows that should have been PTFE or alloy-protected, and (c) stem scoring from a service that turns out to carry solids when the RFQ was written for clean fluid. All three trace back to RFQ fields the buyer left blank [S1][S2].
Operating envelope to respect: PN16 lined bodies are not a substitute for PN40 metal bodies in high-pressure steam, and PTFE bellows are not rated above +200°C regardless of body pressure class. The Mival 347 and the Mfrbee-listed Zhejiang Xinhai Class 150-300 globe envelope together define the practical globe-valve floor for hot-oil and steam bellows service [S4][S6]. For cryogenic service below -60°C, the Rotarex K900 double-walled electron-beam welded bellows envelope at -200°C to +100°C is the published benchmark for high-vacuum isolation, not the lined globe [S3].
RFQ walkthrough: the actual line the buyer writes
The same RFQ for a pump seal on the same line reads: "API 682 Type B balanced metal bellows seal, 28 bar, -40°C to +180°C, Hastelloy C-276 bellows and faces, EPDM or FFKM elastomers, single seal configuration, Barrier/buffer fluid plan to be confirmed" — drawn directly from the Flowserve BX-series envelope [S2]. When the two lines share alloy codes and temperature limits, the spares list collapses to a single part number for bellows replacement on both valve and pump. This is the bellows seal specification discipline a senior process engineer should hold to on every corrosive-service RFQ in 2026.
Trackable signals for the next RFQ cycle: (1) DirectIndustry counts of bellows-seal valve listings — held at 36 manufacturers / 75 products as of the 2026-05-28 index snapshot [S3]; (2) price spread on Made-in-China for bellows seal valves, currently US$10 to US$8,000 per set at MOQ 1-5 pieces, which signals the floor-to-ceiling cost the buyer's spec is being matched against [S5]; (3) the API 682 Type B envelope for pump-side metal bellows at 28 bar / +204°C as the design ceiling for the coupled pump-and-valve package [S2].
