A timing pulley profile is identified through four linked measurements: outside diameter, tooth count, pitch (center-to-center distance between teeth), and tooth shape, with the simple rule that for any 8 mm pitch pulley the O.D. in inches equals tooth count divided by ten [S1].
Trapezoidal imperial pitches (MXL 0.080 in, XL 0.200 in / 5.08 mm, L 0.375 in / 9.525 mm, H 0.500 in / 12.7 mm) and metric curvilinear pitches (3M, 5M, 8M, 14M HTD plus 8MGT / 14MGT variants) sit on completely different pulleys, so a 0.08 mm pitch misread between XL and 5M will silently mis-spec the drive [S2].
Step 1: Count Teeth and Read Pitch Diameter First
Tooth count Z and belt pitch p together set the pitch diameter PD = p × Z / π, and pitch diameter is the only mathematically defensible reference circle on the pulley because the pitch line of the belt is a constant length regardless of how the belt is bent around the pulley [S3].
A quick shop-floor shortcut for 8 mm HTD pulleys is to read the O.D. in inches straight off a chart: a 40-tooth 8M pulley lands at roughly 4.000 in O.D., a 60-tooth at about 6.000 in, and so on, because the imperial/inch O.D. approximates Z/10 for that pitch family [S1]. For XL (0.200 in / 5.08 mm pitch) the O.D. in inches tracks a different ratio, and for L (0.375 in) and H (0.500 in) the inch and millimeter tables diverge further, so always cross-check against the profile-specific O.D. chart before assuming the shortcut [S1][S2].
Step 2: Measure Pitch Across 10 Teeth to Lock the Family
Pitch is the most important measurement because it determines pulley compatibility, and the field-proven method is to lay the belt flat, caliper across 10 consecutive teeth from the center of tooth 1 to the center of tooth 11, then divide by 10 [S2].
That averaging step is the difference between a clean read and a wrong-belt order: a single-tooth caliper landing on XL can easily register near 5.00 mm and look like 5M, even though XL is 5.08 mm trapezoidal and 5M is 5.00 mm curvilinear, a 0.08 mm gap that the eye cannot resolve but the part number enforces [S2]. The standard pitch table maps 0.200 in (5.08 mm) to XL, 0.375 in (9.525 mm) to L, 0.500 in (12.7 mm) to H, 3 mm to 3M, 5 mm to 5M, 8 mm to 8M, and 14 mm to 14M, with MXL at 0.080 in as the smallest trapezoidal member of the family [S2][S4].
Step 3: Read Tooth Shape to Separate Trapezoidal, HTD, and GT
Trapezoidal teeth (MXL, XL, L, H, XH, XXH) have straight sides that angle inward like a trapezoid, HTD teeth (3M, 5M, 8M, 14M) are rounded like a half-circle, and GT/GT2/GT3 teeth are a modified curvilinear with a slightly flatter tooth root for improved engagement, a difference that is hard to see by eye but shows up in the part-number format [S2][S5].
Imperial trapezoidal part numbers use a length-pitch-width pattern such as 200XL037 or 225L050, while HTD uses a length-pitch-width pattern such as 535-5M-25, and GT belts are coded pitch-first as 8MGT-640-36, so a 10-character code starting with a number followed by "MGT" is a reliable GT identifier even when the belt is too dirty to read visually [S2]. Trapezoidal and curvilinear belts are never interchangeable on the same pulley: an XL belt cannot run on a 5M pulley, and an L belt cannot run on an 8M pulley, because the tooth root geometry, not the pitch, is what carries the load [S2].
Step 4: Use the Pitch-Diameter Equation as a Cross-Check
The pitch diameter equation PD = p × Z / π is the single relationship that governs every timing pulley, and it works for both HTD and GT2 profiles with no modification, so a measured O.D. plus a counted Z can be back-solved into a pitch that must match the measured tooth-to-tooth distance [S3].
For example, a 50-tooth HTD 5 mm pulley has PD = 5 × 50 / π = 79.577 mm, and the O.D. sits above that by a profile-specific addendum (roughly the tooth height above the pitch line, about 1.149 mm for 5M HTD), giving an expected O.D. near 80.7 mm; a 25-tooth 8M pulley has PD = 8 × 25 / π = 63.662 mm, while a 25-tooth L (0.375 in) pulley has PD = 9.525 × 25 / π = 75.80 mm, so two pulleys with the same Z can sit on radically different O.D. values depending on the pitch [S3][S1]. The reference timing pulley entry covers the full set of imperial and metric tooth profiles in a single table for shop-floor lookup.

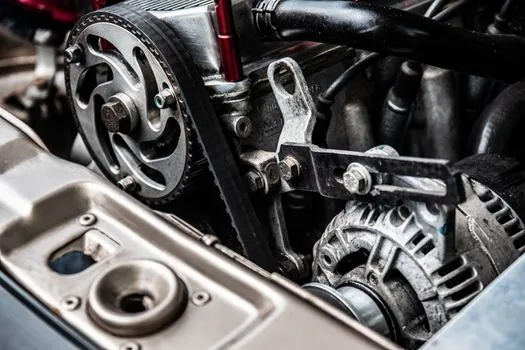

Step 5: Identify the Belt From Tooth Count, Pitch, and Width
Once the pulley profile is fixed, the belt that runs on it is fully described by three numbers, and the standard synchronous-belt part number is structured as length-pitch-width: a belt marked 8M-1200-30 is 8 mm pitch, 1200 mm pitch length, and 30 mm wide, with total tooth count equal to length divided by pitch (1200 / 8 = 150 teeth) [S4].
For worn or missing markings, lay the belt flat and measure the outside circumference, or count total teeth and multiply by the pitch, because belt length = pitch × tooth count, and this single equation lets you re-derive a missing pitch-length number once the profile is known [S6][S8]. Width is measured perpendicular to the teeth across the toothed face, and the common imperial widths (037 = 3/8 in, 050 = 1/2 in, 075 = 3/4 in, 100 = 1 in) and metric widths (6, 9, 15, 20, 25, 30, 40, 50, 85 mm) bracket the catalog range used in industrial timing belt drives [S2][S4].
Comparison: How the Main Profile Families Line Up on Identification Cues
Four decision criteria separate the common timing-belt families once O.D. and Z are in hand, and the table below captures the cross-check that a maintenance technician actually runs at the bench: pitch measurement, tooth shape, typical drive-ratio pattern, and the part-number convention that confirms the call [S1][S2][S4][S5].
XL (5.08 mm trapezoidal) versus 5M (5.00 mm HTD) is the single most common confusion: their pitches are 0.08 mm apart, both can appear in fractional-horsepower servo and motion-control panels, and the only reliable tie-breaker is tooth shape, because the pitch measurement alone can drift between the two values depending on caliper zeroing [S2]. HTD versus GT2 versus GT3 is the second-tier confusion: all three are curvilinear, all three share the 3M/5M/8M/14M metric pitches, and the part-number format (HTD as 560-8M-20, GT2/GT3 as 8MGT-640-36) is the only field-disambiguating cue, since visual inspection at 1:1 magnification will not resolve the flatter GT tooth root from a standard HTD root [S2][S5]. A 50-tooth 8M GT2 pulley and a 50-tooth 8M HTD pulley have identical pitch diameters to four decimal places (PD = 127.324 mm), so the identification cannot rest on Z or PD alone; the tooth shape, the marking, or a sample comparison to a known GT belt is required [S3][S5].
Limits, Failure Modes, and When to Stop Guessing
The O.D./Z shortcut has two real failure modes: the pulley O.D. is measured across the addendum (tooth tip), not the pitch line, so any belt-tooth wear that has rounded the tip will undersize the inferred pitch, and on worn pulleys the O.D. measurement should be discarded in favor of a direct tooth-to-tooth pitch read on the belt itself [S3][S5].
The second failure mode is cogged V-belts, which carry shallow notches (cogs) on the inner surface but are not synchronous timing belts and do not mesh with timing pulleys, so the rule is: if the pulley has positive teeth that engage the belt, it is a synchronous drive; if the belt has notches and the pulley is smooth, it is a cogged wrapped belt and none of the pitch tables above apply [S4]. When the part number is missing, the belt is snapped, the pitch measurement is ambiguous (e.g. 5.0–5.1 mm), and the tooth shape is too worn to call, send a photo of the belt and a known-good pulley to the supplier or measure center distance on the drive and back-calculate pitch from the belt tooth count and the measured center distance, because a wrong-profile belt on a steel pulley will strip in minutes under load [S2][S4]. For drive layouts where the timing belt also drives a downstream construction machinery and equipment component, a misidentified profile is a downtime event rather than just a parts miss.
Track these signals next: pull one worn sample and run the 10-tooth pitch average plus a tooth-shape photograph before quoting a replacement, log the resulting pitch and width on the drive nameplate, and re-check the pulley O.D. against the profile-specific chart (XL, L, H, 3M, 5M, 8M, 14M) rather than trusting a single shortcut [S1][S2].
