Specifying an industrial gasket is a constraint problem, not a catalogue browse: the seal must hold a defined internal pressure at a defined temperature, against a defined chemistry, inside a defined flange geometry, for a defined bolt-load budget. Five material families cover roughly 90% of fluid-service work — compressed non-asbestos fibre (CNAF), graphite, PTFE, spiral-wound metal, and elastomer — and selection is gated by the ASME Boiler and Pressure Vessel Code (BPVC) calculation pathway referenced for joint design [S1].
The decision sequence is fluid → temperature/pressure window → flange class/style → material family → gasket style. Skipping steps is the single most common cause of field leakage and blow-out incidents; UK manufacturer Keith Payne Products publishes a "Gasket Material Selection Guide" page alongside its joint selection and IP-rating references to keep specifiers on that sequence [S1].
Five Material Families and Their Service Windows
Compressed non-asbestos fibre sheets (typically aramid fibre bound with NBR or SBR) operate continuously from roughly -40 °C to +200 °C and are the default for water, steam, oils and mild chemicals on Class 150 and Class 300 flanges; graphite gaskets extend the upper window to ~450–550 °C in oxidising service and are the workhorse for steam headers and hydrocarbon hot oil. PTFE and expanded PTFE cover almost the full pH range (0–14) but cap at roughly +260 °C and show cold-flow above 20 bar, which is why filled PTFE grades (glass, graphite, bronze) are standard for aggressive chemistry [S1][S3].
Elastomers — EPDM, Nitrile (NBR), Neoprene, Hypalon, Silicone, Natural rubber, Viton (FKM, Chemours) — suit low-pressure, ambient-temperature utilities and food/pharmaceutical lines where softness and hygiene matter more than pressure class; spiral-wound gaskets (graphite, PTFE or mica-filled, with stainless steel or Monel windings) handle Class 600 and above and the highest p × T ratings in refinery and boiler service, with manufacturers like KLINGER serving chemical, oil & gas, infrastructure, energy, pulp & paper, transport, food & beverage and pharmaceutical sectors from a portfolio built on more than 130 years of sealing work [S2].

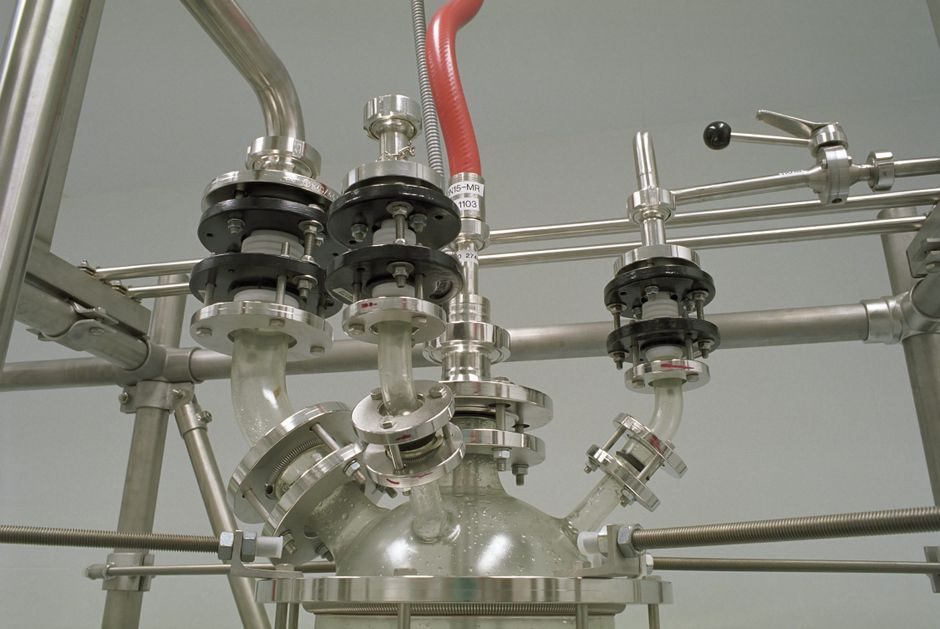

Flange Type and Bolt-Load Influence on Style
Flange face dictates gasket style as much as fluid does. Flat Face (FF) and Raised Face (RF) flanges up to Class 300 usually take soft-cut gaskets — CNAF, graphite sheet, PTFE — because the gasket seats entirely on the face; Tongue & Groove (T&G) and Male/Female faces require a soft, compressible gasket that fills the groove without extrusion. Ring-Type Joint (RTJ) flanges need a solid metal ring (oval or octagonal, soft iron, low-carbon steel, 304/316 stainless, Monel 400) machined to ASME B16.20 dimensions and are the standard for high-pressure hydrocarbon service above Class 600 [S3].
For unequal bolt load, differential thermal expansion, or where a soft-cut gasket cannot be retained, semi-metallic styles — spiral-wound, kammprofile (camprofile), and jacketed — combine a soft sealing face with a metal core. Universal Gaskets stocks 2,000+ raw-material grades in Blacktown and explicitly categorises these as "Metal Gaskets: Spiral Wound, Ring Joint, Kammprofile, Jacketed", reflecting the Australian mining, oil & gas, and process-plant workload [S3]. Bolt-load budget matters because the gasket's "m" and "y" factors in ASME BPVC Section VIII Appendix 2 govern required seating stress; soft-graphite and CNAF need ~20–30 MPa seating, spiral-wound ~50–70 MPa, RTJ metal rings exceed 100 MPa.
Decision Matrix: CNAF vs Graphite vs PTFE vs Spiral-Wound vs Elastomer
A 4-criteria comparison reads as follows. On temperature ceiling, elastomer is lowest (typically ≤ 150 °C for EPDM/NBR, ≤ 200 °C for Viton FKM, ≤ 230 °C for silicone), CNAF reaches ~200 °C, PTFE caps at ~260 °C, graphite reaches ~450–550 °C oxidising and higher in inert service, spiral-wound matches graphite in non-oxidising service and exceeds it with mica fillers. On chemical compatibility, PTFE and graphite head the list across the full pH 0–14 range; CNAF is limited by its binder (NBR weakens with strong oxidising acids, EPDM-style binders fail in hydrocarbons); elastomers split sharply — EPDM for water/steam/alkali, NBR for oils/fuels, FKM for aggressive chemicals and high temperature [S1].
On pressure rating, spiral-wound and RTJ metal rings handle ANSI Class 600–2500 (#600–#2500), CNAF and graphite are limited to ~Class 300 in soft-cut form (graphite can go higher with metal inserts), PTFE caps at ~Class 150 unfilled or Class 300 filled, and elastomer gaskets generally cap at Class 150. On cost-and-lead-time, soft-cut CNAF, graphite and PTFE run the shortest — Universal Gaskets advertises short lead times, low minimums and direct Australian manufacture for industrial gaskets, and Made-in-China listings show TC oil seals at US$0.20–1.00 per piece with 10-piece MOQ for general sealing lines [S3][S4]. For comparison context on how material-driven cost maps onto adjacent industrial categories, see this titanium bar stock grade/standard map for how alloy, form and certification govern the price curve in a different commodity stack.
Selection Workflow and Sourcing Constraints
The working workflow, condensed: (1) list the media, concentration, and worst-case temperature and pressure; (2) read chemical-compatibility tables to eliminate materials (PTFE and graphite survive almost everything; FKM and EPDM have sharp cut-offs); (3) confirm the flange rating, face type and bolt count, then size the gasket to ASME B16.21 (soft-cut) or B16.20 (metallic); (4) compute required seating load from ASME BPVC Section VIII Div 1 Appendix 2 using the chosen m and y; (5) decide between stock and custom. Stock covers 90% of standard flanges, while non-standard flanges, sample-to-CAD reverse engineering, and rapid prototyping are common service offerings — Universal Gaskets explicitly lists "Reverse Engineering: From worn part to manufacturing-ready CAD" and "Engineering Support: CAD prep, material guidance, rapid prototyping" alongside ISO 9001 and ISO 45001 certification with traceable documentation [S3].
Quality-control and standards anchoring matters: Keith Payne Products advertises "ASME Boiler and Pressure Vessel Code Calculations" as a service line, and references Gasket IP Rating, Gasket Joint Selection, and Gasket Material Selection Chart resources — concrete artifacts of a specifier-facing reference library rather than a sales sheet [S1]. For a process-engineer peer, the next spec is to lock the p x T service value, the flange standard (ASME B16.5, B16.47, EN 1092-1, JIS B2220) and the required certifications (FDA for food contact, TA-Luft for low-emission service, NACE MR0175 for sour service, EN 13555 for EN 1514-1 characterisation) before sending a drawing to a cutting shop.
Trackable signals for the next 6–12 months: the migration from compressed asbestos fibre (banned under most national regulations) to CNAF and graphite in legacy refinery and boiler retrofits; rising specification of EN 13555-characterised gaskets for European EN 1092-1 flange work; and continued substitution of PTFE with flexible graphite in high-temperature hydrocarbon service as electrolyser and hydrogen-system builds scale — a market segment where KLINGER publishes a dedicated hydrogen and energy document on fluid control and fluid monitoring solutions for the energy industry [S2]. For adjacent spec work, this aluminium extrusion profile selection guide covers how alloy, tolerance, and length govern a different but parallel industrial supply decision.
