A gas mass flow controller is a closed-loop device: a thermal or Coriolis sensor reads actual mass flow, a PID loop drives an integrated proportional valve, and the loop holds the setpoint against upstream pressure and temperature swings; a digital MFC such as the Bronkhorst EL-FLOW Select is specified for pressures up to 400 bar with multi-gas/multi-range capability [S7]. A variable area flowmeter, by contrast, is a passive vertical tube with a float (or piston) whose height is read against a calibrated scale; the cross-section available to flow varies with flow rate, so float position is the measurement [S3].
That functional gap — active regulation vs passive indication — is the single largest selection lever. Process engineers reaching for an MFC want a repeatable, automatable gas flow setpoint on a semiconductor, vacuum, solar or analytical line [S4]; engineers reaching for a VA want a cheap, locally readable check on a purge, blanketing, bubbler or lab rotameter line [S6]. Treating them as substitutes is the most common spec error on gas-panel quotes.
Working principle and what each device actually outputs
An MFC outputs a controlled mass flow (e.g. normal litres per minute, Nl/min, or standard cubic centimetres per minute, sccm) by closing the loop between a mass-flow sensor and an integral control valve, typically communicating over 4–20 mA, RS485 or CANopen-based fieldbus [S1]. The Bürkert Type 8746 MFC/MFM, for example, uses an internal CANopen-based fieldbus alongside its analog I/O for gases in metal and glass processing [S1]. A VA flowmeter outputs float position, which the user interprets against a scale that is valid only for the calibrated gas, pressure and temperature printed on the tube [S3].
The practical consequence: an MFC reports a usable process variable to a PLC or a mass-flow controller loop directly, while a VA reading has to be corrected for gas density (the eFunda reference notes that float position is the measurement, and the implied density dependence is well documented for rotameters) [S3]. If a control system needs a 4–20 mA or fieldbus signal, the VA must be paired with a transmitter or replaced with a digital alternative such as Bronkhorst's MASS-VIEW series, which is explicitly positioned as the "digital alternative to conventional variable area meters or purge meters" [S2].
Accuracy, range and turndown on a real spec sheet
Industrial digital MFCs commonly quote ±0.6–1% of reading (RD) accuracy and multi-range turndown — the EL-FLOW Select advertises a bypass sensor with high accuracy, excellent temperature stability, and fast response across diverse flow ranges and operating conditions [S7][S8]. The XD-300 digital MFC is published at "very low zero drift and temperature drift" for semi-conductor, vacuum, solar, analytic-instrument and medical-gas applications [S4].
A conventional VA flowmeter is a mechanical device whose accuracy is dominated by float tolerance, scale resolution, fluid density and viscosity, and the operator's eye; the variable-area principle itself is that the cross-section available to flow varies with the flow rate, not that a precise output is generated [S3]. Where a 1% RD closed-loop setpoint is required, a VA on its own is not the right tool. Where a "good-enough" local check on a purge or a gas-blanketing line is enough, a 2"/5"/10" scale Rate-Master precision VA flowmeter or an acrylic VA body is a defensible choice [S6].

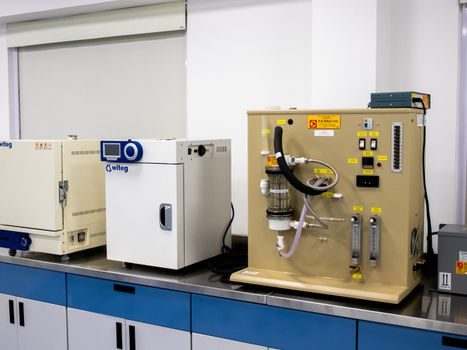

Decision criteria: MFC, VA, or the digital VA hybrid
Line the three options up against four criteria that drive most gas-panel spec calls. Cost per line favours VA (mechanical, no electronics, no valve); control loop integration favours MFC (native 4–20 mA, RS485, CANopen, plus integral valve) [S1][S8]; local visual indication favours VA or MASS-VIEW; multi-gas / multi-range flexibility favours MFC (the EL-FLOW Select ships with "multi fluid / multi range functionality" as an option) [S7]. A MASS-VIEW bridges the gap: it keeps the inline, vertical, look-and-read ergonomics of a VA flow meter while delivering a digital output, so it can stand in for either side of the trade-off where the application allows [S2].
For typical gas services, the matrix below is a reasonable starting point: a fuel-cell or semi-conductor process gas line, a vacuum-chamber MFC at 1–5000 sccm, points directly at a digital MFC [S4][S7]; a nitrogen-purge header on a hopper or a sight glass on a glove box points directly at a VA or at a MASS-VIEW [S2][S6]; a fermentation or laboratory gas line where a worker wants to see flow at a glance and log a 4–20 mA signal is a clean fit for MASS-VIEW or a MFC with a display [S2].
Who MFC is for — and who it is overkill for
Spec an MFC when the downstream process is sensitive to absolute mass flow (CVD, etch, fermentation feed, analyser calibration, leak-test fixture, fuel-cell stack), when a PLC must write a setpoint, when the gas changes between runs, or when the supply pressure drifts more than a few percent. The XD-300 use cases — semi-conductor, vacuum, solar, analytic instruments, photoelectric, gas manufacturing, medical and power — are textbook MFC territory [S4]. Multi-fluid / multi-range EL-FLOW Select models target lab and pilot plants where the same instrument is re-tasked between gases [S7].
Do not spec an MFC for a sight-glass-style purge line on a bin, a cheap-and-cheerful nitrogen blanket on a storage tank, or any application where a gloved operator just needs to see that flow exists. A standard acrylic VA flowmeter for gas and liquid, or a Rate-Master precision VA, is the appropriate match for medical, laboratory and environmental "is it flowing" jobs [S6]. Putting an MFC on a line that only needs local indication is the classic capex overspend on gas-panel projects. As a guard against bad reading, neither device substitutes for a thermal mass flowmeter on a custody-transfer or flare gas service, where a separate, high-accuracy thermal or Coriolis flowmeter is the standard answer.
Failure modes, limits and what the spec sheet does not say
MFC failure modes cluster around the sensor and the valve: zero drift with temperature, contamination of the sensor tube by wet or dirty gas, and a sticking proportional valve after long idle periods. The XD-300 is explicitly marketed on "very low zero drift and temperature drift" to address the first two [S4]; periodic recalibration and clean dry gas are the standard mitigations. High-pressure MFCs (the EL-FLOW Select is rated up to 400 bar) need rated fittings, leak-checked connections, and process gas compatibility verified for seals [S7].
VA flowmeter failure modes are simpler but harsher in their own way: float sticking at low flow, scale misread, and density-induced error when the operator swaps gas type without re-scaling the tube. The eFunda reference on the variable area principle — that "cross section area available to the flow varies with the flow rate" — is the underlying reason density changes shift the reading, and it is also why a VA calibrated for air on a nitrogen line, or vice versa, will mislead an operator [S3]. For a flame, furnace or burner trim service where safety is governed by gas alarm controller logic, a VA on its own is not an adequate flow proof; a closed-loop MFC or a dedicated flame-safety path is required.
Sourcing, calibration and what to confirm before purchase
Quote an MFC with an explicit gas calibration, an accuracy class quoted as "% RD" or "% FS" (full scale), a stated turndown ratio, and a documented interface list (4–20 mA, RS485, CANopen, Foundation Fieldbus, PROFIBUS PA, EtherCAT) — note that HART, Foundation Fieldbus and PROFIBUS PA are distinct protocols and the MFC datasheet must be checked for the actual stack supported [S1][S7][S8]. For multi-fluid / multi-range instruments, request the gas-conversion factor list and confirm the conversion software or controller supports it [S7].
Quote a VA flowmeter with the gas, line pressure and temperature stamped on the tube, and request NIST calibration where the application is metered (DwyerOmega offers "NIST Calibration available" on its Rate-Master series) [S6]. For both families, insist on a published zero-drift spec, a control-valve Cv curve on the MFC, and a CE / ISO 9001:2008 vendor quality statement on the supplier side [S4]. Two cross-references help on adjacent gas-panel decisions: the wastewater selection guide lines up MFC-style closed-loop choices against non-closed-loop alternatives for wet services [Wastewater Flow Meter Selection: Matching Technology to Pipe, Solids and Accuracy Targets](/news/wastewater-flow-meter-selection-matching-technology-to-pipe-solids-and-accuracy-.html), and the vortex selection write-up is a useful template for writing a four-criteria spec for any gas-flow instrument [Vortex Flowmeter Selection: 4 Criteria That Decide Fit Before You Quote](/news/vortex-flowmeter-selection-4-criteria-that-decide-fit-before-you-quote.html).
Trackable signals for the next 90 days: (1) MFC vendor datasheet revisions listing newly supported gas-conversion factors, multi-range counts and fieldbus stacks, particularly for the EL-FLOW Select and Type 8746 lines [S1][S7]; (2) VA / MASS-VIEW product updates merging the digital-MFC I/O set into the rotameter form factor [S2]; (3) calibration and traceable-certificate programs from the major gas-panel instrument vendors, with NIST-traceable options now visible on rate-master rotameters [S6].
