A rotary encoder quantifies angular motion into discrete electrical pulses — counts per revolution (CPR) or bits per revolution for absolute types — making it the right pick when the machine needs to know shaft position, angle, or speed [S3].
A photoelectric sensor emits a light beam and reacts to its interruption, reflection, or return; Banner's S30 series, for example, lists diffuse-reflective, retroreflective, and through-beam modes in one 30 mm plastic threaded housing, with a 60 m maximum through-beam range and IP69K sealing [S1]. The two devices share a housing form-factor in some catalogs — YUMO bundles rotary encoders, photoelectric sensors, inductive proximity sensors, capacitive sensors, and color-mark sensors on a single product page [S2] — but their output physics and target applications diverge completely.
Core Output Physics and What Each Device Actually Reports
A rotary encoder resolves mechanical rotation into a digital count; Omron's reference categorises the device family as sensors that "detect position and speed by converting rotational mechanical displacement" into electrical pulses, with linear variants covering straight-axis equivalents [S3]. Output is therefore a count-rate (incremental A/B channels, with optional Z index) or a coded absolute position word — not an on/off state.
A photoelectric sensor reacts to light, not motion. Banner's S30 datasheet lists three operating modes — background-suppression diffuse, retroreflective (polarised option), and through-beam — over infrared, red LED, or visible red light sources, with digital and analog output options in the same body [S1]. Through-beam range reaches 60 m on that series, far beyond the working distance of any encoder. The sensor's job is to answer "is something there, how far, or what colour mark"; an encoder's job is to answer "how far has the shaft turned, and at what rate".
Selection Criteria: Resolution, Range, Response Time, Environment
Specifying a rotary encoder is a resolution-and-bandwidth problem. Omron's guide ties encoder selection to required counts per revolution, the maximum mechanical RPM of the driven shaft, and the controller's input frequency ceiling [S3]. Incremental encoders scale linearly with speed; absolute encoders hold position across power cycles, which matters for any machine that must not re-home on restart.
Specifying a photoelectric sensor is a beam-and-target problem. Banner's S30 specification page gives the decision variables directly: sensing mode (background-suppression / retroreflective / through-beam), light source (infrared, red LED, red light), polarisation option, output type (digital NPN/PNP or analog), and environmental rating (IP69K on the S30, suitable for high-pressure washdown) [S1]. Maximum range tops out at 60 m for through-beam pairs; diffuse-reflective with background suppression is the typical short-range choice for object detection on conveyors and part-presence checks.

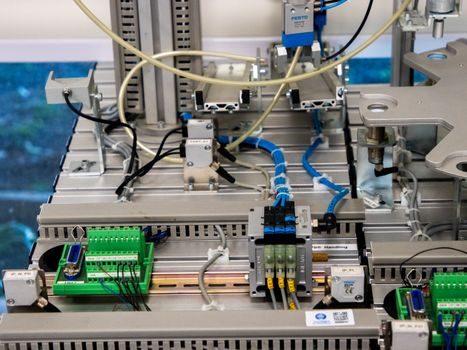

Decision Comparison: When Each Technology Fits
Four decision criteria separate the two cleanly. (1) Output type: an encoder emits a pulse train or position code; a photoelectric sensor emits a discrete switching signal or an analog distance-proportional value. (2) Stimulus: encoders need a rotating shaft, usually coupled via a flexible bellows or servo-grade coupling; photoelectric sensors need a clear optical path to a target. (3) Range: encoder resolution is shaft-rotation-limited, with no inherent distance dimension; the S30 photoelectric series scales from centimetres (diffuse background suppression) to 60 m (through-beam) [S1]. (4) Failure mode: encoders degrade into missed counts at speed; photoelectric sensors degrade into false triggers from dust, fog, or mirror-like reflections on the target.
The two devices can coexist in the same machine — an encoder on the drive motor reporting speed, a photoelectric sensor at the end-of-stroke flagging home position. They are not interchangeable, and treating them as substitutes is the most common spec error on retrofits.
Use Cases and Misapplications
Correct fits for rotary encoders: servo motor feedback, CNC spindle-speed verification, packaging-machine length measurement (when paired with a measuring wheel), elevator sheave position, printing-press registration, and robotic-joint angle readout [S3]. MATLAB's hardware-support documentation treats the encoder as a quadrature-channel pulse counter on the Arduino MKR Motor Carrier or Nano Motor Carrier, which mirrors the same A/B + optional index channel used in industrial PLCs [S4].
Correct fits for photoelectric sensors: part-presence on conveyors, label-gap or colour-mark detection on packaging lines, stack-height limit checks, clear-bottle detection (where retro-reflective polarisation rejects shiny false returns), and long-range perimeter/object guarding on the 30–60 m class the S30 through-beam mode reaches [S1]. Banner's S30 background-suppression diffuse mode is also a clean fit for detecting dark or irregular objects on a conveyor where a standard diffuse sensor would false-trigger on the belt itself.
Misapplications: using a photoelectric sensor to measure rotation (it cannot count pulses from a shaft without a coded disc and specialised firmware), and using a rotary encoder to detect the presence of a passing box (the encoder will count the wheel's rotation, not confirm the box is actually there).
Wiring, Protocol and Integration Reality
Encoder wiring centres on quadrature: A, B, and Z (index) channels, plus power and ground, with push-pull, open-collector, or line-driver output stages selected by cable length and noise environment. Omron's reference links encoder output to counter inputs on the controller side, and the same applies to third-party motor-carrier boards such as the MKR/Nano Carrier pair [S4]. Absolute encoders add a parallel grey-code or multi-turn serial bus (SSI, BiSS, or proprietary) on top of the basic incremental interface [S3].
Photoelectric sensor wiring is simpler in the discrete-output case: two wires for power, two (or three) for the switching output — NPN sinking or PNP sourcing — plus a load. Analog-output S30 variants add a current or voltage output proportional to received-light strength, useful for distance or contrast trend logging. The polarised retroreflective option uses a corner-cube reflector that rotates the returned beam by 90°, letting the sensor reject specular reflections from shiny packaging film — a common spec detail that separates a working installation from a chronic false-trigger site [S1].
Standards, Sourcing and Environmental Ratings
Industrial enclosures such as IP69K on the S30 series cover high-pressure, high-temperature washdown — a common spec on food, beverage, and pharmaceutical lines [S1]. Encoder environmental specs typically include IP65/IP67 shaft-side sealing and a separate rating for the housing; shaft loading (radial and axial), maximum RPM, and operating temperature define the mechanical envelope beyond which pulse integrity fails.
Sourcing reality: Chinese vendors such as YUMO market encoder and photoelectric families side by side under a single sensor-and-encoder category, which reflects the way OEMs consolidate supplier lists [S2]. For reference designs and replacement parts, going through a manufacturer that publishes full data sheets — Banner for the S30, Omron for encoder principles — is the faster path to a defensible spec.
Procurement Checkpoints Before Issuing a PO
For encoders, lock down: output type (incremental/absolute), CPR or bits-per-revolution, supply voltage, output stage, cable or connector, shaft diameter and coupling style, IP rating, and maximum RPM. For photoelectric sensors, lock down: sensing mode, sensing distance, target reflectivity and colour, light source (visible vs IR for transparent-object detection), output type, and housing material against the cleaning chemicals on the line [S1][S3].
