Stage size, travel, and weight capacity are the first three filters when sizing an optical comparator for tight-tolerance work, and a part that overruns any one of them disqualifies the instrument before lens choice is even considered [S3][S7].
In machining practice, a tight tolerance is generally defined as ±0.001″ or tighter, with some aerospace and medical work held to ±0.0005″ and ±0.0001″ [S1]. At that level the comparator is being asked to deliver a magnified silhouette that is dimensionally faithful to a feature measured in tenths of a thousandth of an inch, so the stage becomes the mechanical reference frame for the whole measurement.
What the stage actually controls: envelope, travel, and rigidity
The stage on a horizontal or vertical comparator carries three numbers a buyer must verify before quoting any job: the X-Y travel envelope, the clear glass area that passes through the optical column, and the rated weight capacity [S3][S7]. If a part exceeds any of those, the operator either cannot mount it flat to the light path or cannot traverse it across the full feature length, both of which silently destroy measurement uncertainty.
Stage squareness is the second hidden variable. A comparator is "totally reliant on getting the part square to the light source," and a 0.001″ squareness error propagates directly into the projected coordinate [S4]. The X and Y axes are specified to remain perpendicular to each other, ideally a true 90°, and any wear-driven drift shows up as a skewed datum on long-travel parts [S5].
Rigidity matters because a comparator stage that flexes under the part's weight will shift focus and magnification across the traverse, particularly on small, high-precision components like threaded fasteners and pins [S1][S2]. That is why OEM selection guidance reads as a checklist: confirm the stage dimensions, travel, and weight rating will accept the largest part in the inspection mix, not the average one [S7].
Why screen edge and overlay coverage are part of stage sizing
Lens distortion grows toward the perimeter of the viewing screen, so barrel or pincushion error on the outer 10–15% of the field can swamp a tight-tolerance reading even when the stage is correctly sized [S5]. The working rule from experienced metrology staff is to keep features roughly within an inch of the screen edge with overlays, which means the projected image, not just the physical part, must fit the usable screen area after the selected magnification is applied [S3].
That is where magnification collides with stage size. A comparator commonly runs at 10×, 20×, 50×, and 100× lens settings, and the same 1″-wide part occupies 50″ of screen at 50× [S5]. Doubling magnification roughly doubles the required on-screen real estate, so a stage envelope that is fine for a 10× first-article check can become a screen-overflow problem at 50×, even though the part itself never moves. A rough pre-check is to multiply the largest part dimension by the planned magnification and confirm the product is inside the screen's low-distortion zone, with at least a 1″ margin, before mounting the workpiece.

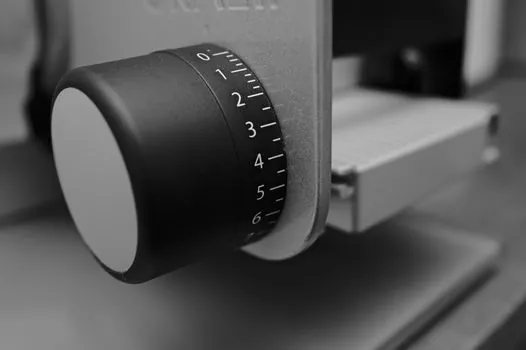

When stage size pushes you off the comparator and onto a CMM
Optical comparators are 2D, profile-only instruments: they handle flat or symmetrical parts, threads, grooves, tapers, and quick first-article checks well, but they cannot measure internal features, stacked datums, or out-of-plane geometry [S1][S2]. For two 0.2500″/0.2504″ holes located to a 0.7500″/0.7505″ hole at 0.001″ true position, experienced shop owners reach for a CMM rather than a comparator, because the holes' relative position depends on stage squareness the comparator cannot independently verify [S4].
The same logic applies whenever the part is taller than the comparator can hold perpendicular to the optical axis. Thicker parts are difficult to measure on a comparator because the lens cannot pull a clean focus across the depth, and shadow geometry changes with standoff [S4]. A manual CMM with hand cranks and a digital readout, or a vision-equipped CMM, handles those envelopes and gives a true X-Y-Z result the projector cannot.
Comparison: optical comparator vs CMM vs height gauge for tight-tolerance work
Three metrology tools cover most of what a small shop sees on tight-tolerance work, and the decision is driven as much by stage envelope as by stated accuracy [S1].
Optical comparator: stage envelope typically 8″×4″ to 24″×8″ X-Y travel depending on model, 2D profile only, fast first-article checks, ideal for threads, tapers, small screws, pins, and ground flatstock where magnification of 10× to 100× fits the screen with margin [S1][S2][S3]. Not for internal features, not for parts heavier than the stage rating, not for hole true-position at the 0.001″ class without a careful R&R study [S4].
Coordinate measuring machine (CMM): X-Y-Z measurement, internal and external features, calibrated down to micron-level for aerospace, medical, and firearm work, but slower per feature and a significant capital line item [S1]. Wins on any 3D tolerance, any true-position callout, any internal pocket, and any part that overruns the comparator's stage weight or travel.
Height gauge: vertical dimensions, step heights, hole locations on a surface plate, simple setup, and the lowest cost of the three, but it cannot profile a complex shape and depends heavily on a calibrated surface plate and a clean angle plate [S1][S4]. Useful as a sanity check against either of the other two.
Selection rules a process engineer can apply in five minutes
Step one: confirm the largest part in the inspection mix fits the comparator's X-Y travel, the glass area, and the weight rating with margin to spare, not just barely [S3][S7]. Step two: multiply the tightest-tolerance feature by the magnification you plan to use and check the projected image against the screen's low-distortion zone, keeping at least 1″ clearance to the screen edge for overlays [S3][S5]. Step three: confirm the stage axes are perpendicular to each other and run a magnification check against a certified reference standard before trusting any reading in the 0.001″ class [S5]. Step four: if the feature is internal, 3D, hole-true-position, or on a part thicker than the comparator can hold in focus, route the job to a CMM and use the comparator only for fast profile checks on the rest of the geometry [S1][S4].
For shops without CMM access, the comparator remains a high-leverage tool when these four gates are passed: stage envelope, weight, screen fit at the chosen magnification, and a documented R&R on the specific part family [S1][S2][S4].
Operating practices that protect stage-driven accuracy
Telecentric optics, used in most modern comparators, keep the projected image size stable as the part shifts slightly in the focus range, which reduces one common source of stage-position error [S3][S5]. Even with telecentric optics, keeping features within roughly an inch of the screen edge and avoiding barrel and pincushion zones is the single highest-impact operating habit [S3][S5].
Regular calibration of the magnification standard, verification of stage squareness, and shielded enclosures that keep dust and oil mist off the optics all extend the interval between the operator-skewed readings that drive false accept and false reject decisions [S5][S6]. Temperature drift and mechanical wear are the two slow variables that erode a comparator's stage accuracy, and a scheduled check against a certified reference standard catches both before they hit a tight-tolerance production run [S5].
A useful next signal to track is the 0.001″ true-position problem: shops that try to push a comparator into true-position work at 0.001″ without a Gage R&R almost always find the comparator underperforms a mid-range CMM, while the same comparator on 2D profile work routinely beats a low-end CMM on throughput [S4]. The instrument has not changed; the stage envelope and the feature being measured have.
