Through-bore and standard-bore hydrants solve different problems on the same water main: the through-bore variant opens the full main diameter vertically for live insertion of cameras, hydrophones, and acoustic leak tools, while the standard-bore hydrant is sized primarily to deliver a rated flow at the outlet [S1].
Both share the same upstream main pressure; what separates them is internal geometry, outlet size, and what gets sacrificed at the valve seat when the hydrant is open [S3]. Engineers specifying hydrants for a new site need to weigh UK minimum flow rates of 8 L/s for a two-storey dwelling up to 75 L/s for industrial estates over 3 hectares against the hydrant class system that grades capacity at 20 psi residual [S2][S5].
Hydrant classification at 20 psi residual
NFPA 1 rates hydrants by their discharge at 20 psi residual pressure: Class AA is 1500 gpm or greater, Class A is 1000 to 1499 gpm, Class B is 500 to 999 gpm, and Class C is less than 500 gpm [S2]. This 20 psi figure is not arbitrary: it is the residual pressure floor below which most attack pump intakes start to lose suction stability, so a hydrant's "rated" capacity is always a system value, not a free-discharge value [S3].
Because the rating depends on the upstream main, a hydrant physically identical to a neighbour can sit in a different class simply because the main it taps is larger or smaller; this is why the aggregate capacity of all hydrants within 1000 ft of a building is what codes check, rather than any single outlet [S2]. The implication for through-bore versus standard-bore comparisons: classification does not change with barrel geometry alone, it changes with the main feeding the hydrant.
Standard-bore hydrant geometry and where head is lost
Standard UK hydrants sit on a Type 2 frame and expose only an outlet thread for a standpipe; the working water passes through a seat and an internal riser sized to the outlet, not to the main [S1][S5]. The MTAS flow-testing reference notes that hydrants do not deliver 100% of main flow because turbulence inside the barrel and the seat geometry bleed energy before water reaches the outlet [S3].
The Freeman / Underwriters Q formula used to convert pitot readings to gallons per minute, Q = 29.83 × C × d² × √P × N, contains a discharge coefficient C that explicitly accounts for the energy loss through the outlet; the smaller the outlet diameter d relative to the main, the lower C lands in practice [S3]. Engineers using hydrant-meter test data should always read C off the test rig, not assume the textbook 0.7 to 0.9 figure for an uncalibrated hydrant.
Through-bore geometry: full main diameter, vertical access

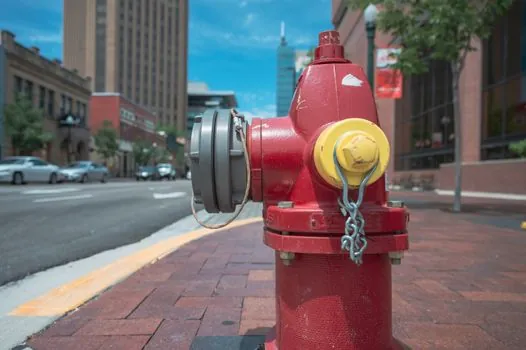

The through-bore hydrant described by Perfect Pressure Utilities keeps the main at full pressure and adds a vertical access path through a standard Type 2 hydrant frame, sized for insertion of a miniature camera, hydrophone, or acoustic imaging tool rather than for direct discharge [S1]. Its purpose is not to fight fires from a higher flow class; it is to give utility crews live condition data on the main without shutting customers down.
Operationally, a through-bore is paired with a bagging-off saddle on the hydrant leg, inflated by the line's own pressure, so only the hydrant body is isolated and main flow is unaffected [S1]. This is the differentiator that shows up in unit economics: a through-bore installation replaces what would otherwise be a planned shutdown with overtime, road closures, customer notifications, and main draining [S1]. The trade-off is that the vertical access path is normally narrower than the main, so its fire-flow class is set by the outlet, not the inspection channel.
Flow capacity comparison: criteria side-by-side
Comparing standard-bore and through-bore against the criteria that actually move a spec decision:
1) Rated fire flow at 20 psi residual: standard-bore is graded AA/A/B/C per NFPA 1 by its outlet and main; through-bore is graded the same way because its fire-flow outlet is unchanged [S2][S1]. 2) Access for inspection: standard-bore offers only the outlet thread; through-bore offers full vertical access for cameras, hydrophones, and acoustic leak tools [S1]. 3) UK site flow demand: a 2 to 3 hectare industrial estate needs 50 L/s, while a two-storey dwelling needs 8 L/s minimum [S5]. 4) Live work without shutdown: standard-bore requires a planned shutdown; through-bore pairs with a bagging-off saddle so only the hydrant is isolated [S1].
For a fire-protection-only specification, the standard-bore wins on cost per rated gpm. For a water-utility client managing leakage targets like those Ofwat sets, the through-bore wins on data quality per outage avoided [S1].
When each type is and is not appropriate

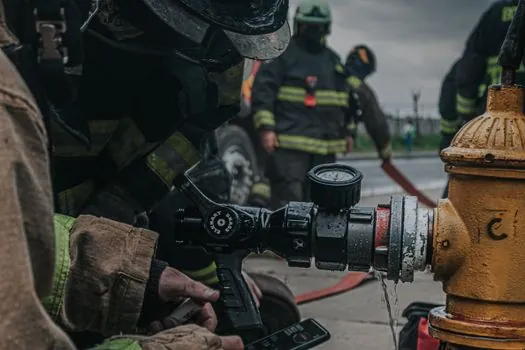

Specify a standard-bore hydrant when the role is purely fire protection: ISO rating, sprinkler feed, hydrant spacing within 400 to 600 ft of a building, and aggregate capacity within 1000 ft of the structure [S2]. Specify a through-bore where the asset manager also needs live condition monitoring on a HPPE, uPVC, cast iron, ductile iron, or asbestos main without draining the line [S1].
A through-bore is not a substitute for a higher-class hydrant: putting one in does not move a Class B hydrant to Class AA on its own. Do not specify through-bore for private fire-service mains governed by NFPA 24 unless the local water utility and the fire code official both sign off, because hydrant thread, type, and installation rules on private property fall under the utility's standard [S2].
UK flow targets that drive hydrant class selection
UK guidance for industrial estates ties hydrant class to site area: up to 1 ha needs 20 L/s, 1 to 2 ha needs 35 L/s, 2 to 3 ha needs 50 L/s, and over 3 ha needs 75 L/s, all on a minimum 150 mm nominal diameter main [S5]. Housing developments drop to 8 L/s for two-storey dwellings and rise to 35 L/s for taller blocks from a single hydrant within the development [S5].
Transport facilities such as lorry parks, multi-storey car parks, and service stations sit at 25 L/s minimum from any hydrant within 90 m driving distance [S5]. Translating to NFPA 1 classes, 75 L/s is roughly 1190 gpm, which is Class A territory; an industrial estate over 3 ha therefore needs at least one Class A hydrant, and likely more than one to aggregate capacity [S2][S5].
Sourcing, standards, and test discipline

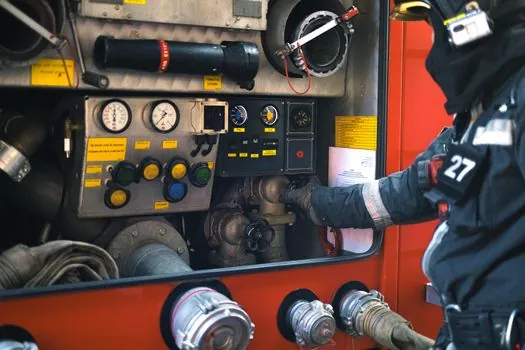

Any flow claim for either hydrant type should sit on a two-hydrant flow test, not a single-hydrant reading: NFPA and AWWA both flag the single-hydrant test as inaccurate, and the Freeman Q formula needs the discharge coefficient C measured on the actual outlet [S3]. UK sites should cross-check the test result against BS 9999 or the local water utility's hydrant standard; US sites should confirm compliance with NFPA 1, NFPA 24, and AWWA C502 / C503 for dry-barrel and wet-barrel hydrants respectively.
For utilities weighing through-bore retrofit cost against leakage-management penalties, the fire hydrant reference page lays out the maintenance cycle that any new asset class inherits. The fire safety hub covers how hydrant class feeds into the broader ISO / FSRS rating that drives insurance outcomes. For crews running flow tests on either hydrant type, fire extinguisher training material is a useful cross-reference for the pitot-gauge and residual-pressure discipline that the Q formula assumes.
Trackable signals: a shift in UK water-utility tender language toward bagging-off and through-bore on renewals rather than shutdowns; and any future NFPA 1 Annex E revision that moves the hydrant-spacing rules of 400 to 600 ft for non-residential buildings [S2].
