A timing pulley build in 2026 is decided at the pitch row first: MXL (2.032 mm), XL (5.08 mm), L (12.7 mm / 0.200 in trapezoidal), H (9.525 mm), XH, XXH, plus metric T2.5 through T20 and AT3/AT5/AT10/AT20 profiles — every other parameter (tooth count, belt width, hub style, bore) is downstream of that choice [S2].
Stock-aluminum MXL pulleys at one major industrial catalog list 49 option combinations on a single family, with 12-18 day shipment on configurable bore types and 2D/3D CAD download as a default deliverable [S2]. That order-grid pattern is the working baseline: pitch, teeth, belt width, shape (pulleys vs. idlers, with/without bearing), shaft-hole spec, then surface treatment.
Pitch family and tooth count as the first hard gate
Tooth pitch determines torque density, mesh frequency, and the matching timing belt SKU — get the pitch wrong and the belt simply will not seat. MXL (mini extra-light, 2.032 mm pitch) is the go-to for compact instrument drives, instrumented motion stages, and small printers; XL (5.08 mm) and L (12.7 mm) cover the bulk of light-conveyor and packaging-machine drives; H, XH and XXH step up for higher-torque power-transmission service [S2].
Minimum practical tooth count is roughly 10-12 for the trapezoidal families before walk-in (radial runout causing the belt to climb) becomes a problem; larger diameters with 24, 36, 48 or 60 teeth cut the mesh frequency and extend belt life in cyclic duty. On a 49-option MXL stocking line the tooth-count axis is the one buyers tune most often, with shaft-hole type and belt width as the secondary axes [S2].
Material selection: aluminum alloy vs. steel vs. polyurethane
For low-inertia, low-load, corrosion-sensitive service — laboratory, medical, semiconductor-handling, cleanroom-adjacent — high-strength aluminum alloy is the default catalog stock, anodized or clear-coated. Steel (C1045 / 4140, sometimes nitrided) enters the picture when the application is high-torque, small diameter, or where keyless locking devices (shim-style or taper bushings) must be used for shrink-fit-style shaft retention. [S1]
Custom shops routinely run steel and aluminum timing pulleys side-by-side with keyless locking-device integration for backlash-free servo drives [S1]. Polyurethane over-molded pulleys (steel or aluminum core, bonded TPU teeth) are the third branch, typically used where damping, quiet mesh, or a non-metal-tooth interface with a specific belt compound is specified. The keyless locking-device route is also the standard answer for hardened-shaft bores where set-screw marring cannot be tolerated.
Bore, hub, and keyless locking-device stack
Bore tolerance grade is where most timing pulley failures are seeded. Stock pulleys ship with a pilot bore or a reamed finish bore; the spec gate is whether the shaft is keyed, press-fit, or held by a keyless locking device (KLD). For servo and stepper shafts the KLD path dominates because it transmits torque without a keyway and can be repositioned axially for belt tensioning. [S2]
Custom-Machine-and-Tool-type precision houses market timing belt pulleys and KLDs as a paired product line, with literature packets that include torque-vs.-bore tables for the locking assembly [S1]. A 2026 spec audit should treat bore size, bore tolerance, keyway (JS9/P9), and locking-geometry as one inseparable group — not four separate line items.
Standards, dimensions and dimensional interchange
ANSI-coordinated standards govern the imperial (inch) trapezoidal pitches (MXL, XL, L, H, XH, XXH); the American National Standards Institute acts as the voluntary coordinating body across more than 250 professional societies and 1,000+ companies participating in its standardization work [S3]. Metric pitches (T2.5, T5, T10, T20 and the AT3/AT5/AT10/AT20 curvilinear HTD-style families) follow ISO conventions; mixing metric pulleys with imperial belts — or vice versa — is the single most common 2026 cross-reference error in MRO purchasing.
A second interchange trap is the AT/HTD/STPD family (curvilinear tooth profile) being mistaken for the trapezoidal T-series at the same pitch number. AT5 and T5 share a 5 mm pitch but have different tooth geometry and will not run together on the same belt.

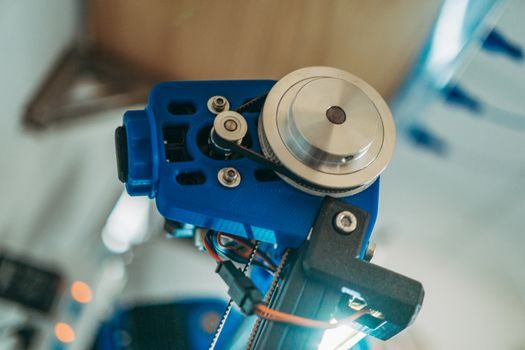

Lead time, configurability and the catalog-grid buying model
Lead time has compressed on stock timing pulleys through 2025-2026. One major Asia-Pacific industrial catalog lists 12-day shipment for configured bore types and 16-18 days for non-stocked shaft-hole finishes, with 49 selectable option combinations on a single MXL pulley family and full 2D/3D CAD download included [S2]. The structural shift is that bore specification, keyway, and surface treatment are no longer quote-line adders — they are first-class catalog filters.
For one-off or low-volume service, custom shops quote against the same selection axes (pitch, teeth, belt width, bore, material, KLD or keyway) and add lead time for tooling, with keyless locking-device assemblies quoted as a paired line [S1]. The decision tree for the buyer is whether a stock-aluminum KLD-ready unit will hit the duty cycle, or whether the application forces a steel, nitrided, or over-molded build.
Application fit and where timing pulleys lose to alternatives
Timing pulleys are the right answer for synchronous drives where positive no-slip engagement, fixed ratio, and repeatable phase relationship matter — packaging-machine indexers, CNC axis drives, conveyor synchronizing lines, labelers, and inkjet/print-head staging. The V-ribbed belt buying guide covers the adjacent decision space when high-shock slip-tolerant drives are required instead of positive mesh. [S3]
Timing pulleys are the wrong answer where high misalignment exists between shafts, where shock loading exceeds tooth shear capacity, or where the environment carries oil or solvent that attacks the belt compound — in those cases a roller-chain-and-sprocket, a gear pair, or a V-ribbed belt drive is the correct substitution. For OEM platform design, the synchronous nature of a timing-belt drive also means guard-required guarding per typical machinery-safety practice; the pressure reducing valve selection piece is not a substitute reference but illustrates the same spec-gate discipline used in adjacent process-component buys.
Decision rule, options compared and sourcing signals
A 2026 timing-pulley buy resolves to four sequential gates: (1) pitch family and tooth count, (2) bore size + tolerance + keyless-or-keyed retention, (3) belt width matching the partner drive, (4) material (aluminum stock, steel KLD-ready, or polyurethane over-mold). Catalog-side, 12-day shipment on 49-option MXL grids with CAD download is the floor for prototyping [S2]; custom-steel KLD-ready builds push lead time to 3-6 weeks depending on bore finish [S1].
Trackable signals for the next 60-90 days: continued compression of configurable-bore lead time below 12 days on trapezoidal MXL/XL/L stock lines, and the migration of HTD/AT curvilinear pulleys into the same configurator grid. The timing belt and timing pulley encyclopedia entries cover the geometry defaults a spec writer should keep open while the industrial valve and adjacent references are typically not part of a synchronous-drive spec set.
