Masonry is a tolerance-driven trade: bed-joint horizontality, plumb over height, and opening positions are checked against the model, not the tape. A 2" angular accuracy total station with a 2 mm + 2 ppm EDM and 500 m reflectorless range covers 90% of brick, block and CMU layout work on commercial sites, while 1" instruments are reserved for survey-grade control and heritage restoration where millimetric point coordinates matter [S4][S9].
The category itself, a light-machine-electronic instrument that captures horizontal angle, vertical angle, slope distance, horizontal distance and height difference from a single set-up, is catalogued in the total station encyclopedia entry, and the operational envelope is shaped by four hard numbers: angular accuracy band, prism range, reflectorless range, and EDM accuracy [S4]. Masonry-specific needs (short sight lines, frequent prism moves, interior work inside the building envelope) push the spec away from long-range surveying and toward robotic one-person operation, which is the dominant 2026 procurement pattern for building-construction crews [S7][S10].
Angular Accuracy: Why 2" Is the Masonry Default
Angular accuracy bands, commonly 1", 2", 3" and 5", map to legal tolerance classes, and 1" instruments (≈0.3 mgon) are the surveyor-grade benchmark for first-order control networks, dam deformation, high-rise verticality and machine-tool alignment [S4]. Masonry layout sits one tier below: 2" units (≈0.6 mgon) cover engineering topographic surveys, cadastral work, and most bridge-construction stakeout, while 3" to 5" instruments serve general construction stakeout, earthworks volume and as-built documentation where the tolerance band is measured in centimetres rather than millimetres [S4].
Pair the angular and EDM accuracies from the same generation: a 1" angle encoder mated to a 5 mm + 3 ppm EDM still produces poor long-range coordinates because the distance error grows linearly with range, and mismatched pairs are common in refurbished fleets [S4]. For a typical 30 m wall run, a 2" instrument delivers roughly ±0.3 mm of lateral error per metre, well inside the ±6 mm bed-joint tolerance most architectural specifications call for, so 2" hits the cost-tolerance sweet spot on commercial masonry.
EDM Range: Prism vs Reflectorless on a Masonry Site
EDM (Electronic Distance Measurement) performance is quoted in two modes, and the spec is normally listed for both. Prism mode on a single standard prism runs 3500–5000 m with EDM accuracy around 2 mm + 2 ppm; reflectorless (non-prism) mode sits at 500 m baseline on most modern instruments, with high-power 1000 m reflectorless modules fitted to long-range survey units and 200–300 m ratings on construction-grade models [S4]. The SISCO-TS-M4i construction total station, for example, is specified for reflectorless measurement up to 1000 m, dual LCD display, 30× magnification and a 40,000-point internal memory [S5].
For masonry, prism mode is the workhorse: 360° prisms and mini-prisms sit on wall corners, door bucks and embed positions with a clear line of sight from a single instrument station. Reflectorless mode earns its keep on form-line checks against freshly poured concrete, on existing-façade as-built capture, and on heritage surveys where mini-prisms validated high-precision total station measurements against Structure-from-Motion photogrammetry on ancient walls [S1]. Confirm the laser class (Class 1 / Class 2 / Class 3R) and the minimum focus distance before committing to a tunnel or confined-plan model.
Robotic vs Manual: Crew Size, Track-and-Prism, and Masonry Workflow
Manual total stations measure distances and angles for engineering, survey and construction, and they remain standard kit on small crews, but the productivity gap on masonry is decisive: a robotic total station handles any task that starts with a coordinate and ends with a mark on the ground or a measurement for the record, including anchor bolt and embed layout, slab edges, footings, foundation walls, form lines, and structural steel and masonry layout points [S3][S6]. One-person operation on a 1" robotic platform (the Topcon QS1A lists at $5,980 USD) is now the default for commercial building-construction layout in 2026 [S4][S7].
Robotic total stations for surveying are marketed as efficient, cost-effective single-operator systems, with site staking, elevation checks, 3D mapping and machine guidance as the four named applications; tech has cut crew sizes, but some tasks still need teams, which sets the practical floor on the labour-saving argument [S10]. For masonry trades specifically, the robotic case is strongest on long façade runs where the rod-man walks hundreds of metres per shift, and weakest on confined interior partitions where line-of-sight to the prism is frequently broken. Trimble's RTS series, integrated with FieldLink software, targets exactly that office-to-field building-construction workflow, and the same pattern shows up in the Hilti PLC 400 / PLT 3 rugged-field-tablet layout pairing [S2][S7].
Mechanical, Optical and Onboard System Limits
Mechanically, a total station is an electronic theodolite with an integrated EDM and an onboard computer, and the horizontal and vertical angle reading uses a photoelectric scanning encoder that replaces the optical circle of a theodolite [S4]. The 30× objective on the SISCO-TS-M4i, with a 48 mm effective aperture, laser plummet option, and absolute angle encoder system, is representative of the 2026 construction-grade optical package, and the dual-LCD high-brightness display with onboard software supports measure-offsets, missing-line, resection and quick-map functions [S5].
Data export is the part most specs skim over: large internal memory stores up to 40,000 points, transferable through the RS-232 data port or USB on the SISCO-TS-M4i, and robotic models add Bluetooth and USB-C on top [S4][S5]. For masonry layout this matters because the BIM model is the source of truth, not the field book, and a slow or proprietary export chain forces the rod-man to re-key points, which is where tolerance is silently lost. Anchor the selection to a known export format (CSV, LandXML, DXF) and a tablet-side software stack (Trimble FieldLink, Topcon MAGNET Field, Leica Captivate) before you sign the PO.

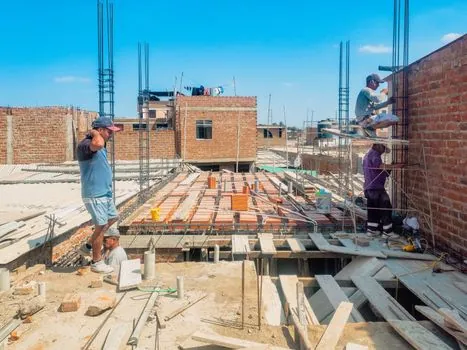

Selection Criteria Comparison: Manual vs Robotic for Masonry
For a masonry contractor in 2026, the choice collapses to four criteria: angular accuracy (1"/2"/3"/5"), EDM range (prism 3500–5000 m, reflectorless 200–1000 m), operating mode (manual vs robotic one-person), and data export chain. A 2" robotic unit with 500 m reflectorless and 4000 m prism range, paired with a rugged tablet and LandXML/CSV export, covers commercial masonry, multi-storey CMU, and architectural brick on a 30 000–80 000 m² building envelope; a 5" manual unit is fine for sub-trade layout on small residential or single-storey work, and a 1" robotic with 1000 m reflectorless is over-spec unless the same instrument is shared with the survey control crew [S4][S8][S9].
Heritage masonry, the ancient-walls case where high-precision total station measurements validated a ViDoc RTK photogrammetry device on textured stone surfaces, is the exception that demands 1" plus scanning total stations or MultiStations with point-cloud export, because the as-built survey must capture full surfaces rather than discrete points [S1][S9]. For everyone else, a 2" robotic, 500 m reflectorless, 2 mm + 2 ppm EDM, Bluetooth/USB-C export, 30× optics, IP54 or better, on a tablet-rigged platform is the spec to write into the tender.
Failure Modes and Constraints Specific to Masonry
Masonry exposes three failure modes the surveyor's instrument does not. First, bed-joint and head-joint tolerances are checked locally, so instrument-level angular accuracy matters less than repeatability between setups: a 2" instrument that is re-levelled correctly on every setup will outperform a 1" instrument on unstable ground. Second, reflective surfaces (polished stone, glazed brick, glass block) push reflectorless EDMs into low-signal returns and force a switch to mini-prism mode, which costs time on every shot. Third, dust, mortar splatter and weather exposure on an open site degrade the optics and the tribrach: an IP54 rating is the practical floor for outdoor masonry, and the onboard software should support quick recalibration routines rather than a service-centre trip. [S4]
A related constraint on multi-storey work is verticality over height: a 2" instrument checked on a 30 m wall run is within the standard verticality tolerance band, but the same instrument on a 100 m high-rise façade needs cross-checked control points and a verified plumb-line reference, not just a single robotic setup. Where the masonry is structural (reinforced CMU, load-bearing brick), the layout stakes are a legal record, so the instrument's calibration certificate and traceability to a national standard (NIST, NPL, PTB equivalents) are part of the spec, not a footnote.
For a masonry contractor who also runs interior fit-out, the Total Station Selection for Road Maintenance: 2026 Spec Map sits at the opposite end of the same selection matrix (long prism range, lower accuracy band) and is worth a side-by-side read if the same instrument is being shared across divisions. Demolition layout, where the instrument is used to mark cut lines on existing walls before saw-cutting, is the closest cousin to masonry layout and the Total Station Spec Map for Demolition: 2026 Selection Guide covers the matching tolerance-and-accuracy logic. Track, over the next two quarters, robotic one-person pricing on 1" platforms and any 2026 catalogue revisions from Topcon, Trimble, Leica and the China-origin makers (SISCO, Hi-Target, CHCNAV) that reset the 2" robotic price floor.
