At 35° three-equal-roll troughing, the CEMA standard cross-section (As) of material on the belt increases about 27% relative to a 20° idler set on the same belt width, and a further 8% going from 35° to 45° on retrofit frames [S5].
For a 600 mm belt running at the standard 20° dynamic surcharge angle, 35° troughing carries roughly 30% more volumetric load than 20° troughing, and about twice the load of a flat (0°) carrying idler on the same width and speed [S4]. The relationship is governed by the CEMA cross-section defined in Belt Conveyors for Bulk Materials, 7th ed., Chapter 4 [S1].
How the CEMA Standard Cross-Section Is Built
The CEMA standard cross-section is bounded below by the troughed belt profile and above by a circular arc tangent to the material's surcharge angle, beginning at the standard edge distance Bwe [S1]. Belt and skirtboard thickness are treated as zero in the idealised geometry, because their magnitudes are small compared with normal variation in bulk density and loading condition [S1].
Two capacity numbers matter in design. CEMA 100% full is used as the nominal design figure and is normally derated to 85% to absorb surge load, off-centre loading, and routine mistracking. Full edge-to-edge defines the maximum structural load on the idler frame and supports [S5]. Holding skirtboard width ratio constant, As grows and the free belt edge shrinks as trough angle rises from 0° to 45° [S1].
Cross-Section vs Trough Angle: A 35° Reference
Using the CEMA 100% As as index 100 for a 20° three-roll trough, equivalent cross-section scaling is approximately 0.64 at 0° (flat), 1.00 at 20°, 1.27 at 35°, and 1.45 at 45° on the same belt width and surcharge angle [S5]. Capacity then scales linearly with As through the closed-form Q = A × v × ρ × 3.6 (t/h) [S4].
For a 1,200 mm belt at 20° surcharge, lifting the structure design from 20° to 35° trough idlers yields that 27% As jump; pairing the wider 1,400 mm belt with 45° trough idlers on a wide-base frame would push the cross-section to roughly 1.9× the original 1,200 mm/35° case [S5]. This is the "design-for-future-upgrade" lever that buys throughput without raising belt speed.

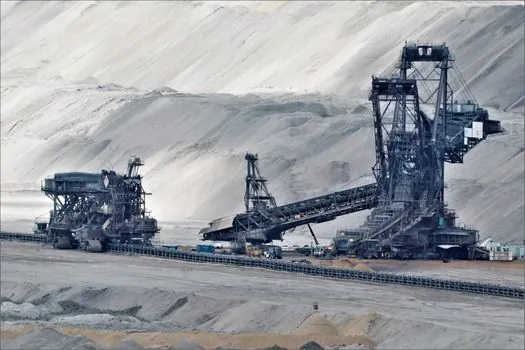

Where 35° Fits in Bulk-Handling Service
Around 80% of mining and aggregate conveyors use the 35° three-roll idler as the default, because it is the CEMA workhorse geometry and matches the standard idler line of most bearing and roll manufacturers [S4]. The belt itself, including carcass ply count, skim rubber and cover gauge, has to suit the higher loading, which is detailed in the conveyor belt carcass cross-section reference.
Sticking to 20° is still common at the loading point: a frequent Martin Engineering technique is to use 20° idlers inside the load zone and transition to 35° idlers downstream, so the belt forms before the full surcharge profile is added [S1]. Loading must start after the first full-trough idler; otherwise the material piles on a flat belt and the system never reaches its design cross-section [S7].
What 35° Costs You: Sealing, Mistracking, and Liner Wear
The free edge available for the skirtboard sealing system shrinks as trough angle grows, and mistracking becomes a real problem at 35° and 45° [S1]. A typical low-cost seal (internal wear liner, vertical external seal, angle-iron clamp) needs to clamp close to the skirtboard bottom to limit deflection, and the geometry gets tight as the trough steepens [S1].
Free edge loss and the higher bulk-material pressure on the inside of the skirtboard also drive liner wear. Designers balance trough angle against skirtboard width, liner wear rate, throughput, and the desired reduction in spillage; the angle is a compromise, not a free lunch [S1]. The general belt conveyor design envelope covers these trade-offs across the full CEMA idler range.
Comparison: 0°, 20°, 35°, 45° Troughing on the Same Belt
On a fixed belt width, speed, material surcharge angle, and bulk density, the main CEMA three-roll idler options line up as follows. Capacity index is normalised to 20° = 1.00; values are CEMA standard As scaling at the same surcharge angle [S5].
0° (flat, two-roll): capacity index ~0.64; no mistracking concern; lowest liner wear; common in portable and low-duty aggregate service. 20° (two-roll): capacity index 1.00; the de-facto minimum for new bulk-material design and a common load-zone choice [S1][S5]. 45° (three-equal-roll deep): capacity index ~1.45 new, only ~1.08 over an existing 35° retrofit; tightest sealing geometry and highest liner-wear risk [S5][S1].
Calculation Inputs You Need Before You Trust the Number
The CEMA Q = A × v × ρ × 3.6 result is an estimate: actual throughput typically lands 10–15% away from the calculated value because of belt sag, loading impact, lump size, and edge clearance [S4]. The reference V values from manufacturer handbooks assume a 20° dynamic slope, 35° three-roll trough, and a horizontal belt; the MEKA handbook applies a closed-form Q = V × ρ × cos α × CF where CF absorbs the deviation from that reference geometry and cos α handles incline [S3].
Capacity also cannot be checked in isolation. A belt sized for 1,000 t/h will not deliver that rate if the drive cannot supply the horsepower, the take-up cannot maintain tension, or the idlers are undersized for the load; CEMA Standard 502 and Belt Conveyors for Bulk Materials, 7th ed. cover the tension, power and component checks that close the loop [S4]. Standardised side roller angles (commonly 20°, 25°, 30°, 35°, 45°) and the dynamic slope angle, which is consistently lower than the static angle of repose, are both inputs to the same equation [S3].
Choosing 35° for a New or Retrofit Build
For new builds, 35° three-equal-roll idlers are the right default unless there is a clear reason to step down to 20° (loading-zone geometry, sticky material with severe liner wear, very fine material that mistracks easily) or up to 45° (deep-trough requirement on a wide-base frame already designed for a wider belt) [S1][S5]. Best practice is to size belt width off 85% of the CEMA 100% As to leave room for surge load, off-centre loading, and routine mistracking [S5].
For a retrofit on an existing frame already fitted with 35° idlers, the cross-section gain from re-angling to 45° is only about 8%, and the sealing/liner cost often wipes that out; the cheaper capacity step on a fixed frame is to speed up the belt or move to a wider belt on wide-base idlers [S5]. Either way, the load zone itself needs at least one full-trough transition before loading starts, or the system never reaches the 35° cross-section the calculation assumed [S7]. A side-by-side of conveyor options is sketched in the belt conveyor design reference and the mesh belt conveyor entry for lighter-duty chain- and mesh-belt comparisons.
Track two signals on the next capacity audit: (1) measured throughput vs the CEMA 100% × 0.85 design figure (the 10–15% deviation is a tell on loading and sag) [S4], and (2) skirtboard-seal deflection and liner-wear rate after any trough-angle change (the steeper the trough, the faster these climb) [S1].
