Agricultural truck cranes in current production cover 1-16 t lift capacity on light-to-medium 4x2 and 6x4 chassis, with 5-section telescopic booms dominant in the 25-60 t segment used for feed mill and biomass handling [S8][S3].
Selection gates differ sharply from construction or quarry duty: ground pressure, manoeuvrability between farm structures, and PTO or sub-engine drive for tractor-mounted work matter more than raw reach [S1][S2].
Capacity Bands Sourced from Active Production Listings
Chinese OEM listings on Machmall show XCMG XCT25L5_Y at 25 t, XCT40_U at 40 t, XCT50_Y at 50 t, and XCT60_Y at 60 t, all using 5-section telescopic booms, with 48 m main boom plus jib configurations such as QY25K5-I common in the 25 t class [S3]. FOB price bands reported for the XCT25 and XCT40 lines fall in the 10,000-100,000 USD range, while the 60 t class spans 100,000-1,000,000 USD, reflecting both lift and reach scaling [S3].
Lower-capacity agricultural-friendly units cluster in the 1-16 t band on Foton and similar light chassis, a range explicitly listed for Foton truck-mounted cranes covering municipal, coal-mine, and landscaping roles adjacent to farm use [S8]. For used-unit sourcing, Japanese-built KATO and TADANO units at 25, 30, 45, 50, 55, 65, 80, 120, 160, 200, 280, 400, and 500 t appear in 180-unit inventory lots at Ruihao, with 1998-2006 KATO NK250E units priced 35,000-50,000 USD FOB [S4].
Chassis and Driveline Selection Gates
Export listings show Shacman F3000 in 8x4 with 9.7 L turbo diesel, Sinotruk 6x4 with 11.6 L turbo diesel paired with XCMG crane bodies, and Iveco Eurocargo ML150E24WS in 4x4 with 5.9 L turbo diesel driving Fassi F155A.0.22 and F165A.2.25 E-dynamic loader cranes [S2]. For farm duty, the 4x4 Eurocargo pattern matters: it provides the low-speed off-road traction needed for wet fields and unpaved lanes where 6x4 or 8x4 on-road chassis would bog down [S2].
Truck crane selection on a farm starts with axle count and tyre size, not just lift chart. A 4x2 with single rear tyres suits hard-standing feed mills, while 6x4 with dual rear tyres is the lower-cost step before moving to 8x4, which export data ties to long-reach 25 t+ units on Shacman F3000 [S2][S3]. For tractor-side work, sub-engine or PTO hydraulic drive reduces the need for a full truck chassis and is common on the 1-16 t agricultural band [S8].
Boom Configuration Comparison
Three boom types compete in the agricultural segment: straight telescopic (5-section, dominant on 25-60 t XCMG units), knuckle/folding (Fassi F155 and F165 series on Iveco Eurocargo), and light-articulated loader cranes on 1-16 t Foton chassis [S3][S2][S8].
Compared on four decision criteria: (1) working envelope, where 5-section telescopic reaches 48 m plus jib but needs tail-swing clearance; knuckle booms fold into tight farm yards but cap at lower tip height; (2) weight on rear axle, where telescopic units concentrate load and need 6x4 or 8x4, while knuckle units fit 4x2 or 4x4; (3) cycle time for repetitive bale or sack lifts, where knuckle wins because the operator does not need to re-extend sections; (4) maintenance access, where telescopic has fewer pivot pins but longer seal replacement on wear pads [S3][S2][S8].
Drive and Hydraulic Architecture
Sub-engine drive and PTO drive are the two common hydraulic-power paths in the agricultural 1-16 t class, while mid-capacity 25-60 t telescopic units use the truck's main engine through a PTO or a dedicated gear box [S8][S3]. Iveco Eurocargo 4x4 builds pair the 5.9 L turbo diesel with Fassi E-dynamic loader cranes, an architecture that recovers swing energy and lowers fuel draw during repetitive farm cycles [S2].
For irrigation pipe and feed-handling lifts, hydraulic flow in the 60-80 L/min range is typical for knuckle-loader cranes on light chassis, while 25 t telescopic units need roughly double that flow to keep line speeds productive when extending multiple sections simultaneously [S2][S3].

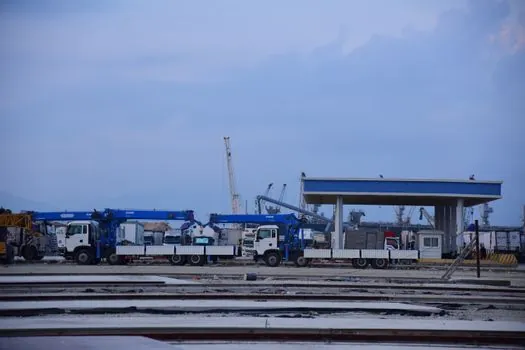

Application Fit and Mis-Fit
Agricultural truck cranes fit feed mill intake, silage clamp work, irrigation mainline pipe handling, biomass bale stacking, and farm workshop equipment moves; they are not the right tool for orchard spraying, livestock handling, or spreading, where tractor-mounted sprayers and telehandlers are purpose-built instead [S1][S8]. The same Iveco 4x4 plus Fassi combination that serves well on a mixed farm becomes over-specified for a livestock-only yard, where a smaller knuckle crane on a 4x2 chassis delivers better manoeuvrability at lower cost [S2].
Dump truck conversions appear alongside crane trucks in farm fleets because the same chassis often doubles for grain haulage in the off-season, and used-unit inventories such as the Ruihao 180-unit lot are typically sold alongside separate dump-truck and mixer-truck lines rather than as a single package [S4].
Standards, Sourcing, and Used-Market Caveats
Export-channel suppliers list both new and used units under FOB terms, with lead times described as "short" for the African export lane and pricing commonly held on request rather than published [S2]. For procurement, the verifiable signals are: chassis model and engine displacement, crane model and serial, boom section count and main-boom length, and the driveline configuration (4x2, 4x4, 6x4, 8x4) [S2][S3][S4].
Used-unit age matters: KATO NK250E examples in the Ruihao inventory span model years 1998-2006, with price scaling by year (35,000 USD for 1998 versus 50,000 USD for 2006 in the same series), and buyers should treat year-of-manufacture as a primary spec rather than a secondary footnote [S4]. For related duty cycles, the truck crane selection gates for quarrying article covers higher-capacity reach and chassis maps useful when the same unit must also serve a quarry or aggregate yard. Where the farm needs a smaller companion lift, the electric pallet truck certification checklist and the truck crane selection gates for tunneling article each cover adjacent selection logic that informs chassis and tail-swing trade-offs.
Track for the next sourcing cycle: confirmed availability of 4x4 light crane-truck configurations from the Iveco Eurocargo + Fassi pattern, and updated pricing on the 25-50 t XCMG XCT series with 5-section booms, both of which already appear in active 2026 listings [S2][S3].
