Alumina content grades of 96%, 99.5%, and 99.9% are the most commonly specified for upstream, midstream, and downstream oil and gas service, with each step up in Al2O3 percentage raising hardness, chemical resistance, and maximum service temperature while also raising cost and machining difficulty [S2].
The supply base offers commercial purity tiers from 85% Al2O3 up to 99.9% Al2O3, and a Vickers hardness band of roughly 1,400–2,200 HV depending on grade and manufacturer, which is the primary figure an engineer should anchor a wear-resistance selection to [S3][S4][S6].
Purity grades and what they actually buy you
96% alumina is the workhorse of upstream and midstream wear parts: pump seats, valve liners, nozzle inserts, and protective sleeves are routinely machined from 96% stock because it offers the best balance of hardness, dimensional stability, and unit cost [S2].
99.5% alumina is the next step and is typically chosen for higher-purity process fluid contact, electrical insulation duties, and higher-temperature refining service, with a maximum continuous service ceiling that exceeds 1,600°C on the highest-purity balls on the market [S2][S5].
99.9% alumina is reserved for semiconductor-grade housings, analytical instrument components, and hermetically sealed feedthroughs where even the residual glassy phase in 96% and 99.5% grades would compromise dielectric performance or process contamination budgets [S1][S2].
Below 96%, the 85–95% grades (sometimes called 85% or "standard" alumina) remain in widespread use for less critical wear tiles, general-purpose spacers, and structural insulators where cost per kilogram dominates the buying decision [S4].
Hardness, toughness, and the alumina-versus-zirconia decision
Alumina runs 1,400–2,200 HV and is harder than zirconia, but zirconia runs 1,000–1,300 HV and is materially more resistant to chipping under impact loading, which is the correct trade-off rule of thumb for valve and pump trim selection [S6].
Where the service is steady-state abrasion without impact, alumina wins on wear life; where the service includes pressure spikes, slugging, or mechanical shock, zirconia-toughened alumina (ZTA) is the realistic hybrid and is listed by major industrial-ceramic fabricators as a stock material for pump and valve components [S4][S6].
ZTA is not a separate chemistry so much as a zirconia-toughened alumina composite, and it is the standard upgrade when an alumina part keeps chipping at the seat edge or cracking across a thin section under thermal cycling [S4].
For strictly electrical-insulation duties in downhole tools, logging instruments, and high-voltage feedthroughs, alumina is preferred over zirconia because alumina's volume resistivity and dielectric strength are the established reference values in the industry [S1][S3].

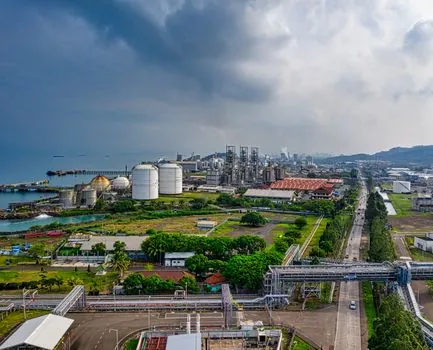

Where alumina actually goes in oil and gas equipment
Upstream, alumina is used in downhole sensor housings, electrical feedthroughs for logging tools, wear-resistant sleeves exposed to abrasive drilling fluids, high-pressure sealing components, and thermal/electrical isolation for subsurface electronics [S1].
Drilling and production wear parts, including pump seats, pump liners, guides, valve parts exposed to high-velocity abrasive media, bearing and spacer components, nozzles, and protective wear sleeves and inserts, are all standard alumina applications and are documented as such by the technical-ceramics supply base [S1].
Midstream, alumina is specified for pipeline monitoring and sensor systems, electrical insulation at compressors and pumping stations, sealing and isolation components in high-pressure transport, and instrumentation housings exposed to weather, chemicals, and vibration [S1].
Downstream, alumina appears in high-temperature furnace and reactor insulation, thermal management components for control and power electronics, corrosion-resistant parts in chemical processing equipment, and analytical-instrumentation components that require purity and dimensional stability [S1].
Alumina ceramic balls are a parallel product family, made in purity levels from 92% to 99.9% and sintered at 1,400°C to 1,750°C, and they serve as catalyst bed support in refinery and chemical reactors as well as grinding media in pigment and ceramic milling [S5].
Thermal-shock limits and the design rules that come with them
Standard alumina offers hardness, wear resistance, corrosion resistance, and electrical insulation, and is appropriate for wear-resistant insulating parts where thermal-shock loading is not the controlling failure mode [S7].
Where thermal-shock resistance is the controlling design case, the conventional move is away from monolithic alumina toward silicon nitride, zirconia, or silicon carbide, since alumina's combination of relatively high thermal expansion and moderate thermal conductivity drives higher thermal-stress build-up under rapid temperature change [S7].
For oil and gas, this rule is most often invoked in fired-heater and reformer service, in downhole temperature-cycling tools, and in any valve or nozzle exposed to intermittent cold-slug injection; the ZTA hybrid is the closest "drop-in" when a pure-alumina part keeps failing by thermal cracking [S4][S7].
Standards, sourcing, and what to verify on the data sheet
For electrical-insulation grades used in downhole and surface instrumentation, the figures to verify on a supplier data sheet are volume resistivity, dielectric strength, and dielectric constant; for wear grades, the figures that matter are Vickers hardness, flexural strength, and fracture toughness [S1][S4].
For hermetic-seal and vacuum-feedthrough service, alumina's compatibility with metallizing and brazing is the enabling property, and the same material platform that serves oil and gas insulators also serves ultra-high-vacuum and sealed-atmosphere hardware [S1].
For substrate-format alumina used in power electronics, stock thickness typically runs 0.25 mm to 1.0 mm and is the price-competitive option against aluminum nitride, with shorter lead times because the alumina supplier base is broader [S8].
Selection workflow and a few trackable signals
The realistic selection path is: confirm the fluid chemistry and temperature envelope, decide between 96% and 99.5% Al2O3 from the contamination and dielectric requirements, then check whether the part is a steady-state wear case (stay on alumina) or an impact/thermal-shock case (move to ZTA, zirconia, or silicon nitride) [S1][S2][S6][S7].
