In aluminum high-pressure die casting, an in-gate velocity range of 30-50 m/s maps to cavity fill times of 41.1-68.6 ms in extra-large thin-wall castings, with 50 m/s achieving complete fill at 41.1 ms and velocities below 30 m/s leaving the cavity short [S2][S3].
The 30-50 m/s window is not a single number but a process corridor: experimental gating studies on aluminum alloys show melt velocity in the gate region of 34-35 m/s dropping to 12-14 m/s at end-of-cavity regions due to viscous losses [S8], and one precision thin-wall service specifies a 25-45 m/s gate speed window with fill time under 20 ms at 80-120 MPa injection [S5].
Process Windows and Machine Setup Behind 30-50 m/s
Slow-shot velocity in the shot sleeve and the final in-gate velocity are decoupled by the intensification ratio of the cold-chamber die casting machine. A 30-50 m/s in-gate value is generated from a much lower plunger speed: experimental work on semi-solid aluminum die casting holds maximum plunger velocity at 0.5 m/s during the slow-shot phase, with the 50-86 mm plunger position treated as the critical control interval for cavity fill [S6]. The intensification step, typically producing 30-50 MPa pressure at the gate, raises the melt velocity through the gate restriction to the 30-60 m/s range cited for aluminum on the shot weight guide [S4].
For thin-wall aluminum structural parts, one production service specifies 80-120 MPa injection pressure at 50 m/s, with a permitted gate velocity band of 25-45 m/s and minimum wall thickness of 0.8 mm [S5]. Where the band is widened, the same process family accepts up to 60 m/s: the theoretical limit on gate velocity in vacuum-assisted HPDC is 30-60 m/s, with 55 plus or minus 2 m/s used on a 2.5 mm 5G base-station housing after a 45 m/s trial produced cold shuts [S5].
Fill Time, Cavity Pressure, and the 30-50 m/s Trade-off
Cavity fill time and in-gate velocity are inversely linked in aluminum HPDC: Niu et al. (2022) tested 30, 40, and 50 m/s and recorded corresponding fill times of 68.6, 51.4, and 41.1 ms for an extra-large thin-wall aluminum casting [S2]. The same study concluded that in-gate velocities below 30 m/s were insufficient to achieve complete filling, while melt temperatures above the tested upper bound degraded mechanical properties through over-heating of the melt [S3].
High in-gate velocity reduces cold-shut and misrun risk by minimising the time the melt spends below the solidus while filling thin sections, but it raises spray atomisation, oxide entrainment, and air entrapment. This is why vacuum-assisted HPDC, operating at 30 mbar chamber pressure, allows the upper end of the band (45-60 m/s) without the porosity penalty of conventional HPDC: one 14-month study of 200,000 parts showed X-ray rejection falling from 3.2% to 0.4% after pulling chamber vacuum to 50 mbar at 50 m/s gate velocity [S5]. For conventional (non-vacuum) HPDC, the practical ceiling is closer to 45-50 m/s before porosity becomes unmanageable, and the practical floor is 30 m/s for any thin-wall geometry above 1.5-2 mm wall thickness.
Comparison of Process Options Across the 30-50 m/s Band
Three operating points within and around the 30-50 m/s window can be lined up against four decision criteria for a structural aluminum die casting: cost, thin-wall capability, porosity control, and required injection pressure. [S5]
At 30 m/s, fill time extends to 68.6 ms and the part is at the edge of complete fill for extra-large thin-wall castings [S2]; this is the slowest end of the band, with the lowest spray atomisation risk but the highest misrun and cold-shut risk, and is viable on conventional cold-chamber HPDC without vacuum assist. At 40 m/s, fill time drops to 51.4 ms with complete fill and a more balanced porosity-versus-fill trade-off, sitting in the middle of the band at moderate injection pressure (40-80 MPa intensification typical) [S2][S4]. At 50 m/s, fill time falls to 41.1 ms with the thinnest walls fillable, but porosity control requires either vacuum assist at under 50 mbar or a higher-grade low-iron alloy such as AlSi10MnMg (Fe below 0.15%, tensile above 320 MPa, elongation at least 10%) [S5]. A wider quoted band, 25-45 m/s on one precision service, brackets the 30-50 m/s corridor for thin-wall structural parts and is paired with 80-120 MPa injection [S5].
Standards, Tolerances, and Dimensional Control Within the Band
ISO 8062-3 is the dimensional tolerance standard referenced for high-pressure die casting, and one precision service maintains DCTG 4-6 tolerances (achieving plus or minus 0.05 mm in practice) only inside a tight process window: melt at 690 plus or minus 10 degrees Celsius, intensification pressure at 120 plus or minus 5 MPa, and shot velocity held within plus or minus 1% of setpoint [S5]. Cavity pressure variation between shots of under plus or minus 3% and cooling channel Cpk of at least 1.33 are the shop-floor control limits the same service demands in writing from the tool maker before cutting steel [S5].
Die life within the 30-50 m/s band is sensitive to thermal management, not directly to in-gate velocity. H13 tool steel at HRC 48-52 with conformal cooling channels held at 180 plus or minus 5 degrees Celsius is reported to deliver above 200,000 shots, while an automotive turbo housing running at the upper end of the velocity band lasted 62,000 shots until plus or minus 0.08 mm bore drift forced repair, attributed to cooling channel scaling at delta T above 15 degrees Celsius [S5]. Bore concentricity Cpk of at least 1.67 was reached after switching to conformal cooling at 180 plus or minus 5 degrees Celsius, extending part life to 115,000 shots on the same die family [S5].

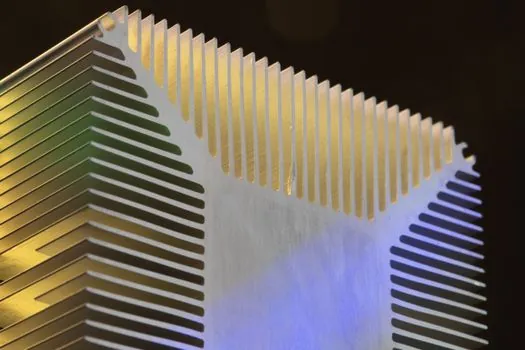

Failure Modes Outside the 30-50 m/s Band
Below 30 m/s in-gate velocity, the dominant failure is incomplete fill, with misrun and cold shut appearing first in the thinnest walls and the most distant overflows [S2][S3]. Above 50 m/s without vacuum assist, the dominant failure is gas porosity and oxide bifilms, with leakage testing rejection above the 0.1% volumetric porosity threshold set by AFS for critical seals [S5]. At 60 m/s and above, even vacuum-assist dies show die-life penalties from elevated thermal cycling and solder attack at the gate, although quantitative die-life loss data at the 60 m/s end of the band is not in the cited sources.
Selection Criteria: When 30 m/s, 40 m/s, or 50 m/s is the Right Setpoint
A 30 m/s setpoint is the right call for heavy-section structural castings above 4 mm wall thickness, for alloys with short freezing ranges such as A380, and for shops running conventional non-vacuum HPDC; a 40 m/s setpoint is the default for general-purpose thin-wall structural castings in the 2-3 mm wall range on conventional HPDC; a 50 m/s setpoint is required for extra-large thin-wall castings, for 5G base-station housings at 2.5 mm wall, and for any part with a 0.8 mm minimum wall specification, provided vacuum assist at 30-50 mbar is available [S2][S3][S5]. For deeper context on how die casting machines are sized for these three operating points, the aluminum die casting machine selection encyclopedia page covers the matching intensification ratio and shot sleeve sizing. For process windows in high-pressure die casting versus lower-velocity routes such as gravity filling, the gravity die casting machine page documents why the 30-50 m/s band does not apply to non-HPDC processes.
Trackable next signals for buyers specifying within the 30-50 m/s band: confirmed chamber vacuum level in mbar from the die caster's PQ2 diagram, written cooling channel Cpk above 1.33 from the tool maker, and a first-article X-ray report showing porosity under 0.5% volumetrically at the chosen setpoint [S5]. For related process-window work outside die casting, dry sand mould oven baking covers the temperature-time corridor for sand-core preparation, and the grey cast iron foundry capital cost spec map is a useful reference for the capital side of any new foundry cell built around the 30-50 m/s band.
