Large aluminum structural parts (EV battery housings, transmission cases, large pump bodies) are commonly specified on aluminum die casting machines in the 1,600-2,000 ton clamping force band, with 1600T+ flagged as the entry point for "large structural parts" in current buyer guides [S5]. The defining engineering relation is simple: machine tonnage = injection pressure ratio x total projected area x safety factor, so tonnage scales with projected area, not part weight [S2].
At the extreme end, UBE Machinery's UH9000, launched 2024-08-20 with 9,000 metric tons of clamping force, is the largest die casting machine announced for domestic Japan delivery, targeted at single-piece BEV body structure giga castings [S4]. A separate industry reference places the current "giga press" class at 5,600-6,200 ton clamping force, indicating that the UH9000 sits above the previously published upper bracket [S3]. Most high-tonnage commercial work sits well below that, with 1,000 tons and above treated as the high-tonnage threshold for general aluminum casting procurement [S1].
How Tonnage Is Calculated From Projected Area, Not Weight
Clamping force is the maximum force the die casting machine can apply across the mold parting line, generated through the platen, tie bars, and the clamping hydraulic cylinder; selection should use the rated (typical) clamping force, not the nameplate maximum, which represents a short-duration limit [S2]. The governing equation, tonnage = injection pressure ratio x total projected area x safety factor, uses the projected area of the casting in the die-open direction, summed across every cavity of a multi-cavity die [S2].
Common published injection pressure ratios sit in bands tied to alloy family (aluminum, zinc, magnesium); a safety factor K in the 1.1-1.3 range is the standard practice cited for aluminum HPDC work, with the result rounded up to the next standard machine tonnage to avoid under-specifying the clamp [S2]. For zinc and magnesium work, dedicated zinc die casting machine and magnesium die casting machine lines apply the same formula but with different pressure ratios and K values driven by alloy density and casting temperature.
The 1,600-2,000T Band: Where Most Large Structural Parts Land
Buyer reference pricing for new cold-chamber HPDC units places the 1,200-1,600T class at roughly USD 400,000-700,000 and the 1,800-2,000T+ class above that, with both bands preferred for "structural automotive parts" and EV battery housings [S5]. 1600T+ is the explicit threshold given for "large structural parts" in the same guide, and the 1,200-1,600T range already supports vacuum-assist systems needed for porosity-controlled structural castings [S5].
Inside that band, a useful sizing rule is to compute tonnage, then round up one standard machine size; the rounding step is what protects the die from parting-line flash when peak injection pressure hits the cavity [S2]. For comparison, a 400-600T machine (USD 120,000-220,000) is sized for medium automotive housings and motorcycle components, and an 800-1,000T unit (USD 200,000-400,000) is the workhorse for transmission cases and gearbox housings, illustrating the steep price jump between 1,000T and 1,600T [S5].
Giga-Press Class: 5,600-9,000T and When It Actually Applies
The "giga press" label covers 5,600-6,200 ton clamping force machines that integrally cast large single-piece automotive body structure parts previously built from many stampings and weldments [S3]. UBE Machinery's UH9000, at 9,000 metric tons of clamping force and added to standard production as model UH9000, is aimed at exactly this giga-casting use case for battery electric vehicles [S4]. This is a different procurement problem from a 1,600-2,000T structural housing, where typical injection cells can still be served by a single mid-tonnage HPDC machine.
For most Tier-1 and Tier-2 suppliers, the giga-press class is over-spec: a single-piece BEV underbody or rear underbody is the canonical fit, while battery housings, motor enclosures, and large cross-member castings are normally handled in the 1,600-2,000T class [S3][S4][S5]. Die cost, platen size, factory floor loading, and shot weight (often 50-100 kg of liquid aluminum per cycle at giga-press scale) make the 5,600-9,000T bracket uneconomic outside high-volume BEV programs [S4].
Selection Criteria and Common Misconceptions
Four spec-driven criteria separate tonnage choices for large structural parts: projected area in cm^2 or in^2, alloy-specific injection pressure ratio, safety factor K, and shot weight capacity, with the 1,600T+ threshold tied to projected area rather than part mass [S2][S5]. High-tonnage foundries also lean on digital process simulation (for example MAGMAsoft) to predict thermal stresses, solidification defects, and air entrapment before cutting mold steel, which is critical for high-tonnage tooling that costs materially more per set [S1].
Four common misconceptions drive wrong sizing: (1) selecting tonnage from part weight instead of projected area, which under-sizes wide, thin parts; (2) ignoring the multi-cavity projected-area sum, which under-sizes multi-cavity dies; (3) using the nameplate maximum clamping force as the working figure, which over-states margin; and (4) skipping the safety factor, which leaves no headroom for pressure spikes at the end of fill [S2]. Where porosity or weld-line integrity matters, vacuum-assist HPDC cells in the 1,200-1,600T band are a practical alternative to stepping up to 2,000T+ [S5].
Comparison: Tonnage Bands Mapped to Large Structural Parts
400-600T: medium housings, small engine covers, motorcycle components; 120,000-220,000 USD [S5]. 800-1,000T: transmission cases, gearbox housings; 200,000-400,000 USD [S5]. 1,200-1,600T: EV battery housings, large engine blocks, industrial pump housings, supports vacuum-assist; 400,000-700,000 USD, flagged as the structural-part preferred band [S5]. 1,800-2,000T+: large single-piece structural castings beyond the 1,600T threshold [S5]. 5,600-6,200T "giga press" and 9,000T UH9000: single-piece BEV body structure giga castings, justified only at very high BEV volumes [S3][S4].
Use Cases, Constraints, and Failure Modes
Typical large structural parts that fit the 1,600-2,000T band include EV battery housings, large engine blocks, industrial pump housings, and integrated cross-members, all of which benefit from vacuum-assist HPDC for porosity control [S5]. The high-tonnage threshold for general aluminum casting procurement is set at 1,000 tons and above, which captures the 1,600-2,000T structural band and the 5,600-9,000T giga-press band together [S1].
Real failure modes if tonnage is under-sized: parting line flash, dimensional deviation, accelerated mold wear, and an unsafe mold that fails to lock [S2]. If tonnage is over-sized, the part is still acceptable but equipment, mold, and energy costs rise without quality gain, and a smaller machine could have run the same part more economically [S2]. Die cooling, which is a separate constraint from tonnage, is governed by the air-vs-water choice on the gravity die cooling side, a topic covered in air vs water cooling circuits for gravity die casting dies and relevant where large structural dies are split into insert-cooled regions.

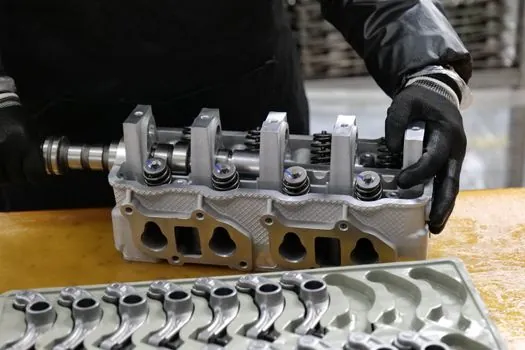

Standards, Sourcing, and What to Track Next
No single ISO or ASME standard number governs die casting machine tonnage selection; instead, OEM tonnage ratings, the rated clamping force (versus nameplate maximum), and alloy-specific injection pressure ratios are the controlling references, and the published formula is treated as industry practice rather than a codified standard [S2]. Foundry selection is increasingly consolidated: integrated single-source suppliers with in-house CNC machining, leak testing, and surface finishing are favored for high-tonnage structural castings, because split-vendor supply chains create accountability gaps on porosity and dimensional issues found after machining [S1].
Two trackable signals for the next planning cycle: the 9,000-ton UH9000 line at UBE Machinery, which is now in standard production and will pressure competing Japanese and Chinese OEMs to publish matching tonnage classes [S4], and the aluminum die casting machine market's flagged demand shift toward large-tonnage machines for structural castings, reported in the 2026-09-14 market outlook [S7]. Buyers should treat 1,600-2,000T as the default for large structural parts, step to 5,600-9,000T only for single-piece BEV body structures, and re-verify projected area plus alloy pressure ratio before each new tool order [S2][S4][S5].
