Data center aisle containment above 15-20 kW rack density uses hot-aisle or cold-aisle enclosures built from aluminum extrusion series 20 through 45, with 40 series as the standard aisle frame and 45 series reserved for heavy sliding doors [S1]. Air, water, and structural performance for the surrounding building envelope is governed by ASTM E 283, E 330, and E 331 test methods on aluminum doors, windows, and frames [S4].
Specifiers working on hyperscale and AI cluster builds should treat the envelope and the containment as one mechanical system: door U-value, airtightness class, SHGC orientation, and frame alloy all influence the cooling load the CRAC/CRAH units must absorb.
Frame Series and Alloy Selection by Load Case
Wellste's data-center extrusion catalog maps profile series to function: 20 series for lighting brackets, sensor mounts, and cable clips; 30 series for light containment partitions; 40 series for standard aisle containment frames; 45 series for heavy sliding doors and larger structures; and a heavy-duty long-span tier for high-load installations [S1]. For fire-rated compartments the upgraded spec moves to 6061-T6 alloy with wall thickness up to 6 mm and multi-point locking hardware rated for 500,000+ cycles [S9].
Two structural limits deserve attention. AAMA 101 governs the voluntary performance spec for aluminum windows and glass doors, while AAMA 2604 and 2605 cover high-performance and superior-performing organic coatings on extrusions and panels [S4]. For deflection, framing members normal to the wall plane are capped at 3 mm maximum, and glazing bite under load must not drop below 75 percent of design dimension with at least 3 mm edge clearance retained [S4].
Airtightness, Water Tightness, and Wind Pressure Thresholds
Industrial aluminum sliding doors used in temperature-controlled and cleanroom projects report air tightness around 1.2 m³/(m·h), water tightness up to 700 Pa on commercial sliding lab tests, and wind pressure resistance up to 5 kPa on 78-series folding doors [S6]. Structural testing for exterior assemblies is run to ASTM E 330 at 150 percent of inward and outward wind-load design pressure, which is the load case a hyperscaler should require in submittals [S4].
For data-hall envelopes exposed to stack-effect pressure from CRAH return ducts, airtightness matters more than the headline U-value. Air leakage through exterior windows, curtain walls, and doors is measured per ASTM E 283 at specified pressure differences, and water penetration is qualified per ASTM E 331 under uniform static air pressure difference [S4]. A practical field rule: if the lab test pressure is 1.5x the design pressure and field performance is two-thirds of lab, the building must be designed for that field envelope or failure gets introduced into the wall assembly [S3].

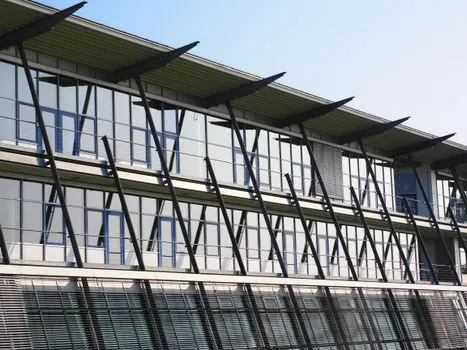

Glazing, Thermal Break, and SHGC Trade-offs
Energy Star certified aluminum windows commonly ship with double-glazed 5 mm + 12 mm argon + 5 mm insulating glass rated at K ≤ 2.0 W/(m²·K), with an optional triple-glazed 5 + 12A + 5 + 12A + 5 mm build dropping K to ≤ 1.2 W/(m²·K); laminated 6 + 1.52 PVB + 6 mm units meet EN 12600 1B1 with 5 kJ/m² impact strength for high-rise and hurricane zones [S5]. SHGC is orientation- and climate-specific, not a blanket "lower is better" choice: solar-control low-E coatings reach 0.20-0.25 SHGC for extreme solar gain exposures, while high-solar-gain coatings land at 0.45-0.60 where passive heating is desired [S10].
For the thermal break, procurement guidance sets a polyamide or equivalent barrier at λ ≤ 0.3 W/m·K and limits gap tolerances to ±0.1 mm maximum to avoid condensation at the aluminum interface [S2]. EPDM sealing strips specified on premium assemblies retain weather resistance across the full operating range expected for mechanical rooms and data-hall perimeter glazing [S5]. Specifiers should also demand AAMA 611 anodized finish documentation or AAMA 2604/2605 powder-coat evidence tied to project submittals [S4].
Fire-Rated and Security-Grade Door Options
Fire-rated aluminum doors and windows for safety compartments use 6061-T6 profiles at up to 6 mm wall thickness, paired with multi-point locking systems at Grade 5 security and 500,000+ cycle hardware certification, which is the configuration appropriate for data-hall smoke compartments and transformer rooms [S9]. Surface finish on these units must clear ASTM B117 salt spray for at least 500 hours, otherwise powder coat or anodizing can peel or fade within two years when pretreatment is poor [S2].
Standard commercial aluminum doors for industrial buildings use 45 mm thick glazed doors with minimum 3.2 mm extruded tubular rail and stile members, corners mechanically fastened and sealed; glass and glazing are then cross-referenced to project specifications such as SES A06-S01, and perimeter joint sealants fall under SES A13-S01 [S4]. For 110-mph design wind loading, the equivalent structural test pressure lands near 3.5 psf after the 1.5x safety factor in ASTM E 330, which is the threshold where wall-assembly performance can fail if the field envelope is not engineered for it [S3][S4].
Sourcing Standards and Supplier Documentation Checklist
A complete submittal package for a data-center aluminum package should reference ASTM E 283 for air leakage, E 330 for structural performance, E 331 for water penetration, AAMA 101 for window/door performance, AAMA 611 for anodized aluminum, and AAMA 2604 or 2605 for organic coatings [S4]. Aluminum extrusions themselves should conform to ASTM B 221/B 221M for profiles and tubes or B 429 for structural pipe and tube, with welding per AWS D1.2 and filler metals per AWS A5.10 [S4].
A practical pre-shipment checklist: confirm the alloy/temper code (6063-T5 for general architectural, 6061-T6 for fire-rated or heavy doors), demand a salt-spray report to ASTM B117 of at least 500 hours, request thermal-break λ-value documentation at or below 0.3 W/m·K, and require a deflection calculation showing framing members under 3 mm at design load [S2][S4][S9]. For broader B2B procurement context on aluminum windows, the residential spec map covers the homeowner-side trade-offs, while envelope tuning for energy equipment cabinets overlaps with adhesive selection for energy builds when sealing mullion interfaces. A useful adjacent reference for on-site installer safety around glazed openings is the aluminum ladder spec map for interior finishing.
Trackable signals to watch over the next procurement cycle: 1) revisions to AAMA 101 and AAMA 2604/2605 referenced in current submittals, since these govern coating and window performance tiers, and 2) any shift in the typical 1.2 m³/(m·h) sliding-door airtightness benchmark as cold-aisle containment door sets become more standardized for AI cluster halls. The encyclopedia entry on aluminum window and door systems covers the broader product taxonomy for specifiers comparing system-window-door platforms, while the curtain-wall reference is the right starting point when the data-center envelope includes glazed lobby or storefront wall sections.
