Anti-static equipment for oil and gas facilities breaks into two parallel spec regimes, process-side charge control inside hazardous areas and ESD workbench control at the maintenance bench, and buyers should treat them as separate RFQs [S6][S9].
The process-side scope covers static-control valves, ionizer bars, and conductive piping in flammable service; the ESD workbench scope covers grounded workbenches, wrist straps, heel grounders, ESD footwear, and surface-resistance matting [S4][S6]. The 2026 SourceBySpec selection map lists five spec-driven categories: ionizer/bar power supplies, personnel grounding, ESD packaging, ESD-safe tools and workstation mats, and process-side anti-static valves [S6].
Process-Side vs ESD Workbench: Two Spec Universes
Process-side anti-static equipment in oil and gas is governed by ignition-risk logic, not by electronics ESD: NFPA 77 (Recommended Practice on Static Electricity) and API RP 2003 (Protection Against Ignitions Arising Out of Static, Lightning, and Stray Currents) are the working references for charge relaxation on bulk hydrocarbon transfer, tank filling, and hydro-carbon service piping [S6].
ESD workbench equipment is governed by ANSI/ESD S20.20, with surface-resistance targets in the 1×10⁵ to 1×10⁹ Ω band, friction voltage below 100 V on mats, and 1 MΩ wrist-strap cable resistance with 750 kΩ to 10.5 MΩ system resistance when worn [S4]. An ESD workbench is a steel-profile structure with a 19 mm ESD laminate top, height-adjustable between 650 mm and 950 mm, rated for 150–300 kg uniform load, and tied to a 1×10⁵ to 1×10⁹ Ω resistance-to-ground system [S3][S10]. A buyer who mixes the two universes (for example, specifying a wrist-strap spec for a tank farm or an NFPA 77 spec for a PCB repair bench) ends up with the wrong test method and the wrong audit trail [S6][S9].
Component Spec Bands: What to Put on the Datasheet
For personnel grounding inside Zone 1/Zone 2 hazardous areas, the working bands are: anti-static floor or mat surface resistance 1×10⁵ to 1×10⁹ Ω, friction voltage below 100 V; ESD work chair caster-to-ground resistance 1×10⁵ to 1×10⁹ Ω; heel strap (shoe harness) system resistance 1×10⁵ to 1×10⁸ Ω; and anti-static ground electrode earth resistance below 10 Ω [S4].
For process-side ionizer bars used in plastic film and printing lines (a useful proxy for hydrocarbon piping charge bleed-off when justified by site calculations), typical compact-bar datasheets cite power-frequency AC 4000 V working voltage, 20 W power, electrode high voltage below 4000 V, and electrode binding capacity below 3.5 pF [S7]. A representative industrial ionizer-bar part code (Shanghai Anping GYB16 / 1549X) confirms the band sits at 20 W with 4000 V electrode output, which is the typical class for shock-proof compact bars [S7]. Process-side valves and fittings qualified as anti-static are documented separately under static-control product families, and a buyer mapping oil and gas facility scope should classify them by ignition-risk service rather than by electronics test method [S5][S6].

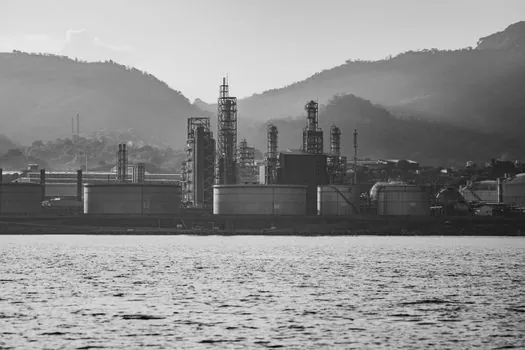

Selection Criteria for the Oil and Gas Use Case
Anti-static equipment selection in oil and gas reduces to four filters: (1) hazardous-area classification (Zone 0/1/2 or Class I Div 1/2), which routes the spec to NFPA 77 and API RP 2003 charge-relaxation logic; (2) fluid service (flammable liquid, vapor, or hydrocarbon mist), which dictates bonding/grounding conductor cross-section and relaxation time; (3) maintenance-bench interface (instrument calibration, valve repair, PCB handling inside a control room), which routes to ANSI/ESD S20.20 mat, wrist-strap, and ionizer specs; and (4) inspection and test cadence, which the [S4] reference fixes at wrist-strap daily checks, surface-resistance annual verification, and online wrist-strap monitors for continuous feedback [S4][S6].
Who it is for: a process engineer specifying a new tank farm, a maintenance lead building an instrument workshop inside a control-room envelope, and a static-equipment engineer reviewing a vendor data sheet for vessels, columns, reactors, filters, shell-and-tube or plate-and-frame exchangers, and air coolers that fall under the static-equipment umbrella [S1]. Who it is NOT for: an electronics OEM specifying a cleanroom wafer-handling line, where the load is contamination-class and not ignition-class; a buyer who conflates ESD wrist-strap resistance bands with API tank-bonding conductor sizing; or a project engineer who treats anti-static equipment as a single commodity line item rather than as a paired process + bench scope [S1][S4][S6].
Comparison: Process-Side vs ESD-Bench Categories on Four Criteria
On a four-criterion decision matrix, the main anti-static categories line up as follows. (1) Governing standard: process-side static-control valves, ionizer bars, and bonding conductors map to NFPA 77 and API RP 2003; ESD workbenches, wrist straps, and ESD matting map to ANSI/ESD S20.20 [S4][S6]. (2) Resistance/relaxation target: process-side targets charge decay time in seconds and bonding resistance below typical 10 Ω; ESD-bench targets mat surface resistance 1×10⁵ to 1×10⁹ Ω and friction voltage below 100 V [S4]. (3) Inspection cadence: process-side requires loop-resistance verification and continuity checks; ESD-bench requires daily wrist-strap tests plus annual surface-resistance retest with electrostatic tester, wrist-strap tester, surface resistance tester, and system monitoring alarm [S4]. (4) Audit trail: process-side documentation sits in the static-equipment engineer’s data sheet (TL length, MAWP, MAWT, MDMT, flange rating, hazardous area classification) [S1]; ESD-bench documentation sits in the calibration log and operator training record [S4][S9].
A directly comparable five-bucket spec from the 2026 SourceBySpec selection map (ionizer/bar power supplies, personnel grounding, packaging, ESD tools and matting, and process-side anti-static valves) is the practical partition for an RFQ, and the S9 reference confirms ESD equipment breaks into three application levels: basic protection, intermediate, and specialized [S6][S9]. For oil and gas, the basic level (wrist straps, heel grounders, ESD footwear, workbench mats) absorbs most of the volume at maintenance shops, while the process-side anti-static valve and ionizer-bar bucket absorbs the engineering line items tied to flammable-service RFQs [S6].
Failure Modes, Limitations, and Sourcing Constraints
The first failure mode is wrong-class specification: applying ESD-bench 1×10⁵ to 1×10⁹ Ω mat resistance to a process-side charge-relaxation application, or vice versa, which leaves either ignition risk unaddressed or the maintenance bench non-compliant to ANSI/ESD S20.20 [S4][S6]. The second failure mode is mixed test methods: a wrist-strap tester, a surface resistance tester, and an electrostatic tester are three distinct instruments with three distinct pass criteria, and a single combined "anti-static test" is not a substitute for the three separate readings [S4]. The third failure mode is preserved-equipment contamination: vessel and exchanger preservation during staging is governed by flange face protection and N2 purge management (10 ft exclusion zone, controlled venting, P3-GIT inspection per PCC-1 guidelines), and a vendor who skips the N2 control step cannot layer anti-static discipline on top of a contaminated flange [S2].
Sourcing-side constraints to track: ESD workbench price points cluster in 330 to 9000 EUR across the 39 in-stock models listed by one European distributor, with the 1812 to 2250 EUR band carrying the highest model count (26 SKUs) and the 700 EUR band carrying the second-highest (29 SKUs) [S3]. Process-side antistatic valves and ionizer bars are typically sourced as separate RFQ lines from a different vendor base (the Shanghai Anping GYB16/1549X is one representative China-origin compact bar at 20 W, 4000 V electrode) [S7]. For 2026 sourcing, a structured anti-static equipment tender should split these into two envelopes and avoid bundling them as a single line [S3][S6].
Standards Map and Verifiable Next Nodes
The working standards stack on the process side is NFPA 77 for static-electricity recommended practice and API RP 2003 for protection against ignitions arising from static, lightning, and stray currents; on the bench side it is ANSI/ESD S20.20, with the resistance bands (1×10⁵ to 1×10⁹ Ω for mats, floors, chairs, and casters; 1×10³ to 1×10⁹ Ω for material boxes and PCB racks; 1 MΩ wrist-strap cable plus 750 kΩ to 10.5 MΩ system resistance) taken from the S4 reference [S4][S6]. Anti-static ground electrode earth resistance is held below 10 Ω, and the work-clothes/hats/gloves friction-voltage ceiling is 300 V while the shoe-sole ceiling is 100 V [S4].
Verifiable next node: a process engineer should pull the [S1] static-equipment datasheet template and stamp the four anti-static fields (hazardous area classification, grounding conductor spec, ionizer-bar/valve bonding point, and maintenance-bench ESD handover) before the next data-sheet review. Trackable signal: oil and gas projects that bundle the ESD workbench and the process-side anti-static valve into a single procurement line should expect an RFQ rejection from a vendor base that prices them under separate distribution channels, since the European ESD-bench channel prices the 700 EUR band as 29 SKUs while the China-origin ionizer-bar channel prices the 20 W / 4000 V class as a separate commodity with different minimum-order quantities [S3][S6][S7]. For facility-level planning, the static-equipment discipline of pressure vessels, columns, reactors, filters, shell-and-tube, plate-and-frame, and air-cooled exchangers is the umbrella that absorbs the anti-static specification, not a stand-alone line item [S1].
