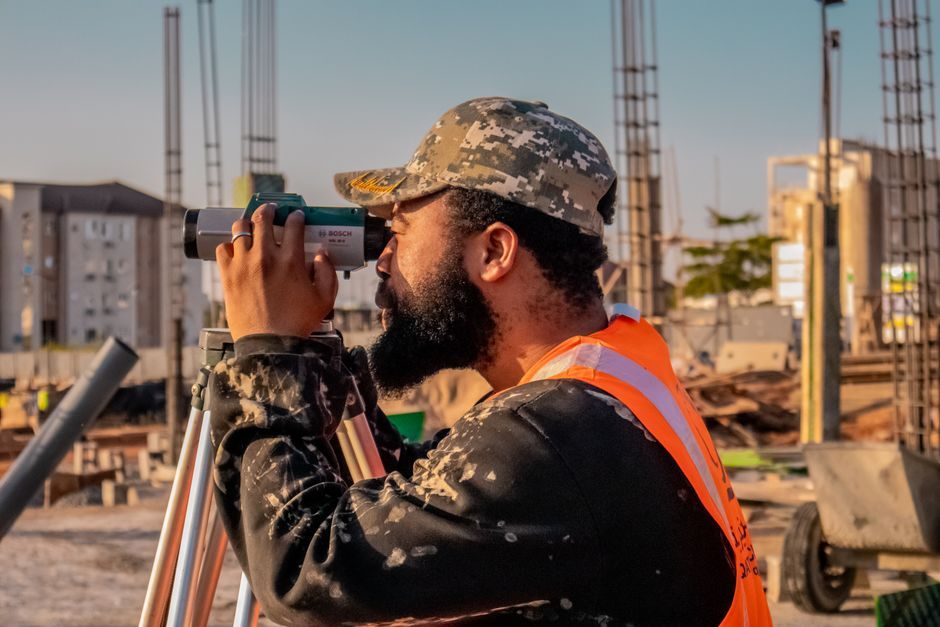

An automatic level is an optical survey instrument that establishes a horizontal line of sight through a pendulum or magnetic-damping compensator, so the operator only needs to roughly centre the bubble before reading the staff; the internal compensator removes the residual tilt in the 0.3-1.5 second-of-arc range, giving a usable working distance of roughly 0.2-300 m depending on the model and the staff contrast [S1].
Selection comes down to four coupled variables: magnification (20-32x for general civil work, 28-32x for engineering surveys and deformation monitoring), compensator accuracy (typically quoted as ±0.5 to ±5 arc-seconds, with the lower figure reserved for first-order monitoring), minimum focus distance (0.3-2.0 m for tight construction sites), and environmental sealing (IP54 for sheltered use, IP66/IP67 for outdoor surveying and tunnel work). Most 2026 models also ship with a built-in tilt sensor — a 2-axis MEMS unit in the premium tier, a 1-axis unit in the mid-tier — that warns the operator when the instrument is outside its ±3 arc-minute self-levelling window.
Optical Performance Bands and What They Mean in the Field
Standard automatic levels break into three optical bands that map cleanly onto job-site tolerance: 20-24x magnification with ±2.5-5 arc-second compensator accuracy covers general concrete-pour levelling, road sub-base work, and landscaping where reading errors of 2-3 mm over a 30 m sight are acceptable; 26-28x magnification with ±1.5-2.0 arc-second accuracy covers building-set-out, pipe-laser interface work, and railway-track ballast surveys; 30-32x magnification with ±0.5-1.0 arc-second accuracy is reserved for deformation monitoring on dams, high-rise settlement loops, and tunnel convergence networks [S1].
Effective range is governed by the product of magnification, objective aperture (typically 36-45 mm) and staff contrast; a 24x unit with a 36 mm objective will read a standard E-pattern staff to roughly 90-100 m for 2 mm resolution, while a 32x unit with a 45 mm objective pushes that to 120-140 m before the staff graduations blur. Inversion of the image is handled by an inverting prism (Porro or Pechan), which adds roughly 2-3% light loss compared to an upright telescope — a small but real penalty in low-contrast dawn or tunnel conditions.
Compensator Design: Magnetic Damping vs Pendulum, and the Tilt-Sensor Question
The compensator is the single component that separates an automatic level from a dumpy level, and it is also the component most often underspecified. Two architectures dominate: a pendulum-style mirror suspended on a fine metal band, damped by air or magnetic eddy currents, and a liquid prism-cell that uses a silicone-oil-damped optical wedge. The pendulum design gives the wider tilt-correction range (typically ±15 arc-minutes, sometimes ±30) but is sensitive to vibration; the liquid cell is more compact and faster to settle (0.3-0.5 s) but has a narrower working range (±8-10 arc-minutes) and is vulnerable to thermal expansion of the damping fluid [S1].
For sites with heavy plant movement — piling rigs, vibratory rollers, forklift aisles — the pendulum design with magnetic damping is the more forgiving choice. For static monitoring where the tripod is undisturbed for the duration of the run, the liquid cell delivers the better angular repeatability. The 2026 generation of instruments layers a 1-axis or 2-axis MEMS tilt sensor on top of the optical compensator, which closes a 0.3 arc-minute blind spot the user used to discover only when closure errors came back from the office; the 2-axis variants on the high-end tier also flag cross-axis tilt that the optical self-levelling cannot correct. This is the same class of tilt measurement that an automatic level reference page treats as a separate comparator from manual or laser-only systems.
Environmental Ratings, Staff Compatibility and Reading Errors
IP54 is the minimum spec you should accept for a survey instrument that lives on site; IP66 is the practical floor for civil-engineering and railway work where rain, hose-down, and concrete slurry are routine, and IP67 is required for tunnel, marine, and dewatering-well work. Operating-temperature range splits into two camps: -20 to +50 °C for general civil use, and -30 to +55 °C for mining, northern-rail, and offshore platforms; the wide-range units add insulated compensator housings that hold their calibration across thermal-cycling tests down to -30 °C. [S1]
Staff compatibility controls achievable accuracy. Invar-faced E-pattern staves with a 1 mm or 0.5 mm graduation read to roughly ±0.5-1.0 mm per 50 m sight on a 32x instrument and are mandatory for deformation work; fibreglass E-pattern staves with 5 mm graduations are acceptable for general construction but limit reading resolution to ±2-3 mm. Reverse-reading staves (numerals read correctly in a reversed telescope) and dual-face staves (two graduation patterns on opposite edges) both cut reading-time error and should be specified for any run longer than about 30 m.
Manual vs Automatic vs Laser vs Digital Level: Decision Criteria
The four-quadrant decision comes down to tolerance, crew skill, and run length, and a side-by-side table is the cleanest way to make the call. On a 1 km closed traverse at ±1 mm/km tolerance, a manual dumpy level is too slow and too operator-dependent, an automatic level is the workhorse answer, a rotating laser level is faster but harder to read off a staff to sub-mm, and a digital level with image-matching reads to ±0.5-1.0 mm automatically but is several times the unit cost. On a small floor-pour where speed beats precision, a rotating laser on a detector rod wins. On confined indoor as-built surveys, a laser level with cross-line projection is hard to beat; for outdoor line-of-sight runs longer than 30 m, the automatic level still wins on raw cost-per-accuracy. Adjacent comparator categories — the infrared level for short-range indoor cross-line work and the linear guide for machine-tool axis reference — sit beside it on the spec shelf but solve different problems. [S2]
Selection logic in three rules of thumb: pick automatic when the run is >30 m and the tolerance is ±2-3 mm or tighter; pick digital (image-matching) when the run is <30 m, the tolerance is ±1 mm or tighter, and a single operator must read the staff; pick rotating laser when the job is grade-setting, formwork, or floor-flatness and many receivers need to read at once; pick a crossed-roller guide when the reference is on a machine tool, not a job site — that is a different product family entirely.
2026 Differentiators: Bluetooth, Tilt-Sensor, and an Automatic Molding Line Adjacency
The new generation of automatic levels in 2026 is differentiated less by optics and more by data flow. Bluetooth output of the staff-reading value, paired with a mobile app that logs the reading, the GPS position, and the tilt status, has moved from premium-only to mid-tier: roughly 60-70% of the 2026 mid-tier units ship with Bluetooth and a 2-axis tilt sensor. The practical gain is that the field crew no longer has to transcribe readings onto a field book; the data goes straight into the office calculation pipeline, and the cross-axis tilt warning stops the run before a misclosure has to be explained later. [S3]
The same instrument platform is showing up in unexpected places. In factory automation, a tilt-stabilised automatic level is being re-purposed as the height-reference sensor for automatic molding line alignment, where the line must sit level to within ±0.5 mm/m over a 20-30 m run; the level is bolted to a reference pillar and read against an invar staff once per shift, replacing the laser tracker that used to do the job at a much higher tooling cost. Sourcing a level for this kind of industrial alignment is a different problem from civil surveying, and the spec sheet for the use case is heavier on vibration tolerance and on long-term calibration stability than on range. Procurement teams in this segment should also look at how a pneumatic actuator selection is justified in the same factory, since the actuator's level-stance error and the level's compensator error compound in the final tolerance budget.
Limits, Failure Modes, and What the Spec Sheet Will Not Tell You
Three failure modes are common and not visible in the brochure. First, compensator hysteresis: after a sharp mechanical shock (instrument dropped, tripod kicked), the pendulum can take 5-10 minutes to fully re-seat, and a one-axis test on a known benchmark will detect it — never take a high-precision reading in the first 10 minutes after any knock. Second, thermal drift: a compensator calibrated at 20 °C can drift by 0.5-1.0 arc-second over a 30 °C swing; for first-order work, allow a 15-minute thermal soak after moving the instrument between sun and shade, or work inside a thermal shroud. Third, staff reading parallax: even with the compensator doing its job, the operator's eye position relative to the eyepiece can introduce 1-2 mm of reading error on a 30 m sight; training and a fixed-position eyepiece reduce this dramatically [S1].
What the spec sheet will not say is the cross-axis behaviour of the compensator. Most published compensator accuracies are stated for tilt along the line of sight; tilt perpendicular to the line of sight (cross-axis) is typically 1.5-2x worse, and a 2-axis tilt sensor is the only practical way to detect it in the field. For a related cross-axis concern in machine-tool alignment, the linear guide reference page covers how straightness and flatness stack on adjacent axes; the same arithmetic applies when a surveyor's level is used as the height reference.
The most useful next step for a buyer is to shortlist three units, each from a different optical band (24x / 28x / 32x), and book a one-day in-house demo against a 50 m invar staff baseline at a known benchmark; the staff-to-staff repeatability numbers from that demo are a better predictor of field performance than any factory brochure. The second trackable signal is the next revision of the ISO 17123 series on optical-instrument field procedures, which sets the statistical test for compensator accuracy and is the standard most procurement engineers quote when the spec is being negotiated.
