Capacitance level transmitters measure the change in electrical capacitance between an electrode and the vessel wall as the dielectric medium rises and falls, with a measurable capacitance shift produced by liquids, slurries, powders, and interfaces [S3]. The technology fits best where the level transmitter category already struggles, namely conductive and adhesive media, foaming liquids, and tanks with metal or concrete walls.
Selection is driven by five hard constraints, not by brand: dielectric constant of the medium, probe type and coating, process temperature, process pressure, and output signal. The UWT NivoCapa NC 8100 published envelope illustrates the realistic industrial range: level spans 0.3–25 m, process pressure 0–35 bar, process temperature −40 to +200 °C, with 2-wire 4–20 mA or PROFIBUS output, PFA coating for chemical resistance, and ATEX/FM/CSA/IECEx hazardous-area approvals [S1].
Operating envelope and sensing principle
A capacitive probe, the conductive medium (or the vessel wall acting as the second electrode), and the changing dielectric constant together form a variable capacitor whose reactance shifts as the liquid climbs the rod [S3]. RF-admittance variants add a guard/shield electrode so that heavy coating on the probe does not stop the reading, which is the dominant failure mode of untreated capacitance probes in sludge or crystallising services [S1].
Industrial capacitance probes are published to 0.3 m minimum span and 25 m maximum span, with a process temperature window of −40 to +200 °C and process pressure up to 35 bar, making the technology usable from cold brine service to hot-oil storage without exotic construction [S1]. Where the wetted medium is aggressive, PFA coating is the established chemical-resistant choice, and "Active Shield" technology is used to keep conductive build-up from drifting the calibration [S1].
Who should pick a capacitance probe, and who should not
Capacitance is the right answer for conductive water, corrosive chemicals, wastewater, viscous oils, sludge, and interface measurement between two liquids of different dielectric constant, because the technology reads the dielectric directly and ignores foam, turbulence, and most surface foam that defeats ultrasonic sensors [S1]. It is also the right call when the only available tank penetration is a small nozzle on a metal vessel and the budget cannot absorb a guided-wave radar.
Capacitance is the wrong answer for low-dielectric hydrocarbons in large tanks (dielectric constants of 1.8–2.5 produce very small capacitance shifts, so accuracy degrades), for non-conductive plastic tanks without a reference electrode, and for hygienic CIP/SIP services where the probe geometry cannot be sterilised in place. In those services, a magnetostrictive level transmitter or guided-wave radar is the more reliable pick; see the spec-fit logic in the capacitance versus radar comparison.
Selection criteria: probe, coating, output, approvals
Probe selection is a four-way trade. A rod probe suits standard sumps and storage tanks up to about 6 m; a cable probe extends the range to the 25 m ceiling, which is exactly the upper limit published for the NivoCapa NC 8100 [S1]. A coaxial probe is used in low-dielectric or non-conductive liquids because the outer reference tube gives a defined return path, at the cost of fouling sensitivity. Active-shield (RF-admittance) probes are specified where the medium is conductive, viscous, or coats the probe, because the guard electrode drains the coating capacitance to ground and keeps the reading on the level only [S1].
Coating selection is dictated by chemistry. PFA is the default for strong acids, strong bases, and solvents up to 200 °C; PTFE is a slightly lower-cost alternative with a similar chemical map but a lower maximum service temperature. Stainless 316L probes without coating are used for water, fuels, and oils where chemical attack is not a concern, and bare rods are common in OEM water-tank modules such as the MR-GPS-SFCG20L [S9].
Output and approvals are line items, not afterthoughts. Most industrial units ship with a 2-wire 4–20 mA loop, and premium units add HART, PROFIBUS PA, or Foundation Fieldbus, with the NivoCapa NC 8100 explicitly supporting 2-wire 4–20 mA plus PROFIBUS, plus ATEX, FM/CSA, INMETRO, TR-CU, IP68, and integrated LCD diagnostics [S1]. For SIL-2 loops, the SMART transmitter power supply feeding the loop is required to be SIL 2 / SC 3 (e.g. Pepperl+Fuchs KCD2-STC-Ex1.SP at 19–30 V DC, ripple ≤10 %) [S6], which sets the loop-power budget on hazardous-area skids.
Comparison of probe variants on four decision criteria
Four probe variants cover almost every capacitance level transmitter duty; the choice is a function of dielectric constant, build-up risk, mechanical envelope, and price band. Rod probes are the lowest-cost option and fit clean conductive liquids in tanks under 6 m; cable probes extend the same electronics to 25 m at the same price-per-metre of probe length; coaxial probes give a defined reference path for low-dielectric and non-conductive media, but trap solids and need clean service; active-shield RF-admittance probes are the premium choice for sludge, crystallising media, and high-viscosity oils because the guard electrode rejects coating capacitance [S1].
On price, bare-rod water/oil modules sourced from Chinese OEM lines are published at roughly US$15–60 per piece (10-piece MOQ) for the MR-GPS-SFCG20L [S9], industrial ceramic-capacitive ceramic-cell level/pressure hybrid modules at roughly US$27.2–92.8 per piece depending on output [S10], and brand-name European capacitance probes (UWT, Endress+Hauser Liquicap, Siemens) carry a 5–10x premium with full hazardous-area certification and PROFINET/PROFIBUS support [S1][S2][S8].

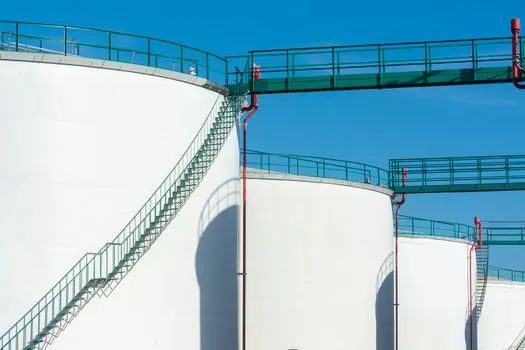

Real use cases: sumps, storage tanks, interface
Wastewater sump duty is a textbook capacitance application: conductive medium, foam, rags, and high coating risk, exactly the duty that defeats ultrasonic echo-based devices. The published industrial envelope of 0.3–25 m span, 0–35 bar process pressure, −40 to +200 °C process temperature, and PFA coating is sized for lift stations, equalisation basins, and chemical-day-tank level [S1].
Interface measurement, e.g. water layer under oil, is a direct dielectric-constant application because the two liquids have a stable permittivity difference, and the probe reads the boundary rather than the top surface; the NC 8100 datasheet explicitly lists interface measurement as a supported mode alongside continuous liquids and oils [S1]. For OEM water tanks, skid builders, and mobile fuel tanks, the cost-down entry is a bare-rod capacitance sensor with 4–20 mA or RS-485 output, such as the MR-GPS-SFCG20L or the Huatian Cyb3122 (4–20 mA, 0–10 V, RS-485, US$35.7–73.6 / piece) [S9][S10].
Limits, failure modes, and standards
Coating, bridging, and material change are the three failure modes the engineer must design out. Conductive build-up on the probe creates a parallel resistance that drifts the reading; an active-shield/guard electrode cancels this and is the right answer in sludge and crystallising media [S1]. Material changes, for example switching from one resin to another with a different dielectric constant, look like a real level change and require a recalibration or a multi-point setup; vendor documentation explicitly calls out the dependence on the medium's dielectric constant as the primary calibration input [S3].
On the standards side, hazardous-area capacitance probes for European chemical plants are ATEX 2014/34/EU category 1 or 2 marked with intrinsic safety (Ex ia), and the UWT NC 8100 is published with ATEX, FM/CSA, INMETRO, and TR-CU approvals and an IP68 housing for submersible duty [S1]. Loop-power and signal-isolation on the cabinet side should follow IEC 60079 series and SIL 2 / SC 3 isolator practice (Pepperl+Fuchs KCD2-STC-Ex1.SP) where the level signal drives a safety function [S6]. Non-incendive North-American builds additionally carry FM/CSA Class I Div 1 markings as published on the same product line [S1].
Shortlist logic and where to start
Step 1 is to confirm the duty. Conductive water, corrosive chemical, wastewater, viscous oil, or interface under a second liquid all point to capacitance as the first technology to evaluate [S1]. Step 2 is to write down the dielectric constant of the medium, because the published "minimum dielectric constant" of the probe (often 1.5–2.0) is the real spec limit; below that, swap to guided-wave radar or differential pressure transmitter for hydrostatic level [S3].
Step 3 is to lock the mechanical envelope: span, process temperature, process pressure, nozzle size, and the coating requirement. If span is above 6 m, specify a cable probe; if the medium coats, specify active-shield; if the chemistry is aggressive, specify PFA [S1]. Step 4 is to pick the output (4–20 mA, HART, PROFIBUS) and the cabinet-side isolator rated for the hazardous-area classification, then size the loop at 24 V DC and check SIL 2 if the signal is part of a safety function [S6]. A working shortlist for most plants is the UWT NivoCapa NC 8100 for general industrial sumps and storage tanks, an Endress+Hauser Liquicap for chemical and hygienic lines, a Siemens RF-admittance probe for sticky service, and a Chinese OEM bare-rod module (MR-GPS-SFCG20L or Huatian Cyb3122) for OEM skids and budget water/oil tanks [S1][S2][S8][S9][S10]. The broader 2026 level-transmitter selection map is the next file to open if a guided-wave radar or hydrostatic alternative is on the table.
