An encoder-equipped closed-loop vector (FVC) VFD on an AC induction motor will land a conveyor index within roughly ±0.1° to ±1° of shaft command, a window that maps to a few millimeters of linear error on typical belt-driven lines [S1].
That is the headline decision boundary: a closed-loop vector VFD can replace a servo on coarse conveyor indexing, but it does not match a servo drive on registration accuracy, dynamic response, or zero-speed holding torque [S5][S6].
What "Closed-Loop Vector" Actually Buys You on a VFD
Closed-loop vector control, also called field-oriented control (FOC), adds a physical encoder to the motor shaft so the drive reads true rotor position and regulates flux current and torque current as two independent axes [S9]. The result is a step-change versus plain V/f: a V/f drive accepts roughly ±2-3% speed error under load because it ignores rotor slip, while a sensorless vector drive typically lands within 0.3% of setpoint across a 5-60 Hz range after auto-tune [S4]. With an encoder card fitted, an FVC VFD then drops position error into the ±0.1° to ±1° band, which is the spec window that matters for conveyor stops [S1].
Mechanically, the VFD still drives a standard induction or PM motor through the same PWM inverter stage (rectifier, DC bus, IGBT output), so the hardware cost per axis stays far below a matched servo pack, and the same drive can also handle the long constant-speed runs between index moves that a servo would otherwise idle through [S2].
Where the VFD Falls Short of a Servo
Servo systems are built around closed-loop position control with sub-millimeter accuracy and deterministic motion profiles, and they hold rated torque at zero speed because the PM motor and resolver feedback are sized for that operating point [S5]. Many VFDs, by contrast, have a deadband around 0 Hz, so holding the belt exactly at the index position with full load on the conveyor takes a mechanical brake or a sizing derate, and the dynamic stiffness during a fast accel/decel profile is much lower [S1][S8].
Practical consequence: if your index needs a 50 ms accel ramp with the part under registration tolerance of ±2 mm, plan on a servo. If the cycle is 400-800 ms per index and the tolerance is ±5-10 mm on a 1-2 m belt pitch, the FVC VFD is in its comfort zone and saves the cost of a dedicated motion controller.
Selection Criteria: VFD vs Servo for Indexing
Four criteria separate the two, and the answer flips depending on which one is binding on your line:
1. Position accuracy. FVC VFD: ±0.1° to ±1° shaft, which on a 100 mm-diameter drive pulley is roughly ±0.09 mm to ±0.9 mm of belt travel before backlash. Servo: sub-millimeter closed-loop position with a separate position-loop update, typically 1-2 kHz versus the 250-500 Hz bandwidth common on a VFD position block [S1][S5].
2. Zero-speed torque. FVC VFD: requires encoder feedback and even then is weak at standstill; expect a holding brake on inclined conveyors. Servo: continuous rated torque at 0 rpm is a baseline capability, no brake needed for horizontal indexing.
3. Cycle time and dynamic response. FVC VFD: best for index periods above ~300 ms; current loop bandwidth is the limiter. Servo: built for 20-100 ms index moves with S-curve profiles and negligible following error.
4. Cost and integration. FVC VFD: one drive covers line speed regulation, soft start, and indexing, and it talks MODBUS, Ethernet/IP, or CC-Link natively on most modern units [S2]. Servo: adds a motion controller or high-speed pulse train, more wiring, and a higher sticker per axis.
For a deeper primer on drive control schemes, see the V/f vs SVC vs FVC breakdown and the servo drive fundamentals. If your line is part of a longer materials-handling train, conveyor gearbox sizing usually drives the inertia calculation that the VFD or servo has to cope with.
Real Use Cases Where the VFD Swap Works

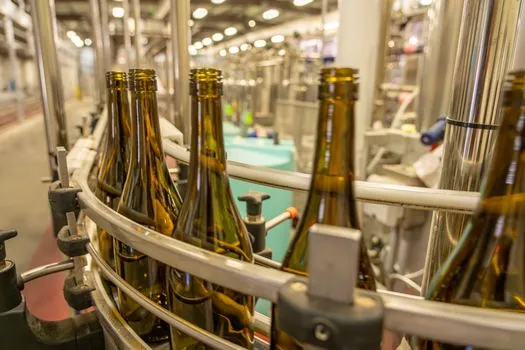

Bottling and packaging lines running at 30-60 indexes per minute with ±5 mm registration, where a single VFD per conveyor handles both line speed and the index dwell, are the textbook win for FVC [S1][S2]. The same pattern shows up in automated guided vehicle (AGV) drive wheels, pallet conveyor stops in distribution centers, and tire-building stations where the index is mechanically clamped at the end of the move, so the VFD only has to land roughly, not hold under load [S2].
Closed-loop vector VFDs are also a common retrofit for older lines that started on plain V/f and now need repeatability better than the ±2-3% the original drive delivered, without the capital cost of a full servo conversion [S4][S7].

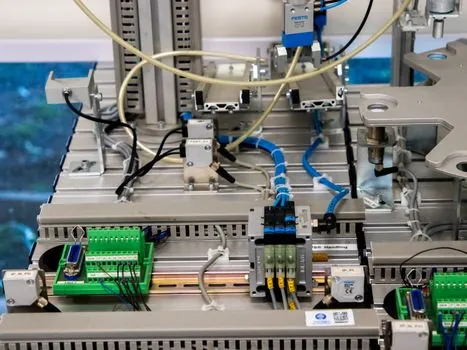

Where the Servo Stays Mandatory
CNC feed axes, label registration on a printing press at 200 m/min, chip-placement pick-and-place, and any indexing where a vision system grades the part and the line must reject on position, not just presence, are non-negotiable servo territory [S1][S5]. The same applies to vertical or inclined conveyors where the belt must hold position with full product load and no mechanical catch.
A useful internal sanity check: if a missed index costs a scrapped product and the reject value is high, or if the machine's overall equipment effectiveness (OEE) loss is dominated by registration rejects, the servo pays for itself. If the line is throughput-limited and indices are spaced by hundreds of milliseconds, the VFD is the better buy.
Commissioning Cautions for the FVC Path
Auto-tune is the most common failure point, and it is almost always bad motor nameplate data or long motor cables, not a defective drive [S4]. Encoder alignment, wiring shield grounding at the drive end only, and a no-load identification run before the first loaded index are all mandatory. A V/f drive left in factory default on a load that needs speed accuracy below 5 Hz is the classic mistake: the fan example above drifted 8% at 15 Hz and overheated the downstream process, and switched to sensorless vector held setpoint within 0.3% from 5 to 60 Hz [S4].
Plan for one extra day of commissioning on the FVC VFD versus a swap-in servo, and budget a holding brake if the conveyor can drift on a power loss event, because the VFD has no electrical way to lock the shaft at zero speed the way a servo does.
Sourcing and Standards to Anchor the Decision
On the drive side, the relevant technical baseline is IEC 61800-1 for adjustable-speed electrical power drive systems, and on the motor side, IEC 60034 covers rotating machinery including induction and PM machines used in both VFD and servo packages. For conveyor safety, ISO 13849-1 governs the safety-related parts of control systems, including the stop category and the brake release logic that any VFD-based index has to coordinate with. None of these standards force a VFD or a servo choice; they constrain how whichever device is selected must behave under fault conditions. [S2]
On the supply side, the practical lead-time difference in 2026 remains small for both VFDs and low-voltage servos in the 0.4-15 kW range, so the decision is engineering, not procurement. Trackable signals to watch: vendor-side release of integrated position blocks (not just PID) inside mainstream FVC VFD firmware, and the gradual drop of incremental-encoder-only VFD cards in favor of absolute encoder support, which removes the homing sequence at every power-up for indexing conveyors.
