A renovation-grade embedded part is any steel plate, channel, anchor bolt, sleeve or insert cast into existing or new concrete so that structural and MEP loads are transferred through the parent member without post-installed drilling into critical rebar zones [S1].
The scope covers industrial-plant retrofits, commercial slab alterations and residential radiant/conduit embeds, and the 2026 selection logic hinges on substrate condition, exposure class, and the ability to verify cover before pour [S3].
What "renovation" changes versus greenfield embedded design
Renovation work, in the Chinese capital-construction definition, is funded from basic depreciation funds, state technical-updating budgets, enterprise reserves, and domestic/foreign tech-upgrade loans, and is restricted to existing facilities and their auxiliary apparatus [S1].
That funding line matters on the floor: a renovation budget typically cannot cover the 25-40% premium for a full-capacity greenfield anchor layout, so specifiers concentrate inserts at verified load points and use post-installed mechanical or chemical anchors elsewhere [S1].
Existing rebar congestion is the single biggest delta from greenfield practice; ground-penetrating radar or cover-meter scans become mandatory before drilling, and any planned insert within 50 mm of a located bar must be re-coordinated rather than field-forced [S3].
Substrate classification drives anchor choice
Carbon-steel concrete-encased inserts (ASTM A36 / GB Q235 base plates) remain default for dry interior retrofits where chloride exposure stays below 0.4% cement weight and ambient relative humidity is held under 60% [S1].
For car parks, coastal plant slabs, and de-icing-salt splash zones, hot-dip galvanized to ASTM A123 (min 85 µm on 6 mm plate) or stainless-steel grade 316 inserts are the defensible 2026 default, with 304 acceptable where chloride is bounded under 0.1% [S1].
Cracked-concrete zones in renovation slabs call for torque-controlled or undercut anchors qualified to ACI 355.2 / EN 1992-4 Cracked Concrete Category C1/C2, and the specifier should reject sleeve-type expansion anchors in tension-overhead service regardless of manufacturer-rated capacity [S1].
Load path, embed depth and edge distance
Headed studs and channel bars (e.g. 41×41, 41×21 EN 10025 profiles) need effective embedment of at least 8× stud diameter for full concrete-breakout capacity, and 12× diameter where cyclic or seismic loads apply, with a minimum edge distance of 6× diameter to the nearest free face [S1].
Plate- and angle-type inserts transfer load through bearing, so plate thickness must hold a slenderness ratio (b/t) under 12 to suppress local buckling under design tension, and weld-neck couplers should be matched to the rebar grade (e.g. B500B for EN 10080) to keep the splice over-strength factor above 1.25 [S1].
Where a renovation slab is being thickened or topped, the new layer counts as bonded only if the existing surface is roughened to an amplitude of 5 mm and cleaned to remove laitance, with shear keys cut at 300-400 mm centres to keep composite action in service [S1].
Comparison: insert types against 4 selection criteria
Sleeve-and-anchor inserts suit post-tension cable terminations and façade bracket tie-backs but introduce a corrosion path at the sleeve/concrete interface and are a poor fit for slabs that see chloride or freeze-thaw cycling [S3].
Plate-strap inserts are the budget pick for equipment skids and small MEP supports under 10 kN point load, but their low stiffness concentrates stress at the weld toe, so they should not be specified for vibrating machinery above 1.5 kW or for any load with fatigue cycles above 10^4 [S1].

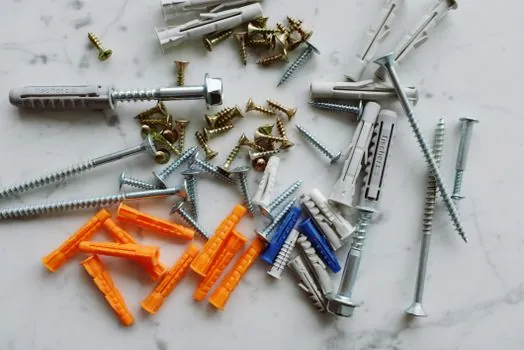

Residential and light-commercial embeds (radiant, conduit, fasteners)
For 2026 residential retrofits, slab-heating cable and conduit embeds sit 30-50 mm below the finished surface in a 50-75 mm topping over a recognized moisture barrier, with min 25 mm clear cover to any rebar to prevent local hot spots [S3].
Embedded radiant systems in concrete slabs remain a top-ROI 2026 remodel because they reclaim wall and floor space otherwise lost to radiators, but the specifier must lock the heating-cable spacing (typically 75-100 mm on centre for bathrooms, 150-200 mm for living zones) before the pour because re-routing later requires demolition [S3].
Fastener- and bracket-type embeds for kitchen, wardrobe and TV-wall retrofits are usually post-installed (mechanical or chemical anchors) rather than cast-in, except where new structural topping is being placed, and chemical anchors with ETA approval to EAD 330499 are the working spec for cracked concrete and overhead service [S1].
QA, traceability and inspection gates
Mill cert traceability to EN 10204 3.1 is the minimum documentation for any insert carrying structural load, and 3.2 certs are expected for nuclear, offshore and post-tensioned tendon anchorages where the consequence of failure is severe [S1].
Pre-pour inspection should verify position (±10 mm typical tolerance), embed depth (within -0/+25 mm), anchor projection, and rebar clearance, with hold-points photographed and logged against the embed drawing; a 5-10% pull-out test sample is the working practice for production lots above 200 inserts [S1].
For renovation work touching fire-rated assemblies, embedded sleeves must be fire-stopped to the tested assembly rating (commonly 1-2 hour F-rating), and any field modification after the pour must be re-tested because a non-tested field-drilled path will void the listing [S1].
When renovation embedded work is the wrong tool
Embedded inserts are a poor fit when the host slab is known to be contaminated, when cover-meter surveys cannot clear the planned insert pattern, or when the design life requirement exceeds 50 years without a stainless upgrade, because carbon-steel corrosion will then drive the maintenance cost above the install saving [S1].
Specifiers should also walk away from any "design-build on the fly" renovation where the embed layout is being finalized after the formwork is already set, because field-positioned inserts routinely fail pull-out tests and the rework cost (chip-out, re-bar, re-pour) is several times the original install [S1].
For cleanroom-class work the spec gates tighten further; the cleanroom embedded parts spec map for ISO 5-8 environments walks through particle-generation limits, gel-coat sealing and flush-finish requirements that a standard renovation insert will not meet.
Where a renovation project is shipping heavy steel assemblies through the slab, pairing the embed plan with the tower crane selection spec map or a self-aligning bearing selection guide prevents the common mismatch where crane outrigger loads exceed the capacity the embedded plates were sized for.
Trackable signals for the next 90 days: supplier lead times on ASTM A123 galvanized vs 316 stainless plate (the 2026 gap is widening per recent distributor notes), and any code-cycle update to EN 1992-4 anchor-design annexes that may push cracked-concrete Category C2 into more renovation categories [S1].
