The minimum thread engagement between a flameproof cable gland and an Ex d tapped entry is five full threads, or 8 mm, whichever is greater, governed by IEC 60079-1 for Ex d enclosures and confirmed by major gland manufacturers [S2][S4].
This requirement applies to every screwed entry on a flameproof enclosure, including direct gland entries, adaptor entries, and stopper plug entries, because the threads themselves form part of the certified flame path [S1][S3].
Where the Five-Turn Rule Comes From in IEC 60079-1
IEC 60079-1 specifies that screwed entries for Ex d equipment must maintain a continuous flameproof path, and the standard quantifies that path as a minimum of five full thread engagements with the mating equipment, or 8 mm of axial thread contact, whichever dimension is satisfied [S2][S4]. The five-turn figure replaces the older "eight thread" rule of thumb that was common in pre-2014 Ex d practice, and IEC 60079-1 (2020 edition) is the current reference cited by both ATEX 2014/34/EU and IECEx certification routes [S2][S3].
For Group IIC enclosures (hydrogen, acetylene), the same five-thread minimum applies to the cable entry threads, while the separately specified obstruction clearance to flamepath openings is a different, larger dimension of 40 mm, so the two numbers should not be confused [S5]. The reference to a cable gland entry on an Ex d motor terminal box, for example, is verified against the five-turn rule during factory inspection, not against the IIC obstruction rule.
Thread Form, Pitch, and Tolerance: What Counts as a Full Thread
A "full thread" in this context is a thread that is complete, undamaged, and capable of carrying the flame path, typically measured with a thread gauge (GO/NO-GO) on the assembled joint, not on a loose gland [S1][S3]. For metric ISO threads (M20, M25, M32, M40, M50, M63) the standard coarse pitch of 1.5 mm applies to the common M20 size, so five full threads equate to 7.5 mm of axial engagement, which is below the 8 mm clause and therefore fails the "or 8 mm" alternative on its own; on M25 and above the metric pitch lifts five-thread engagement above 8 mm and the turn count alone is sufficient [S3].
For NPT (tapered) entries, the thread itself seals by taper interference, but the flame path still requires five engaged threads before sealant tape is applied, and PTFE tape is generally not relied on as a substitute for the metal-to-metal thread contact [S3][S6]. PG threads (PG9 through PG29) are legacy German entries still seen on older equipment and are accepted by some IECEx certificates, but new Ex d builds in ATEX/IECEx jurisdictions are specified almost exclusively in metric [S3].
Verification Procedure on a Completed Joint
The five-thread / 8 mm engagement is verified by measuring the unengaged portion of the gland thread after it is tightened against the enclosure, with a typical field check being the "shoulder-to-shoulder" count of remaining exposed threads on the gland body, which must be at most (total gland thread length minus five pitches) [S1][S3]. Where the gland is supplied with a thread length that is close to the minimum, a thread gauge should be passed through the joint to confirm the threads are not crossed, stripped, or partially engaged at the run-out [S2].
Adaptor entries (Ex d male-male or female-female adaptors) carry the same five-turn rule because they sit in the same flame path; a 90-degree adaptor or 45-degree swivel union at an Ex d entry does not exempt the joint from the engagement check, and the cable gland body or the adaptor must independently demonstrate the five turns against the enclosure [S4]. On a barrier gland (compound-filled or RapidEx) the compound seals inside the gland, but the threads still form the outer flame path, so the same five-turn check applies before the compound is poured.
What the Five-Turn Rule Does Not Cover
The five-thread minimum governs the metal-to-metal flame path only; it does not by itself deliver the enclosure's IP rating, and an Ex d gland must additionally meet IP66 or IP67 depending on the certificate, typically with a separate elastomeric outer seal on the cable sheath and a thread sealing washer or O-ring where specified [S2][S3]. It also does not substitute for the inner seal or compound barrier that blocks gas migration along cable cores inside the gland, which is a separate functional requirement of an Ex d entry and is not proven by the thread count alone [S3][S4].
The five-turn rule is also distinct from the maximum gap and minimum width rules that govern flanged and spigot joints of the enclosure body, which are stated in the same IEC 60079-1 clause set but with their own tables per gas group (IIA, IIB, IIC); mixing these numbers is a common documentation error on site acceptance [S5]. Where a junction box entry has both a threaded gland joint and a flanged cover, each must be checked against its own table.

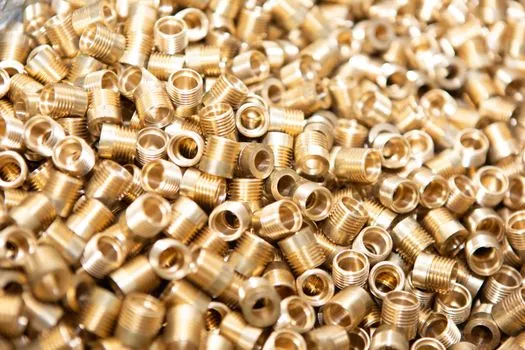

Common Field Failures and How to Avoid Them
The most frequent non-conformance during inspection is a gland with a thread run-out that enters the joint, so the deepest threads on the gland are partial and do not count as full engagements; this typically shows up on M20 glands where the engaged length is marginal [S1][S2]. A second common failure is the use of a thread sealant (PTFE tape, liquid sealant) to compensate for a short engagement, which masks the problem and does not satisfy IEC 60079-1 because the standard requires metal-to-metal thread contact for the flame path [S3][S6].
A third is mixing thread standards, for example fitting a metric-thread gland into an NPT tapped entry via an adapter that is itself only partially engaged, so the cumulative flame path now spans two joints, each of which must independently meet the five-turn / 8 mm rule; if either adaptor or gland joint falls short, the entry fails [S3][S4]. On legacy equipment with imperial (e.g. ET or BSP) entries, a certified Ex d adaptor must be used, not a re-tap, because re-tapping an Ex d enclosure in the field can break the certificate of the enclosure [S5].
Selection Implications for Specifiers and Inspectors
For new Ex d enclosure builds, specify glands with a thread length that exceeds the minimum by at least two pitches to absorb the run-out, the chamfer, and any minor thread damage during installation; this typically means ordering the next size up or a gland with a longer entry thread [S3][S6]. For inspectors, the practical check is: count the visible, unengaged threads on the gland shoulder after tightening, cross-check against the gland's nominal thread length and pitch, and confirm no thread sealant sits in the engaged zone [S2].
For mixed-thread installations (metric gland into NPT entry, or vice versa), use a certified Ex d adaptor, verify both joints independently, and record each engaged length on the inspection sheet, because the control cable or power cable entering the gland carries the same hazardous-area certificate as the enclosure and any joint short of five turns invalidates that certificate. The cable gland datasheet should show the engaged thread length, not just the overall thread length, and the two numbers are not interchangeable.
