Prefabricated panel and modular builds live or die on the anchor connection between precast element and structural frame, so the specifier must match anchor type to base material, load profile, and code path before the panel leaves the plant [S4].
The post-installed mechanical anchor family splits into torque-controlled expansion anchors (wedge, sleeve, drop-in) and screw anchors, with each subgroup governed by ACI 355.2 and ICC-ES AC193 for cracked and uncracked concrete, and AC193 substituting ICC-ES AC106 in masonry [S3]. Choosing the wrong family is the single most common root cause of field rework on prefab connections.
What an expansion anchor actually is, and the three variants that matter
Torque-controlled expansion anchors derive their holding value from a frictional connection created when tightening a stud, sleeve, or shell against a tapered mandrel forces a clip outward into the base material [S3]. The wedge anchor is the canonical example: a steel stud with nut and washer, a tapered mandrel at the embedded end, and a stainless steel expansion clip that deforms to engage concrete when torque is applied [S1][S3].
Sleeve anchors, by contrast, expand a cylindrical metal sleeve along the length of the anchor, producing a larger bearing surface than a wedge and making them the preferred torque-controlled option in brick masonry [S4]. Drop-in anchors are set with an impact setting tool, allow shallow embedment, and are widely specified for overhead and roof-slab service where a flush finish is needed, but the combination of shallow embedment and high expansion stress rules them out for brick [S4]. Common head styles across the family are hex, washer head, countersunk, and hex coupler [S3].
Selection criteria the spec sheet has to capture
Five inputs govern a defensible expansion-anchor specification: base-material strength, embedment depth, edge distance, hole cleanliness, and torque value [S6]. A hammer drill with a carbide-tipped bit is required for cured concrete, brick, block, and masonry, and the hole must be cleaned with a wire brush plus compressed air or vacuum before anchor insertion, since dust left in the bore directly degrades frictional engagement [S5].
Vibratory service disqualifies standard expansion anchors: a plain expansion anchor must not be used to resist vibratory loads because cyclic movement progressively loosens the clip, whereas UL-listed fire-protection pipe attachments and MEP bracing supports are specifically called out as approved vibration zones for qualified expansion products [S3][S4]. For temporary connections, female-style anchors (drop-in, lag shield, double expansion, and machine-screw anchors) are the conventional choice because they accept a range of bolt diameters and can be reused with new fasteners [S5]. The mechanical interlock of a screw anchor, by contrast, is expansion-free and therefore a better starting point where the spec prohibits expansion stress against the base material [S4].
Material and coating options that change the corrosion math
Wedge, sleeve, and drop-in anchors are stocked in plated carbon steel, hot-dipped galvanized carbon steel, and stainless steel grades 304 and 316, with stainless steel expansion clips on premium wedge products for added corrosion margin [S1][S2]. Hot-dipped galvanizing is the cost-effective default for interior dry service, 304 stainless handles most exterior and wash-down environments, and 316 stainless is specified where chlorides, de-icing salts, marine exposure, or chemical-plant atmospheres are present [S1][S2].
Chemical (adhesive) anchors using vinylester or epoxy-based resin introduce no expansion stress on the base material and are a parallel solution for high-load prefab connections, while cast-in-place anchors such as L-bolts, J-bolts, Bang-Its, and Wood-Knockers remain the permanent option when the anchor position is coordinated with the formwork before pour [S2][S5]. Custom cast-in-place anchors in A-36, F1554, A193 B7, and B16 steels cover heavy foundation, marine, and structural applications where the fabricator is supplying the embedment with the panel [S2].
Decision matrix: wedge vs sleeve vs drop-in vs screw
Wedge anchors deliver the highest published tension and shear values of the mechanical-expansion group in cracked and uncracked concrete and are the default for heavy baseplates, ledgers, stair stringers, racking, and seismic connections, with the Strong-Bolt 2 (STB2) pattern and Trubolt Wedge as reference designs [S1][S3]. Sleeve anchors are the right pick when the base material is brick, block, or unknown quality concrete, because the distributed bearing area tolerates softer and more variable substrates [S2][S4]. Drop-in anchors win on shallow embedment depth and flush overhead finish, but their high local expansion stress rules them out in brick and limits them to dense concrete and roof-slab service [S4][S5]. Screw anchors, governed by ACI 355.2 / AC193 in concrete and AC106 in masonry, are specified where expansion stress is unacceptable, removal may be required, or the design calls for a reusable connection [S3][S4].
A criteria-based comparison looks like this: on load capacity, wedge > sleeve > drop-in on dense concrete, with screw competitive on tension but lower on shear; on substrate tolerance, sleeve > wedge > drop-in, with screw strong on cracked concrete; on installation sensitivity, drop-in is the most torque-and-cleanliness dependent, wedge is intermediate, and screw is the most forgiving; on vibratory service, all plain expansion anchors are restricted, UL-listed expansion products and screw anchors are the acceptable paths [S3][S4][S5].
Where prefabricated construction stresses the weak points

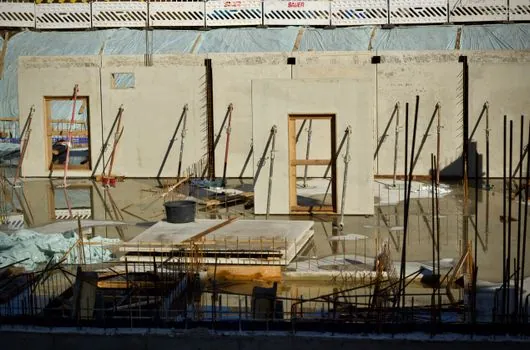

Prefabricated panel construction uses post-installed anchors to tie the panel to the structural frame, while renovation and rehab work bolts stair risers, elevator tracks, and equipment frames into existing masonry, a service condition where mis-selected anchors cause the majority of field failures [S4]. Two failure modes dominate: cracking or spalling when expansion stress exceeds the base material's tensile capacity, typically near edges or in brick, and progressive loosening when the anchor sits in a vibratory load path without a UL-listed or screw-anchor substitute [S3][S4].
Edge distance, embedment depth, and concrete condition are the three variables most often under-specified on prefab shop drawings, and a taper-displacement calculator or equivalent design check should be run for any anchor that carries shear, tension, or combined loading, since mechanical anchors are qualified through prescribed testing whose values are valid only at the exact product geometry and substrate strength assumed [S7]. For a broader look at the cost-versus-schedule trade-offs that govern anchor procurement on fast-track prefab work, the early-equipment-procurement playbook lays out the long-lead logic in plain terms.
Standards, code paths, and what the spec note should say
Post-installed structural expansion and screw anchors used in concrete are evaluated to ACI 355.2 and ICC-ES AC193 for cracked and uncracked concrete, and ICC-ES AC01 for grout-filled masonry for expansion types, ICC-ES AC106 for screw anchors in hollow and grout-filled masonry [S3]. Where a project specification references these acceptance criteria, the supporting test data, manufacturer ICC-ES report, and installation torque values must be on the submittal, since field torque deviation is the single most common cause of published-capacity penalties [S3][S6].
The performance of any expansion anchor is conditional on base material strength, embedment depth, edge distance, hole cleanliness, and applied torque, and the specifier should treat those five as a single coupled set rather than independent variables [S6][S7]. When the connection is part of a modular or prefab assembly, the anchor manufacturer (ITW Red Head, Powers, Simpson Strong-Tie, MKT) and the panel fabricator should confirm the anchor-to-embedment interface before the precast unit is cast, since retrofit drilling into a finished panel is the most expensive place to recover from a spec miss [S2]. For a more general grounding in how the mechanical anchor interacts with adjacent structural fasteners, the expansion anchor reference page is a useful starting point, and the broader construction tools and fastener overview puts the anchor family next to the drill bits, setting tools, and torque wrenches that actually install them. The site-wide mechanical anchor anchor entry and the related chemical anchor entry round out the adhesive-versus-mechanical decision for hybrid prefab connections.
The verifiable next node is to lock the anchor type, diameter, embedment, and ICC-ES report number to each panel-to-frame detail on the shop drawings before fabrication release, and to track the two signals that follow: the ICC-ES report revision date for each specified product and any site torque-test results that come back from the first installed panels.
