Confined-space entries, such as pump rooms, elevator shafts, and service risers, need a fire-rated access door that carries the same certification number as its host assembly, with self-closing and self-latching hardware verified under NFPA 80 [S3][S4].
The dominant failure mode on these openings is not the leaf itself, but non-certified hardware, oversized clearances, and a wall-to-frame gap filled with the wrong sealant, all of which collapse the certification of the entire set under BS 8214 / EN 16034 framework rules [S2].
Rating Tiers and the Integrity vs Insulation Split
FD30, FD60, FD90, and FD120 designations correspond to 30, 60, 90, and 120 minute integrity ratings under BS 476 Part 22 / EN 1634-1 test protocols, and they are the single most common shorthand in UK and Commonwealth specifications [S2]. Integrity (E) measures flame and hot-gas passage, while insulation (I) measures temperature rise on the unexposed face, typically limited to 180 K average and 360 K maximum at any point [S2].
For confined-space service rooms, riser shafts, and plant access, FD60 with full insulation (EI60) is the conservative default; FD90 and FD120 are reserved for transformer enclosures, fuel stores, and elevator shafts in high-rise sub-compartments [S2]. UL-listed 1-, 2-, and 3-hour ratings remain the US equivalent for the same access-door envelope, with 2- and 3-hour ratings being the most common in commercial wall and ceiling assemblies per NFPA 252, UL 10B, and UL 263 [S4].
Leaf Material, Core Construction, and Thickness
Steel-clad fire doors typically use a 50-55 mm thick leaf with a mineral wool or calcium silicate core, delivering FD120 ratings while keeping leaf weight under 60 kg/m² for ease of swing operation [S2]. Timber-based leaves in 44-54 mm thickness with particleboard or solid timber cores routinely achieve FD30 and FD60, and remain the dominant choice in commercial tenancies and healthcare refurbishments because they accept standard architectural veneer finishes [S2].
For a fire door installed at a confined-space entry, galvanized steel with a 16-gauge minimum sheet per ASTM A607 is the default in utility and mechanical rooms, while stainless steel in #4 satin finish is specified for healthcare, food service, and cleanroom environments where corrosion resistance and hygiene dominate [S1][S4]. Glass vision panels must carry their own test report referenced in the door-set certificate; non-rated wired glass in a rated frame collapses the certification of the entire set [S2].
Hardware, Intumescent Seals, and Ironmongery
Self-closing devices are mandatory on all fire doors except where held-open releases are wired to the fire alarm, and the closer must be CE/UKCA marked to EN 1154 with a power size matched to leaf width and weight [S2]. Hinges must be CE/UKCA marked to EN 1935, with a minimum of three hinges per leaf on 44-54 mm timber leaves and Grade 13 stainless steel ball-bearing hinges as the default for 60+ minute steel sets [S2].
Intumescent seals are typically 10-15 mm wide graphite or sodium silicate strips, edge-mounted in the leaf or frame reveal, and expand at 150-200 °C to seal the gap between leaf and frame [S2]. For confined-space entries where cold-smoke leakage is the dominant life-safety risk, combined intumescent and cold-smoke seals tested to BS 476 Part 31 / EN 1634-3 are now standard, and latches and locks must be EN 12209 Grade 3 or higher for commercial duty [S2]. A fire rated door assembly only performs when the leaf, frame, intumescent seals, and ironmongery share a single certification number; a certified leaf paired with off-the-shelf hardware voids the rating under BS 8214 / EN 16034 rules [S2].
Frame, Wall Interface, and Installation Discipline
Frame material must match the certification evidence, with galvanised steel frames at 1.5-2.0 mm thickness for masonry and drywall openings, or hardwood frames at 32-44 mm minimum section size for timber stud partitions [S2]. The wall-to-frame interface requires mineral wool or intumescent-packed gaps of 10-25 mm sealed with fire-rated acrylic or cementitious sealant, and a fire-rated access door must be UL and/or Warnock-Hersey Intertek listed and labeled to be compliant with NFPA 80 [S2][S3].
Fire-rated floor doors over pump rooms, equipment rooms, and elevator shafts are tested to NFPA 288 with a maximum temperature rise to 250 °F (121 °C) and carry a Warnock-Hersey label; these are designed for ingress, not egress, and a hold-open arm locks the leaf open during normal work, releasing it on heat detection to self-close during a fire [S3]. For access doors built into aluminum window door and curtain wall assemblies, the installer must coordinate the framing trade, the drywall trade, and the door manufacturer, since any field modification that alters the tested envelope voids the listing [S4].

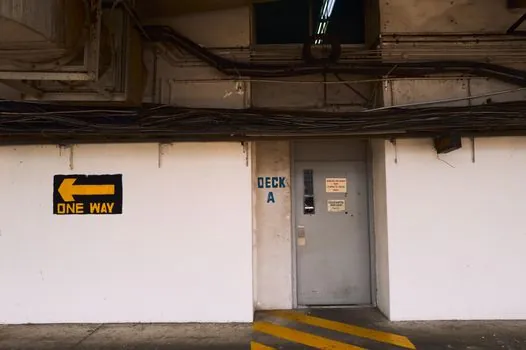

Comparison: Confined-Space Door Types Against Decision Criteria
Engineers selecting a confined-space entry door usually balance four criteria: rating headroom, weight and swing effort, corrosion resistance, and installed cost. The table below lines the three most common options up against those gates. [S2]
Steel-clad FD60 (50-55 mm leaf, mineral wool core, EI60): rating headroom covers most plant and riser applications, leaf weight stays under 60 kg/m² for manual swing, galvanized or stainless skin handles most indoor corrosion classes, and cost sits in the mid-range [S2][S4]. Timber FD30 (44-54 mm leaf, particleboard core, E30 or EI30): rating is the lowest of the three, weight is the lightest, corrosion resistance depends on veneer or factory finish, and cost is the lowest, so it fits commercial tenancies and refurbished healthcare spaces [S2]. Floor-door / access-hatch FD60 (NFPA 288, 250 °F rise limit, Warnock-Hersey labeled): rating covers horizontal assemblies and floor-ceiling enclosures, weight is the highest because the leaf is rated for foot or equipment load, corrosion resistance depends on galvanized or stainless frame, and cost is the highest because the tested assembly includes frame, hold-open arm, and self-closing release [S3].
Use Cases, Limitations, and Common Failure Modes
The principal use cases for fire-rated access doors are stairwells, corridors, mechanical and electrical rooms, elevator shafts, and utility chases; confined-space entries sit squarely in this list and account for the majority of NFPA 80 Chapter 16 access-door installations in commercial builds [S3][S4]. Over 95% of fire-rated access doors sold into these spaces are insulated to control the unexposed-face temperature rise within the limits set by ASTM E119, CAN/ULC S101, and NFPA 252 [S4].
The recurring failure modes are: non-certified panic hardware substituted for EN 1125 / EN 1935 tested sets; oversized clearances around the leaf that exceed the tested gap; field-drilled vision panels that void the door-set certificate; and fire-rated access doors installed without self-closing and self-latching hardware, which is a direct NFPA 80 violation [S2][S3]. A system window door or curtain-wall pocket that holds a fire-rated access door must carry its own test evidence, because the door window curtain wall interface is a separate envelope and cannot inherit the rating from either the wall or the door alone [S4].
Standards, Certification Evidence, and Sourcing Discipline
The governing standards for confined-space fire-rated access doors are NFPA 80 (Chapter 16 for horizontal and vertical access doors in fire-rated assemblies), NFPA 252, UL 10B, UL 263, ASTM E119, and CAN/ULC S101 / S104 on the North American side, and BS 476 Part 22 / Part 31, EN 1634-1 / 1634-3, EN 16034, and EN 1154 / EN 1935 / EN 12209 on the European side [S2][S3][S4]. Panic-exit devices for emergency egress are covered by EN 1125, and emergency exit fire doors carrying ratings from EI30 to EI120 must pair that device with smoke seals and hydraulic closers to maintain certification [S6].

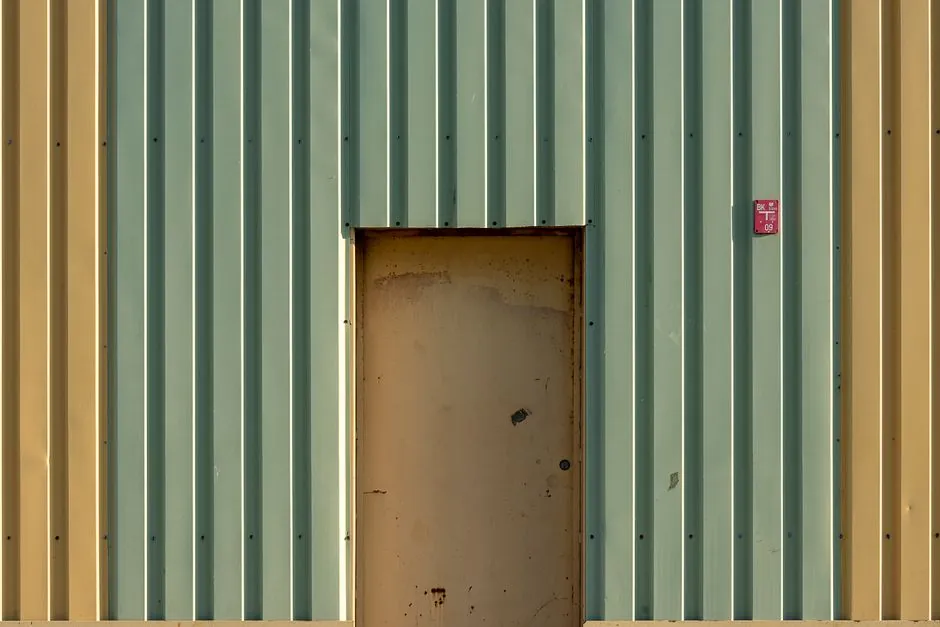

When sourcing, reject any submittal that offers a certified leaf with separately certified hardware; require a single door-set certificate number that covers leaf, frame, intumescent seals, hinges, closer, and latch, and verify the label body (UL, Warnock-Hersey Intertek, CE, or UKCA) matches the local authority having jurisdiction [S2][S3]. For routine inspection and to keep a fire extinguisher staging plan aligned with compartment lines, the fire-rated access door log should be cross-referenced with the active fire-rated wall schedule, and any field modification should trigger a re-test under the same standard that originally certified the set [S3][S4]. Engineers ordering doors for adjacent warehouse zones can cross-check spec language against the fire door selection for warehouse operations guide, and for sub-floor service hatches in heavy-industry sites the mining fire door selection spec covers anchoring and field-test gates that also apply to confined-space entries below grade.
The next decision node is the wall-to-frame interface detail: confirm the tested gap (typically 10-25 mm) and the tested sealant (fire-rated acrylic or cementitious) on the submittal, because the door-set certificate does not cover field substitution of either item.
