A construction site is a tougher place to keep a fixed gas detector alive than most chemical plants, because the air carries cement dust, diesel exhaust, welding fume, vibration from pile-driving and seasonal rain on the same sensor head [S1]. Fixed-point units are now commonly specified alongside portable four-gas monitors on US tunneling, excavation and concrete-pour projects, with OSHA 29 CFR 1926.55 cited as the baseline for threshold-limit-value exposure control [S3].
Selection hinges on four practical variables: the gas hazard inventory at the work face, the sensor technology (catalytic bead, electrochemical, NDIR, PID), the enclosure's ingress protection (typically IP65 minimum for outdoor slab work, IP66/IP67 for below-grade or wash-down zones), and how the detector hands off to the site alarm panel or a 4-20 mA / relay controller [S4]. A single-channel standalone unit such as the ATO GD300-NH3 priced at $754.13 for 0-50/100/200 ppm ammonia is representative of the dedicated toxic-gas fixed transmitter class [S2].
Hazard Inventory: O2, LEL, CO and H2S Cover the Base Set
OSHA's construction-industry air contaminants rule is anchored to 29 CFR 1926.55, which adopts the ACGIH TLV list and forces competent-person air monitoring where trenching, welding, blasting, fuel storage or LPG heating are in play [S3]. For most concrete-and-steel sites the minimum four-gas envelope is oxygen (O2, 0-25% vol), lower explosive limit (LEL, 0-100% LEL), carbon monoxide (CO, 0-500 ppm) and hydrogen sulfide (H2S, 0-100 ppm) — the same envelope a portable gas detector carries, but now hard-wired at the excavation perimeter.
Where shotcrete, sprayed concrete or grouting is active, add a CO/NO2 pair because diesel-powered concrete sprayers and shotcrete robots elevate both gases simultaneously. Sites with LPG-fired temporary heating should consider a dedicated combustible gas detector at the heater exhaust manifold, because catalytic-bead LEL sensors cross-react with exhaust hydrocarbons and false-alarm if sized for a single fuel.
For shaft and tunnel work, NH3 monitoring becomes relevant only when refrigeration or chilled-shotcrete cooling plants are inside the heading — dedicated fixed NH3 units are cataloged in 0-50/100/200 ppm ranges to match that duty [S2]. Chlorine (Cl2) and sulfur dioxide (SO2) are the other common fixed-monitor additions in water-treatment bypass or temporary disinfection skids, and both are listed in the same fixed-monitor product family by mainstream suppliers [S1].
Sensor Technology Choice by Gas and Site Condition
Electrochemical cells are the default for CO, H2S, NH3, Cl2 and SO2 at construction concentrations, with typical 24-month service life in clean air but accelerated replacement cycles in dust-laden headings. Catalytic-bead (pellistor) sensors handle combustible-gas LEL on methane, propane and gasoline vapor; they are poisoned by silicone vapors and lead compounds, so silicone-sealant or lead-paint activities on a site will silently kill a pellistor within weeks. [S2]
NDIR (non-dispersive infrared) is the right answer for CO2 in occupied site offices, dewatering shanty cabins and confined-space re-entry after blasting, because IR is unaffected by humidity swings that wreck electrochemical cells. PID (photoionization) is rarely fixed-mounted on a construction site, but shows up on brownfield remediation projects where soil-vapor VOC breakthrough is a risk — for that duty a toxic gas detector with PID is the right tool, not a generic LEL unit.
Where the gas list exceeds four channels, a multi-gas detector head with combined EC + pellistor + NDIR modules reduces conduit runs and panel I/O, at the cost of a single-point failure mode that the safety officer must accept. Single-gas dedicated transmitters remain the right pick for point sources such as an ammonia chiller yard, a chlorine ton-container store, or an LPG manifold [S2].

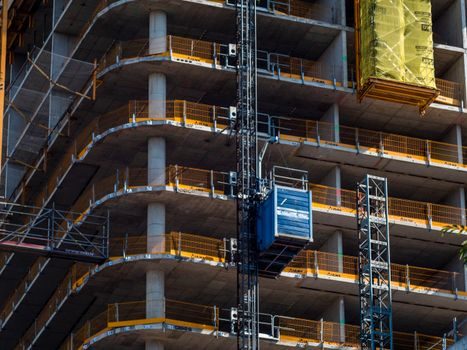

Enclosure, Mounting and Wiring for a Construction Environment
An IP65 enclosure is the practical floor for any fixed gas detector mounted on a site hoarding, scaffold pole or site-office wall; IP66 is preferred for ground-level mounting in wash-down or mud zones, and IP67 is required for below-grade installation in drainage sumps and shaft headings. Stainless-steel or powder-coated aluminum heads outlast plastic in alkaline cement dust. [S2]
Power and signal wiring must be armoured or routed in flexible metal conduit where plant equipment (excavators, telehandlers, pile-drivers) moves overhead. Typical fixed-detector power is 24 VDC at 50-150 mA per channel, with 4-20 mA analog plus one or two alarm relays; RS-485 Modbus RTU is the most common digital backbone and lets the safety officer pull all channels into the site CCTV or SCADA trailer without a separate cable per sensor.
Sensor location matters more than sensor count: mount combustible-gas heads at grade or below (methane, LPG vapor are heavier than air early in a release), CO/NO2 heads at breathing-zone height (1.5-2.0 m), and O2 heads at the worker's chest level. The same physical rules govern any fixed gas detector spec, but they are routinely ignored on temporary sites and that is the leading cause of false-negative readings during incident reviews.
Standards, Calibration and Sourcing Snapshot
US projects fall under 29 CFR 1926.55 for contaminant exposure, 29 CFR 1926.21 for hazard-communication training, and 29 CFR 1910.146 (general-industry permit-required confined spaces) which most owners extend to construction shafts by reference. International projects add IEC 60079 series for hazardous-area classification where a fixed detector is mounted in a classified zone, and ISO 9001 manufacturing quality at the OEM level is a baseline expectation [S1][S3].
Calibration discipline on a construction site is the weak link: a 30- to 90-day bump-test interval with a known gas concentration is the practical rule, and sensors that fail bump must be replaced before the next shift. The supplier market spans dedicated safety firms stocking a 20-year agency-stable catalog of gas detector brands, and high-volume Chinese OEM/ODM channels (Zhengzhou-based ISO 9001-2000 factories among them) offering fixed single-channel and multi-point combustible, NH3, SO2, H2S and Cl2 transmitters at MOQ 1 unit on export terms [S1][S3].
On the e-commerce side, fixed dedicated-gas transmitters such as the ATO GD300-NH3 are list-priced at $754.13 per unit for 0-50/100/200 ppm ammonia with configurable alarm setpoints, and similar dedicated fixed-channel pricing is typical for CO, H2S, Cl2 and SO2 heads from the same channel [S2]. For a portable-duty comparison on the same sites, see this portable gas detector selection spec map for firefighting and the ready-mix concrete selection map for industrial facilities for the concrete-side air contaminants those plants share with shotcrete headings.

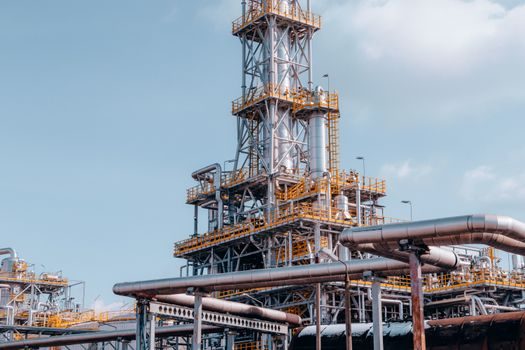

Selection Criteria and Common Failure Modes
A practical spec sheet should pin down six items before purchase: (1) gas and range, (2) sensor technology, (3) IP rating, (4) output protocol (4-20 mA, relay, Modbus), (5) calibration interval and field-replaceable sensor module, and (6) hazardous-area certification if the head sits inside a classified zone. Comparing across these criteria quickly separates a $300 general-purpose detector from a $750 dedicated fixed transmitter that holds calibration in dust and rain [S2].
Mainstream supplier fixed-monitor families are organized as single-channel standalone, single-channel transmitter, multi-point rack, and intelligent-bus configurations — the same taxonomy applied to combustible gas detector families and toxic-gas families by the same OEM [S1]. A site should not buy across these configurations casually: standalone units are right for one-off LPG stores, while multi-point rack systems are right for tunnel headings with a single cable run back to the control container.
The three most common failure modes on construction sites are sensor poisoning by silicone or lead, water ingress after a storm event, and cable damage from moving plant. Each can be designed out at the spec stage — specify poison-resistant pellistors or NDIR for combustible, IP66 minimum for ground-level heads, and armoured cable with strain-relief glands at the conduit entry. None of these is exotic; all three are routinely missed on temporary installations and they are the reason a fixed detector is sometimes blamed for an alarm that was actually a poisoning event.
