Glass curtain wall performance is dominated by the insulating-glass unit: two-layer construction uses one sealed interlayer space, three-layer uses two, both filled with dry air or inert gas to provide sound insulation, heat insulation, frost resistance, moisture resistance, increased daylighting, and high wind-pressure resistance [S1].
That same envelope, however, introduces well-documented limits — light pollution from coated/reflective glazing, embedded energy consumption, and a one-third modulus-of-elasticity penalty on aluminum mullions versus equivalent steel sections, which produces roughly three times more deflection under a given load and forces tight design-side deflection controls [S8].
System Types: Stick-Built, Unitized, and Point-Supported
Stick-built curtain wall systems ship frame members and glass as separate components for on-site assembly, giving installers on-site flexibility and lower fabrication transport complexity at the cost of longer installation time and increased on-site labor [S3]. The same source notes stick systems divide further into fully-hidden, semi-hidden (horizontal- or vertical-reveal), exposed-frame, and dry-hidden variants, and assemble via either pressure-plate or hook-on connections [S2].
Unitized systems are pre-assembled in the workshop with the glass sometimes already glazed into the mullions, then erected as individual panels — the configuration that delivers fast installation and factory-controlled QA/tolerances but raises fabrication logistics cost, transport/crane dependency, and overall first cost versus a comparable stick system [S3][S6]. Point-supported (spider) glazing is the third branch: minimal sightlines and high transparency, offset by more complex engineering, higher unit cost, and specialist labor [S3].
For a project manager choosing between these, the decision axes are: panel size, available crane time, schedule float, façade height, and tolerance budget — not aesthetics alone, which is why installation guides consistently treat this as a logistics-and-tolerance question before a design question (Glass Curtain Wall Installation: System Types, Field Procedure, and Acceptance Map).
Framing Material Trade-Off: Aluminum vs Steel
Aluminum dominates the category for weight and corrosion reasons, but its modulus of elasticity is about one-third that of steel — so an aluminum mullion deflects approximately three times more than a geometrically similar steel section under equal load, and the controlling design constraint becomes serviceability deflection (wind-induced perpendicular and dead-load-induced in-plane) rather than strength [S8]. Steel-built systems counter this by delivering curtainwall frame profiles roughly one-third the size of traditional aluminum systems while expanding the allowable window opening, with steel framing and complementary fire-rated glazing options for code-driven projects [S7][S9].
Where long spans, high wind zones, or stringent drift limits govern, the smaller steel section pays for itself in reduced frame sightline and tighter deflection control; where lightweight, fast erection, and corrosion tolerance are the priority, aluminum wins on first cost and field handling (System Window and Door Trade-Offs: Spec, Cost, and Lifecycle).

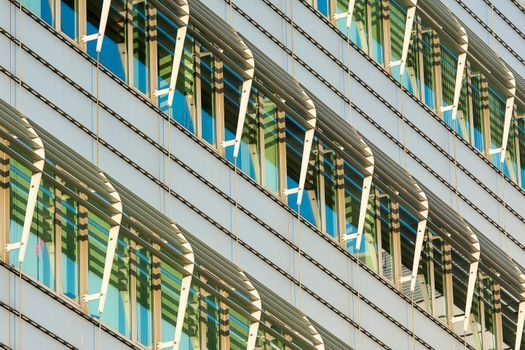

Glazing Performance and Energy/Light Limits
Coated and mirror-glass reflective surfaces generate specular glare when direct sunlight and skylight hit the façade, producing the documented light-pollution failure mode; meanwhile the curtain wall's own thermal performance depends on double-glazed unit thickness, with off-the-shelf stick systems accommodating double-glazed units from 28 mm up to ~60 mm and full range of profile geometries for vertical walls, roofs, and atriums [S1][S4]. Unitized aluminum systems go further, with options to capture glass at head, sill, and stack joints while keeping the glass structurally silicone-glazed (SSG) on the mullion, coupler, and T-bar locations — and SSG on all four sides for awning and exterior glass corner conditions [S10].
Thermal-property declarations in manufacturer datasheets (water-vapour permeability, solar factor g, light transmittance, durability of thermal transmittance, durability of air permeability, equipotential bonding) are issued as Declared Values per the CPR-style AVCP table; in some current catalogues these are still listed as npd (no performance determined) where the test has not been commissioned, which is a procurement red flag [S5]. A practical selection rule: any insulating-glass unit specified for sound insulation, heat insulation, frost resistance, moisture resistance, and wind-pressure resistance must be backed by a corresponding declared g-value, U-value, and acoustic Rw figure — not npd [S1][S5].
Comparison: Stick vs Unitized vs Point-Supported on Four Criteria
On installation speed, unitized wins (factory-glazed panels, single-lift erection); stick is slowest (member-by-member site assembly); point-supported is slowest of all due to fitting-out of spider fittings and tension hardware. On first cost per square metre, stick is typically lowest, unitized is higher, point-supported is highest because of the engineering and specialist contractor input. On tolerance control, unitized is best (factory QA under controlled conditions), stick is weakest (site-driven), and point-supported is intermediate but very design-sensitive. On transport/crane dependency, unitized is the highest (panel size and weight), stick is the lowest, point-supported varies with bracket geometry [S3][S6].
Against the four engineering axes — schedule, cost, tolerance, logistics — there is no universally optimal system; the selection is a project-specific optimisation where the wrong call cascades into either crane-time overruns (unitized on a tight site) or field-tolerance blow-ups (stick on a tall tower with high wind exposure).

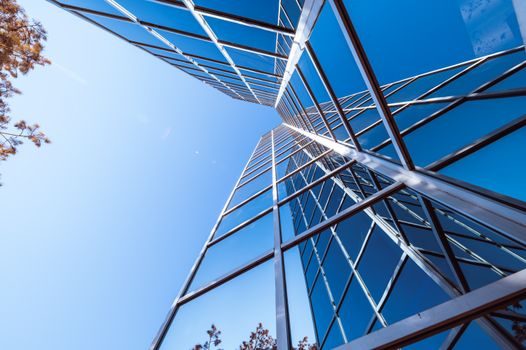

Failure Modes and Safety Constraints
Long-service glass curtain walls are exposed to spontaneous glass loss, cracking, and even panel fallout — fragments from falling panels are a documented pedestrian-injury mechanism, and the safety issue is consistently flagged as the most important constraint in the operational phase rather than the build phase [S1]. Aluminum mullion deflection — the one-third-modulus penalty — is controlled not because the section is understrength, but because the glazing and joint seals will not tolerate the resulting movement, so deflection limits are serviceability-driven and bound to the glazing system choice [S8].
Fire-rated framing and glazing upgrades are a separate procurement track: SteelBuilt Curtainwall Systems pair slim steel profiles with Fireframes Curtainwall Series fire-rated options, with glazing products rated for defined minutes of fire resistance, high-impact safety compliance, hose-stream-test pass, reduced heat transfer, and energy-code compliance — the catalogue is built around multi-attribute compliance rather than a single fire number [S7][S9].
Who It Is For — And Who It Is Not
Glass curtain walls fit commercial towers, airport concourses, and atria where daylight penetration, view, and visual lightness are programme drivers and the budget supports façade engineering. They are a poor fit for low-rise buildings where opaque metal curtain wall panel construction delivers better thermal performance at lower cost, for projects in high-heat-gain climates where untreated glazing loads the HVAC plant, and for sites without crane access capable of handling unitized-panel lifts. [S1]
They are also the wrong call where a glass fiber-reinforced or composite cladding would meet the same envelope targets at lower weight and lower breakage risk, and where existing structural drift limits cannot accept the three-times deflection penalty of aluminum mullions without expensive section upsizing. Where the project demands a non-load-bearing decorative skin over a structural backup wall, a glass curtain wall is still the right tool, but the specifier must own the light-pollution, energy, deflection, and fallout-risk mitigations rather than inherit them.
Sourcing, Standards, and Procurement Signals
Procurement audits should pull three documents before sign-off: the unitized or stick system's DoP/AVCP table (look for non-npd declared values for g, Uw, light transmittance, water-vapour permeability, durability of thermal transmittance, air permeability, equipotential bonding) [S5]; the system fabricator's reference list at the same panel size and wind zone; and the fire-rated glazing compatibility matrix where fire separation lines cross the façade [S7]. Tolerance targets for unitized systems should be specified in workshop-controlled terms, not site-measured terms, because once the panel leaves the factory, the on-site adjustment budget is small.
For double-glazed-unit selection, the practical envelope for current stick systems is 28–60 mm IGU thickness with matching pressure-plate or toggle-fix mullion geometry, and for any high-wind or acoustic requirement, the spec must pin a numerical U-value, g-value, and Rw rather than a marketing descriptor. Closing the loop: track the unitized/stick tonnage split on tender returns, the proportion of npd entries in the AVCP table (a non-zero share signals an immature test programme), and the number of fire-rated-glazing assemblies actually used versus specified — each of these is a forward signal of façade-package risk, not retrospective paperwork.
