Cement plant reducers are not a single product: a 22 kW helical-worm unit delivering 90 to 4,000 Nm handles a bucket elevator, while a 6 MW bevel-planetary integrated unit drives a vertical roller mill [S1][S3]. The right pick is decided by the driven equipment, the torque-to-speed ratio band, and the dust/heat envelope, not by catalog horsepower.
Three drive classes cover most cement duties: parallel-shaft helical (F/K series, 0.18 to 200 kW) for horizontal conveyors, right-angle bevel-helical (DBY/DCY series) for bucket elevators and long belt conveyors, and integrated bevel-planetary (GTP, up to 2,600 kNm) for vertical mills and roller presses [S1][S2].
Match Gearbox Topology to Driven Equipment
Cement plants have four electrically distinct duty zones, and each one pushes a different gearbox topology. Vertical roller mills in the 1 to 6 MW class need an integrated bevel-plus-planetary unit because the input shaft is horizontal and the output drives a vertical mill table; ratios of 25 to 50 are typical, with torque ratings of 500 to 2,600 kNm [S1]. Roller presses, which crush clinker bed material between two counter-rotating rolls, share the same torque density envelope (up to 2,500 kW per drive, up to 2,600 kNm torque) and benefit from independent left/right planetary drives with an optional hydraulic slow drive for maintenance positioning [S1]. For routine horizontal conveyors carrying raw meal or clinker, a parallel-shaft helical gearmotor (F series, 0.18 to 200 kW, torque up to 18,500 Nm, hollow-shaft slide-onto-pulley option) is the industry default because it handles the radial load from belt tension without an external coupling [S1].
For bucket elevators, the right-angle bevel-helical DBY/DCY family is purpose-built: the 90-degree output keeps the motor parallel to the conveyor axis and saves vertical gallery space, while the helical gear stages after the spiral-bevel first stage carry the bulk of the reduction [S1][S2]. Mixers and agitators on slurry tanks take coaxial helical R-series units (0.12 to 200 kW, ratio 1.4 to 270) so the flange bolts directly to the tank cover, with the GRM extended-bearing-housing variant absorbing high overhung shaft load [S1].
Ratio, Torque and Thermal Capacity Bands
DBY (2-stage) covers ratios 8 to 14 with center distances 160 to 560 mm; DCY (3-stage) extends to ratios 16 to 50 (and up to 90 in some references) with center distances up to 800 mm and a maximum input speed of 1,500 rpm [S2]. Both stages are built from high-strength alloy steel, carburized, quenched, and precision-ground, with a Gleason spiral-bevel first stage feeding helical stages downstream, which gives a measured efficiency at the standard level for bevel-helical units and noticeably better tooth-surface fatigue life under 24/7 loaded duty [S2]. A backstop option prevents reverse rotation on inclined conveyors and bucket elevators [S1]. For larger cement lines, integrated bevel-helical units reach nominal output torques of 90,000 Nm to accommodate heavy surge loads in clinker transport, with transmission ratios of 5.36 to 32,625 covering everything from screw feeders to long overland belts [S6].
At the lower-power end, the S-series helical-worm reducer covers 0.18 to 22 kW with output torque of 90 to 4,000 Nm and ratios from 10.27 to 244.74, in foot, flange, or shaft-mounted housings with hollow or solid output shafts and CE/ISO 9001/BV/SGS certification [S3]. The helical-worm hybrid has the inherent self-locking behavior of a worm pair but the higher input-stage efficiency of helical gearing, which is useful for inclined conveyors where reverse rotation under loaded backflow would damage the belt.
Material, Hardness, and Dust-Heat Survivability
Cement dust is abrasive and the ambient temperature around kilns and preheaters is high, so tooth-surface hardness and sealing matter more than catalog efficiency. Most cement-rated helical units use 20CrMnTi or 18CrNiMo7-6 alloy steel with carburized and ground flanks at HRC 58 to 62, ISO 1328 / DIN 3967 grade 6 to 7 accuracy, and ambient ratings of -20 to +100 degrees C [S4][S5]. Housings are HT250 cast iron or welded steel for heavy radial and axial loads from rotary kilns, ball mills, and vertical grinding tables [S5]. For Jiangchi-class heavy-duty cement reducers, output torque reaches 1,000,000 Nm at ratios of 10:1 to 500:1 in multi-stage helical or bevel-helical arrangements, with oil-bath lubrication plus optional forced circulation and cooling coils for continuous-duty thermal margins [S5].
For comparison, the Guomao helical reducer spans 200 to 50,000 Nm at 3.15:1 to 400:1 with up to 96% single-stage efficiency and ISO 6336 / AGMA 2001 / DIN 3990 gear-strength rating, in a modular housing that mounts foot, flange, vertical, or shaft configurations and is compatible with IEC/NEMA motor flanges [S4]. The two product lines effectively bracket the cement auxiliary-drive envelope: Guomao for the 0.18 to 200 kW conveyor and mixer side, Jiangchi for the multi-megawatt kiln and mill side.
Comparison: Cement-Duty Helical Reducer Classes
Four criteria separate the four most common cement-plant classes. (1) Power/torque class: F-series parallel-shaft 0.18 to 200 kW / up to 18,500 Nm vs DBY/DCY bevel-helical 5.5 to 200 kW / up to 90,000 Nm vs GTP bevel-planetary 1 to 6 MW / up to 2,600 kNm vs Jiangchi heavy helical 1,000,000 Nm ceiling. (2) Ratio band: F-series 3.15 to 400, DBY 8 to 14, DCY 16 to 50, GTP 25 to 4,000, S-series helical-worm 10.27 to 244.74. (3) Output configuration: F-series offers hollow-shaft slide-on mounting, DBY/DCY and S-series offer right-angle 90-degree output for compact galleries, GTP offers integrated horizontal-to-vertical 90-degree turn. (4) Continuous-duty thermal margin: F-series and S-series are general industrial; DBY/DCY include thermal-capacity tables in selection data and accept cooling fans or coils; GTP planetary stages hold >=97% per stage with high torque density and slow-speed hydraulic maintenance drive [S1][S2][S3][S5].

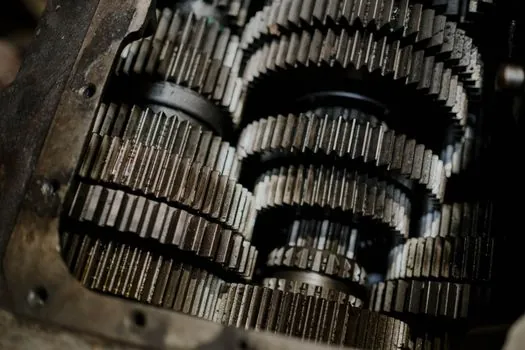

Standards, Sourcing, and What to Avoid
DBY/DCY bevel-helical units are designed and manufactured in accordance with JB/T 9002-1999, the Chinese national standard for bevel-helical gearboxes that replaced older SS, ZQ, and ZL series and can substitute for some K-series right-angle units [S2]. Gear-strength and accuracy references commonly used in the cement segment include ISO 6336, AGMA 2001, DIN 3990 for rating, ISO 1328 and DIN 3967 for tooth geometry, and ISO 9001:2015 for the quality system, with third-party inspection by SGS, BV, or TUV available on export builds [S4][S5]. For S-series helical-worm units the certifications are CE, ISO 9001, BV, and SGS [S3].
Selection pitfalls worth flagging: do not specify a standard right-angle K-series gearbox plus a separate planetary stage to drive a vertical roller mill, because the integrated bevel-planetary GTP unit converts horizontal input to vertical output in one housing and removes an external alignment risk [S1]. Do not substitute a parallel-shaft (ZY/ZL) gearbox for a planetary roller-press drive unless space is truly unconstrained, because parallel-shaft units of the same torque rating are much larger than planetary units [S1]. For long overland clinker conveyors in the ratio 16 to 50 band, DCY (3-stage) is the correct pick rather than DBY (2-stage, limited to ratios 8 to 14) [S2]. For a deeper look at how ratio band, mounting style, and continuous-duty thermal margin drive reducer selection in an adjacent process industry, the RV Reducer Spec Map for Food Processing covers the same decision logic for washdown-rated lines.
Who This Spec Map Is For, and Who Should Skip It
This map is for cement plant project engineers, EPC procurement, and maintenance leads specifying reducers for greenfield lines, kiln retrofits, roller-press upgrades, or conveyor replacements. It is also for sourcing teams evaluating Chinese OEM alternatives (DBY/DCY, F-series, S-series helical-worm, GTP planetary) against European nameplates for vertical mills, roller presses, and conveyors in the 0.18 kW to 6 MW envelope [S1][S2][S3][S4][S5]. It is not for: hydraulic winch gearboxes, marine class-approved deck machinery (see Marine RV Reducer Selection for that envelope), or high-speed gearbox applications above 1,800 rpm input where helical-worm units run hot and a parallel-shaft helical or planetary-only design is the better fit. For background on helical and parallel-shaft reducer topology, the helical gear reducer encyclopedia entry covers gear geometry and efficiency basics, while the broader gear reducer overview lays out the family tree.
Final selection gate: torque rating per equipment class (F-series up to 18,500 Nm, DBY/DCY up to 90,000 Nm, GTP up to 2,600 kNm), ratio band by conveyor length (DBY for short, DCY for long), thermal capacity table for 24/7 cement duty, and dust-sealed housing with HRC 58 to 62 carburized-ground gears. Trackable signal to watch next: any update to JB/T 9002 series revisions, and confirmed availability of cooling-coil options for DBY/DCY in Middle East and South Asia ambient envelopes where cement plants run above 45 degrees C ambient. For the wider cement plant material-handling context, the cement and concrete encyclopedia entry covers upstream process links to the reducer selection.
