Breaker selection is a math problem before it is a purchasing problem: the device's continuous amp rating must cover the load at 125% per NEC continuous-load rules, its interrupting rating (kA) must exceed the available fault current at the bus, and its trip curve (B/C/D/K) must tolerate the inrush of the actual load, whether resistive, motor-driven or transformer-fed [S2][S3].
This guide walks the four selection gates (current, breaking capacity, trip curve, voltage/poles), maps the seven main breaker families (MCB, MCCB, RCCB, RCBO, ACB, VCB, SF6) to the duties each one actually handles, and gives a wire-to-breaker cross-reference that prevents the most common residential fire path: an oversized breaker on undersized wire [S3][S4].
The 80% Continuous-Load Rule and the 125% Sizing Margin
A circuit breaker is never run at 100% of its nameplate amp rating for sustained duty: the National Electrical Code caps continuous load (defined as 3 hours or more) at 80% of the breaker's rating, and the inverse sizing rule says the breaker itself should be selected at 125% of the continuous load current [S2][S3]. In practice, a 20A single-pole breaker is the upper limit for a 16A continuous load, a 15A device caps at 12A, and a 30A double-pole runs 24A continuous [S3].
Continuous-load devices are not a fringe case: lighting circuits, electric water heaters, HVAC blowers, EV chargers (Level 2) and server-room PDUs all exceed the 3-hour threshold and must be calculated with the 125% factor before a breaker size is even named [S2]. The calculation starts from Watt's Law (P = V x I) and is rearranged to I = P / V; a 2000W heater on a 220V branch draws roughly 9A, which then requires a 15A breaker after the 125% adjustment [S2].
Match the Breaker to the Wire Gauge, Not the Appliance
The breaker exists to protect the wire, not the appliance; selecting a breaker that exceeds the conductor's ampacity is the single most dangerous error in residential work because the insulation will melt and ignite well before the breaker recognises the fault [S2][S3]. The wire-to-breaker cross-reference below is the operational minimum: 14 AWG copper pairs to a 15A breaker, 12 AWG to 20A, 10 AWG to 30A, 8 AWG to 40-50A, and 6 AWG to 55-60A [S3].
Upsizing the breaker without first verifying the cable is a common shortcut on air-conditioner and water-heater retrofits, and it is the documented root cause of residential electrical fires where the panel and appliance are otherwise correctly specified [S2]. For any circuit that runs longer than ~25 m, or through high ambient temperature, derate the cable ampacity per NEC 310.15 before selecting the breaker, not after.
MCB Trip Curves A/B/C/D: Match the Curve to the Inrush
MCB trip curves are defined by their instantaneous magnetic trip threshold, expressed as a multiple of the rated current, and the wrong curve either trips on every motor start or fails to clear a downstream fault [S5]. Type B trips at 2-3x rated current and fits purely resistive loads and legacy lighting retrofits; Type C trips at 5-10x and is the workhorse for commercial and residential distribution including socket circuits; Type D trips at 10-20x and is reserved for high-inrush inductive loads such as large motors, transformers and welding sets [S5].
Type A MCBs trip at 2-3x and are restricted to semiconductor and measurement-grade protection where nuisance tripping is unacceptable, while the same numerical band as Type B but a different use-case profile is a common source of mis-specification [S5]. For three-phase systems, deploy 3P or 4P breakers; reserve 1P and 2P units for single-phase networks. Breaking capacity must exceed the maximum prospective short-circuit fault current at the point of installation, verified by a short-circuit study rather than nameplate alone [S5].
MCB vs MCCB vs RCCB vs ACB: A Criteria-Based Comparison
The four most-selected low-voltage families split cleanly by current class, fault level and protection function, and the table below is the decision matrix used by most European and Asian panel builders [S1][S4]:
MCB (Miniature Circuit Breaker) covers up to 100 A at low voltage (under 1 kV), is the cheapest option, and handles final-distribution duties in homes and small commercial boards. It is not rated for the high fault currents seen at an industrial service entrance.
MCCB (Moulded Case Circuit Breaker) covers 100 A up to 2500 A, accepts adjustable trip units, and is the standard feeder and main breaker for manufacturing lines, data centres and large HVAC plants; one commercial example is the 800-1200 A M6 frame rated 240-690 Vac and 250-600 Vdc [S1].
RCCB/RCBO (Residual Current Device / Residual Current Breaker with Overcurrent) detects leakage current between line and neutral, trips on ground faults that an MCB or MCCB will not see, and is required by code on personnel-protection circuits. RCBO combines RCCB and MCB functions in one module where panel space is tight [S4].
ACB (Air Circuit Breaker) is the low-voltage main breaker for switchgear above ~800 A, uses air as the arc-quenching medium, and provides the adjustable long-time/short-time/instantaneous trip characteristics that a moulded-case device cannot match at the same rating [S4].
Voltage Class and Arc-Quenching Medium: Beyond Low Voltage

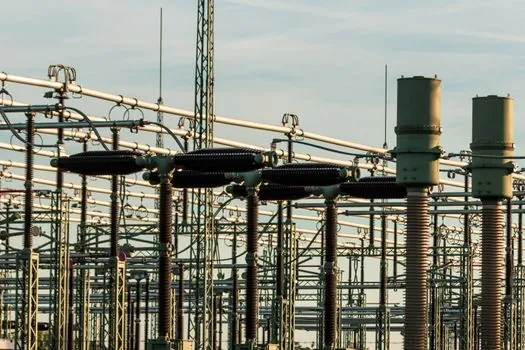

Voltage class sets the breaker family before any other criterion: low-voltage (under 1 kV) work uses MCB, MCCB, RCCB, RCBO and ACB; medium voltage (1-36 kV) is the domain of VCB (vacuum) and SF6 (sulphur hexafluoride) breakers; high voltage (above 36 kV) is dominated by SF6 and GIS (gas-insulated switchgear) designs [S4]. The arc-quenching medium drives most of the maintenance and environmental trade-offs: air (ACB) is the cheapest and easiest to service, vacuum (VCB) is the standard for new medium-voltage switchgear because of long contact life, and SF6 has the highest dielectric strength per unit volume but is now regulated as a fluorinated greenhouse gas in many jurisdictions [S4].
For most B2B buyers reading this page, the practical decision stops at 1 kV; the medium- and high-voltage path adds a different procurement workflow (utility approval, substation engineering, gas handling) and is rarely sourced through the same channel as an MCB.
Where the Mainstream Option Fails: When NOT to Pick an MCB
MCBs are not the right answer above 100 A, above 25 kA prospective fault current, or anywhere adjustable trip coordination is required; specifying an MCB on a 250 A feeder because it is cheaper will produce nuisance trips at the very first downstream short circuit [S1][S5]. Similarly, an MCB cannot provide ground-fault personnel protection: a 30 mA RCCB or RCBO is required by code on most residential socket circuits, and an MCB will sit happily in the panel while a person is being shocked through a degraded insulation path [S4].
Do not pick a Type B curve for a motor load (it will trip on every start), do not pick a Type D curve for a socket circuit (a human-contact fault may not clear in time), and do not upsize a breaker to stop nuisance trips without first re-checking the wire gauge and the load calculation, because the cure is a re-spec, not a larger breaker [S2][S5]. For more on cable sizing that pairs with breaker selection, see the cable and wire capacity planning spec map; for the upstream testing instrumentation, see the loop impedance tester certification checklist.
Component Anatomy and the Short-Circuit Study Behind Every Selection
A modern breaker is a five-part device, and each part must be rated for the application: contacts carry the running current and physically separate on trip; the trip unit senses overcurrent, short-circuit or earth-leakage and signals the mechanism; arc chutes cool and extinguish the arc that forms when contacts open under load; the operating mechanism stores and releases the mechanical energy to open the contacts; the enclosure insulates live parts and contains arc byproducts [S4]. A thermal-magnetic trip unit is the residential default, while electronic trip units on MCCBs and ACBs add long-time, short-time, instantaneous and ground-fault adjustments that the upstream short-circuit study must validate.
For industrial MCCB and ACB selections, the short-circuit study (IEC 60909 or ANSI/IEEE 551) is a prerequisite, not an option; the breaker's Icu (ultimate breaking capacity) and Ics (service breaking capacity) must both exceed the calculated Ik" at the bus, otherwise the device will clear the first fault but fail to close again until it is repaired or replaced [S1][S4].
Residential Appliance-to-Breaker Cross-Reference
The duty-to-breaker table below is drawn from the 2026 residential guide and pairs the most common home loads to the standard breaker size, pole count and typical wire gauge [S3]. Standard outlets and lighting run 15A single-pole on 14 AWG; kitchen, bathroom, refrigerator, washing machine, dishwasher and garbage-disposal circuits run 20A single-pole on 12 AWG; electric dryers and water heaters run 30A double-pole on 10 AWG; electric ranges and ovens run 40-50A double-pole on 8-6 AWG; central AC (3-ton) and hot tubs run 30-60A double-pole; Level 2 EV chargers run 40-50A double-pole; main service entrance panels run 100-200A double-pole [S3].
Always confirm the nameplate: manufacturers occasionally publish a different amperage for a specific model year, and a dedicated-circuit label on the appliance overrides the generic table [S3]. For commercial facility buyers who need the broader panel-protection context, the industrial valve selection spec map and the pressure transmitter certification guide cover adjacent process-protection decisions.
Shortlist Logic and Trackable 2026 Signals
Use the following shortlist when buying: (1) compute continuous load current at 125%, (2) verify wire gauge supports the next-standard breaker size, (3) pick the trip curve (B/C/D) from the load's inrush class, (4) pick the family (MCB/MCCB/RCCB/RCBO/ACB) from the current class and the protection function, (5) confirm breaking capacity exceeds available fault current from the short-circuit study, and (6) confirm poles match the system voltage (1P/2P for single-phase, 3P/4P for three-phase) [S1][S3][S4][S5].
Trackable 2026 signals to watch: IEC 60898 and IEC 60947-2 alignment for MCB/MCCB certifications, regional SF6 phase-down deadlines affecting medium-voltage switchgear procurement, and panel-board revisions that integrate RCBO at the slot formerly occupied by an MCB + separate RCCB pair; the programmable logic controller spec map covers the downstream coordination side when the breaker feeds a motor control centre.
