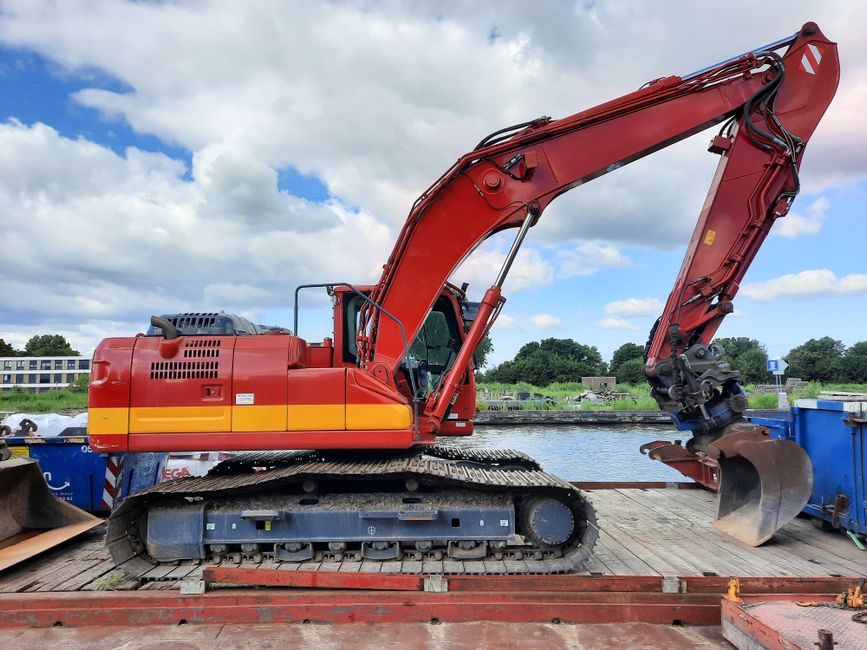

Specifying a hydraulic cylinder correctly comes down to five engineering decisions: single vs double acting, bore and stroke length, working pressure class, seal/elastomer package, and mount configuration — and the 2026 sourcing landscape is dominated by custom-engineered ram manufacturers rather than off-the-shelf catalog SKUs [S2][S7].
Production scale in the segment is significant: HCIC reports 210,000+ cylinders per year from a single Shandong site serving 56+ countries, while JSHC lists more than 30 years of cylinder-only focus, and Shandong Junfu runs telescopic, multistage, tipping, and tank-integrated cylinder lines from a 62-employee facility established 2014-05-16 [S2][S7][S5]. Seal Saver field data shows protective boots have extended steel-shop cylinder life in extreme-heat service for over 30 years, underlining how environment, not just pressure rating, governs real-world replacement intervals [S4].
Single-Acting vs Double-Acting: Force Direction Decides Architecture
Single-acting cylinders produce force in one direction only and rely on an external load (gravity, spring, counterweight) to retract, which is why Profire/Shenghan groups lifting and flipping single-acting bodies (70/82-40-217-720, 80/95-40/60-35-124) into a flat-cylinder and tipping-cylinder product line aimed at paddy-field and forklift-class machines [S1].
Double-acting cylinders use hydraulic pressure for both extend and retract strokes, giving precise position control in both directions and higher cycle efficiency — the default architecture for construction, sanitation, marine, and coal-mine service lines that JSHC, WT Cylinder, and HCIC list as their main verticals [S7][S8][S3]. For new builds where bidirectional force and speed control are required, specify double-acting; for gravity-return dump/tip applications or low-cost lifting where a counter-load exists, single-acting cuts parts, seal count, and cost [S1].
Bore, Stroke, and Pressure Class: The Three Sizing Levers
Bore diameter sets piston area and therefore force output (F = P × A); stroke sets the linear travel envelope; working pressure class (commonly 160 bar, 210 bar, 250 bar, 350 bar for industrial mobile cylinders) sets the load ceiling and dictates wall thickness, rod diameter, and end-rod bearing sizing. Profire/Shenghan model codes such as 75/90-42-235-632 encode bore/rod/stroke/extended-length in a single string, illustrating the four parameters a buyer must lock before a quotation is meaningful [S1].
Long-stroke and telescopic/multistage cylinders (Junfu's product line) trade single-stage rigidity for compact retracted length, but introduce additional sealing stages and higher seal-replacement cost per cycle, so they are chosen for tipper trucks and dump bodies where retracted packaging is the binding constraint [S5].
Seal Package and Operating Environment: Where Real Failures Start
Hydraulic cylinders fail at the seal long before the barrel yields, and seal chemistry must match fluid type, temperature, and contamination level. FKM (fluorocarbon) compounds typically rated -15 °C to +200 °C and polyurethane (PU) compounds typically -30 °C to +110 °C cover most mineral-oil hydraulics; for low-temperature or phosphate-ester fluid service, nitrile or EPDM alternatives are specified, while mining and marine cylinders (JSHC's coal-mine and marine lines) usually upgrade to composite PTFE/Bronze or glass-filled nylon wear rings to handle side-load-induced rod deflection [S7].
A 2026 selection reference for elastomer compatibility by temperature and chemistry is laid out in the FKM selection guide, which complements the seal discussion here. The Seal Saver case study shows that environmental protection — boots, wiper seals, and rod-coating upgrades — extended ISO-Reliability Partners' steel-shop cylinder life in extreme heat, confirming that ambient duty cycle often dominates MTBF more than rated pressure does [S4]. For cold-start outdoor mobile equipment below -20 °C, specify low-temp-grade seals and a 32 cSt cold-start oil to avoid rod-seal extrusion on initial strokes.
Mount Style and End Fittings: How the Load Is Delivered
Mount configuration controls the moment loading on the rod and therefore rod-bearing and seal life. Common industrial patterns include clevis pin, cross-tube, trunnion, flange (head or cap), spherical-rod-eye, and tangential lug — each with different permissible side-load and angular-misalignment envelopes. WT Cylinder and HCIC both market custom mount machining as a core service, reflecting that most field cylinders are mount-engineered to the host machine rather than picked from a catalog [S8][S3].
Selection rule of thumb: for push-only dump and tip service, a clevis or cross-tube mount on the cap end with a spherical-eye on the rod end tolerates misalignment; for high-cycle machine-tool clamping or pressing, flanged head or trunnion mounts constrain the cylinder rigidly and prevent rod-bend under eccentric load. End-of-stroke deceleration should be sized so kinetic energy (½mv²) does not exceed the manufacturer's published snubber rating — a frequent overspec in the Chinese supply base, where 1.5-ton flipping and lifting cylinders are commonly matched to host machinery with 1.5 t nominal load and short-cycle duty [S1].
Manufacturing Sourcing Signals: 2026 China Supply Base
2026 sourcing data points to a supply base that is heavily custom-engineered, not catalog-driven: HCIC quotes 210,000+ cylinders/year with ISO 9001 certification and free CAD design consultation, WT Cylinder emphasises 30+ years of custom-only production, JSHC focuses on four vertical-specific lines (construction, sanitation, marine, coal mine), Junfu adds telescopic/multistage to the mix, and Profire/Shenghan packages the cylinders with single-acting power units for a forklift/Dump-Tipper plug-and-play kit [S2][S8][S7][S5][S1].
For a related downstream cost reference, the hydraulic pump price and cost guide 2026 covers the pump side of the same power unit, and the hydraulic valve buying guide 2026 covers the directional-control side — both often co-specified with the cylinder on a single machine. India-side alternatives (hydrauliccylindersindia.net) list broader hydraulic tool catalogs including jacks, power packs, torque wrenches, and flange spreaders, useful when the same vendor is asked to supply the full hydraulic tool set [S6]. The practical signal for buyers: lead with a one-page spec sheet (bore, stroke, pressure, mount, seal, duty cycle, fluid) and request a CAD drawing before PO, since most 2026 Chinese suppliers build to drawing rather than to part number [S2][S7][S8].
Selection Checklist for Engineers and Buyers
Lock these parameters in writing before requesting a quote: (1) acting type — single or double; (2) bore and rod diameter, with force at working pressure; (3) stroke length and extended/retracted overall length, including tolerance ± mm; (4) working pressure and proof/burst test pressure (typically 1.5× and 3× working); (5) mount style on cap and rod ends, with pin diameters; (6) seal package — material, temperature range, fluid compatibility; (7) duty cycle — cycles/hour and strokes/day; (8) ambient conditions — temperature, contamination, washdown, UV, marine atmosphere; (9) standard compliance — ISO 6020 (industrial), ISO 6022 (mobile), ASME B30, or customer-specific drawings. [S1]
Failure modes to engineer against: rod buckling on long-stroke cylinders above the L/D critical ratio, seal extrusion at peak pressure transients, side-load-induced rod bearing wear, and rod-surface corrosion in marine or washdown service. For a 100 mm bore × 500 mm stroke cylinder at 250 bar with a 50 mm rod, the critical buckling load is around 35-40% of the compressive rating, so any side load above this should be re-routed through an external guide. Trackable 2026 signal: manufacturers with ISO 9001, in-house CAD, and 25,000+ cylinders/year capacity (HCIC, JSHC, WT Cylinder) are the practical first tier for OEM custom orders, with Junfu and similar 60-100-person shops as a competitive second tier for telescopic and tipping-cylinder specials [S2][S7][S8][S5].
Closing reference: a working engineer should treat cylinder selection as a coupled problem — bore/pressure sets force, stroke/mount sets the mechanical envelope, seal/environment sets MTBF, and acting type sets the valving — then hand the resulting 9-line spec to the supplier for a CAD confirmation. The 2026 supply base is healthy and competitive; quoting is fast, but only when the spec is complete, and the difference between a one-page spec and a paragraph of intent is usually one cylinder iteration and 4-6 weeks of lead time.
