Cement plants punish linear modules with cement dust above 50 g/m³ airborne loads, ambient temperatures up to 60°C near preheater towers, and continuous 3-shift duty cycles that run 7,000 to 8,000 hours per year on rotary gate, damper, and sampling axes [S3][S7].
The selection problem is not stroke or speed alone, but survival: a linear module that scores well on datasheet repeatability will fail inside 12 months if its bearings, seals, and lubrication strategy do not match the alkaline dust profile of a cement mill environment. For a working primer on the underlying linear module family, including the core definition and sub-types, start there before drilling into the cement-specific criteria below.
Cement-Plant Service Profile: Why Standard Catalog Sizing Fails

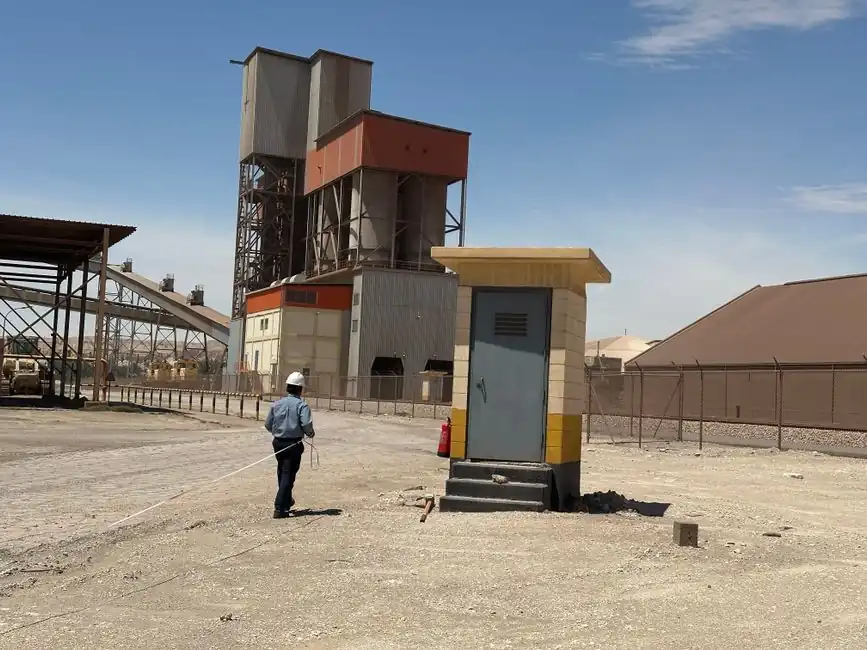

Cement plant sites are typically planned around raw-material proximity, limestone reserves, and transport links, with process equipment arranged vertically through a preheater, kiln, and cooler stack [S7]. A linear module in this stack drives damper valves, kiln inlet slides, sampling probes, and bag-house discharge gates, all of which sit inside hot, dusty air streams where airborne particulates reach cement-grade alkalinity.
Ambient conditions across a typical integrated cement plant range from 5°C in outdoor clinker conveyors to 60°C around preheater cyclone ducts, with relative humidity in unconditioned areas varying 20% to 90% across seasonal monsoon exposure [S7]. For a foundation-level overview of linear motion components and how they survive industrial atmospheres, the encyclopedia entry covers the basic load-life equations. Three failure modes dominate cement-plant linear module returns: seal lip wear from alkaline particulate ingress, lubricant washout from temperature cycling, and ball-screw brinelling from shock loads during clinker blockages.
Selection Criteria Ordered for Cement Duty
Engineers should sequence selection in the order: (1) duty cycle and orientation, (2) dynamic load and moment capacity, (3) drive type, (4) stroke and installation clearance, (5) sealing and lubrication, (6) environment rating, (7) motor and feedback match [S3]. Reversing this order, starting with stroke or accuracy, is the most common pitfall flagged by linear-module integrators and typically voids manufacturer warranty because the load envelope is undersized for the rated life [S5].
For cement plants, dynamic load capacity (the C-value on a linear guide) must be derated by at least 1.5x over the calculated peak load to absorb shock events from clinker bridging at dampers and bucket elevators [S3][S5]. A module rated 10 kN dynamic load should not be specified above 6.5 kN continuous working load in cement service. Total moving mass includes the slide plate, the driven product, and any cantilevered tooling, since moment loading on the linear guide is often the binding constraint rather than straight-line force [S3].
Drive Type Comparison: Ball Screw, Rack and Pinion, Belt
Ball-screw drives deliver the highest endpoint accuracy (typically ±0.01 to ±0.05 mm) and the best vertical-load capacity, making them the default for kiln-damper and slide-gate axes where repeatability is mandatory [S4][S5]. Rack-and-pinion modules handle long strokes (1 m to 6 m) that ball screws cannot economically cover, and they tolerate dust contamination better because the contact zone is open and easily purged, at the cost of lower accuracy (typically ±0.1 to ±0.5 mm) [S4]. Belt drives suit packaging-style reciprocating axes but rarely survive cement-plant duty beyond 18 months due to belt-edge wear from airborne grit, so they are reserved for clean-zone lab or QC sampling lines [S5].
The three drive types can be lined up against four cement-plant decision criteria as follows. Accuracy: ball screw (best) > rack and pinion (mid) > belt (lowest). Stroke length: rack and pinion (best for >1.5 m) > belt (best for <2 m clean zones) > ball screw (limited by screw length, critical speed, and buckling). Dust tolerance: rack and pinion (best, open contact) > ball screw (sealed) > belt (worst, grit abrades tooth profile). Vertical load capacity: ball screw (best) > rack and pinion (mid with pinion brake) > belt (poor without external brake). For a deeper primer on how linear actuators integrate drives, housings, and feedback in a single assembly, that encyclopedia page covers the architectural choices behind the table above.
Sealing, Lubrication, and IP Rating for Kiln and Preheater Zones
IP65 is the practical minimum for any linear module mounted within 5 m of a preheater, kiln inlet, or clinker cooler, with IP67 required for modules directly exposed to dust-laden exhaust streams [S3]. Stainless steel scrapers and felt wipers on the carriage extend service intervals by a factor of roughly 3x over standard nitrile wipers when cement dust bypasses the bellows, which it inevitably does past 6 to 12 months of service.
Lubrication strategy is the second-largest cause of premature failure: grease-lubricated ball screws in cement service should be re-lubricated every 500 operating hours (not the 2,000 to 4,000 hours typical of clean factory duty) using a high-viscosity lithium-complex grease with EP additives rated to 150°C dropping point [S1][S3]. Oil-mist lubrication extends intervals but requires clean air supply, which rules it out for most outdoor cement-plant locations. A pre-engineered module with integrated automatic greasing nipples mounted on the carriage cuts mean-time-to-repair substantially over manually greased units.
Stroke Sizing and Installation Clearance: The 3-Step Method
Stroke length must be calculated as: useful travel + acceleration/deceleration overrun (typically 20 to 50 mm per end) + safety margin (minimum 50 mm per end) + mechanical end-stop clearance (10 to 20 mm) [S2]. A slide-gate with 800 mm of useful travel therefore needs a module stroke of at least 940 mm, not 800 mm, and the full retracted and extended lengths must be checked against the structural steelwork, cable carriers, and adjacent pipe racks before the order is released [S2].
For Z-axis or inverted mounting on damper actuators, add 100 mm of stroke for gravity-induced sag compensation and verify that the carriage does not collide with the duct wall at full extension. Where adjacent equipment limits envelope, a rack-and-pinion module with a shorter carriage and longer body often fits where a ball-screw module of the same stroke does not, because the carriage-to-stroke ratio differs by roughly 2x between the two drive types [S2][S4]. A related short-stroke selection case that shares the dust and accuracy logic above is covered in this crossed roller guide spec map for textile mill axes, where the same envelope-versus-precision trade-off appears in a different dust profile.
Cement-Plant Use Cases and Hardware Map
Three applications dominate the installed base. Kiln inlet slide gates use ball-screw modules with IP67 rating, 500 to 1,200 mm stroke, and absolute encoders for position feedback after power-cycle events, since losing gate position during a kiln trip risks refractory damage. Preheater cyclone damper actuators use rack-and-pinion modules with 1,000 to 3,000 mm stroke, since the damper must swing through a long arc translated into linear motion, and dust ingestion is constant. Bag-house discharge gates and clinker cooler walkers use shorter-stroke (200 to 500 mm) ball-screw or belt modules inside weather-protected enclosures, with the enclosure itself carrying the IP65 rating rather than the module. [S5]
For feedback, cement-plant modules should use absolute encoders rather than incremental encoders, because unplanned power loss during a kiln trip is routine and a homing sequence on a hot, dust-obscured carriage is unreliable. Where the spec also touches rotating equipment alignment, this disc coupling selection map for wind turbine drivetrains covers the same load-versus-misclosure thinking applied to a different rotating asset class. Final commissioning checks: verify repeatability over 10 full strokes under load, confirm grease nipple accessibility without removing duct insulation, and confirm that cable carriers do not bind at the calculated bend radius under the full travel envelope.
