Linear modules in textile machinery handle yarn feeding, weaving shuttle motion, knitting-needle actuation, and fabric-inspection transport, with positioning accuracies cited in the micrometer range for precision feeding and inspection [S2].
Selection is driven by application profile, not catalog maximums: undersizing causes premature wear and warranty issues, while oversizing inflates moving mass, motor power, and control complexity [S4][S5]. Textile mills must weigh lint exposure, humidity, wash-down zones, and continuous-duty cycle rates against module sealing, lubrication, and housing material.
Application Mapping: Where a Linear Module Earns Its Slot in a Mill
Textile machinery splits into four motion tasks that map cleanly to module types: yarn feeding and tension control, weaving-shuttle drive, knitting-needle actuation, and fabric inspection or sorting transport [S2]. Yarn feeders and inspection stations demand precise position control at moderate speed; weaving and knitting operations demand repeatable high-speed cyclic motion; fabric transport in inspection lines demands long stroke and constant velocity rather than micron-level endpoint accuracy.
The linear module in each of these roles is the same mechanical family, an integrated guide, drive, and carriage assembly, but the operating envelope differs sharply. A yarn-feeder module runs short stroke with high cycle count and tight tension-band control; a fabric-inspection module runs long stroke at low acceleration and accepts larger position tolerance [S4]. Treating these as one procurement line item is the most common sizing error in mill retrofit projects.
Selection Criteria: The Six Variables That Decide the Build
Six variables govern a textile-mill module spec: load (including carriage and payload), orientation (horizontal vs vertical mounting), speed, stroke length, positioning accuracy and repeatability, and the ambient environment including lint, humidity, and wash-down exposure [S1][S4]. Duty cycle and expected service life tie these together: a 24/7 spinning-mill line running three-shift production demands a different bearing and lubrication strategy than a batch dye-house inspection table.
For textile use, the environment filter is unusually aggressive. Cotton and synthetic fibers shed airborne lint that migrates into carriage seals; steam, dye chemicals, and wash-down water attack aluminum housings and standard lubricants. Module selection must therefore lock down an IP rating and lubrication interval alongside stroke and load, not as an afterthought [S1]. This is where a linear guide choice inside the module matters as much as the drive choice outside it.

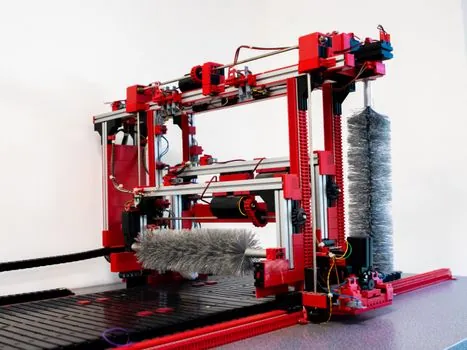

Drive Type Comparison: Ball Screw, Belt, Rack-Pinion, Linear Motor
Ball-screw drives carry higher thrust, hold position without a brake, and deliver the tightest endpoint accuracy, which is why they dominate vertical yarn-feeder lifts and knitting-needle modules where the carriage must hold position under load [S4][S5]. Belt drives trade endpoint accuracy for speed and stroke length: a typical belt-driven packaging-class module is cited at 500 micron endpoint accuracy, which is acceptable for long horizontal transport but not for yarn tensioning [S5].
Rack-and-pinion modules suit long-stroke gantries (fabric inspection tables wider than 2 m) where a single ball screw would whip. Linear-motor modules eliminate the mechanical drive entirely and suit cleanroom or low-lint zones where grease-lubricated screws are objectionable. The comparison matrix below compresses the decision:
Drive type vs textile task: ball screw fits yarn feeding, knitting needles, vertical lifts, with high thrust and position-hold, at the cost of speed and stroke limit; belt drive fits fabric transport and inspection lines, with long stroke and high speed, at the cost of endpoint accuracy (around 500 microns typical); rack-and-pinion fits wide gantry inspection tables, with very long stroke, at the cost of backlash and maintenance; linear motor fits cleanroom dyeing or laboratory-grade inspection, with the highest dynamics, at the cost of controller and cost complexity [S4][S5].
Materials, Sealing, and Lubrication: The Mill-Specific Filters
Aluminum extrusion housings are the most common in standard modules because they extrude cost-effectively across a wide size range; steel housings are stiffer and handle higher moment loads but cost more and add mass [S3][S5]. For textile floors where lint and chemical exposure are constant, housing material is secondary to sealing: stainless steel end caps, sealed bearing blocks, and IP65 or higher carriage protection are baseline.
Lubrication strategy is the third textile-specific filter. Precision modules need lubrication through their life cycle to keep stable motion and tight repeatability; in a lint-heavy mill, conventional grease attracts fiber contamination and accelerates wear [S3]. Dry-film or solid-lubricant guides, or sealed-for-life greased carriages with extended relubrication intervals, are common retrofit choices. A linear bearing selected for textile duty should be specified with both a contamination rating and a relube interval, not just a dynamic load rating.
Integration Pitfalls: Mounting, Sizing, and Motor Stacks
The most common integration mistake in mill retrofits is mounting-style mismatch. Common motor mounting configurations include direct connection, left-side mounting, right-side mounting, and bottom mounting, and not every module accepts every configuration [S6]. If the loom frame or inspection-stand wall does not accept the supplier's standard base-mount, the integrator ends up machining custom brackets, which inflates both cost and lead time [S5].
Sizing discipline is the second pitfall. Buyers who pick a module whose maximum speed or load equals the machine's nominal speed or load end up undersized for long-term service; if the module fails under that load, the manufacturer's warranty is typically void [S5]. On the other side, over-specifying to micron-level accuracy when the application only needs 100 micron repeatability drives cost and complexity with no production gain. Sizing software from the module supplier, paired with a documented duty-cycle profile from the mill, is the most reliable cure.
Verification and Procurement Workflow
A defensible textile-mill module spec follows a 10 to 14 step workflow: define the motion task, confirm stroke and envelope, calculate moving load including grippers and yarn packages, calculate thrust and motor size, confirm speed and cycle time, set accuracy and repeatability targets, calculate pitch, yaw, and roll moments on the carriage, confirm mounting orientation, evaluate environment and protection class, select drive method, verify duty cycle and life, confirm motor, controller, and safety devices, then compare total cost across two or three candidates before final verification [S4].
For mills running continuous three-shift production, the final step should include a documented mean-time-between-failure target and a planned relubrication or seal-replacement schedule. The same selection logic that governs automotive production lines applies here, with environment and duty-cycle filters tightened: the linear module selection map for automotive production covers drive-type and accuracy trade-offs that translate directly into a spinning or weaving line.
Trackable signals for the next planning cycle: relubrication interval versus actual shift count in installed modules, lint-ingress failures on IP54 vs IP65 carriages over a 12 month window, and stroke-length standardization across yarn-feeder, weaving-shuttle, and inspection-line modules to reduce spare-parts count.
