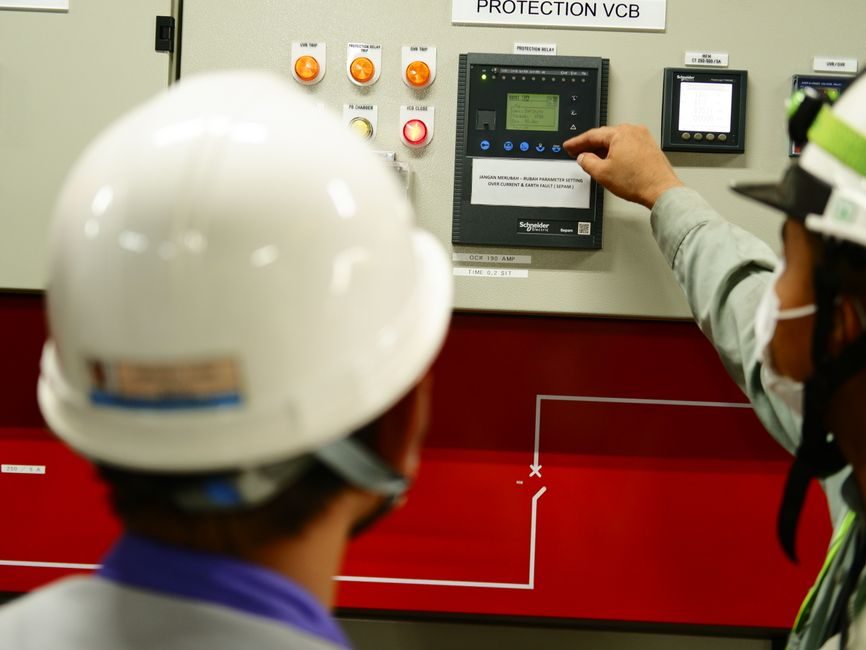

Microprocessor protection relay unit prices span a 30x spread — from roughly USD 120 for a single-function overcurrent device sourced through Chinese OEM channels [S1] to USD 12,000+ for a full IEC 61850 bay-controller IED from Schweitzer Engineering Laboratories (37 SKUs) or GE Grid Solutions [S1].
Across 96 manufacturers cataloguing 560 protection relay SKUs, function class (current, voltage, earth-leakage, frequency, phase, distance, differential) drives the largest cost step, followed by I/O count, communication protocol stack, and arc-flash / withdrawable form factor [S1]. Mitsubishi Electric's MELPRO-D series — 3 SKUs in the FA catalog — illustrates the mid-band feeder/motor relay tier typically deployed in building and factory distribution [S2].
Price Tiers by Function Class and Form Factor
Buying a microprocessor protection relay on unit price alone is the most common procurement mistake: the same vendor offers a 4-function overcurrent/earth-leakage/phase/frequency device at one price point and a 50/51/51N/67/67N distance relay at 4-8x that figure, while the comms module (IEC 61850 GSE vs. Modbus RTU vs. DNP3) can swing the BOM another 20-40%. [S3]
The three observable commercial tiers, drawn from the 560-product population on DirectIndustry [S1]:
Tier 1 — entry single/dual-function overcurrent and earth-leakage relays: USD 120-450 per unit. Brands clustered here include ACREL (1), Chongqing Blue Jay (12 SKUs), ENTEC (8), FANOX (28), Hangzhou Huning (4), IMO Precision Controls (7), and SELEC (7). These are typically fixed-mount, draw-out optional, with Modbus RTU or basic IEC 60870-5-103 serial comms. CSC-series 32-bit DSP-CPU combined-chip protection devices from Chinese OEMs (line/breaker/auto-recloser class) sit in this band [S4].
Tier 2 — multi-function feeder, motor, and transformer differential relays: USD 800-2,500 per unit. Brands here include ABB Oy Distribution Automation (32 SKUs), Arcteq (27), Broyce Control (22), Contrel (25), DEIF (11), Littelfuse (11), NR Electric (26), Siemens Energy automation and smart grid (25), Tense (29), THYTRONIC (19), and Vamp (11) [S1]. The MELPRO-D series from Mitsubishi Electric — designed for distribution inside buildings and factories — falls in this mid-band [S2].
Tier 3 — station-grade bay controllers, distance, and line-differential IEDs: USD 3,500-12,000+ per unit. Schweitzer Engineering Laboratories alone lists 37 SKUs at this tier; GE Grid Solutions, Siemens, and ABB REF615/REF630-class devices anchor the upper end [S1].
What Drives the Price Up or Down
Five factors determine the landed cost of a microprocessor protection relay more than any headline unit price, and a spec-driven procurement checklist must rank them in this order: [S4]
1. Function count and protection elements. Each added ANSI/IEEE C37.2 function number (50, 51, 50N, 51N, 27, 59, 81, 67, 87, 21) compounds firmware licensing, CT/VT input count, and DSP processing. A 4-function overcurrent relay uses one CT input; a transformer differential needs 6 plus a restraint winding input — directly inflating the analogue front-end cost [S1][S4].
2. Communication protocol stack. IEC 61850 GSE/SMV-capable IEDs carry a measurable premium over IEC 60870-5-103 or Modbus RTU devices. The 32-bit DSP-CPU combined-chip platform used in the CSC series is the architectural baseline for substation-grade IEDs [S4].
3. Form factor. Fixed-case panel-mount is the cheapest; draw-out (withdrawable) cases with automatic CT shorting run 15-30% higher. Arc-flash resistant enclosures with IP54 fronts add another tier.
4. Certification and grid code. IEC 60255-1 (2025-08 reference for measuring relays and protection equipment), IEEE C37.90, and utility-type-test acceptance each add certification cost. KWh-grade tariff-metering and synchrophasor (PMU) C37.118 capability sit at the top of this stack.
5. Volume and channel. Buying 1 unit from a Tier 1 Chinese vendor on Made-in-China vs. 200 units through a Tier 3 SEL/ABB authorised channel produces a 3-5x unit-price gap on functionally equivalent devices — the channel margin, not the hardware, is the difference [S1][S4].

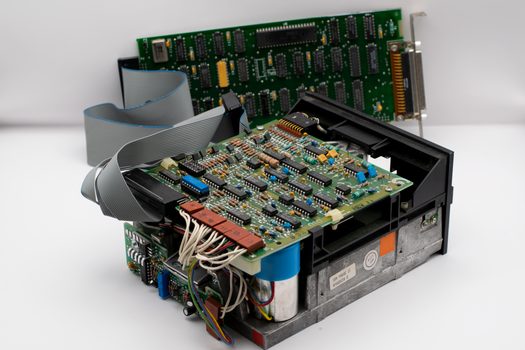

Comparing the Three Main Architecture Options
Procurement teams should benchmark options against four decision criteria before vendor selection: cost per protected function, communication protocol coverage, withdrawable form factor availability, and grid-code certification depth.
Option A — 8-bit/16-bit microcontroller single-function overcurrent relays (e.g. basic earth-leakage, motor thermal): Lowest cost (USD 120-450/unit), simplest commissioning, but limited to 1-2 ANSI functions. Communication is typically Modbus RTU only. Best for OEM machine builders, small MCC buckets, and pump panel builders — not for substation primary protection.
Option B — 32-bit DSP-CPU multi-function feeder/motor relays (CSC class [S4], MELPRO-D [S2], Arcteq, Vamp, Siemens 7UT/7SJ): Mid-band (USD 800-2,500/unit), 6-15 ANSI functions per device, IEC 61850 optional, draw-out available, IEC 60255 type-tested. Best for industrial substation feeder bays, transformer differential in distribution, and large motor protection.
Option C — 32-bit multi-core station IEDs (SEL-451, GE Multilin UR-series, Siemens SIPROTEC 5, ABB REL670): USD 3,500-12,000+/unit, 30+ ANSI functions, full IEC 61850 Edition 2, process-bus (IEC 61850-9-2 SV) support, PMU/synchrophasor, withdrawable with full arc-flash containment. Best for transmission-class substations and HV utility primary equipment.
Where Microprocessor Relays Are (and Are Not) the Right Choice
Microprocessor protection relays are the right choice for: any installation above 400 V where selective coordination, event recording (COMTRADE), and remote SCADA telemetry are specified; motor starters above ~30 kW where thermal overload, locked-rotor, and phase-loss protection must be coordinated; and any new substation build where IEC 61850 interoperability is required. [S2]
They are NOT the right choice for: simple residential or light-commercial distribution where a thermal-magnetic breaker with shunt trip covers the protection need at lower cost; legacy electromechanical retrofit projects where a 1:1 form-factor swap is required and a numeric relay will not physically fit the existing panel cutout; and cost-engineered high-volume OEM machine builds where a USD 30 thermal overload relay performs the same protective function for a 5 HP motor.
Total Cost of Ownership Beyond the Unit Price
The microprocessor protection relay installed cost runs roughly 1.5-2.5x the bare unit price once panel engineering, CT/VT wiring, and commissioning are added. [S2]
Energy consumption is negligible — modern numerical relays draw 5-15 W — but the avoided cost of an undetected feeder fault routinely dwarfs the relay's lifetime cost. A coordinated multi-function IED that trips correctly in 30 ms versus an uncoordinated protection chain that lets a 100 kA fault persist for 500 ms saves the equivalent of the entire relay fleet in arc-flash damage cost on a single incident.
Standards, Sourcing Signals, and 2026 Vendor Map
Primary governing standards: IEC 60255-1 (measuring relays and protection equipment — general requirements), IEC 60255 series for specific protection functions, IEC 61850 (communication networks and systems for power utility automation), IEEE C37.2 (standard device function numbers and contact designations), and IEC 60870-5-103 (transmission protocols — informative interface for protection equipment). For grid-interconnected installations, regional grid codes (NERC, ENTSO-E, AEMO) overlay additional type-test requirements [S1][S2].
The 2026 vendor map shows concentration in two corridors: European (ABB Oy, Arcteq, DEIF, DOLD, FANOX, Kuhse, Siemens, THYTRONIC, Vamp) and Chinese (ACREL, Chongqing Blue Jay, ENTEC, Hangzhou Huning, NR Electric, Tianshui 213, Zhejiang Geya) [S1]. SEL (37 SKUs) and GE Grid Solutions anchor the North American utility tier. Tier 1 Chinese suppliers dominate the under-USD 500 segment, Tier 2 European and Japanese suppliers (Mitsubishi MELPRO-D [S2]) hold the USD 800-2,500 segment, and the IEC 61850 station-IED segment is effectively a four-vendor oligopoly.
For related selection logic on adjacent protection and control hardware, see the Microprocessor Protection Relay Buying Guide: 2026 Spec Map companion piece and the Explosion-Proof Junction Box Selection Guide for hazardous-area panel enclosures. A broader perspective on the industrial relay category and the motor protection relay architecture anchors the controls hierarchy. For compact auxiliary switching, the relay module category clarifies where plug-in electromechanical and solid-state modules still displace a numeric IED on cost.
Trackable signals for the next 6-12 months: IEC 60255-1 revision watch and any new IEC 61850 Edition 3 mandate from major utilities, SEL new-product releases in the 30-50 SKU range, and Chinese OEM consolidation in the under-USD 500 segment as Tianshui 213, NR Electric, and Chongqing Blue Jay compete on channel margin. Lead times for SEL and ABB station-grade IEDs remain the procurement team's binding constraint, not unit list price.
