An explosion-proof junction box is a certified enclosure that contains wiring splices, terminals, or bus bars inside hazardous-area locations classified under IEC 60079 or NEC 500, with the box itself acting as the protective apparatus (either flameproof 'd' containment, increased-safety 'e' creepage/clearance, or dust-protected 'tb') [S5].
Selection is driven by four concrete gates: zone/gas-group classification, IP/NEMA rating, terminal block type, and enclosure material — and the 2026 supply market shows finished FOB prices spanning roughly US$3 per piece for commodity GRP units up to US$258–348 for offshore-rig flameproof panels [S3][S7].
Ex-Mark and Zone Mapping: Picking the Right Protection Concept
Explosion-proof junction boxes must carry an Ex-mark string that maps directly to the IEC 60079 / NEC 505 zone where they will be installed, and the typical 2026 commercial offering for Class I Division 1 Group ABCD Zone 1 use shows the marking "Ex e IIC T6 Gb" with a dust variant "Ex tb IIIC T80℃ Db" [S5]. That same unit is also rated Type 4X and IP66, so a single enclosure can serve gas Zone 1 and dust Zone 21 simultaneously when the certifier documents both [S5].
For Zone 1 hydrocarbon duty on an offshore rig, the dominant concept is flameproof Ex d IIB T4 cast aluminium or stainless, while Zone 2 chemical-indoor builds increasingly use Ex e IIC T6 GRP (glass-reinforced polyester) because the lighter weight and corrosion resistance offset the lower impact rating [S3][S7]. Buyers specifying GRP should still verify the resin's UV inhibitor package; commodity GRP without a UV cap will chalk within 24 months on an unshaded offshore deck.
Enclosure Material Comparison: Aluminium, GRP, Stainless, Brass, Galvanised Iron
Material choice is the single biggest cost and weight driver on a 2026 junction-box RFQ. Cast aluminium alloy remains the workhorse — Shenhai's range alone covers 130 series and 500 specifications of aluminium-bodied Ex d and Ex e units, with the supplier advertising over 20 years of oil-and-gas field deployment [S4]. Cast aluminium after shot-blast and epoxy powder coat delivers a strong weight-to-Impact resistance ratio and threads cleanly for cable glands.
GRP (fibreglass) explosion-proof junction boxes from Yueqing Sanhui Explosion-Proof Electrical Co., Ltd. (Zhejiang, China) are listed at an FOB price of US$3.00 per piece with a monthly supply capability of 10,000 pieces [S7]. Stainless 316 boxes dominate pharmaceutical and coastal-chemical builds where chloride pitting is the failure mode, but they add roughly 2–3× the material cost. Brass-cored junction boxes are a niche marine segment on the Alibaba supplier index, used where spark-resistant non-ferrous metal is mandated for bilge or pump-room service [S8]. Galvanised iron round conduit boxes, like the OKorder-listed Tianjin-shipping unit, are the lowest-cost threaded-conduit junction (FOB Tianjin, 1000-piece MOQ, 1000 set/month supply) suited to dry industrial conduit runs rather than true Zone 1 [S2].

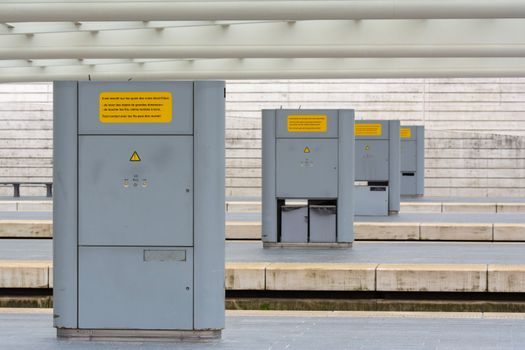

Ingress, Impact, and Terminal Block Specs: What IP66 / Type 4X Actually Delivers
IP66 and NEMA Type 4X are the de-facto 2026 baseline for outdoor hazardous-area junction boxes, and the SJB-A-e datasheet explicitly combines both — IP66 plus Type 4X corrosion rating — for its Class I Div 1 / Zone 1 configuration [S5]. That rating covers powerful jetting water and salt-spray, but it does not cover prolonged submersion; buyers needing submerged or pit-installed service must step up to IP67 or IP68 IP-rated enclosures, the latter being standard on the 280×380×130 mm plastic junction line from H Junction Box OEM factories [S6].
Internal terminal block selection matters as much as the shell. Ex e increased-safety boxes require creepage distances and clearances per IEC 60079-7, and the SJB-A-e ships with built-in Ex e terminal blocks engineered to meet the Class I Div 2 minimum spacing rule [S5]. For flameproof Ex d units, the terminal is sealed inside the cast cavity, so the spacing rule changes to the flamepath machining tolerance on the cover — buyers should request the flamepath drawing (cover-to-body gap and length) before accepting a sub-US$200 flameproof panel [S3].
Cost and Lead-Time Snapshot: US$3 to US$348 FOB Bands
The 2026 FOB price band for an explosion-proof junction box stretches from roughly US$3 per piece (commodity GRP Ex e, 100-piece MOQ) to US$258–348 per piece for offshore-rig-rated Ex d flameproof panels with ISO9001:2000, VDE, CCC and CE certification, with a 1-piece MOQ at the premium end [S3][S7]. Galvanised iron round conduit boxes cluster at the bottom of that band (Tianjin FOB, 1000-set MOQ, 1000 set/month) and are best treated as industrial conduit accessories rather than true Ex e or Ex d apparatus [S2].
Shenhai's positioning across 130 series and 500 specifications is a useful reference for what a full-line Chinese Ex supplier can offer under one roof, spanning junction boxes, ex-proof lighting and pipe fittings for oil and gas [S4]. For buyers benchmarking cost against control-station hardware, the parallel ex-control-station cost map lays out the same stainless-vs-Grade trade-off at the actuator end of the loop.

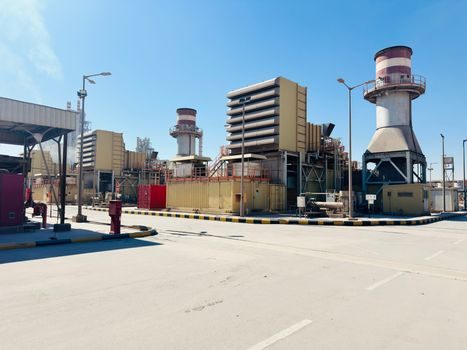

Application Fit: Offshore, Chemical, Pharmaceutical, and General Industrial
Offshore oil and gas platforms continue to drive the demand for Ex d IIB T4 cast-aluminium or stainless flameproof junction boxes because the drip shield, salt spray, and Group IIB hydrogen-rich gas envelope stack against the lighter weight of GRP [S3][S4]. Chemical plants handling Group IIC hydrogen or acetylene must step up from IIB to IIC certification, which limits the material to those with demonstrated IIC test reports and adequate creepage on the terminal block [S5]. Pharmaceutical and food-grade sites typically move to stainless 316 with hygienic polish to withstand daily CIP washdowns, and they should not be paired with the galvanised iron threaded-conduit box, which lacks the corrosion headroom for that duty [S2].
For paint booths, grain elevators, and coal-handling areas, the dust-zone cert (Ex tb IIIC T80℃ Db) is the controlling line on the datasheet and should be matched against the actual dust conductivity (III A combustible flyings, III B non-conductive dust, III C conductive dust) [S5]. Buyers in the broader industrial-controls market who need a sister spec for selector switches and pushbuttons can use the Ex-control-station selection map to align enclosure and protection concept across the same hazardous area. General-purpose indoor chemical rooms without flammable dust can often drop to a non-Ex IP65 enclosure, which is a different procurement category and should not be cross-quoted against true Ex e units.
Procurement Gate List: Seven Specs to Pin Before Issuing the PO
Seven specs should be locked in writing before a 2026 PO is released: (1) zone and gas/dust group with Ex-mark string, (2) IP/NEMA rating, (3) enclosure material with grade (e.g. 316 stainless, ADC12 aluminium, GRP), (4) ambient temperature range and T-class, (5) terminal block type and current rating, (6) cable entry thread standard and quantity, and (7) third-party certificate scope — ATEX 2014/34/EU, IECEx, UL, or CCC [S5][S7]. For buyers also sourcing power distribution downstream of the junction, the related distribution-box cost guide sets out how the same material grades cascade into the larger enclosure.
Two failure modes to pre-empt: underspecifying the dust group (III B vs III C) on a coal-handling build, and accepting a Type 4X-only box for service where the chemical compatibility matrix demands a documented resin or alloy. The first 2026 RFQ should be issued with these seven gates, and any shortlist below 4 lines should be expanded to cover at least one GRP Ex e, one aluminium Ex d, and one stainless Ex e candidate so that the supplier field is not prematurely narrowed.
