Bench reference for engineers choosing between optical glass, fused silica, optical plastics, and crystal alternatives — anchored on refractive index, Abbe number, transmission, thermal expansion, and cost-per-aperture.
Optical glass is a family of engineered inorganic glasses (typically silicate, borate, or phosphate based) doped with modifiers such as barium, lanthanum, and titanium to dial refractive index n<sub>d</sub> between roughly 1.45 and 2.14, with Abbe numbers V<sub>d</sub> from about 20 (high-dispersion flints) to 95 (low-dispersion crowns), per the standard Schott/SCHOTT-style classification scheme referenced across optics catalogs. The category competes directly with fused silica, optical-grade plastics (PMMA, polystyrene, polycarbonate, COC/COP), and specialty crystals such as calcium fluoride and sapphire in the wider optical glass design space.
Mechanical and Thermal Baseline
Density runs 2.2-2.5 g/cm³ for crowns and 3.5-6.0 g/cm³ for dense flints and lanthanum glasses, sitting 2-4× heavier than PMMA (~1.18 g/cm³) and ~80% the density of sapphire (~3.98 g/cm³).
Hardness lands at 400-700 Knoop (HK 0.1), elastic modulus 70-100 GPa, and coefficient of thermal expansion (CTE) 4-12 ×10⁻⁶/K for standard crowns versus 0.5 ×10⁻⁶/K for fused silica. Glass-to-glass bonding via optical contact works because the surface figure is λ/10 or better after polishing, with the limiting failure mode being dust-induced wedge rather than adhesion loss — a routine reality for any optical comparator reference flat.
Optical Performance: Transmission, Index, Dispersion
Internal transmission exceeds 90% in the 400-700 nm band for standard BK7-equivalent crowns at 25 mm thickness, dropping sharply past 2.5 µm for silicate glasses but remaining serviceable to 4 µm for calcium-lanthanum and beyond 6 µm for chalcogenide glasses (which are outside the classical "optical glass" envelope). [S1]
Refractive index tolerance is typically ±2 × 10⁻⁴ for catalog-grade glass and ±5 × 10⁻⁶ for precision-grade, with striae grade A or B per the established supplier inspection codes. For systems that depend on chromatic correction, pairing a high-n<sub>d</sub> flint (n<sub>d</sub> ≈ 1.72, V<sub>d</sub> ≈ 29) with a low-V<sub>d</sub> crown (n<sub>d</sub> ≈ 1.52, V<sub>d</sub> ≈ 64) is the standard doublet recipe — see the comparison table in the selection section for the operational numbers.

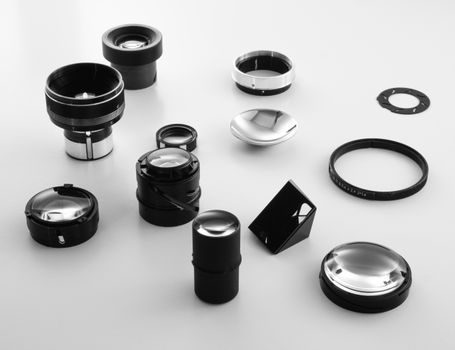

Comparison: Optical Glass vs Fused Silica vs Optical Plastics
The table below lines the four main options up against the four decision criteria a buy-side engineer hits first; a wider buyer-side framework sits in Linear Guide Advantages and Disadvantages: Spec-First Decision Map, but applied to optics the comparison sharpens to: [S1]
| Criterion | Optical glass (BK7-class) | Fused silica | PMMA / Polycarbonate | Crystal (CaF₂, sapphire) | |---|---|---|---|---| | n<sub>d</sub> range | 1.45-2.14 | 1.46 (fixed) | 1.49-1.59 | 1.43-1.78 | | V<sub>d</sub> range | 20-95 | 67 | 30-58 | 67-95 | | Transmission at 400-700 nm, 25 mm | >90% | >90% (UV extends) | 80-92% | 85-95% | | Cost relative to BK7 blank | 1× (baseline) | 3-8× | 0.05-0.2× | 5-50× |
Optical glass wins on the design freedom axis: you can dial index and dispersion independently across hundreds of catalog grades, which is not possible with fused silica or PMMA. Fused silica wins on thermal stability and UV transmission. Plastics win on cost, weight, and impact resistance. Crystals win on extreme spectral bands (UV to 7 µm for CaF₂) but lose on cost, machinability, and thermal shock tolerance.
Failure Modes and Engineering Limits
Glass is brittle: fracture toughness sits at 0.7-0.9 MPa·m^½ versus 1.5-3.0 for polycarbonate and ~2.0 for sapphire, which means edge chips and handling damage dominate the field-failure statistics more than bulk fracture.
Thermal shock resistance is quantified by the figure of merit σ·k/(α·E), where σ is tensile strength, k thermal conductivity, α CTE, and E elastic modulus; optical glass scores low here because α is high (5-9 ×10⁻⁶/K) and k is low (~1 W/m·K), so rapid temperature ramps above ~50 K/min in thick parts will craze or fracture. The same brittleness shows up in any sight glass on a process line — borosilicate sight glasses tolerate ~280°C continuous service but crack under water-hammer thermal shock well before mechanical pressure limits. Aging, index drift, and solarization under sustained UV are minor for silicate glasses (Δn < 10⁻⁵ over decades at room temperature) but rule them out for high-energy laser and UV-vacuum applications, where fused silica or CaF₂ become mandatory.
Who It Is For, Who It Is Not For
Use optical glass when the system needs more than 2 elements with chromatic correction, requires λ/4 or better transmitted wavefront, runs in a thermally stable environment (ΔT < 30°C/hr), and has a cost target that accommodates 1-3× plastic blank pricing.
Do not use it in weight-sensitive portable optics (drones, head-mounted, automotive HUD where a glass fiber composite or plastic hybrid saves grams), in extreme thermal shock environments (rocket fairing windows, cryogenic viewports), in ultra-high-volume consumer lenses where injection-molded polycarbonate is the only economic answer, or in deep-UV (<300 nm) and far-IR (>4 µm) bands where fused silica, MgF₂, or chalcogenide glasses take over. For architectural and facade applications where impact-safety codes apply, laminated or chemically strengthened variants exist but polycarbonate and tempered soda-lime dominate the glass curtain wall segment for good cost reasons.
Manufacturing, Tolerances, and Lead Time
Standard blank lead time is 2-6 weeks for catalog grades and 8-16 weeks for custom melts; precision-grade index homogeneity of ±2 ×10⁻⁶ and striae grade A push lead time to 12-20 weeks and cost 3-10× catalog pricing. [S1]
Surface specifications commonly reach 10/5 scratch-dig, λ/10 PV irregularity, and surface roughness <1 nm RMS on super-polished flats; the practical floor is set by metrology, not polishing. Magnetorheological finishing (MRF) and ion beam figuring (IBF) push to <0.5 nm RMS, used in EUV lithography and space telescope primaries. Coating (AR, BBAR, dichroic, IBS laser line) is a separate supply chain layer with its own 2-4 week cycle on top of substrate delivery.

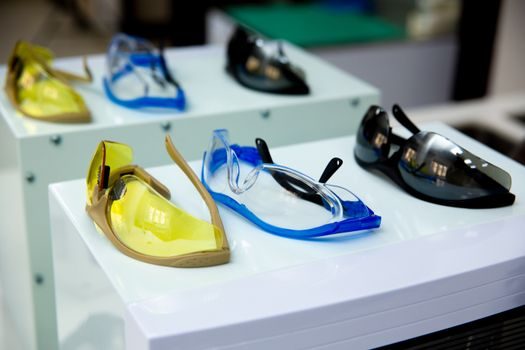

Sourcing and Standards Discipline
The category is governed by ISO 10110 (optical drawing indications), ISO 12123 (raw optical glass blanks), and the supplier-specific glass catalogs (Schott, Ohara, Hoya, CDGM, Sumita, Corning) which define n<sub>d</sub>, V<sub>d</sub>, density, CTE, and partial dispersion ratios P<sub>g,F</sub>; quality acceptance is typically per ISO 12123 or MIL-G-174. [S1]
For military, aerospace, and laser applications, MIL-PRF-13830B governs surface quality, while ISO 9022 series covers environmental test methods. Index measurement methods include V-block refractometry (precision ±5 ×10⁻⁵) and minimum deviation goniometry (±2 ×10⁻⁶); the latter is the calibration anchor for any optical comparator used in metrology labs. When the spec demands traceable index data, insist on the supplier's measured certificate per ISO 12123 rather than catalog nominals.
For procurement, lock the spec on n<sub>d</sub> ± 2 ×10⁻⁴, V<sub>d</sub> ± 0.5%, bubble/inclusion class 0 per ISO 12123, and clarify whether the blank is precision-annealed (index homogeneity grade H2 or better); without that, wavefront and birefringence drift will surface at integration. Watch for the 2025 second-source qualification of several Chinese CDGM grades into EU and US catalogs — useful for cost-down, but always re-verify index and striae on first articles.
