For commercial building services, the practical choice among PE-family pipes comes down to three variables: SDR (which sets the pressure class), service temperature envelope, and the jointing system that survives that envelope. The wrong pairing of SDR to operating pressure is the single most common cause of PE pipe failure in service [S3].
Polyethylene (PE), high-density polyethylene (HDPE), cross-linked polyethylene (PEX), and PE-RT each occupy a defined commercial niche. The material family is also the cheapest and most common plastic pipe grouping in commercial water supply, with cold-water distribution and low-temperature work (snow-melt, floor heating) as its baseline uses [S4]. For a working primer on the PE pipe family, see the encyclopedia entry.
Material Family and Where Each Fits
PE is the umbrella term; HDPE is the high-strength branch used where pressure and burial loads dominate. HDPE's design service window spans roughly -40°F to 140°F, and it survives freeze/thaw cycling without rupture, which makes it the default for buried commercial water mains and firewater laterals [S3]. Standard HDPE pressure pipe is dimensioned to either IPS, DIPS, CTS, or SIDR sizing systems, and medium diameters 50–110 mm cover most commercial branch and drain runs, while 110 mm and above (up to 1600 mm / 63 in.) handle firewater and industrial effluent [S5].
PEX is the cross-linked variant engineered for indoor hot and cold potable risers, with the flexibility to navigate congested ceiling and chase spaces typical of commercial builds [S4]. PE-RT is the raised-temperature PE that bridges PEX and HDPE: it ships in nominal sizes from 1/4 to 6 in. copper tube size (CTS), is normally supplied as SDR 9, and carries a standard hydrostatic pressure rating of 200 psi at 73°F [S8]. Where higher temperature hydronic lines or aggressive disinfectants come into play, the plastic pipe decision tree usually pushes the specifier toward CPVC or steel-plastic composite instead of any PE grade.
Pressure Rating, SDR, and Operating Envelope
An HDPE line's pressure rating is governed by the Standard Dimension Ratio (SDR = outside diameter ÷ wall thickness); lower SDR means thicker wall and a higher pressure class. The cardinal rule is that the pipe's pressure rating must exceed the system's maximum operating pressure, otherwise surge and fatigue failures follow predictably [S3]. HDPE is also flexible enough to bend to a radius of up to 20 times the pipe's outside diameter without rupture, which is what allows it to be pulled in long coiled runs under commercial slabs and parking decks [S3].
For commercial hot-water legs, PEX and PE-RT out-qualify standard HDPE, because HDPE's heat ceiling is around 140°F and its pressure rating drops as temperature climbs. PE-RT tubing at SDR 9 holds 200 psi hydrostatic at 73°F but the de-rating curve above that temperature is the figure the mechanical engineer must check against the building's actual hot-water loop, not the marketing brochure [S8].
Sizing Logic: Flow First, Pressure Class Second
The dominant sizing driver for HDPE is the required flow rate: larger diameters carry more fluid, but the engineer still has to balance that against available pump head, SDR, and velocity targets [S1]. In commercial work, sizing also has to reflect the sizing standard in play: IPS for oil/gas and most pressure mains, DIPS when the spec ties into ductile-iron infrastructure, CTS for smaller-diameter building services, and SIDR where legacy inside-diameter specs still govern a conduit run [S5].
For a deeper dive on residential-scale SDR choices and disinfectant compatibility (chlorine, chloramine), the related PE pipe selection for residential construction guide walks through the same trade-offs at smaller diameters. Designers working on warehouses or logistics buildings should also review PVC-U pipe selection for warehouses, because Schedule 40/80 PVC and HDPE often split the cold-water and drain/vend service in the same building.
Jointing, Fittings, and Installation Limits
PE pipe is sold in straight lengths or in flexible coils; long small-diameter runs frequently ship as coil to cut the number of joints, which is the most leak-prone element of any PE system [S5]. Butt fusion and electrofusion are the standard jointing methods for HDPE pressure pipe and require trained crews and calibrated equipment; mechanical pipe fittings (compression, flanged, or push-fit) are used where fusion is impractical, such as tie-ins to valves, pumps, and metallic risers.
The PPI Handbook of PE Pipe ties its design guidelines to installation under recognized industry standards for flexible pipe, and that link is not optional: an HDPE line designed to a high SDR but installed with poor bedding, improper embedment, or excessive deflection will fail in ways the SDR number never predicted [S7]. The Performance Pipe Field Handbook (Chevron Phillips Chemical) is the field reference most commercial mechanical contractors carry for fusion procedures and allowable pull-in forces.
Comparison: HDPE vs PEX vs PE-RT vs CPVC for Commercial Service
Four pipe options dominate the inside-of-building envelope where commercial plumbing decisions actually get made: [S4]
HDPE (PE 4710/PE 100): best for buried cold-water mains, firewater laterals, and site service. Temperature ceiling ~140°F, excellent chemical and abrasion resistance, fusion-jointed, 50–100 year design life, fully recyclable [S3]. Limit: not specified for indoor hot-water distribution above 140°F.
PEX (cross-linked PE): best for indoor hot/cold potable risers and branch piping. Flexible coil installation in congested chases, low maintenance, hot-water capability beyond HDPE's ceiling, 50+ year life when properly installed [S2][S4]. Limit: not for outdoor UV-exposed runs without protection; not for high-temperature hydronic lines.
PE-RT (raised-temperature PE): best for hydronic and indoor hot-water distribution where fusion is not required. Ships SDR 9 CTS, 200 psi hydrostatic at 73°F, sizes 1/4–6 in. [S8]. Limit: still a thermoplastic with a lower temperature ceiling than CPVC.
CPVC: best for high-temperature commercial hydronic and hot-water lines. Handles supply temperatures up to 120°C, indoor use, low corrosion [S4]. Limit: cost premium and the chlorine content rules it out of some potable specs; see the PPR pipe family when fusion-jointed polypropylene is preferred over chlorinated vinyls.
Lifecycle, Sustainability, and Code Reality
The Uni-Bell PVC Pipe Association (PVCPA) has published a North American industry-wide environmental product declaration giving PVC a life expectancy of more than 100 years in water and sewer service, a figure often cited in plastic-pipe sustainability arguments [S2]. PEX is independently estimated at 50+ years under proper installation, and HDPE's published design life sits in the 50–100 year band depending on pressure class and soil chemistry [S2][S3].
For commercial specifiers, the real procurement filter is code acceptance: PE pressure pipe must be listed to the applicable ASTM standard for the service (ASTM F2620 for heat-fusion, ASTM F2764 for PEX, ASTM F2623 for PE-RT, AWWA C906 for HDPE water main), and the local jurisdiction must accept the chosen jointing method. When the design also includes a metallic riser or transition piece, the stainless pipe and pipe clamp selections on those transition points have to match the PE line's expected thermal movement.
What Trips Up PE Pipe in Commercial Service

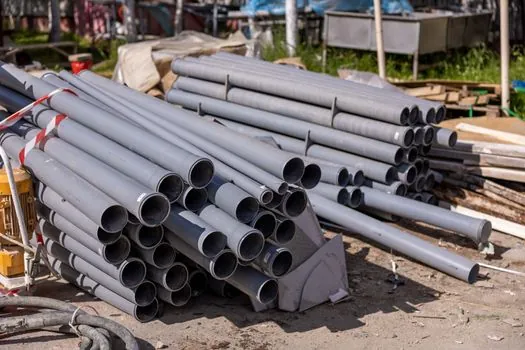

Three failure modes account for most field callbacks on commercial PE jobs. First, SDR underspec: the pipe is rated at or just above the static working pressure but has no margin for surge or water-hammer transients [S3]. Second, UV exposure: HDPE and PEX degrade under direct sunlight; outdoor above-grade runs require sleeving or a UV-stabilized jacket, and storage on-site beyond a few months is a known source of premature ageing [S2]. Third, jointing errors: butt-fusion parameters (temperature, soak time, interface pressure) that drift out of the qualified procedure create weak planes that fail years later, not on the day of the pressure test. The field handbook is explicit that the PE design values are only valid when the pipe is installed under a recognized flexible-pipe standard [S7].
For project teams that also need to evaluate metallic risers, gas lines, or hybrid composite risers in the same commercial building, the steel-plastic composite pipe selection guide for commercial buildings covers the limit cases where PE alone will not meet the spec.
Trackable signals for the next planning cycle: AWWA C906 updates for HDPE water main qualification, any revision to ASTM F2620 fusion procedures, and ASTM F2623 updates on PE-RT hydrostatic curves at elevated temperature. Local jurisdictional acceptance of PE-RT for commercial domestic hot-water risers is the variable most likely to shift between 2026 and 2027 in North American markets.
