Industrial PE pipe selection starts with three hard numbers: a standard HDPE service ceiling of 140°F and 300 psi, dimension ratios (DR) from 7 to 32.5 mapping to 335 down to 63 psi pressure classes, and the ASTM D3350 cell classification that locks in density, SCG resistance, and HDS [S1][S5].
Facilities that get the selection wrong usually fail on temperature, chemical compatibility, or compressed-air code compliance, not on diameter. The right pipe for an acid line, a fly-ash slurry, or a plant compressed-air loop is determined by the cell class, the color/marking, and the fusion method, not by the nominal size alone [S3][S4][S5].
Pressure Class and Dimension Ratio (DR/SDR)
PE pipe pressure rating is driven by the dimension ratio, the outside diameter divided by the minimum wall thickness, and the material's hydrostatic design stress [S1][S2]. ISCO lists smooth-wall HDPE in DR 7 through DR 32.5, which spans 335 psi down to 63 psi at 73°F, the standard HDS reference temperature [S1]. The PPI Handbook of Polyethylene Pipe, the controlling design reference, requires the pipe to be installed to a recognized flexible-pipe standard before those design factors are valid [S7].
For most chemical and process lines in a plant, DR 11 (about 160 psi) and DR 17 (about 100 psi) are the workhorses; high-pressure plant fire loops and tank-farm mains typically step down to DR 9 or DR 7, while gravity or low-pressure service moves to DR 21 or DR 26 [S1][S5]. Selecting DR on operating pressure alone is a mistake: surge events and cyclic loading drop the effective pressure rating, and HDPE is the most surge-tolerant of the common pressure-pipe materials, but only when the design includes a surge allowance [S1][S5].
Material Designation: PE 4710 vs PE 2708 and ASTM D3350 Cell Class
Two material designations now dominate industrial PE: PE 4710 and PE 2708, with older codes PE 2606, PE 3608, PE 3710, and PE 4608 phased out under the PPI/ASTM revision [S2]. PE 4710 carries a higher HDS, rated up to 1000 psi in water at 73°F, and a minimum PENT (slow crack growth) value of 500 hours, which is the figure you compare against older PE 3408 data sheets [S2]. The cell-class string in ASTM D3350, for example PE445476E for 1/2 to 4-inch blue PE100 and PE445476C for 6 to 12-inch black, encodes density, melt index, flexural modulus, tensile strength, SCG resistance, and UV stabilization in one line [S4].
For an industrial buyer, the cell class is the single most useful line on a data sheet: it lets you compare one supplier's PE 4710 to another's without re-reading the whole TDS. If the datasheet does not list the cell class, treat the material as unverified for chemical or compressed-air service [S4]. Specifications for chemical, slurry, or fire-loop service should be written around the cell class plus the HDS value, not around a generic "HDPE" callout.

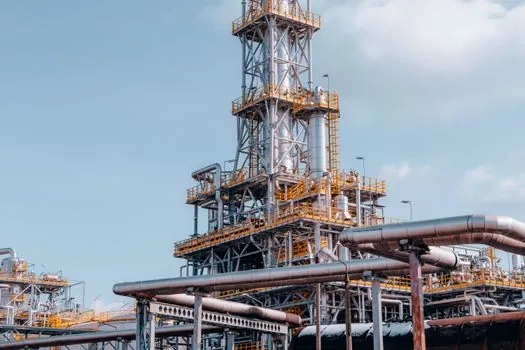

Service Temperature and Chemical Resistance Limits
Standard HDPE is rated for constant service up to 140°F (60°C) and pressures up to 300 psi; above that, you step into PE-RT or a different polymer family [S5]. The PPI chemical-resistance document TR-19 is the reference table for compatibility at elevated temperature, and it must be checked against the specific fluid and concentration, not just the generic family [S5]. The same pipe that carries a dilute caustic at 100°F for 20 years can be attacked by a stronger concentration at 120°F inside five years, so generic "HDPE is chemical resistant" claims are not a substitute for the TR-19 lookup [S3][S5].
For higher-temperature district-energy or industrial cooling loops above 140°F, PE-RT (raised-temperature polyethylene) is the family suppliers like ISCO list specifically for elevated-temperature service, including industrial loops and advanced cooling, rather than the standard HDPE workhorse [S1]. Specialty liners and dual-containment systems extend HDPE into hazardous-waste and acid-bath service where a single-wall pipe would not be acceptable on environmental grounds [S5].
Compressed Air and Other Code-Governed Services
Compressed air is the highest-risk plastic-pipe application in a plant because of the stored energy, and most thermoplastics, including PVC and PP, fail the CAL/OSHA impact and fragmentation tests and cannot be used [S4]. PE100 (blue, ISO 15494 supplement B, MRS 10) is the thermoplastic that has passed the CAL/OSHA requirements for compressed air and meets ASTM D1599 quick-burst and ASTM D1598 1,000-hour sustained-pressure tests, with joining methods that satisfy California Unified Pressure Vessel Safety Order 462(m)(3) [S4].
The OSHA standard interpretation of February 29, 1991, requires that any thermoplastic used for compressed air or gas service be either constructed of or encased in shatter-resistant material, and the ANSI/A13.1 color scheme (blue for compressed air) is the field identifier that prevents cross-connection with potable, gas, or process lines [S4]. For other code-driven services, gas distribution under ASTM D2513 now requires a minimum SCG cell class of 7, and pipe markings for potable water, sewer, or reclaimed water are prohibited on gas pipe to prevent misidentification [S2].

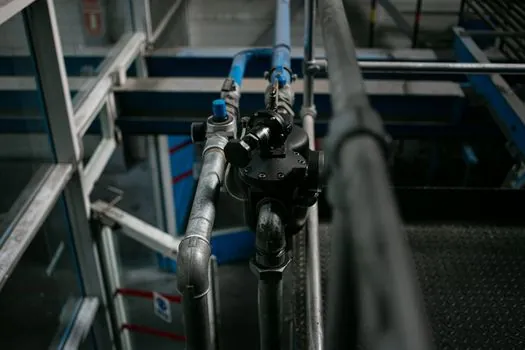

Sizing Range, Fittings, and Joining Methods
Industrial HDPE is available from ½-inch through 65-inch in both IPS and DIPS, with custom fabrication up to 65-inch and large-diameter solid-wall systems up to 136-inch OD (and 157-inch at low pressure) for outfall and intake lines [S6][S8]. For a 4-inch factory-air drop, the practical envelope covers molded socket-fusion fittings, butt-fusion, and electrofusion couplings, with the manufacturer (e.g. AGRU/Asahi Air-Pro) molding the size, material, and date code into the fitting for traceability [S4].
Fusion joints are self-restrained and eliminate thrust blocks, which removes a whole class of anchor and block detailing on above-grade plant runs, and butt-fusion, socket-fusion, and electrofusion are the three methods specified where threaded or flanged joints would otherwise be the leak path [S1][S4][S5]. For residential-style service taps and small-diameter building loops, see PE pipe selection for residential construction: SDR, sizing, and disinfectant limits for the SDR and disinfectant limits that do not apply to industrial chemical or compressed-air service.
Who HDPE/PE100 Is For, and Where It Is Not
HDPE/PE100 is the right pick for acid and caustic lines, mining slurries, fly-ash and bottom-ash slurry, tank-farm fire loops, dredge and tailings lines, factory compressed air (PE100 blue, with the right cell class), and dual-containment hazardous-waste runs [S3][S4][S5]. It is the wrong pick where service temperature stays above 140°F (use PE-RT or metal), where the fluid is a strong oxidizer or aromatic solvent outside the TR-19 envelope, or where the line must meet a fire-rating or high-temperature code that HDPE cannot satisfy [S1][S5].
For a spec-first comparison, three decision criteria usually decide the call: (1) maximum operating temperature, with HDPE capped near 140°F and PE-RT extending that envelope; (2) chemical family, with TR-19 lookup required for anything beyond dilute acids, bases, and water; (3) code-driven service, with PE100 blue and the PE445476 cell class required for compressed air, and PE 4710 with cell class 7 SCG required for ASTM D2513 gas [S2][S4][S5]. Match those three to the line, then size on DR, then verify the fusion procedure and the cell class on the delivered pipe, and the spec holds.
Trackable signals for the next spec cycle: the PPI TR-19 chemical-resistance revision for higher-temperature acids, the ASTM D3350 cell-class table updates for higher-MRS PE compounds, and any change to the CAL/OSHA compressed-air order that would expand or shrink the list of approved thermoplastics. Confirm the cell class and color code on each shipment's data sheet before the pipe goes into the trench, because the marking on the pipe, not the supplier's catalog, is what the inspector will check [S2][S4].
